Grassroots Performance - BMW E36 DIRECT-FIT 19-ROW OIL COOLER KIT

COMPLETE BOLT-ON BMW E36/E46/E9X 19-ROW OIL COOLER KIT

ALL BMW E36 KITS NOW COME EQUIPPED WITH A DIRECT FIT MOUNTING BRACKET. THIS BRACKET ALLOWS YOU TO MATE THE COOLER TO YOUR EXISTING FACTORY BOLT HOLES ON YOUR UPPER RAD SUPPORT.  NO CUTTING, NO DRILLING, NO HASSLE!

Simple installation is key for this custom direct-fit oil cooler kit. A vital upgrade to any performance/track builds for added cooling and engine bay space. Your oil leaves the block and travels through our adjustable length high temperature/high-pressure hoses. Grassroots line of performance oil coolers can be used for a variety of oil types, increasing cooling efficiency and oil capacity. Classic design and proven engineering, this 2" thick dual-core oil cooler kit allows your oil to maintain peak performance temperature, also aiding the engine cooling system from heat soaked internals.

Note: This kit is for BMW engines with side feed oil ports on the filter housing. If you need clarification please reach out to us and we will confirm.

SPECS:

• Core Size: 11.5" x 5.5" x 2.00"
• Overall Size: 13" x 6.6" x 2.00"
• High-Quality T-6061 Aluminum
• Working load tested up to 150 psi
• .38L increased oil capacity
• -10AN In/Out
• Suitable for Engines, Transmissions, Differentials, Power Steering, and anything else you can cool using oil.

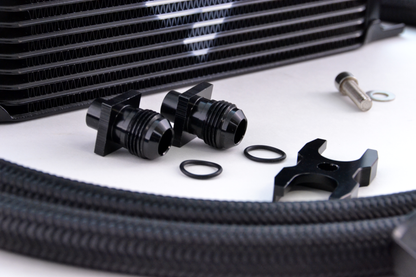

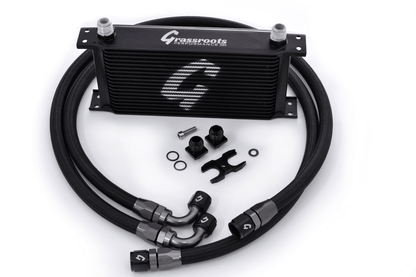

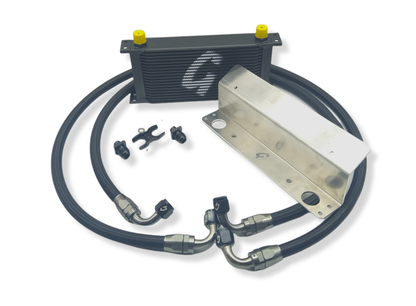

INCLUDES:

[1] 19 Row Oil Cooler

[2] (1.2m) Stainless Steel Braided Nylon Hose

[2] -10AN Straight Fittings  Installed on Lines (Adjustable Length)

[2] -10AN 90-Degree Swivel Fittings  Installed on Lines (Adjustable Length)

[1] BMW Series Adapter

[2] OEM BMW O-rings for a leak-free installation

APPLICATION:

BMW E36 Euro E82 E9X 135/335 E46 M3 E90 E92
92.98 BMW E36 w/ 6 cyl. engine (Euro oil filter housing)
01.06 BMW E46 M3
06.11 BMW E90 335i/335xi/335i/xDrive (Sedans)
07.12 BMW E92 335i/335is/335xi/335i/xDrive (Coupes)
07.12 BMW E93 335i Convertible
08+ E82 BMW 135i 1M Coupe

(1) DIRECT FIT BRACKET FOR E36 CHASSIS
