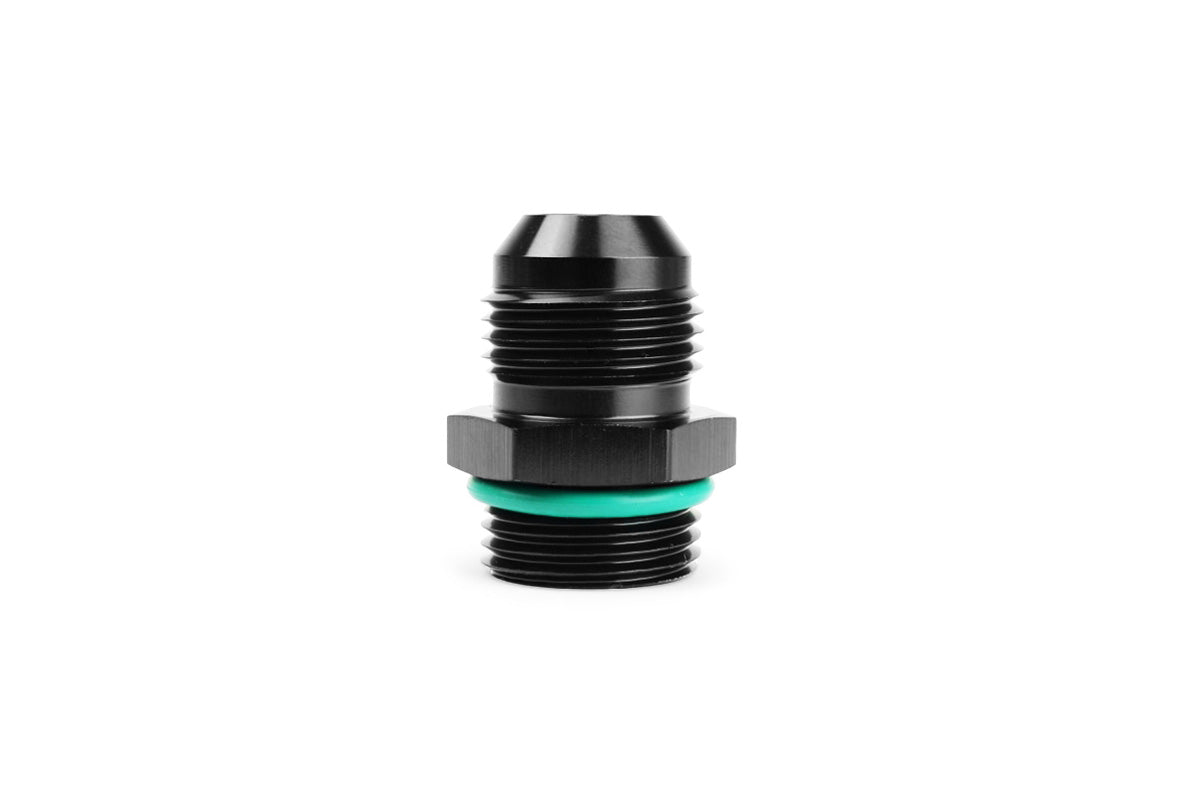

Improved Racing - -10AN fitting for ENV, FSM, and MHX Series (-10AN ORB)

Improved Racing - -10AN fitting for ENV, FSM, and MHX Series (-10AN ORB)

OM-10-10

$6.00 CAD
$6.00 CAD
Sale Sold out
Need help finding the right part? Call us at (239) 270-5116 — Monday–Friday, 9am–5pm EST.
View full details

RaceFlux's aluminum AN fittings were designed specifically for use in motor sports where maximum fluid flow and reliability are paramount. The fittings are reusable and their black anodized finish offers a fresh, stealthier look over traditional red and blue fittings.

The low-profile design allows for additional clearance in vehicles where where spaced is limited.

Features and Benefits

  • Male straight AN thread O-Ring Boss (ORB) fitting with Viton o-ring, to male AN / JIC flared 37-degree thread or smooth hose barb
  • Compliant with SAE J1926-1 / MS16142 as well as SAE AS5202 / MS33649
  • Shorter than standard straight thread (O-ring) side maximizes clearance
  • Reusable
  • Lightweight black anodized aluminum construction
  • 1 year manufacturer's warranty against defects in materials or workmanship
Part #
OM-10-10
Brand
RaceFlux
Color
Black
Primary Material
6061-T6 aluminum
Finish
Type II Anodized
Size
-10AN O-Ring to -10AN Male
Fitting Angle
Straight
Connection Type
AN Flare 37º JIC
O-Ring Boss
Connection A Type
O-Ring Boss
Connection A Size
-10
Connection A Gender
M
Connection B Type
AN Flare 37º JIC
Connection B Size
-10
Connection B Gender
M
Maximum Operating Temperature
302°F (150°C)
Minimum Operating Temperature
-40°F (-40°C)
Maximum Operating Pressure
1000 psi (68.94 bar)
O-Ring / Gasket Material
FKM (Viton)
Swivel
None
on installation only
Standards & Certifications
Anodizing per ISO 7599
O-Ring Boss Threads per SAE J1926-3 & ASME B1.1
O-Ring Boss Threads per SAE AS5202
