Nitrous Oxide System - NOS Sportsman Fogger Nitrous System Small Block V8 (05088NOS)

Nitrous Oxide System - NOS Sportsman Fogger Nitrous System Small Block V8 (05088NOS)

Nitrous Oxide System-05088NOS

$1,787.00 CAD
$1,787.00 CAD
Sale Sold out
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
View full details

OVERVIEW

Sportsman Fogger Nitrous System for V8 Engines

Installation Notes:
  • To supply the carburetor and the Sportsman Fogger System in carbureted applications, use a fuel pump designed to operate between 5 and 10 psi with a flow rate of 0.1 gallons per hour per horsepower at 6 psi.
  • Fuel injected applications will require a fuel pump that flows at least 0.1 gallons per hour at system pressure. For example at 42 psi flowing, a motor that makes 450 hp while the nitrous system is activated will require at least 45 g.p.h. at 42 psi flowing, and going down the track.
  • Due to high power levels and cylinder pressures produced by Sportsman Fogger Systems it is highly recommended that you use high quality forged pistons and rods as well as high quality racing ignition system with timing control. If horsepower gain in more than 40% of original, forged pistons are recommended.



    Jets Included:
  • Qty 8 each of #22, #24, #26 and #28 jets
  • Jetting is for 175 and 250HP power levels



    • Type
    Port Injected 8 cyl.
    Bottle
    With Bottle
    Usage
    Street/Performance
    Quantity
    Sold as a kit
    Bottle Included
    Yes
    Bottle Brackets Included
    Yes
    Dual Stage
    No
    Nitrous System Style
    Wet
    Delivery Style
    Direct port/Intake manifold
    Maximum Advertised Horsepower Increase
    250
    Activation
    Microswitch
    Jet Sizes Included (hp)
    175, 250
    Bottle Material
    Aluminum
    Bottle Color
    NOS Blue
    Bracket Material
    Steel
    Nitrous Bottle Capacity (lbs.)
    10
    Solenoid Quantity
    4
    Maximum Horsepower
    300
    Fuel Solenoid
    PowerShot
    Nozzle Quantity
    8
    Manufacturer's Part Number:
    05088NOS
    Shipping Weight:
    26.6
    Package Height:
    10.2
    Package Depth:
    24.6
    Package Width:
    11.2

    50-250 HP at Your Fingertips!

    The NOS Sportsman Fogger Nitrous Systems are engineered to inject a precise fuel/nitrous mixture into each port on all domestic and foreign 4, 6, and 8-cylinder engines!

    These kits offer superior tuning as the horsepower levels are adjustable by simply changing the jets at the individual Fogger 2 Nozzles. An additional degree of reliability is supplied by the latest solenoid technology which allows for an adjustability range of thirty to fifty percent extra horsepower gain!

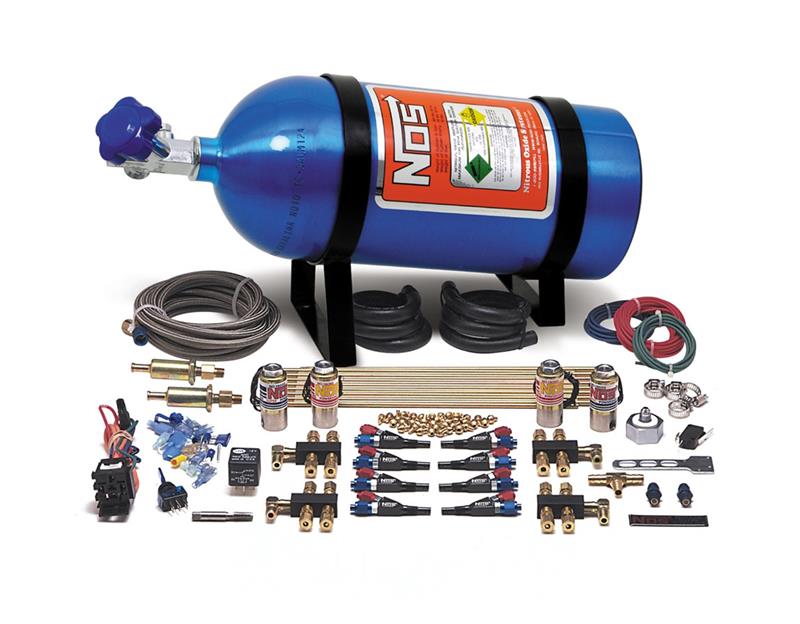

    These systems includes an empty 10lb bottle, nitrous and fuel solenoids, Fogger 2 nozzles with tap for plumbing them, filters, fittings, tubing, distribution blocks, jets, switches, braided hose, and all other hardware for a complete installation (requires removal of intake manifold for plumbing).



    Features:
  • Engineered Precise Distribution
  • Superior Atomization and Tuning
  • Precise Injection Of Fuel/Nitrous
  • Adjustable Power Levels
  • Extreme Degree Of Reliability
  • Includes Necessary Electrical Hardware
  • Includes Necessary Mounting Hardware
  • Small Block V8
  • Carb and EFI
