FuelTech USA - Automotive Relay Holder Kit - 4 Pin - 5 Pin Connector

The FuelTech Relay Holder Kit is the ideal solution for securely mounting 4-pin or 5-pin Mini ISO automotive relays (regular 40A relays) in high-performance applications. Perfectly designed to complement our 40A Relay with a Built-In Fuse, this kit provides a secure and stable connection, even in high-vibration environments. Featuring high-current crimp terminals with special spring pressure contact, it ensures consistent performance and dependable connectivity.

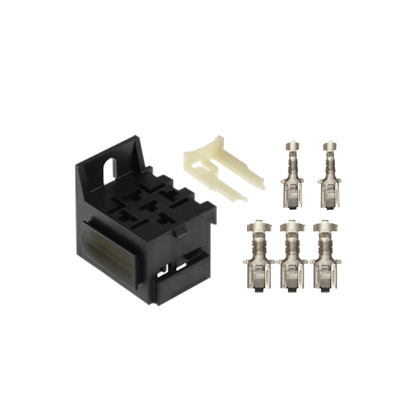

Kit Includes:

• Mounting Housing with flap, allowing for individual mounting or interlocking multiple units.
• 3 high-current crimp terminals for pin 30, 87, and 87a, compatible with 3.3mm² to 5.3mm² wire (12AWG to 10AWG).
• 2 low-current crimp terminals for pins 85 and 86, compatible with 0.5mm² to 0.8mm² wire (20AWG to 18AWG).
