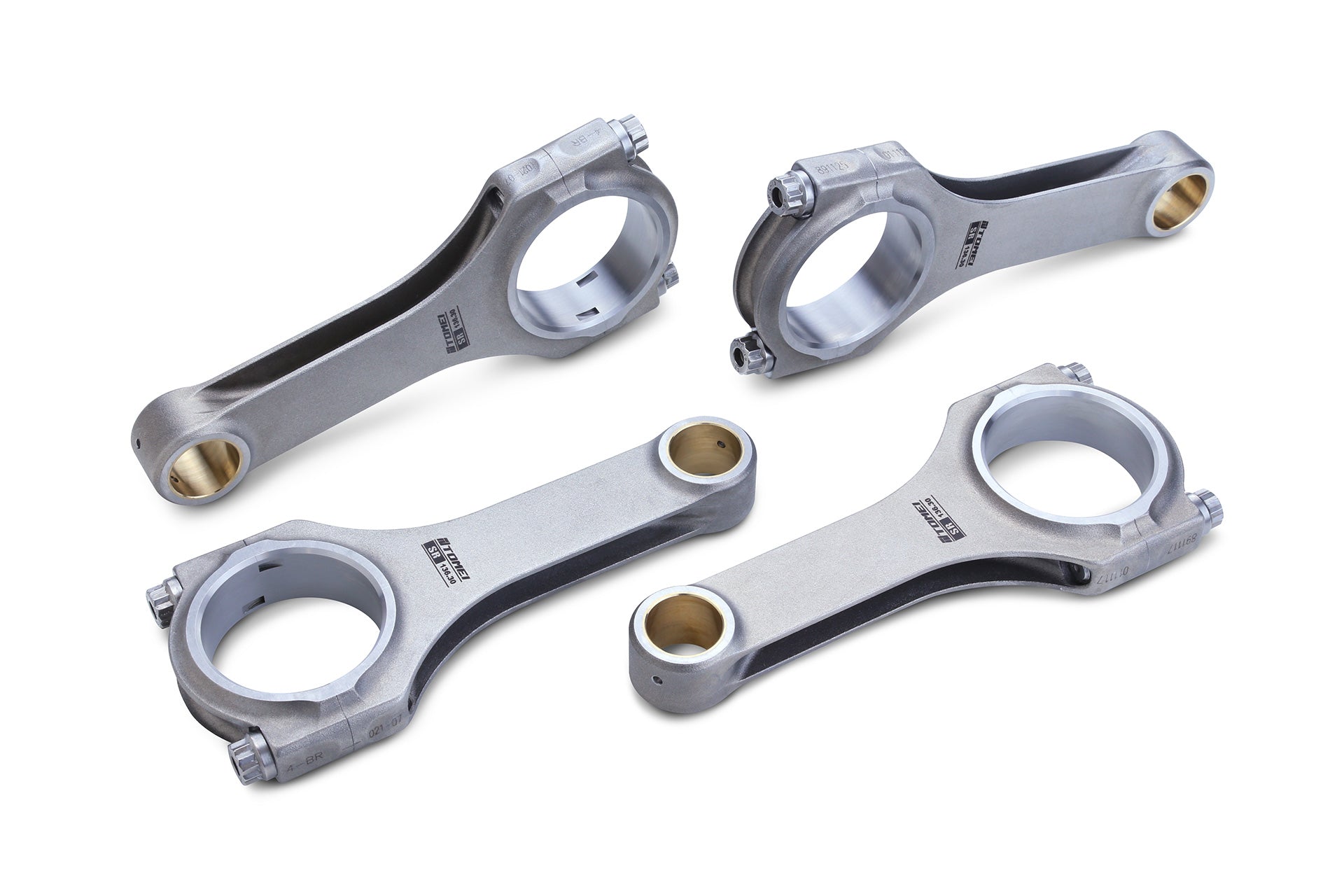

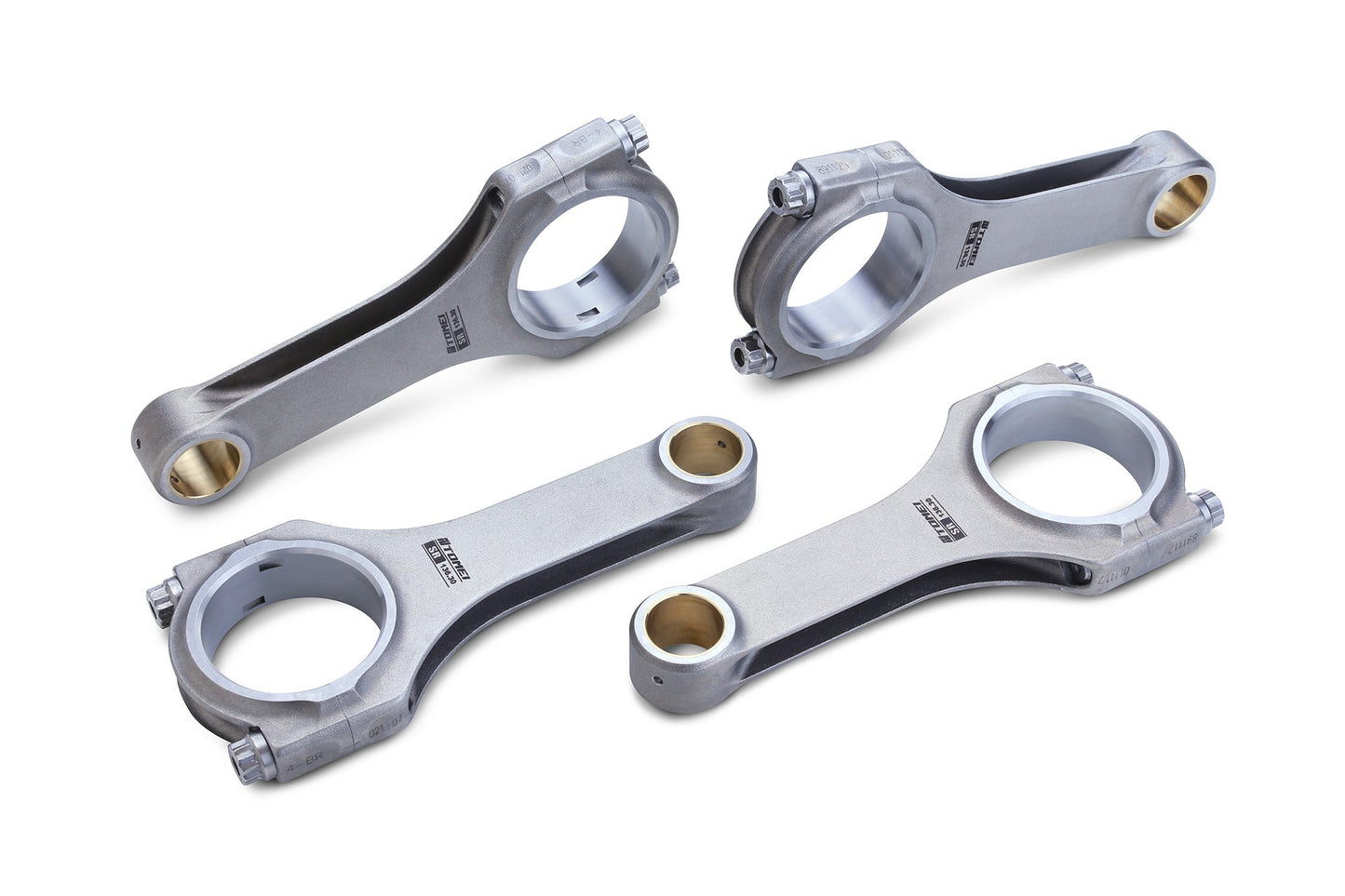

Tomei - FORGED H-BEAM CONNECTING ROD SET SR20DE(T)/SR18DE 136.30mm (STD/2.2) (TA203A-NS08A)

Tomei - FORGED H-BEAM CONNECTING ROD SET SR20DE(T)/SR18DE 136.30mm (STD/2.2) (TA203A-NS08A)

TOMEI-TA203A-NS08A

$1,009.00 CAD
$1,009.00 CAD
Sale Sold out
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
View full details

OVERVIEW

The connecting rods role is to transfer the compression pressure that the piston receives to the crankshaft. When the connecting rod becomes one with the piston the connecting rods internal weight and balance then plays a major factor in the smoothness of the engine rotation assembly and durability at high RPM. The weight factor itself will dramatically change the engine characteristics. The overall strength, balance and light weight properties that he Tomei connecting rod design will take your engine to the next level.

C-to-C (mm) 136.30 (STOCK ±0.0)
BE.BORE×WIDTH
(mm)		 51.0×22.8
PE.BORE×WIDTH
(mm)
(Bush inner cir)		 22.0×22.8
MATERIAL SNCM439
BOLT ARP L19
3/8-24 40.0mm
BEARING SIZE INNER DIA. 48.0mm
WIDTH 17.0mm
WEIGHT (g) 562.0
