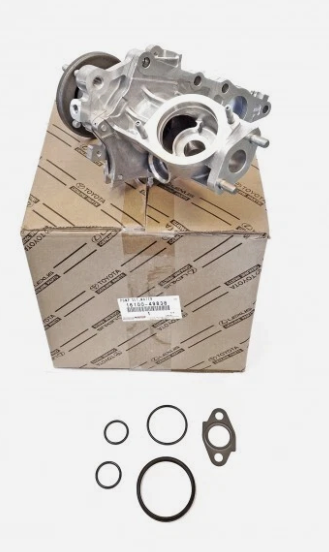

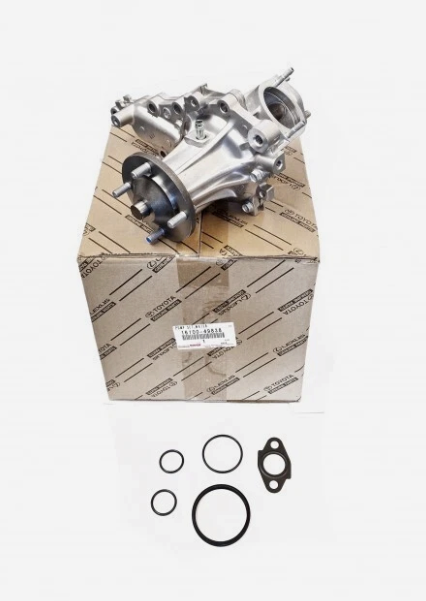

Toyota OEM 1JZ/2JZGE VVTI & Non VVTI Water pump Assembly 16100-49838 & 16100-49877

Genuine Toyota OEM Water Pump Assembly

**16100-49838**
(Hub 91mm / PCD 74mm) Fits Lexus GS300, SC300, Toyota Aristo, Soarer & Supra 2JZ-GE (Non-VVTi)

- Replacement Water Pump Assembly Toyota 2JZ-GE (Non-VVTI)

Water Pump Hub Sizes:

Flange Diameter O.D. = 91mm
Centre Bore Diameter O.D. = 58mm
Hub Stud P.C.D. = 74mm
Hub Studs = 8mm
Supplied with:

Thermostat O Ring
Rear Bypass Pipe Gasket
Water neck O Rings (2pce)
Water Pump to Engine Block O Ring
Vehicle Compatibility:

- Lexus GS300 JZS147 (2JZ-GE Non VVTi)
- Lexus SC300 JZZ31 (2JZ-GE Non VVTi)
- Toyota Aristo JZS147 (2JZ-GE Non VVTi)
- Toyota Crown JZS147/9 (2JZ-GE Non VVTi)
- Toyota Soarer JZZ31 (2JZ-GE Non VVTi)
- Toyota Supra JZA80 (2JZ-GE Non VVTi)

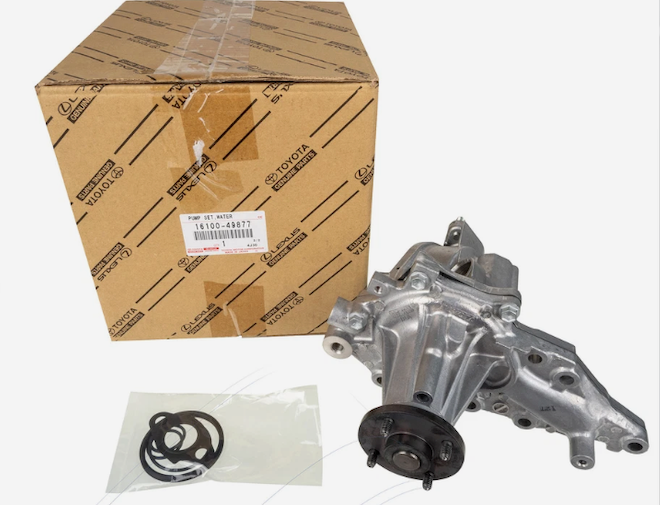

*16100-49877*
(Hub 64mm / PCD 49.5mm) Fits Lexus IS300, GS300 & Toyota Aristo, Chaser, Cresta, Crown, Mark II, Soarer, Supra & Verossa 1JZ-GE / 2JZ-GE (VVTi)

Water Pump Hub Sizes:

• Flange Diameter O.D. = 64mm
• Centre Bore Diameter O.D. = 28mm
• Hub Stud P.C.D. = 49.5mm
• Hub Studs = 6mm

Supplied with:

• Thermostat O Ring
• Rear Bypass Pipe Gasket
• Water neck O Rings (2pce)
• Water Pump to Engine Block O Ring

Vehicle Compatibility:

- Lexus IS300 JEC10 (2JZ-GE VVTi)
- Lexus GS300 JZS160 (2JZ-GE VVTi)
- Toyota Chaser JZX100 (1JZ-GE VVTi)
- Toyota Cresta JZX100 (1JZ-GE VVTi)
- Toyota Crown JZS171 (1JZ-GE VVTi)
- Toyota Mark II JZX100 (1JZ-GE VVTi)
- Toyota Mark II JZX110 (1JZ-GE VVTi)
- Toyota Mark II Blit JZX110 (1JZ-GE VVTi)
- Toyota Verossa JZX110 (1JZ-GE VVTi)
- Toyota Aristo JZS160 (2JZ-GE VVTi)
- Toyota Crown JZS179 (2JZ-GE VVTi)
- Toyota Soarer JZZ31 (2JZ-GE VVTi)
- Toyota Supra JZA80 (2JZ-GE VVTi)
