05-10 Solstice/Sky & 14+ Slingshot AR5 CV to U-Joint Output Adapter Kit

AR5 CV to U Joint Output Adapter Flange Kit

AR5 CV to U Joint Conversion Kit for Solstice Sky and Slingshot Transmissions

The AR5 CV to U joint output adapter flange kit converts Solstice Sky and Slingshot AR5 transmissions from a factory CV style output to a traditional U joint driveshaft setup. This allows builders to run a stronger simpler and more serviceable one piece driveline in swap and performance applications.

Unlike Colorado AR5 transmissions these car based units use a CV flange output which limits driveshaft options. This kit solves that by enabling standard 1310 or 1350 U joint configurations.

Engineered for Strength Simplicity and Swap Compatibility

• Converts AR5 CV flange output to U joint driveshaft connection
• Supports 1310 and 1350 U joint configurations
• Eliminates factory CV joint limitations
• Simplifies custom driveshaft builds
• Designed for swap and performance applications
• CNC machined billet construction for strength and precision

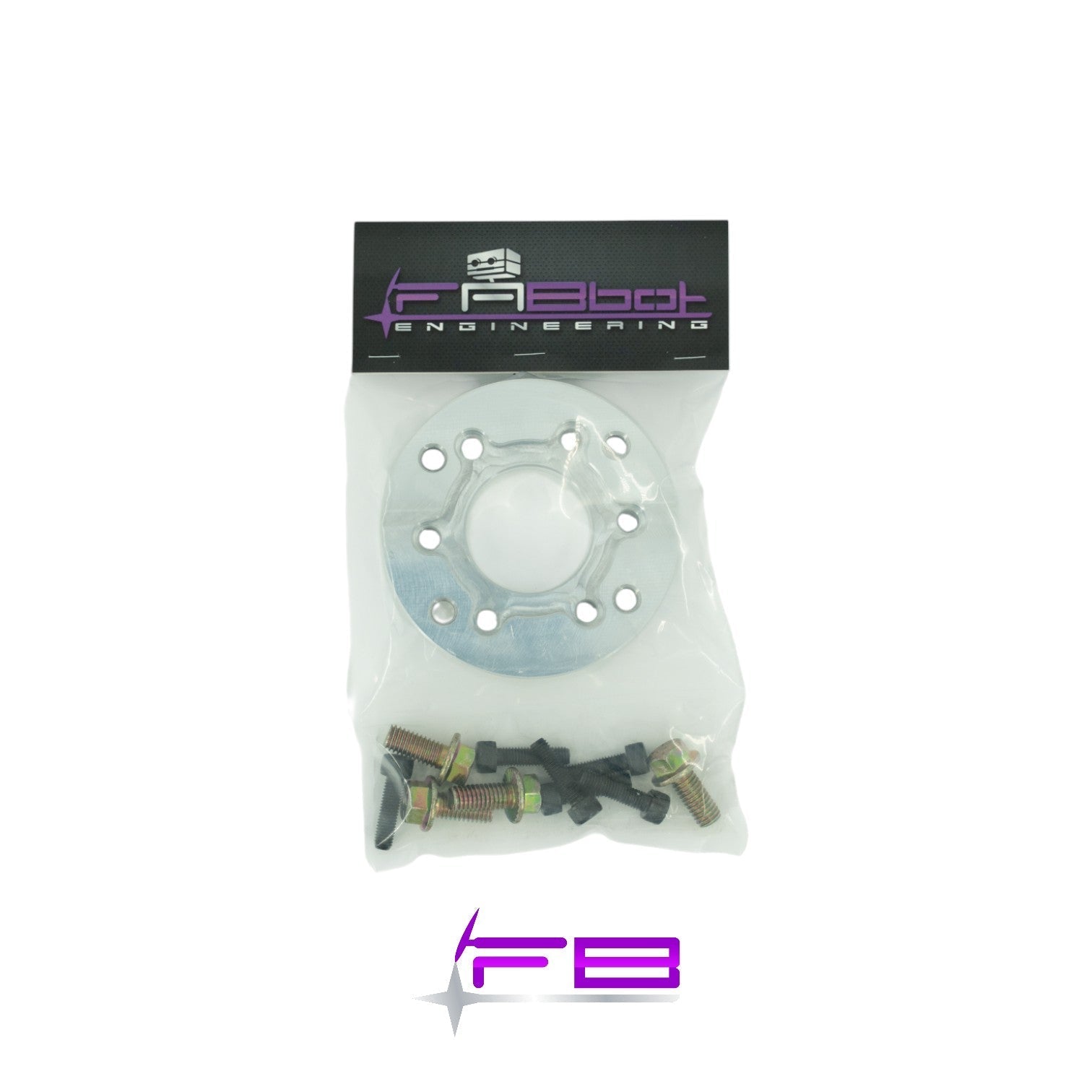

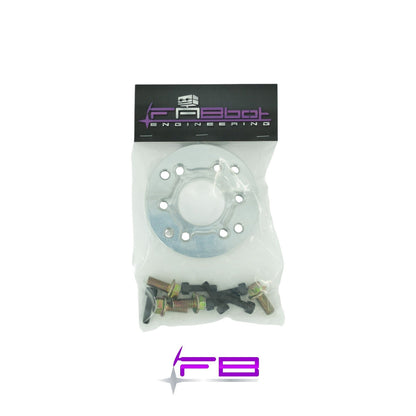

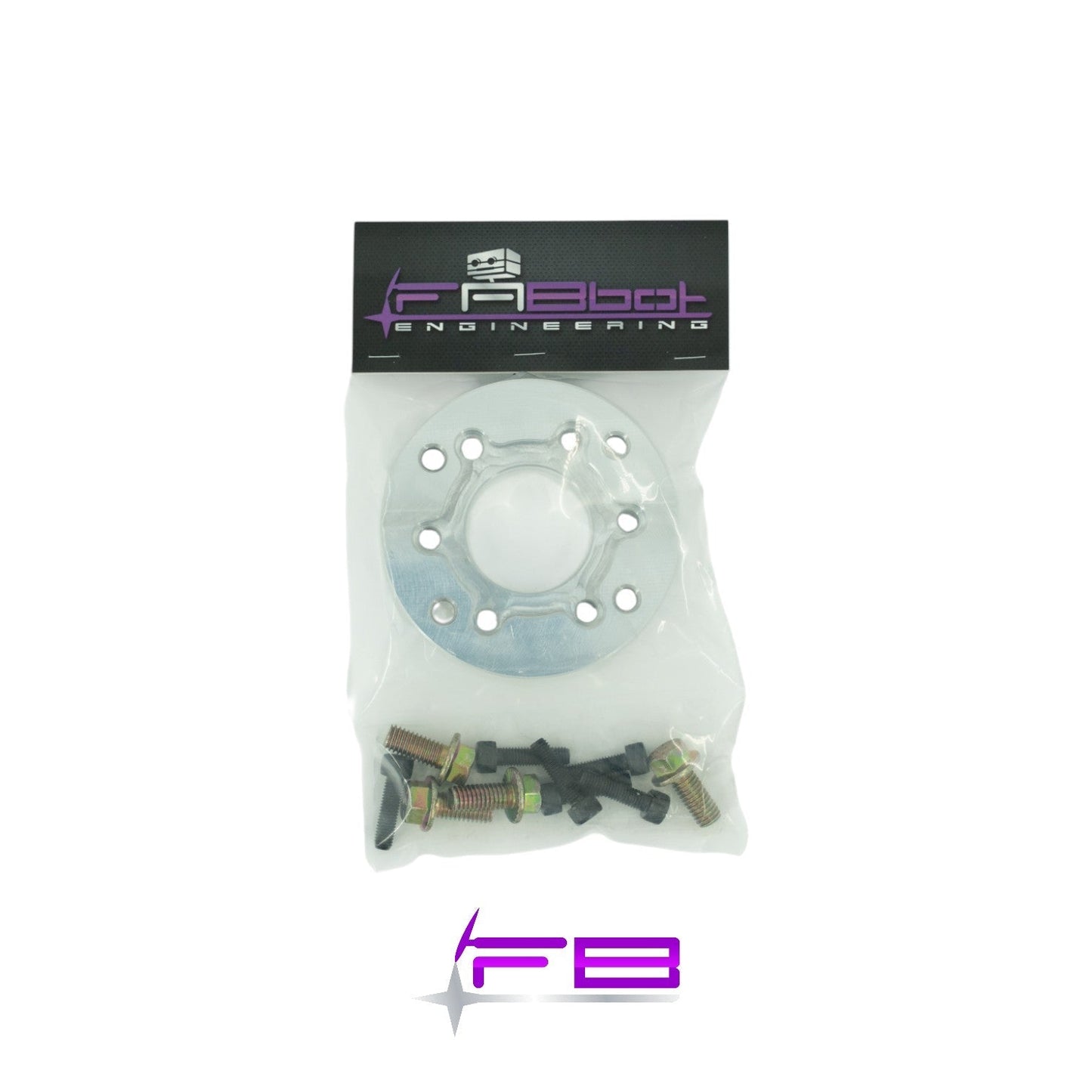

Included Components

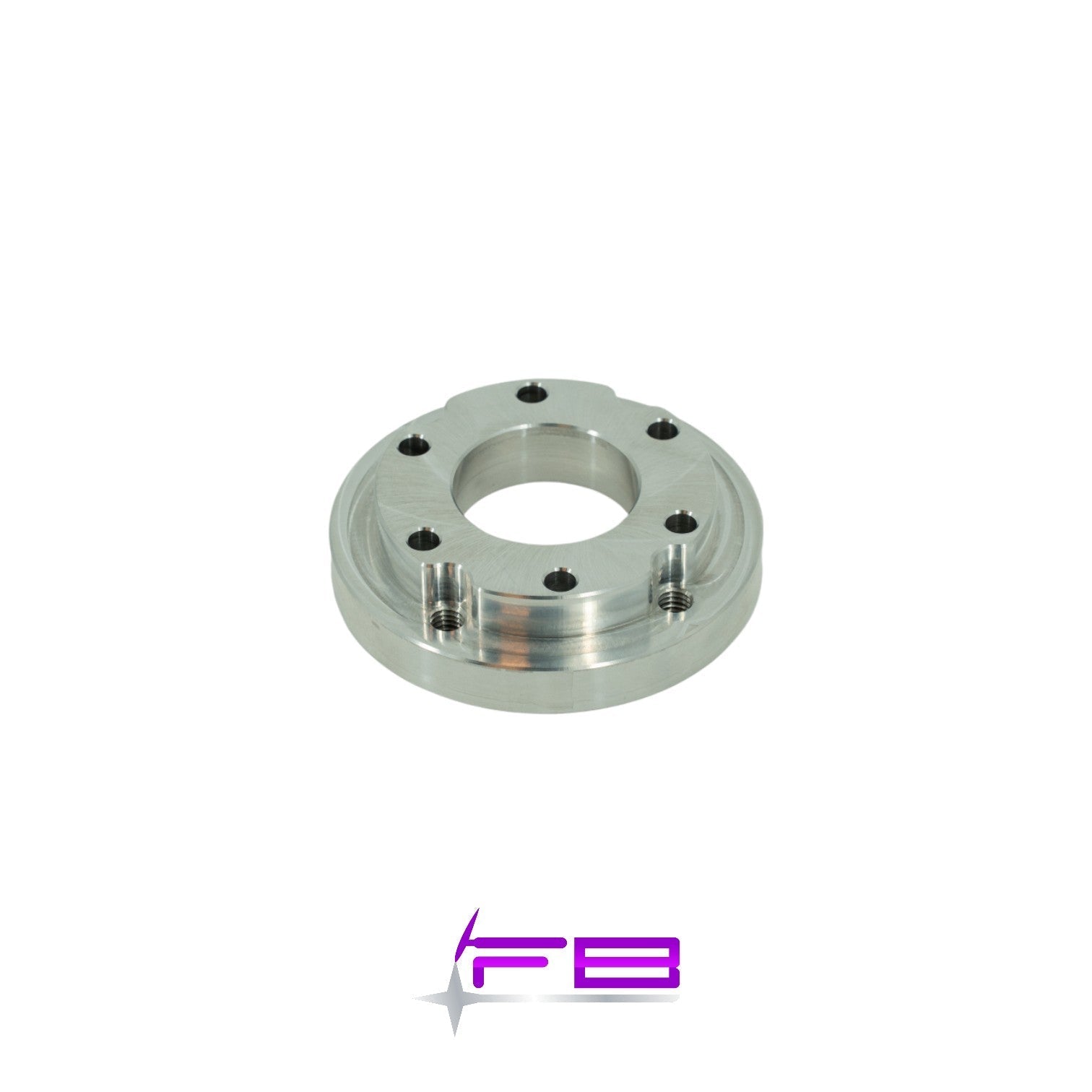

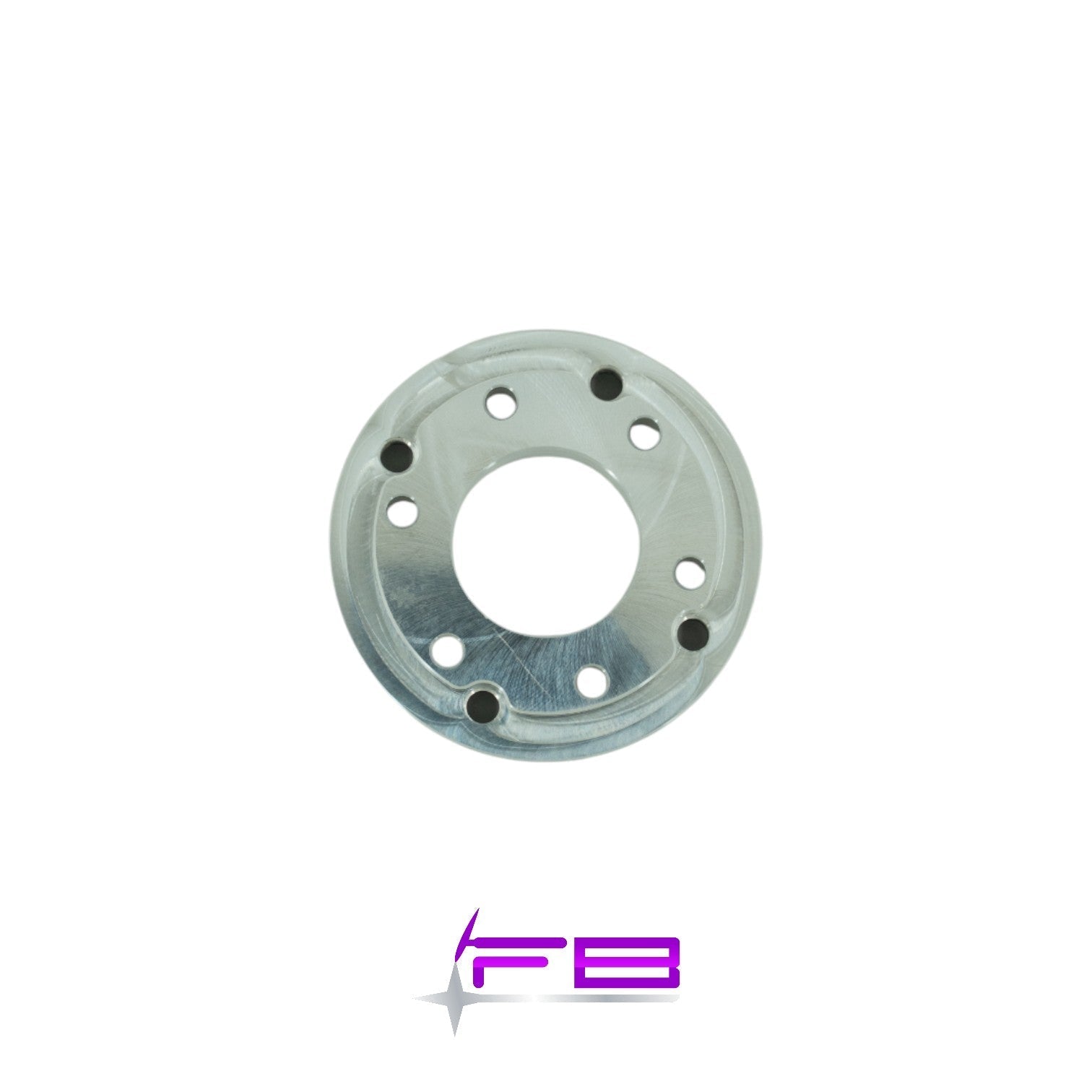

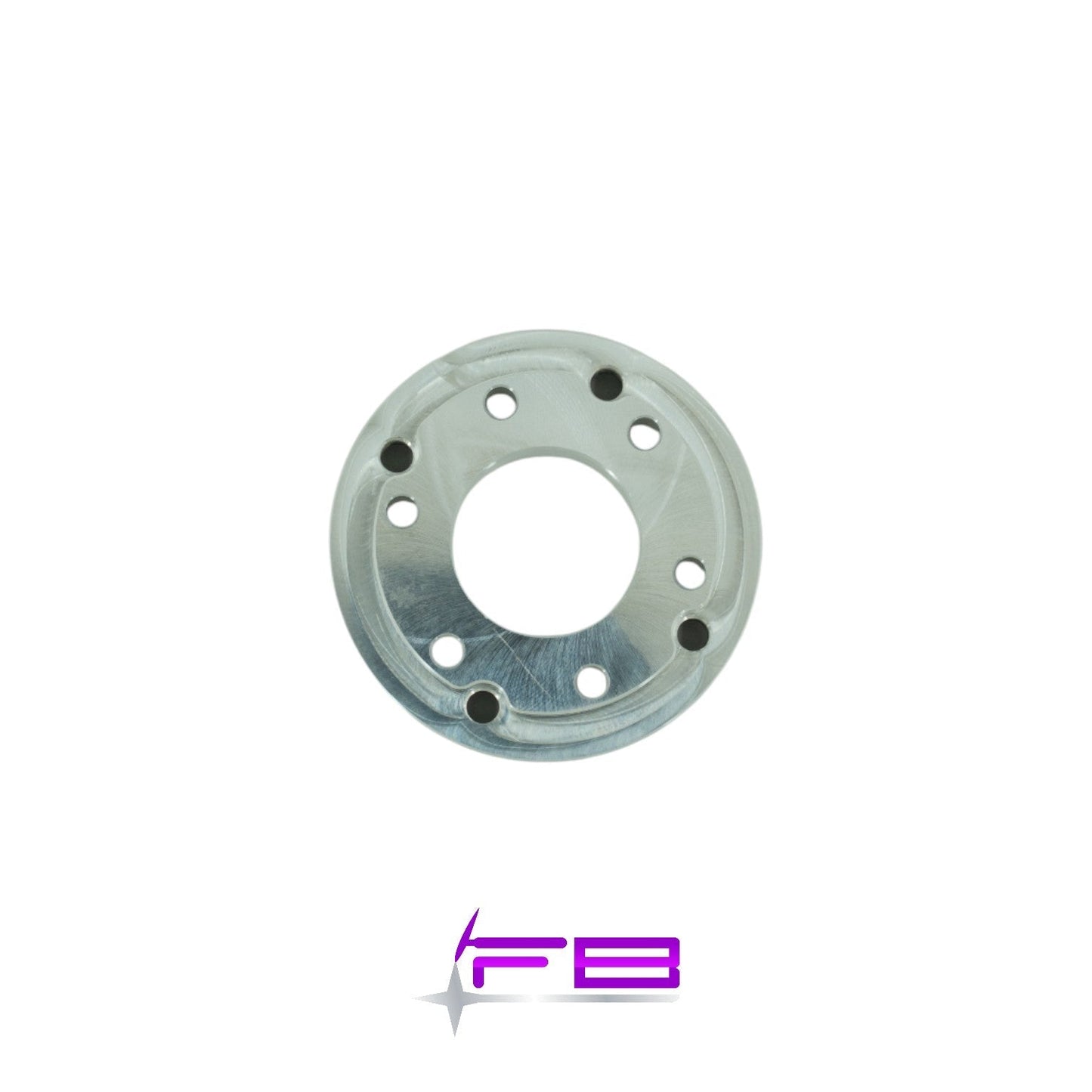

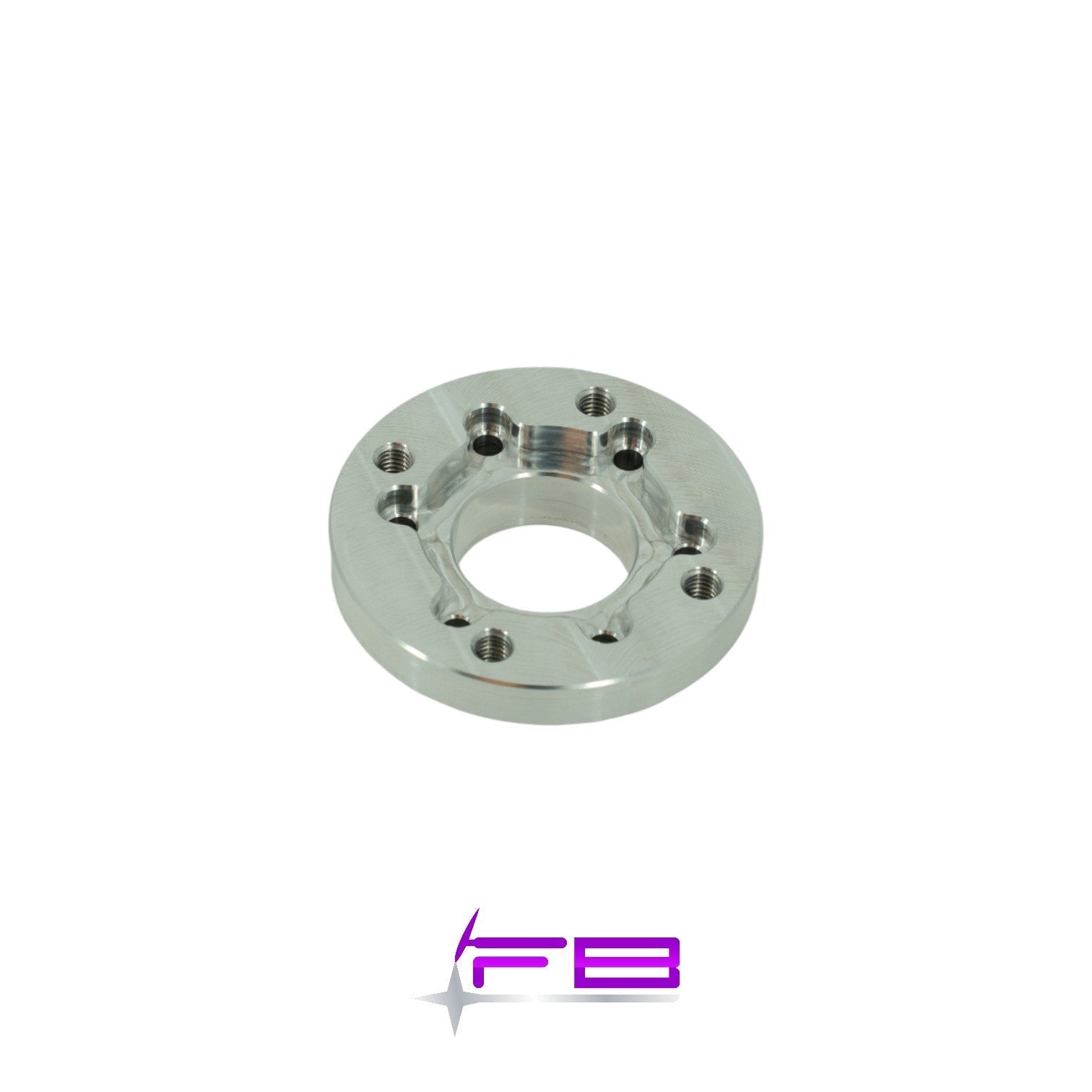

• 6061 T6 billet aluminum adapter flange
• Spicer U joint yoke in 1310 or 1350 size
• M8 socket head hardware
• Flanged hex bolts

Fitment and Compatibility

• Compatible with AR5 transmissions from Pontiac Solstice Saturn Sky and Polaris Slingshot
• Designed for car based AR5 transmissions with CV flange output

What You Will Need

• AR5 transmission with CV flange output
• Custom one piece driveshaft with 1310 or 1350 U joints
• Driveshaft length matched to chassis and setup

Built for Reliable Real World Performance

This kit provides a clean and durable solution for converting AR5 car transmissions to a more practical U joint driveline. It improves strength serviceability and overall drivetrain simplicity in high performance and custom builds.
