Prosport Gauges Digital BAR Golf Cart Battery State of Charge Meter
Upgrade your golf cart’s battery monitoring system with this Prosport gauges State of Charge Meter, designed to work universally. Engineered for precision and ease of use, this meter ensures you have real-time insight into your battery’s performance while preventing unnecessary fluctuations in your display while driving.
Key Features:
-
Universal Compatibility on any Lithium / LifePO4 cart.
-
3-Minute Delay for Stable Readings: To eliminate constant fluctuation as you drive, this meter features a 3-minute delay, ensuring a smooth and stable state of charge display, preventing the bars from dipping unnecessarily.
-
Compact and Easy to Install: With a size of 2.23 inches by 1.5 inches, this compact meter fits seamlessly into your panel. Locking tabs on the casing make installation simple, securely mounting it into any compatible hole.
-

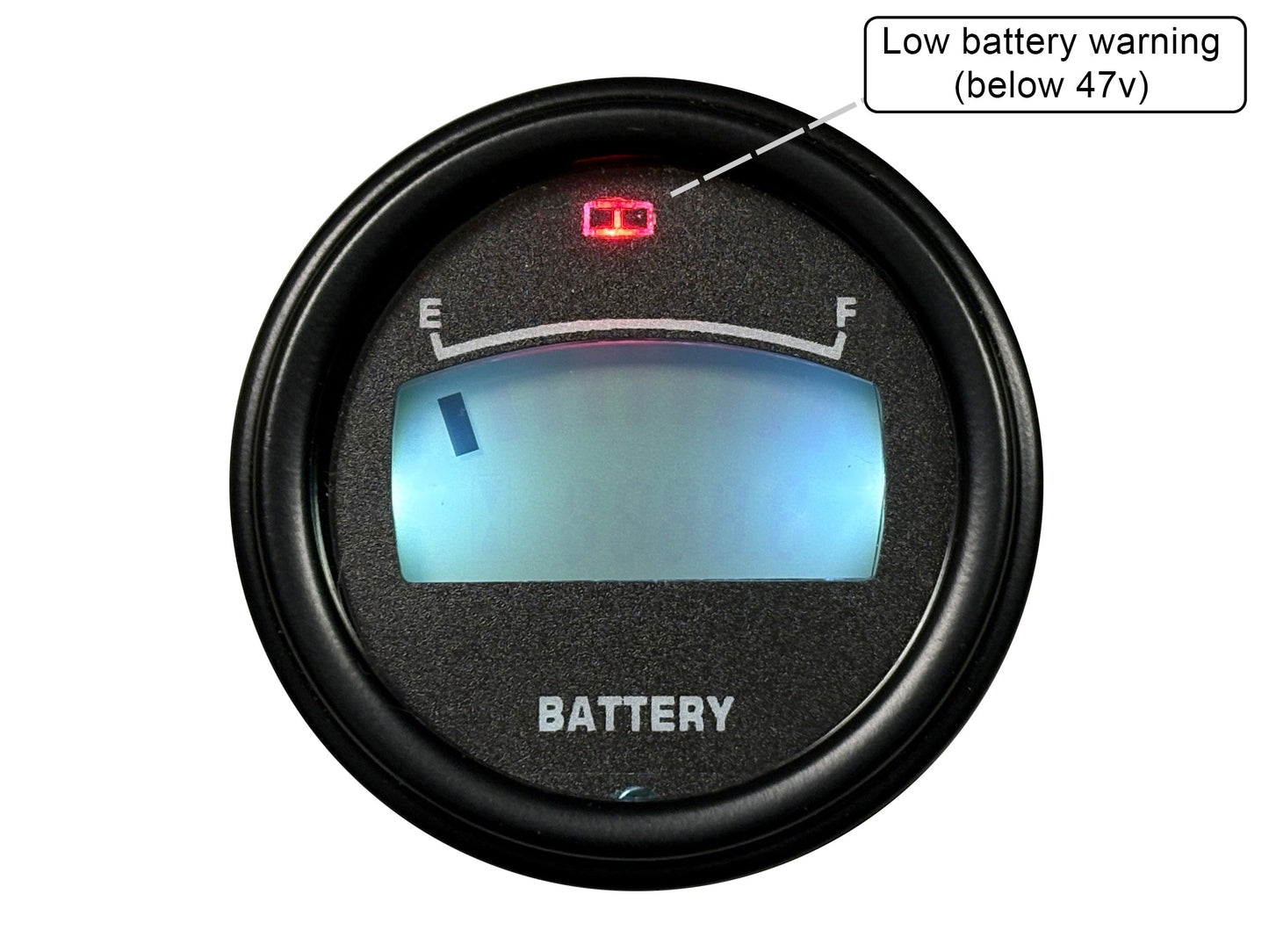

Low Voltage Warning: Stay alerted with a built-in low voltage warning light that activates when the battery falls below 47V, helping you avoid deep discharge and protect your battery life.
-

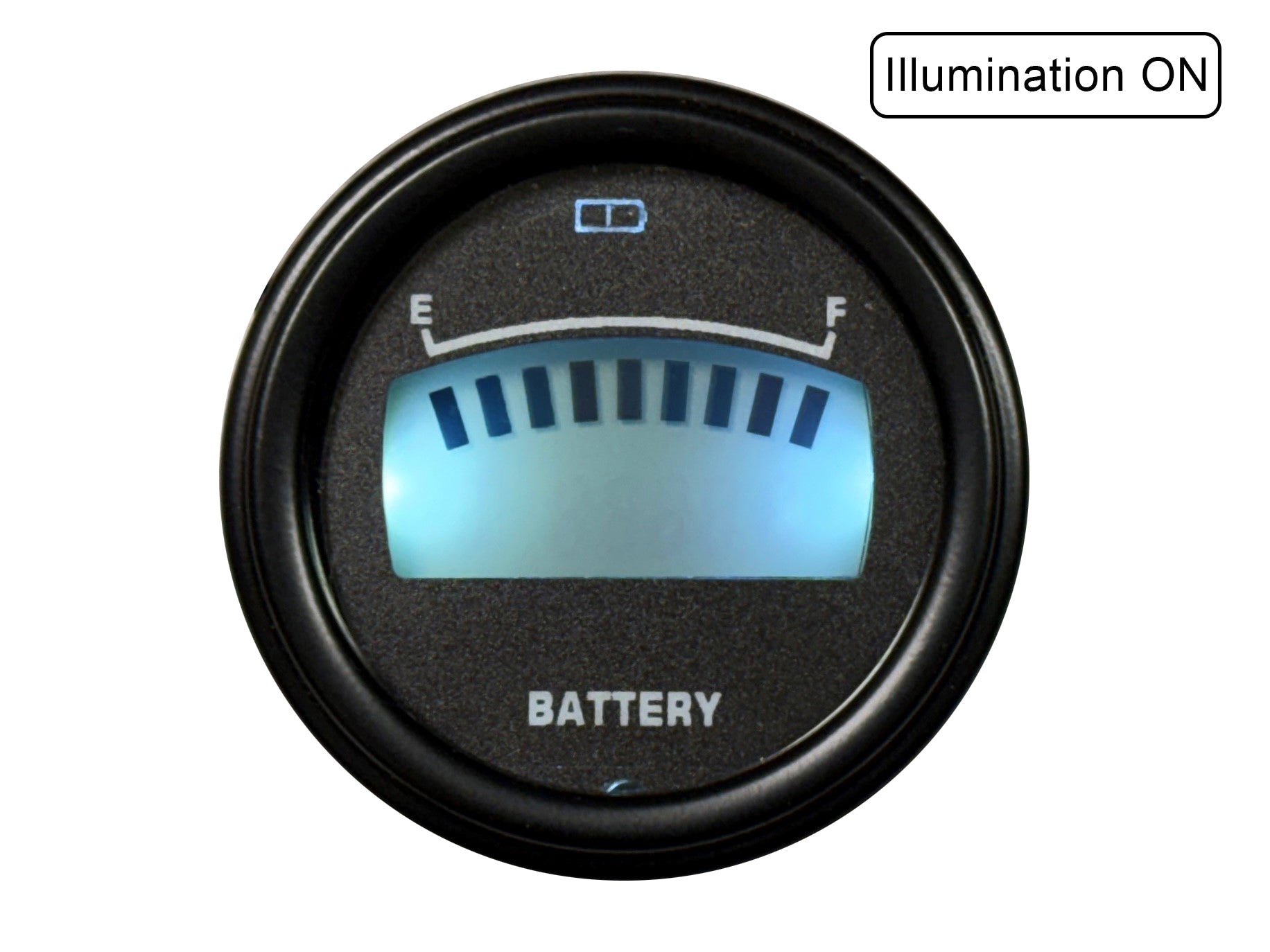

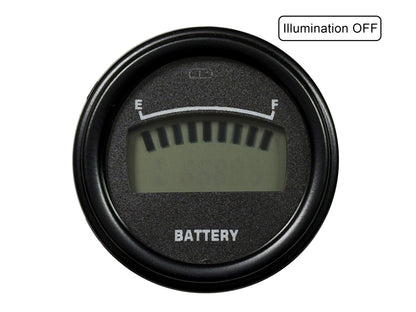

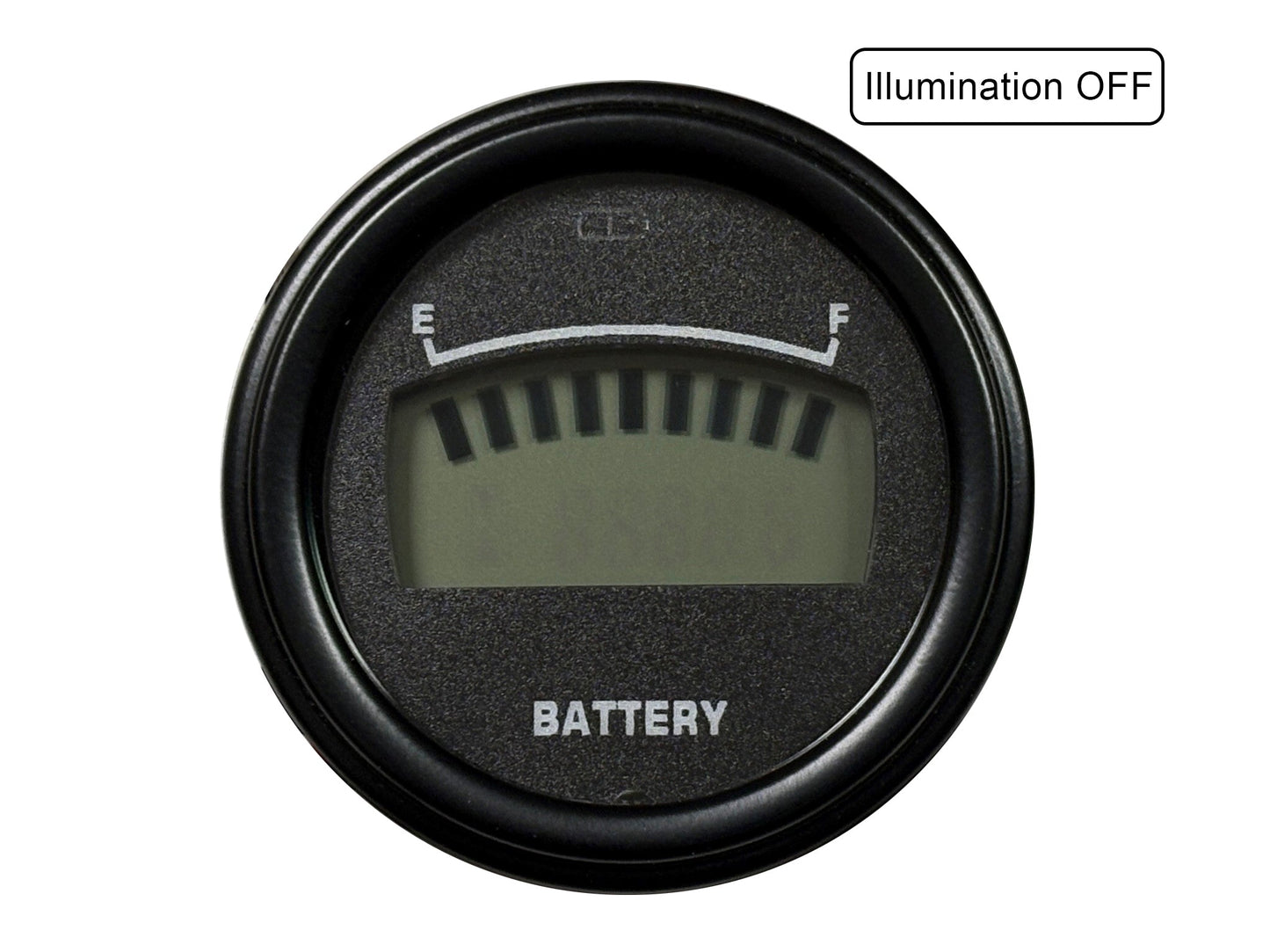

Adjustable Illumination: The meter can be operated with or without illumination, giving you flexibility in your cart’s display settings based on your preference.
-

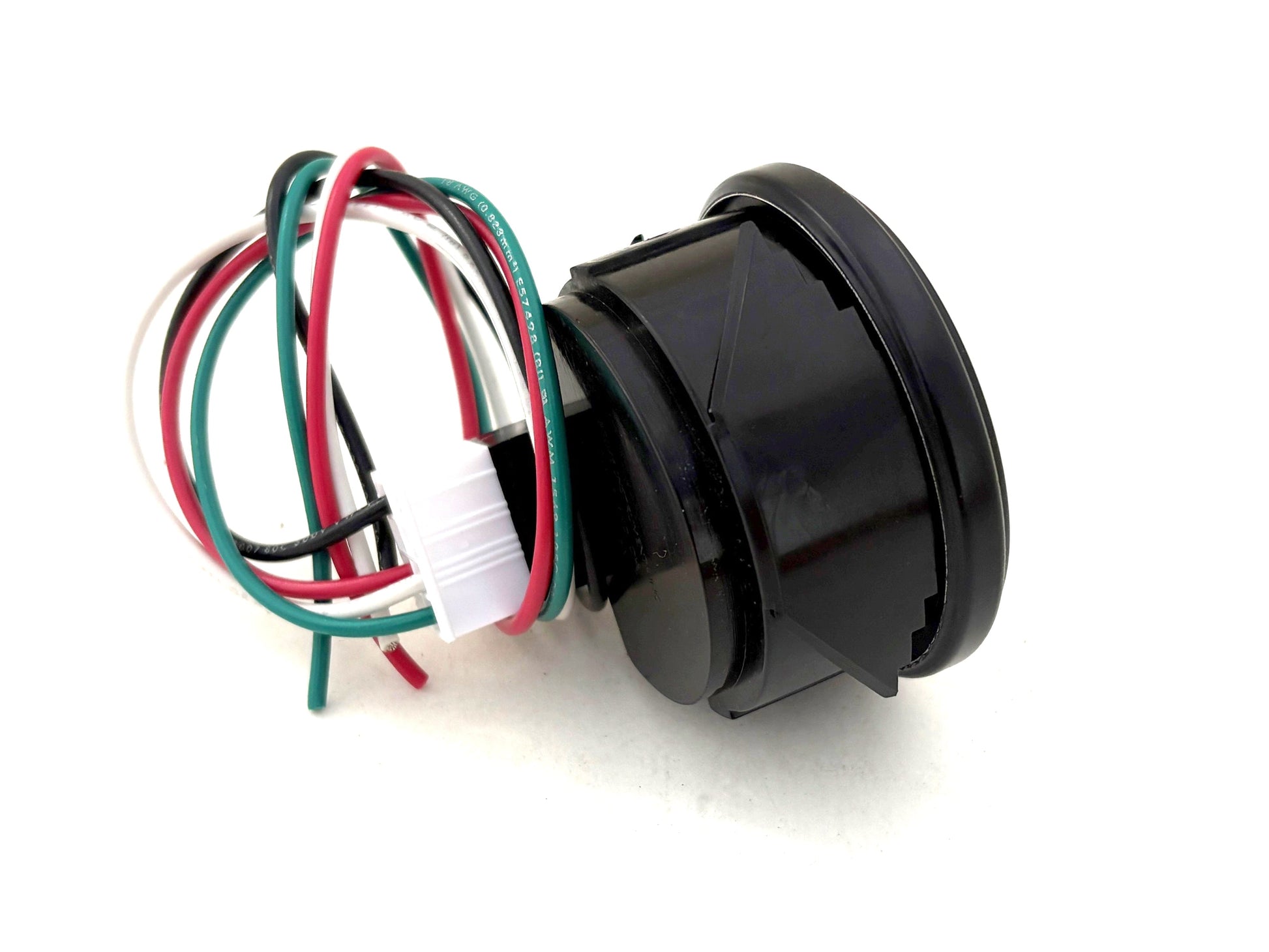

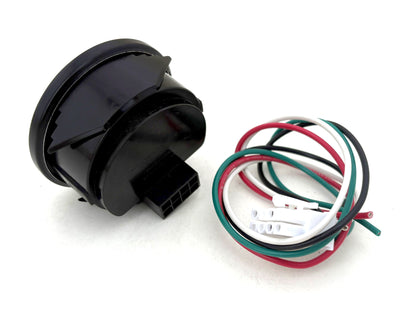

Complete Wiring Kit: The meter comes with a 6-inch harness and four essential wires – Power, Ground, Display On, and Illumination On – for quick and easy setup.

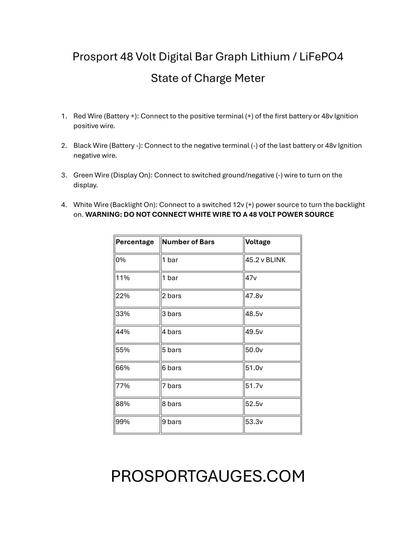

Red: Battery +
Black: Battery -
Green: Display on/off
White: Back Light
-
Made in the USA: Proudly manufactured in the USA, this meter is crafted with quality and durability in mind.
-
1-Year Warranty & Free Tech Support: Enjoy peace of mind with a 1-year warranty and access to free technical support to ensure your meter operates seamlessly for years to come.
-
Important Note: This meter is not designed for standard lead-acid batteries and may not provide proper scaling for those battery types. It is optimized for lithium batteries or similar power sources.
Whether you're replacing an old meter or upgrading your golf cart's monitoring system, this Prosport Gauges Golf Cart Battery State of Charge Meter provides the accuracy, reliability, and convenience you need for a smooth ride every time.

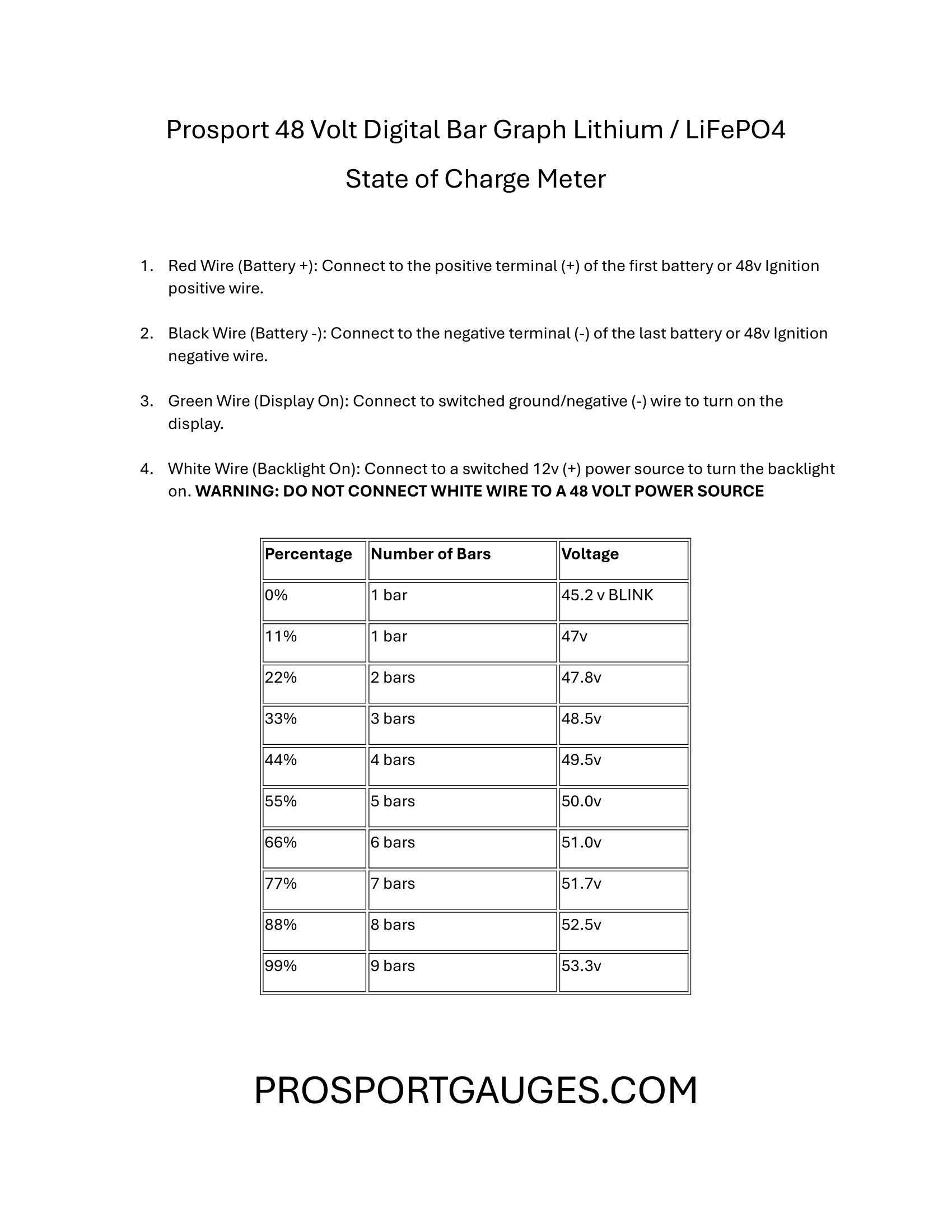

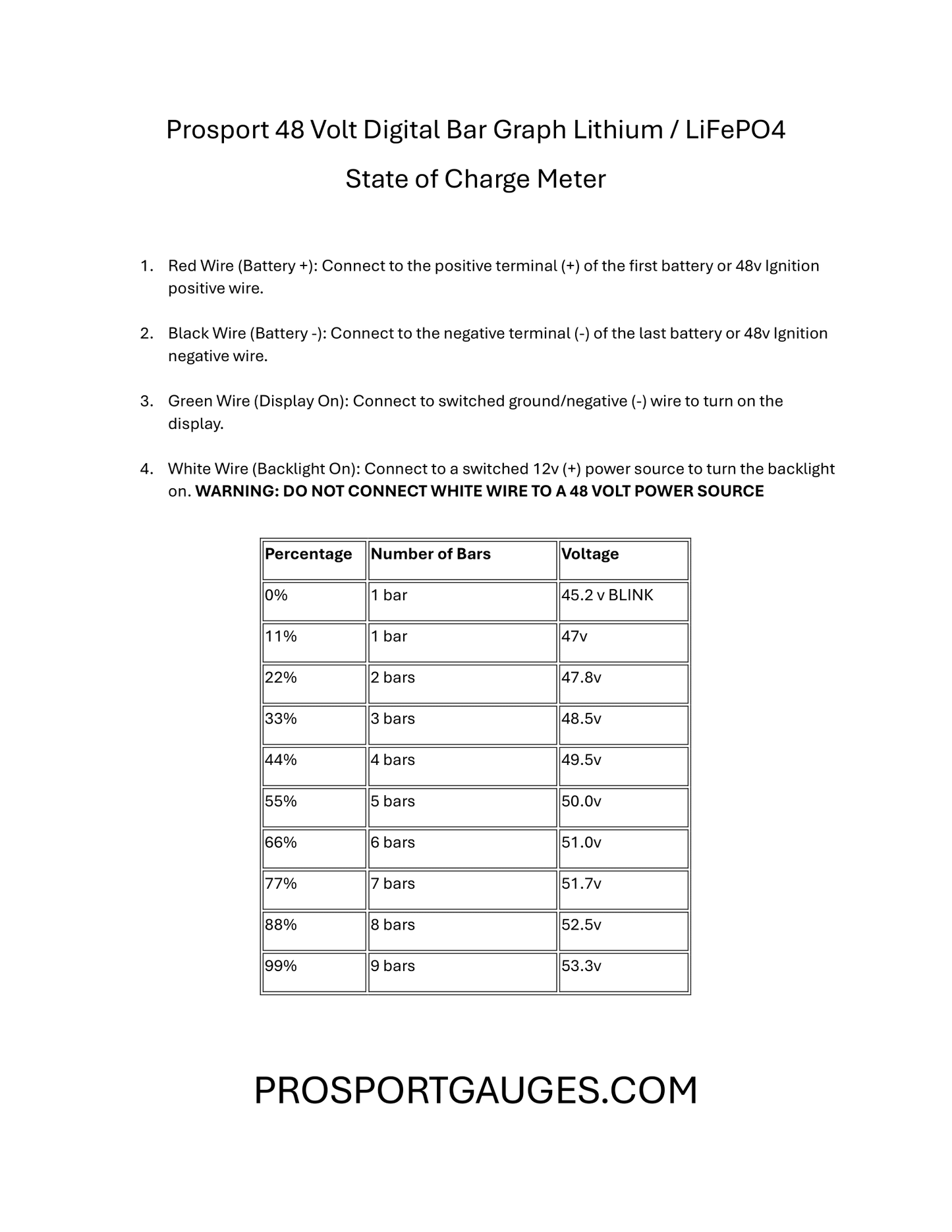

| Percentage |
Number of Bars |
Voltage |
| 0% |
1 bar |
45.2 v BLINK |
| 11% |
1 bar |
47v |
| 22% |
2 bar |
47.8v |
| 33% |
3 bars |
48.5v |
| 44% |
4 bars |
49.5v |
| 55% |
5 bars |
50.0v |
| 66% |
6 bars |
51.0v |
| 77% |
7 bars |
51.7v |
| 88% |
8 bars |
52.5v |
| 99% |
9 bars |
53.3v |
