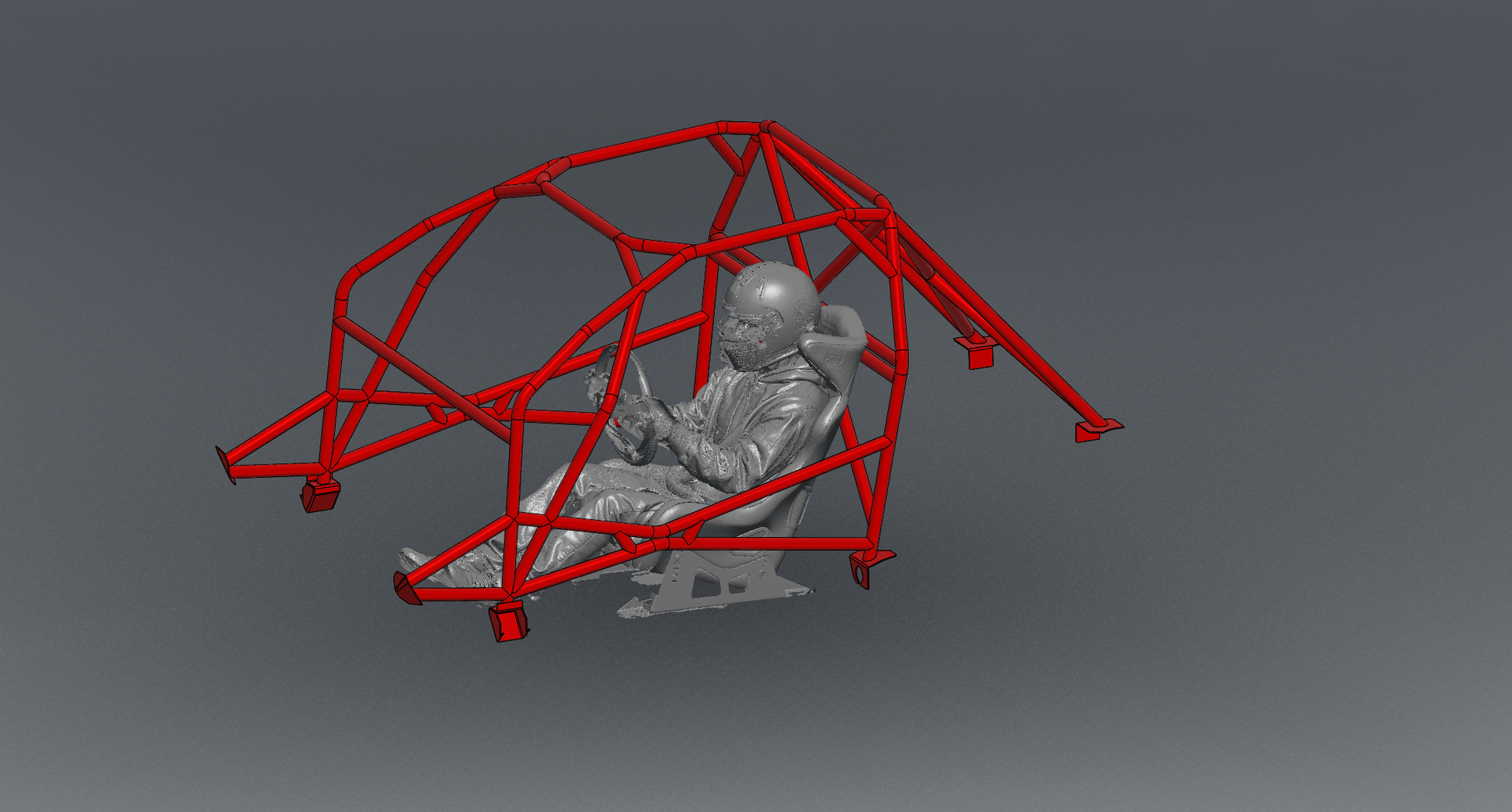

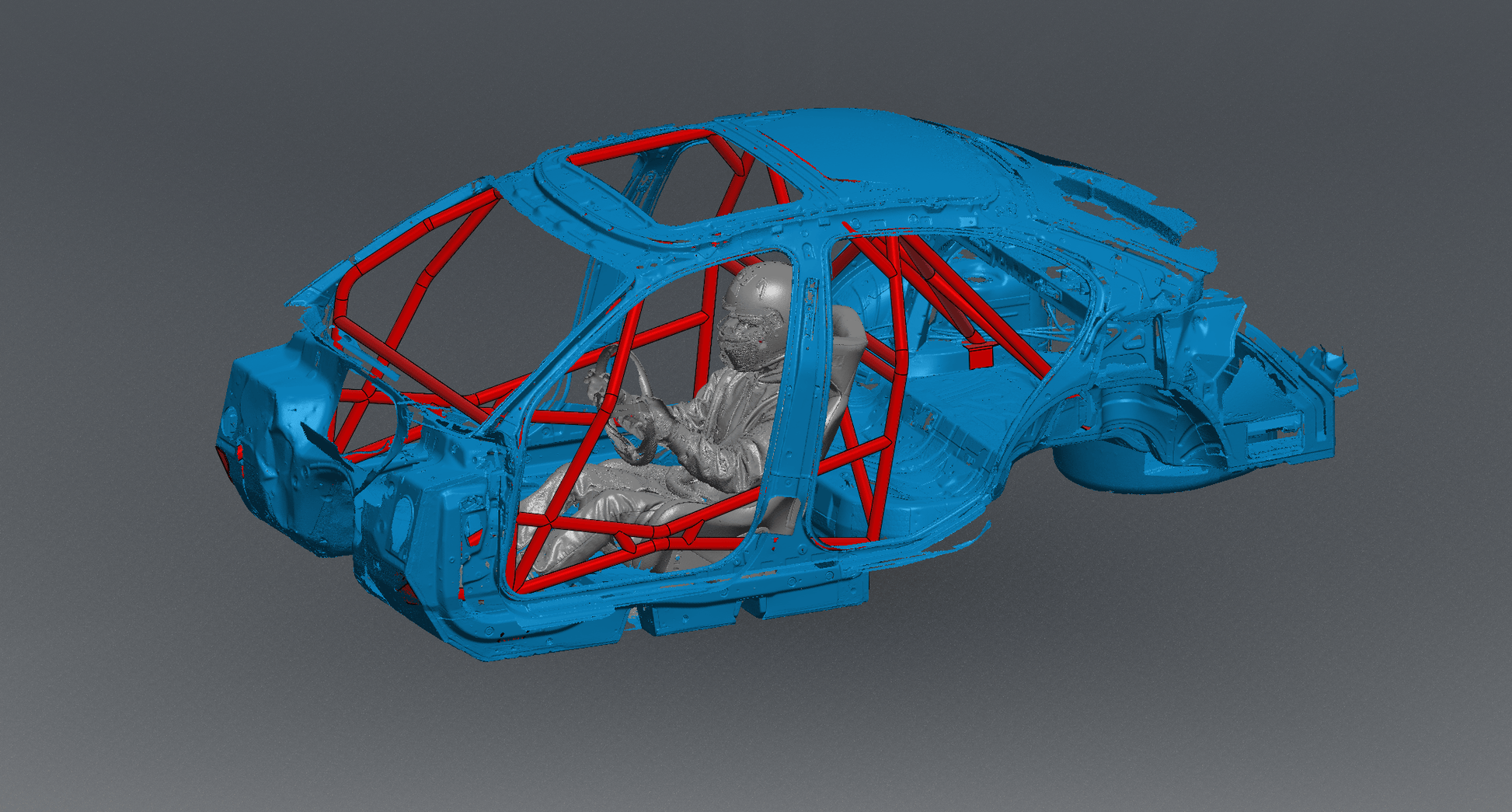

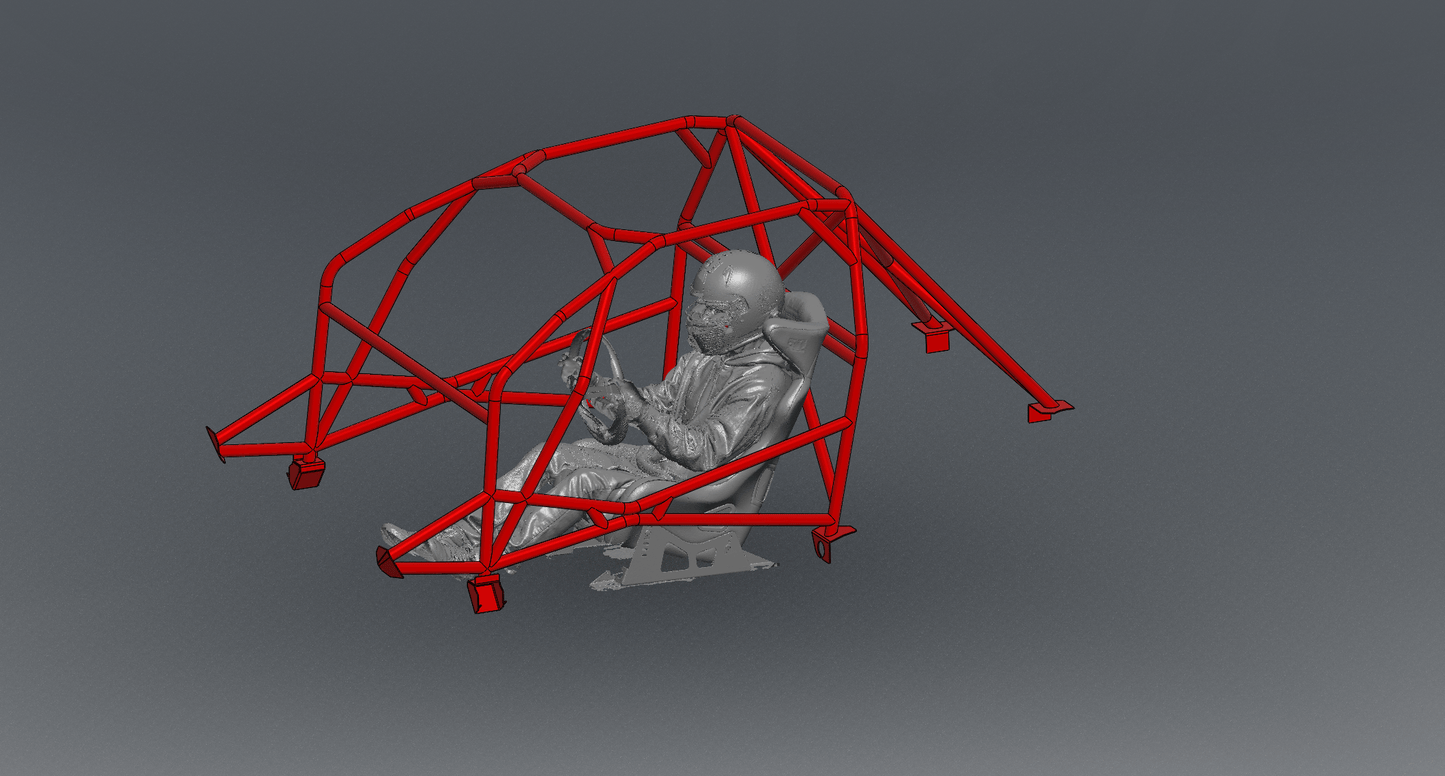

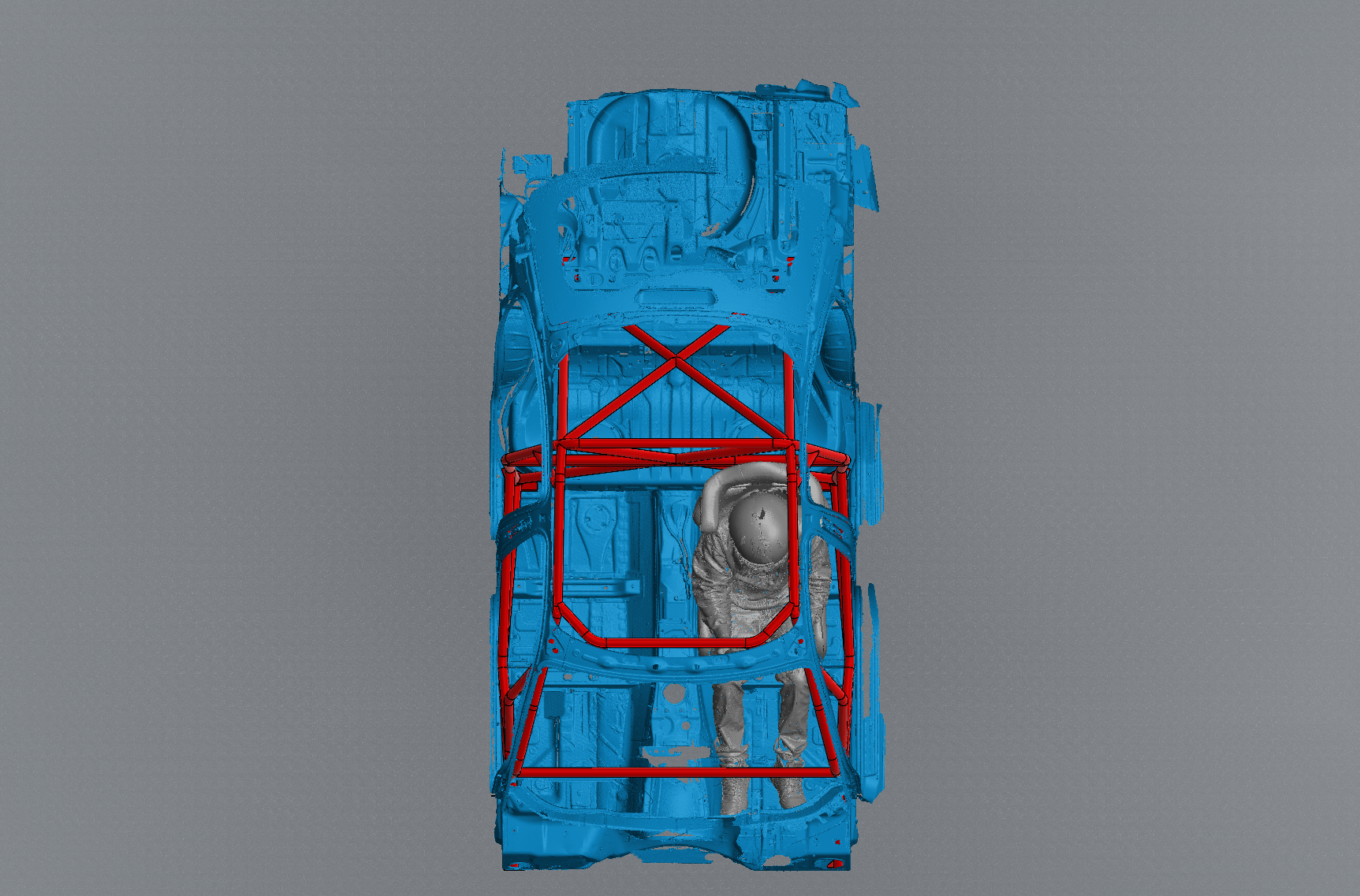

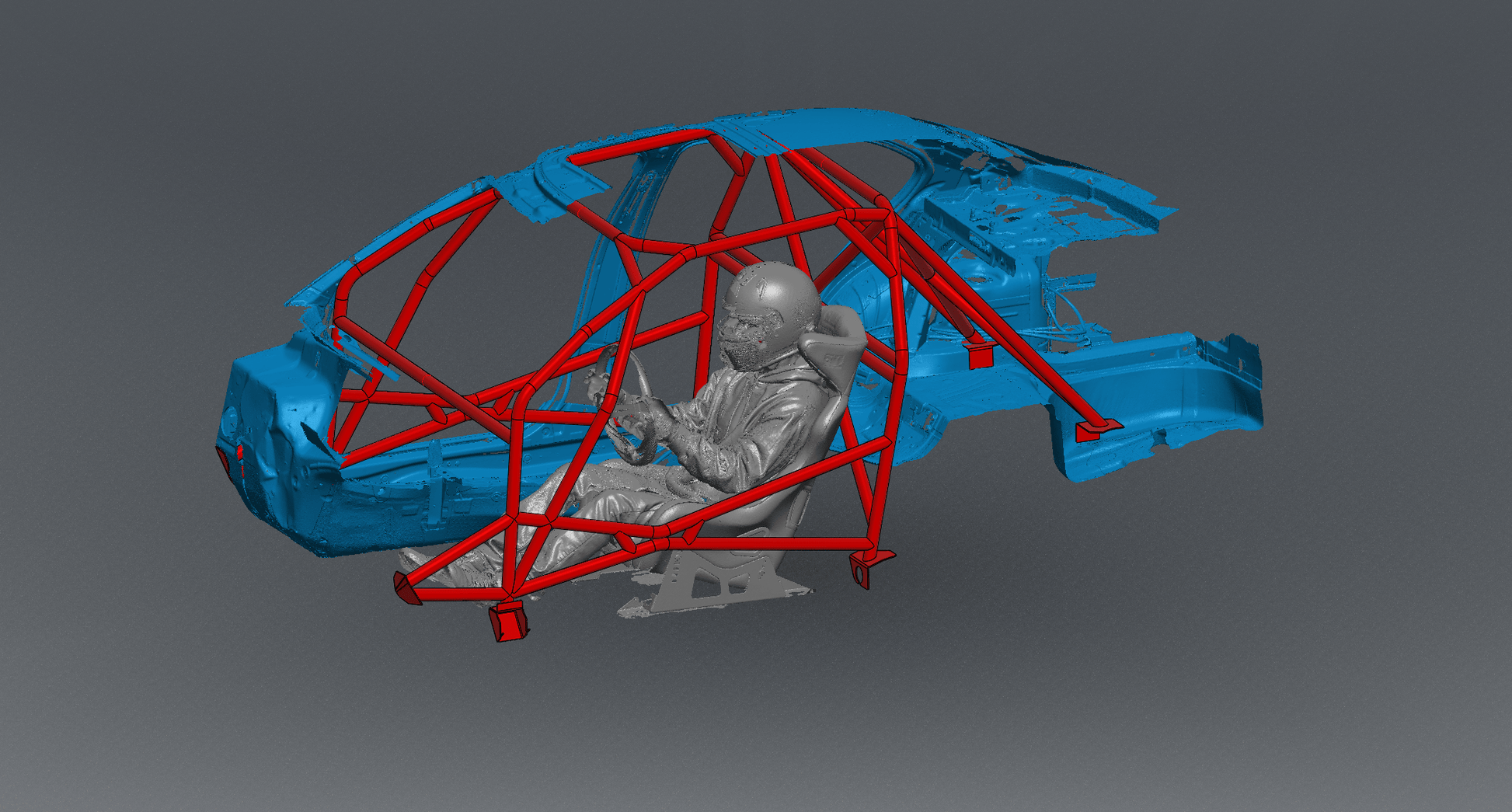

CAGEKITS - E46 Sedan FD Spec – Non-gutted X Door Bar Roll Cage

FORMULA DRIFT SPEC – MADE TO ORDER AND WILL SHIP ONCE COMPLETED

This kit uses 1.5″ x .095″ 1020-1026 DOM tubing. Prior to purchasing the kit, customers are responsible for verifying their compliance with racing regulations set forth by their sanctioning bodies.

Features:

• Fits the E46 Sedan (1997-2005)
• X Door Bars
• Allows for non-gutted doors
• Allows for use of power windows
• FIA bars *Not required for install
• Two harness bar options *For installation of EITHER single diagonal bars OR dual diagonal bars on main and rear down bars

Description:

The E46 Sedan FD Spec – Non-gutted X Door Bar Roll Cage comes CNC notched and bent for quick fitment and welding. All tubing comes laser-etched showing where the tubes should connect. It’s important to note that this is a weld-in kit that requires a certain amount of skill for fitment. The more time you take for fitting and measuring, the better the overall cage will fit. This kit provides two harness bar options, for either configuration of the cage. Whether it be single diagonals in the main with rear down bars or dual diagonals in the main with rear down bars.

Installation & Compliance Notes

• Sunroof Removal: The sunroof must be removed to install this roll cage.

• Compliance Responsibility: Customers are responsible for verifying that this roll cage meets the rules and technical requirements of their racing organization or sanctioning body.

• Cages are optimized for competition and off-street applications.
