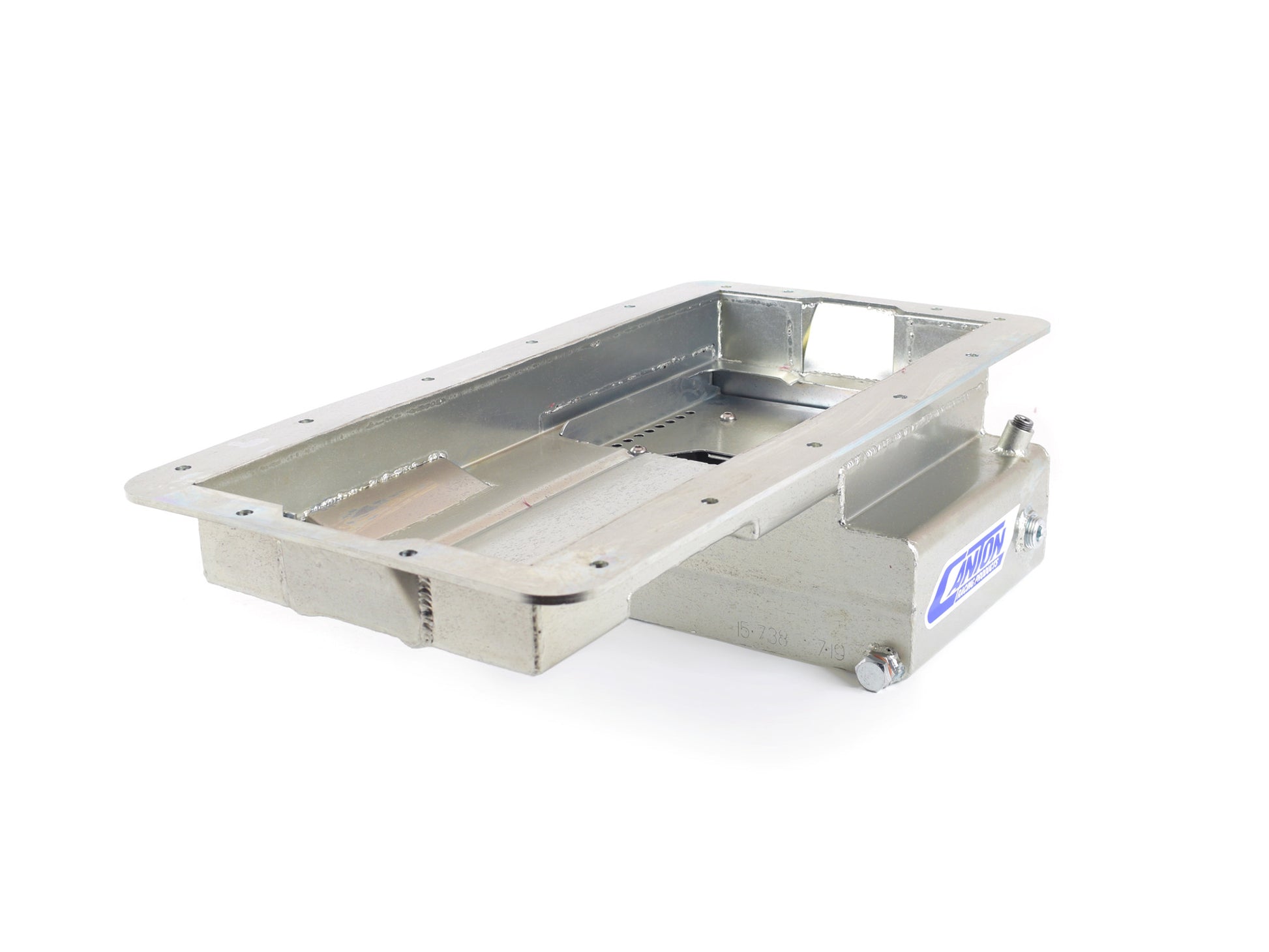

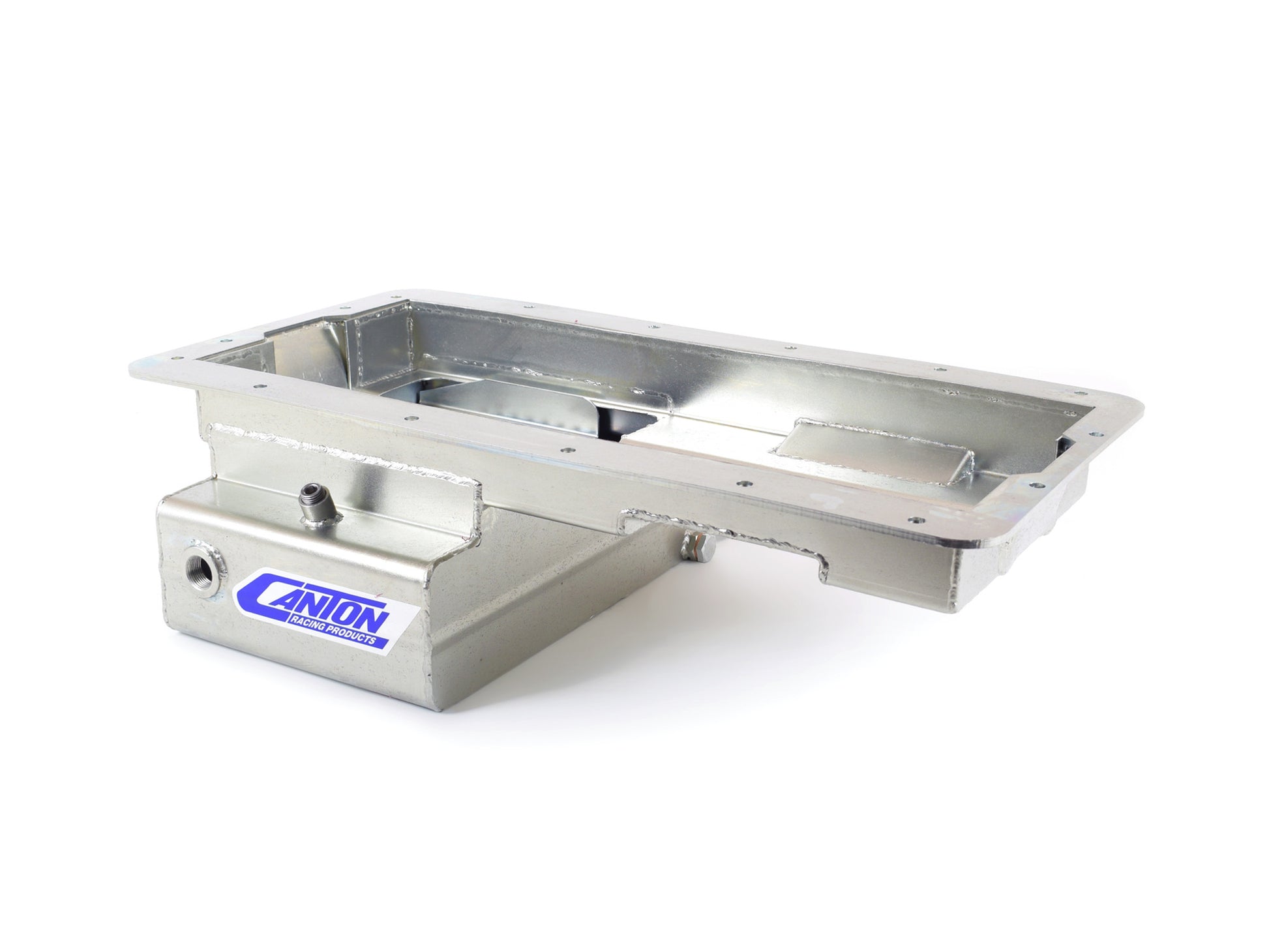

Canton - 5.0 COYOTE ROAD RACE FRONT SUMP - BLACK PWD COAT

Cantons new 15-738 Ford 5.0 Coyote oil pan is designed for early Ford chassis and others that required a front sump oil pan. The pan is designed with a 't'sump for extra capacity and is used in road race applications where ground clearance is important. It features a diamond shaped road race baffle assembly with four trap doors and a removable Windage/anti-slosh baffle. For Gen 3 Coyote part #20-937P38 Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-738 is required.

Oil Pan Features:

*Designed for 5.0 Coyote Blocks

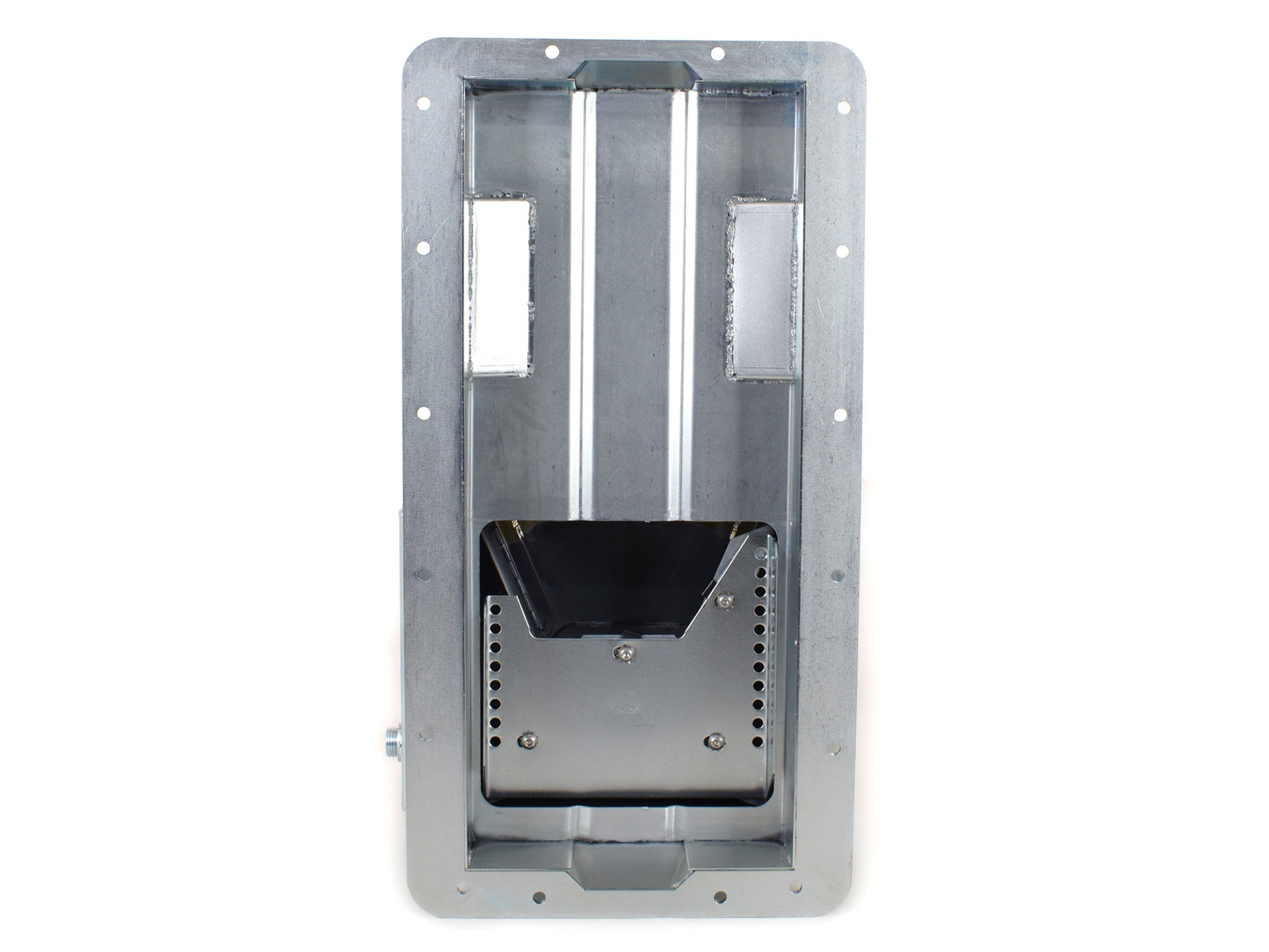

*Diamond Shape Road Race Baffle Assembly With Four Trap Doors
*Removable Windage/Anti-Slosh Baffle
*1/2" NPT Temperature Bung
*20mm Bung for low Oil Warning Sender
*Made In USA
*Tig Welded
*1/4 NPT provision for a pan mounted dipstick
*7qt System Capacity

Recommended Accessories
15-739 - Pickup for 5.0 Coyote Front Sump Pan
15-739G4 Oil Pump Pickup 5.2 / Gen 4 Coyote Pickup for 15-738 Oil Pan

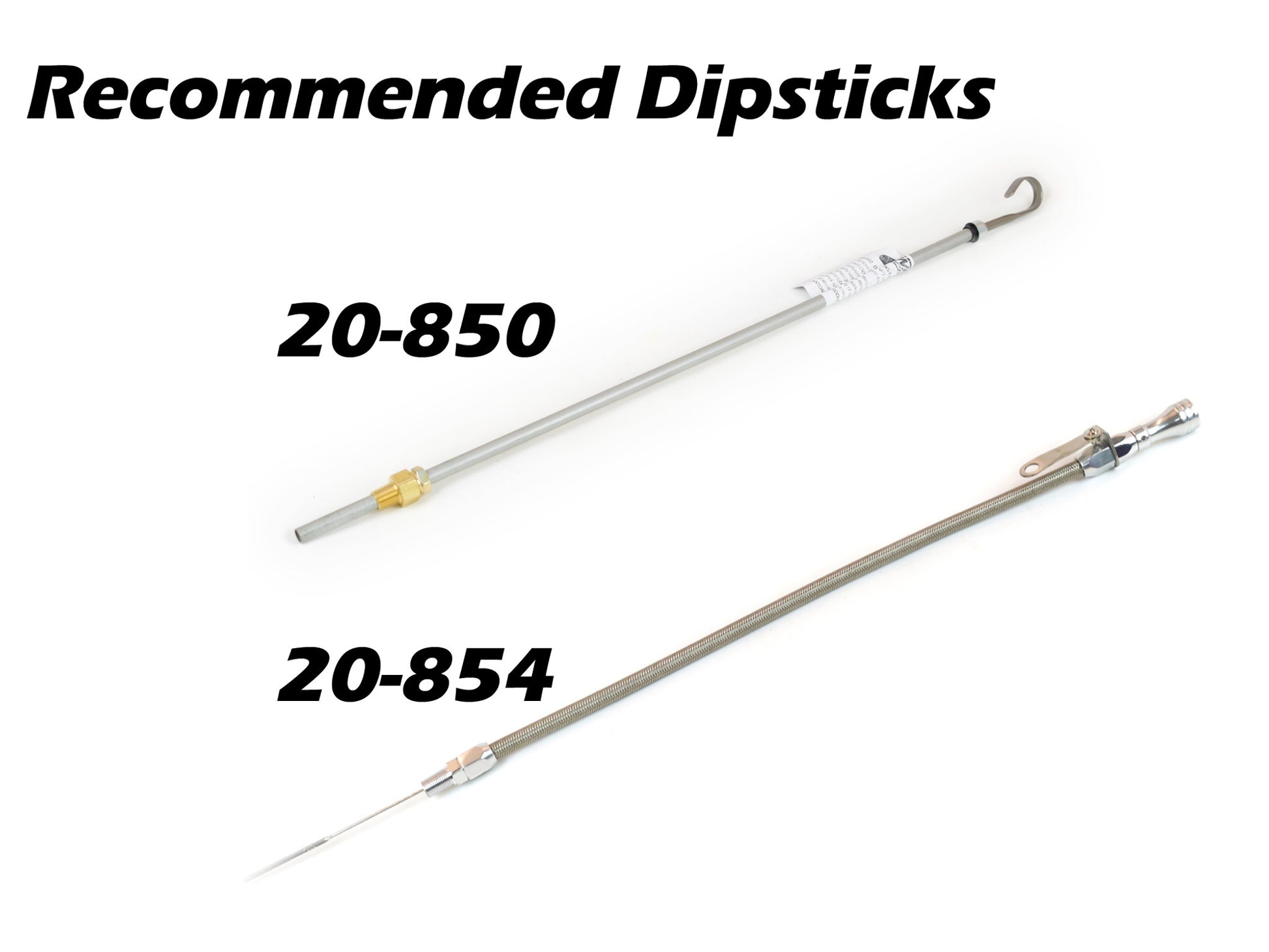

20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
20-937P38 - Coyote Gen 3 Louvered Tray Pickup Combo For Oil Pan 15-738
22-405 - 20MM x 1.5 Plug For GM Oil Level Sender Port

Gasket:
Stock
