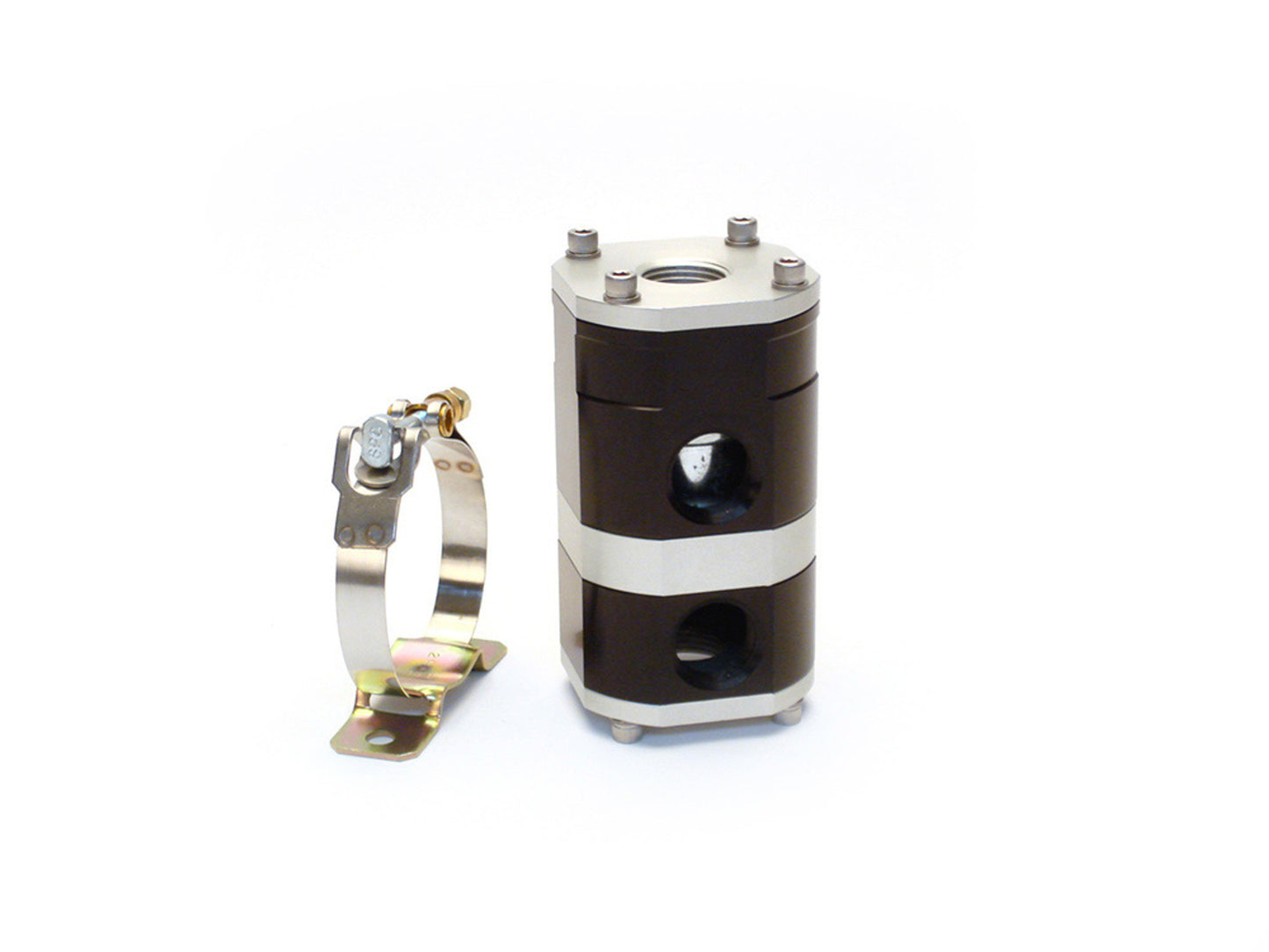

Canton - OIL COOLER THERMOSTAT

Our Oil Cooler Thermostat helps your engine's oil come up to temperature quickly and holds it at the right temperature. Cold oil does not flow and does not lubricate correctly. Plus, moving cold oil robs power. This thermostat is designed to bypass the cooler until the oil reaches 215 degrees. At 215 degrees water condensation in the oil will evaporate and the oil will be warm enough to flow and lubricate properly. The thermostat housing is machined from a 3-1/4" square 6061 T6 aluminum extrusion. Thermostats are 6" tall and come with a black and clear anodized finish and stainless steel mounting clamp. The oil ports accept 1-1/16" -12 O-ring fittings. (4 fittings required per unit)

Features:
*The thermostat housing is machined from a 3-1/4" square 6061 T6 aluminum extrusion
*Thermostats are 6" tall
*Comes with a black and clear anodized finish and stainless steel mounting clamp
*Oil ports accept 1-1/16" -12 O-ring fittings
*Made in USA

Recommended Accessories
23-465A 1-1/16" -12 port to -10 male AN (2 pack)
23-466A 1-1/16" -12 port to -12 male AN (2 pack)
26-891B Stainless steel filter clamp can be used to mount this thermostat
26-892B Billet filter clamp can be used to mount this thermostat

Product Tech

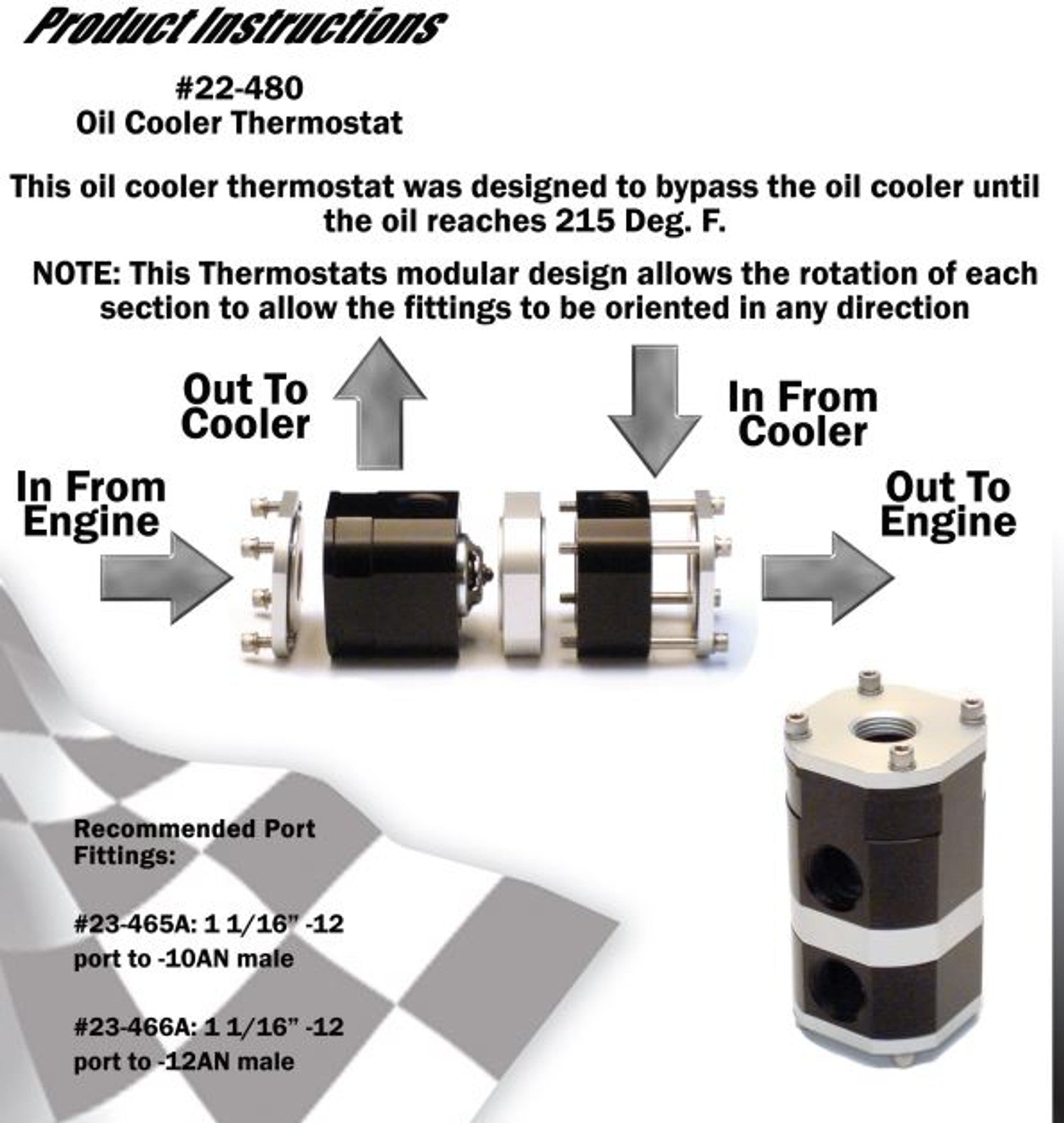

22-480 Installation Guide (PDF)
