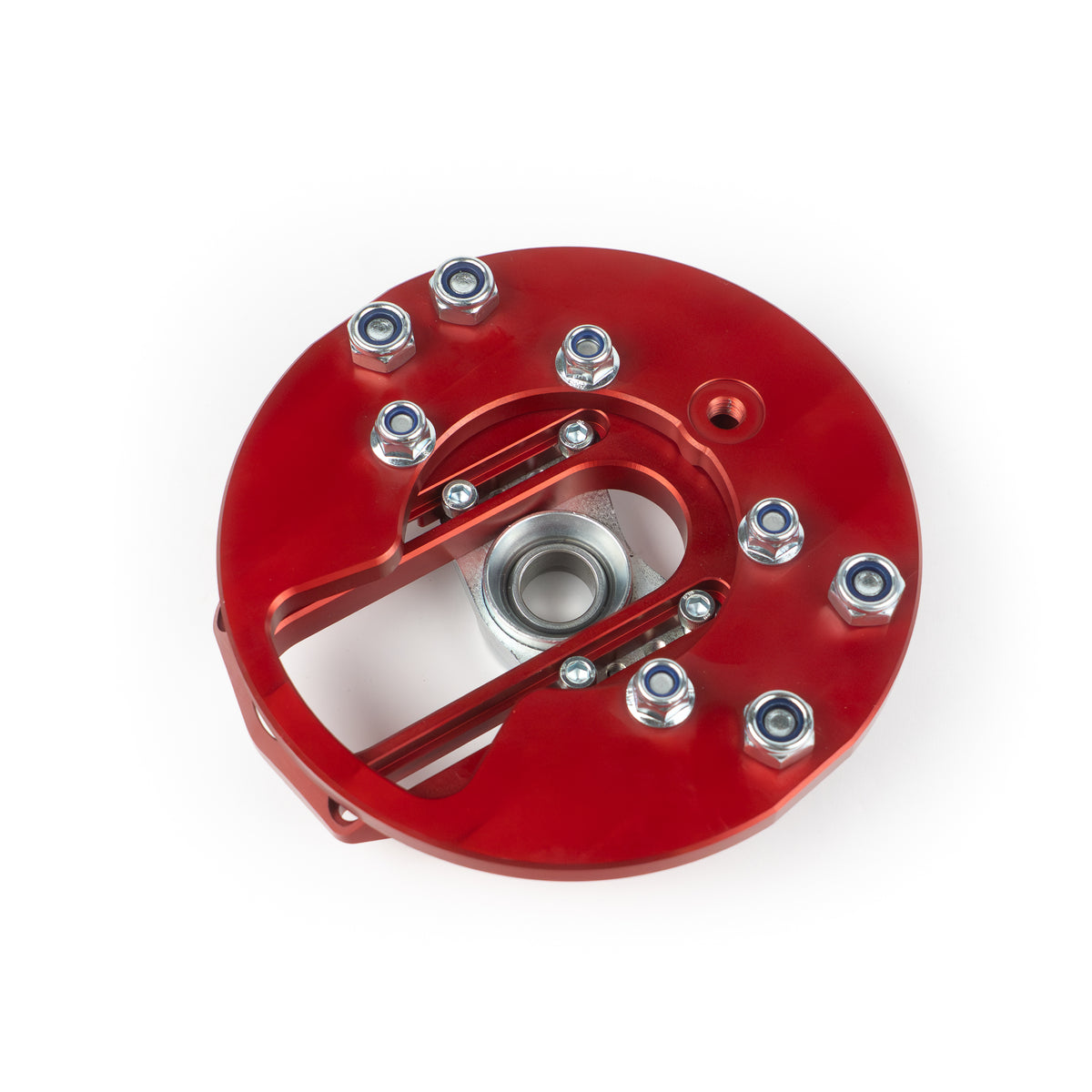

CNC71 - CAMBER PLATES BMW F20/F21/F22/F23/F30/F31/F32/F33/F80/F82/F87

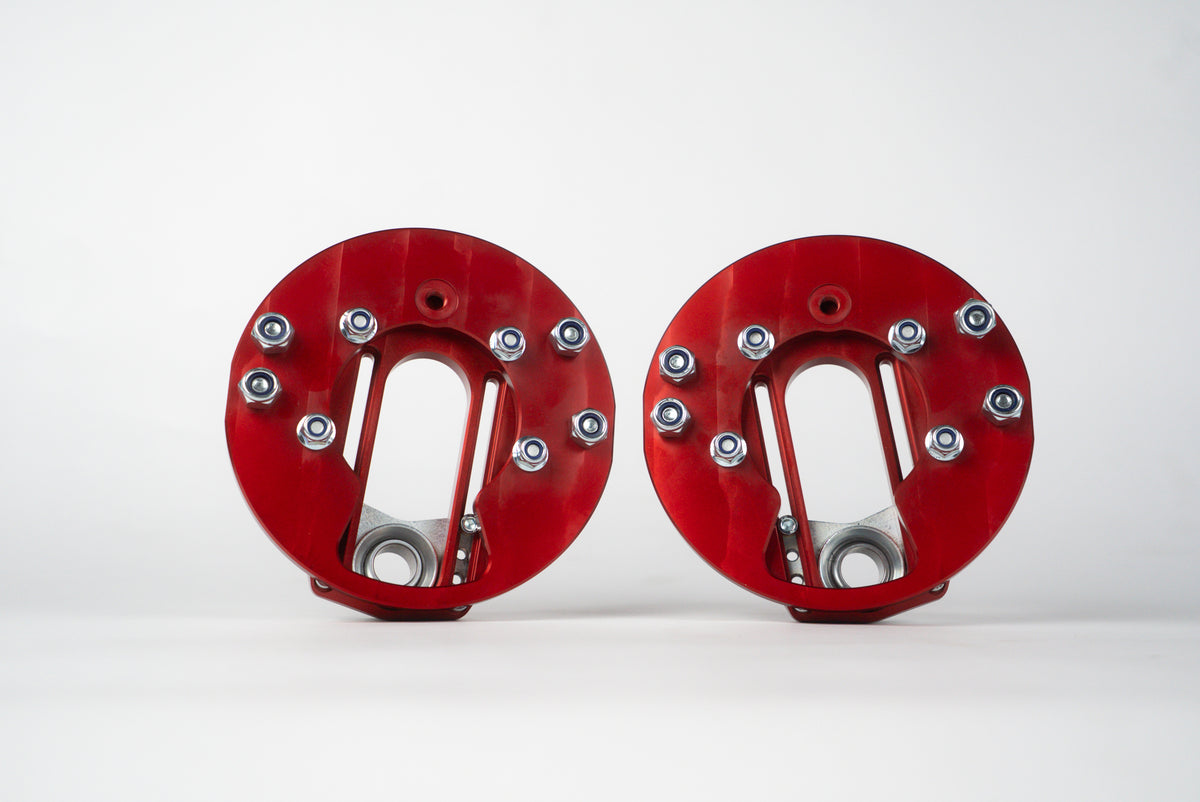

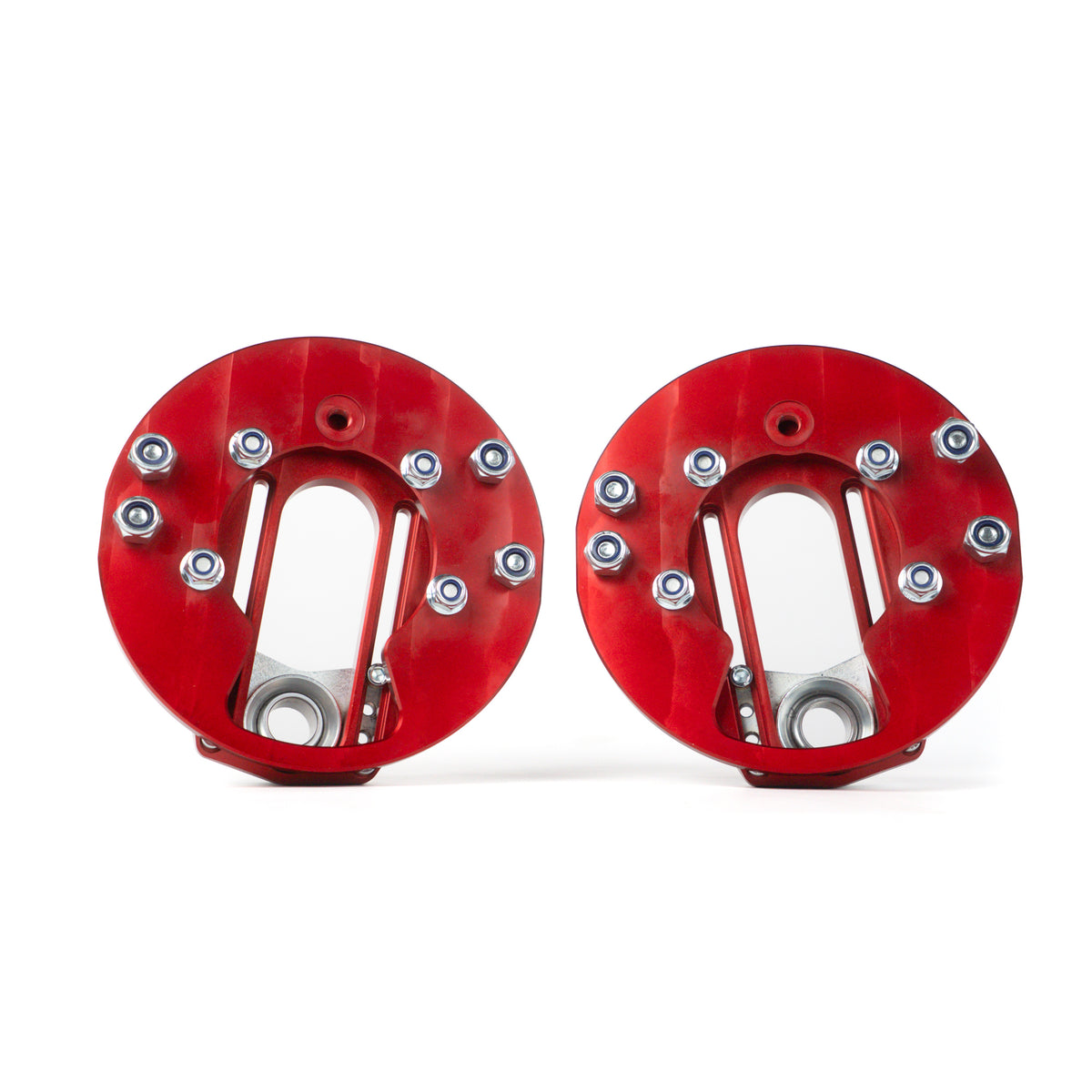

Camber plate for BMW F20 / F21 / F22 / F30 / F31 / F32 / F80 / F82 / F87 – with an extended adjustment range

Designed by CNC71 Motorsport, it allows you to adjust the position of the upper shock absorber mount without having to modify the cup. The plate’s two-piece design was developed to enable maximum adjustment of the wheel camber angle and the caster angle. This allows for a smooth adjustment of the camber angle within a range of -1° to +6° and a 3.4° change in caster by rotating the plate to its maximum position.

Two-piece design for maximum camber and caster adjustment range

Made of 7075 aluminum,

Maintenance-free GE20UK bearings ensure trouble-free operation under harsh conditions

The simple design allows for hassle-free installation and easy adjustment

Smooth position adjustment

No modifications to the vehicle’s structure are required

The kit includes stainless steel spacer sleeves. Thanks to its length, the lower sleeve prevents contact with the spring plate during large shock absorber deflections. The upper sleeve serves as a nut, thereby avoiding issues with insufficient threaded connection length.

The set includes nuts and sleeves for suspension threads: M12x1.25, M12x1.5, and M14x1.5.

The clean and simple design fits perfectly into any engine compartment.

Price per set—2 pieces. The product is manufactured entirely on CNC machines. Corrosion resistance is ensured through the use of stainless steel, a zinc coating on steel components, and anodizing of aluminum components.
