DomiWorks Engineering - 8HP / DCT OUTPUT FLANGE ADAPTER 105-110MM WITH 18MM OR 22MM INSERTS - 1350 YOKE

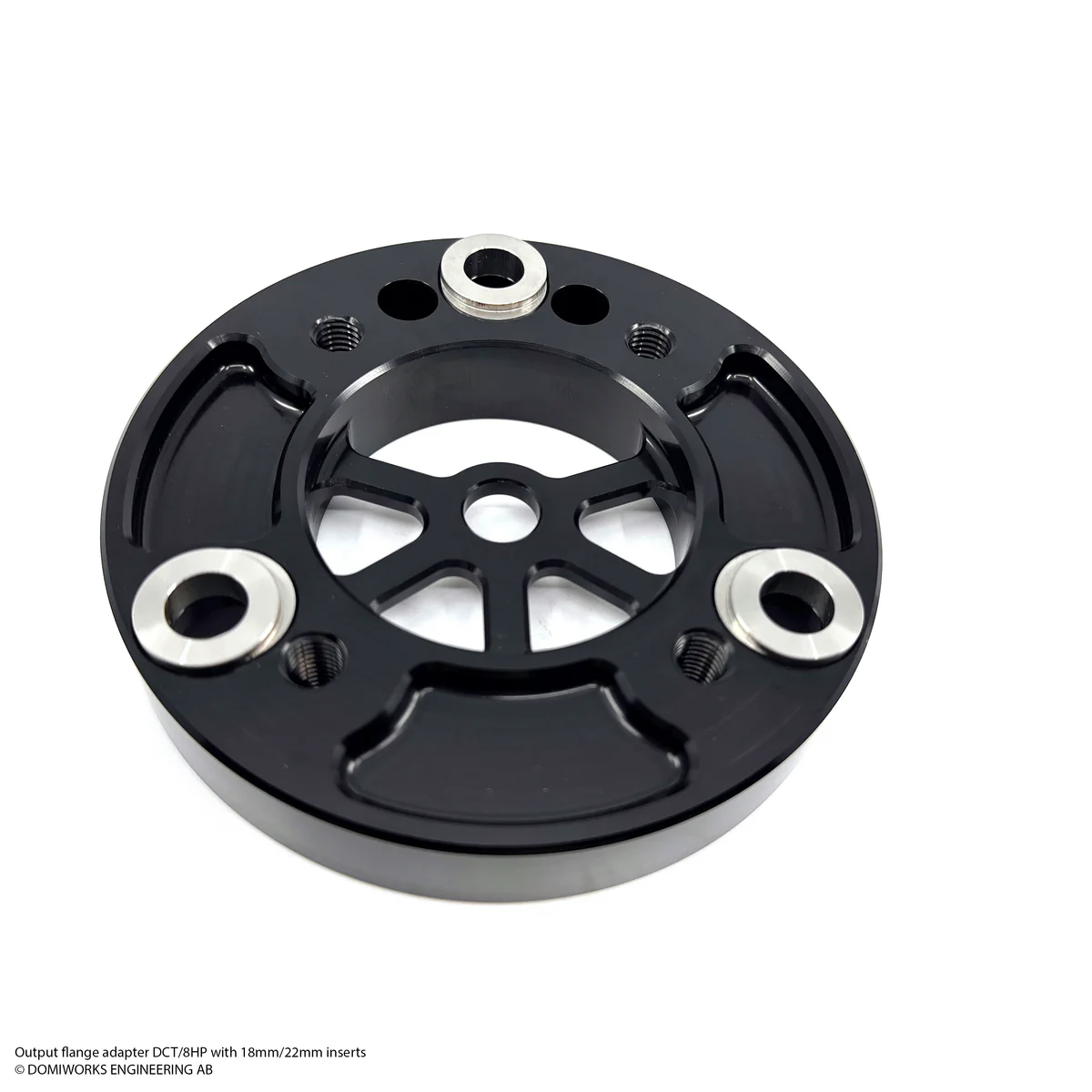

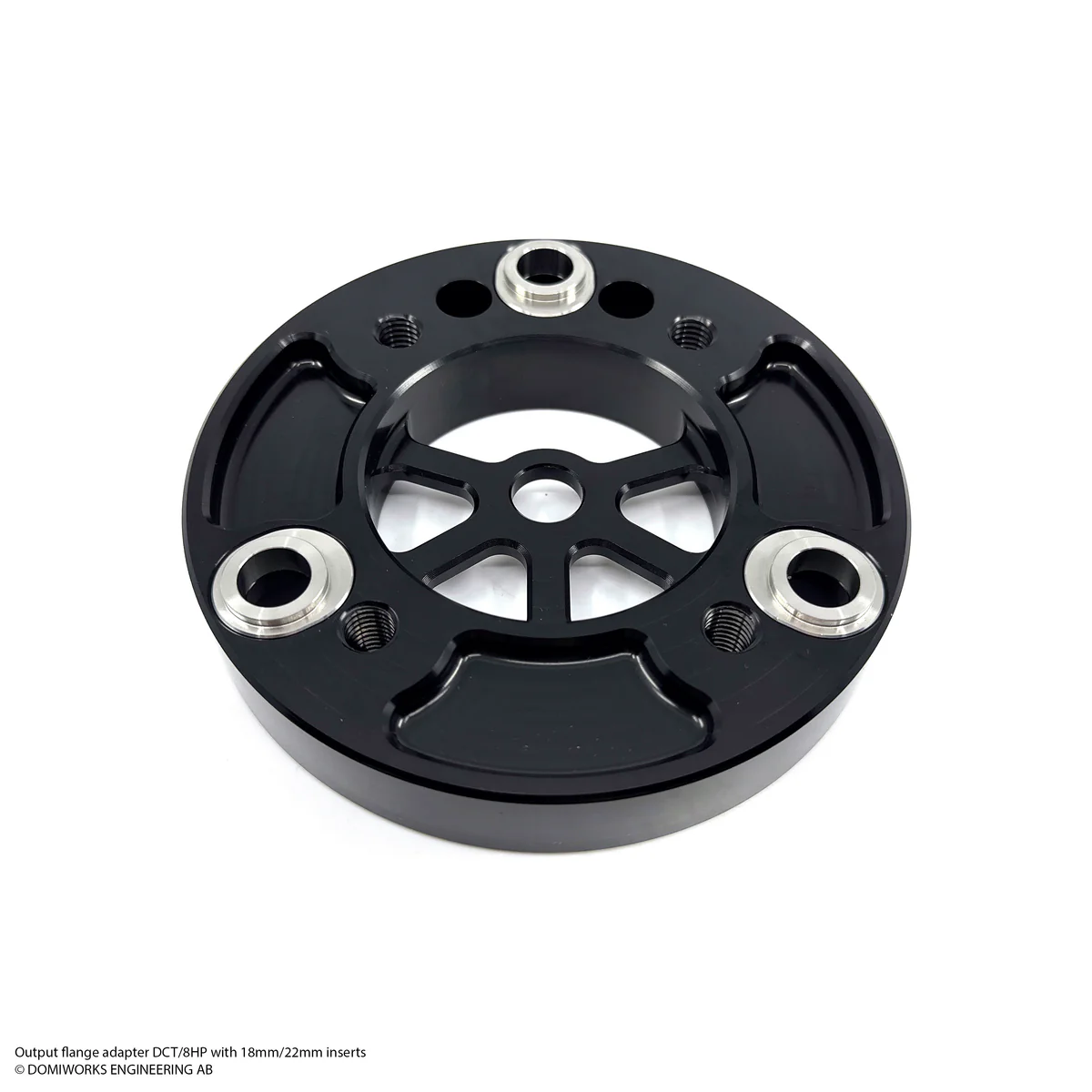

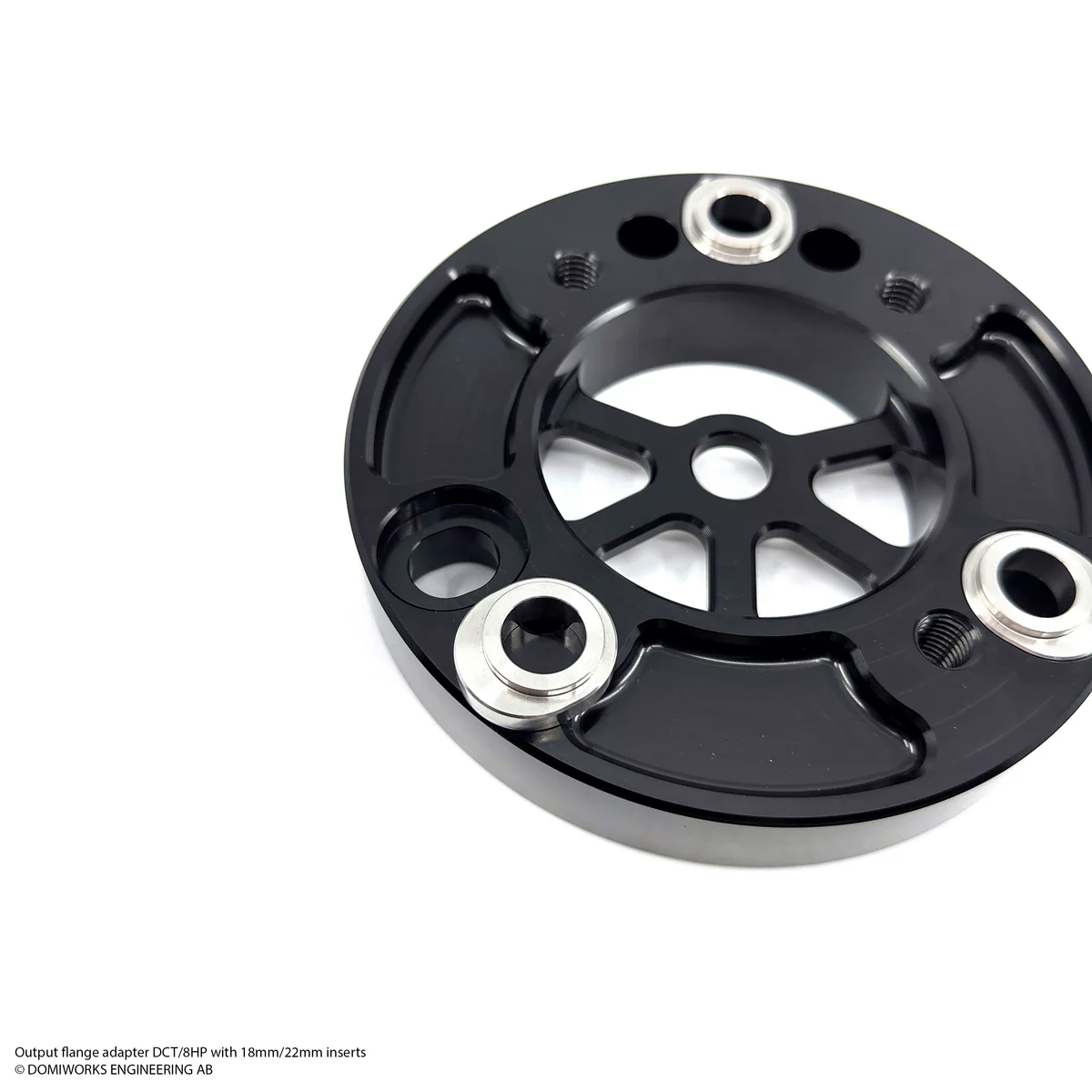

8HP / DCT Output Flange adapter 105-110mm with 18mm or 22mm inserts

Here is our updated revision of our popular output flange adapter.

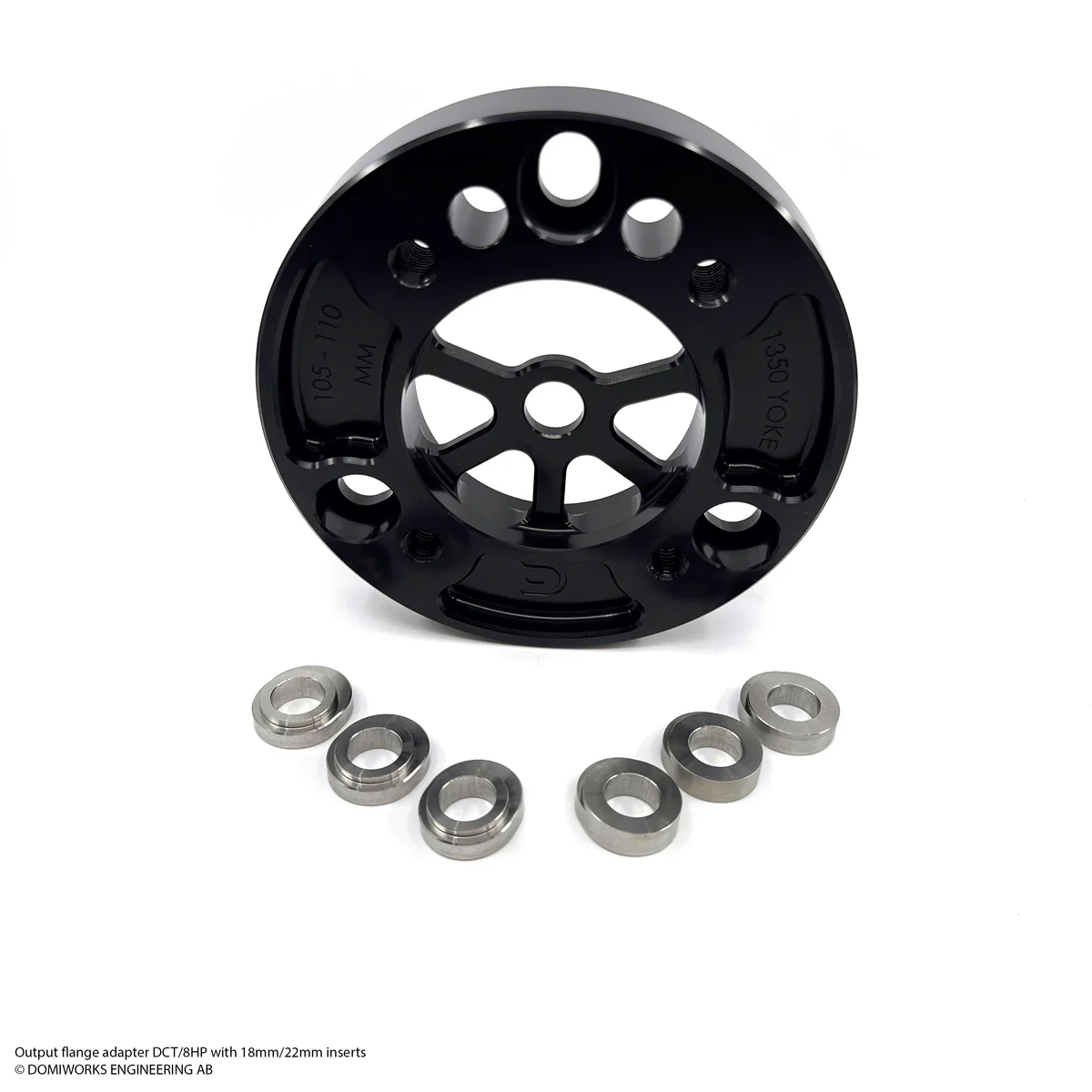

This new adapter now accepts both 105mm and 110mm PCD pattern. This new design now features steel inserts that easily can change from 105 to 110mm by just rotating them 180 degrees in their mounting hole.

You can select between 18mm and 22mm inserts depending on which version you have on your transmission. This means it covers both 8HP and DCT transmission.

Converts the output flange from 3-hole hardy disc pattern to 4-bolt 1350 Yoke pattern.

Made of aluminium and anodized black. Stainless steel inserts for either 18mm or 22mm inserts.

Includes all mounting hardware necessary.

Adapter is 22mm thick.

Works with SPICER #3-2-119 and equivalent yokes.

Here is link for technical dimensions of the 1350 pattern.
1350 Technical dimensions

Fits all BMW DCT Gearboxes with a 105mm or 110mm PCD on the output flange with 22mm inserts.
Fits all BMW 8HP Gearboxes with a 105mm or 110mm PCD on the output flange with either 18mm or 22mm insert.

Choose the inserts version you would like to use. You can include both versions for a reduced price.

We will soon post more information on which transmission has what configuration.
