E30 6-Speed Transmission Extension Brackets
-GO 6-SPEED WITH YOUR E30 SWAP!

OVERVIEW

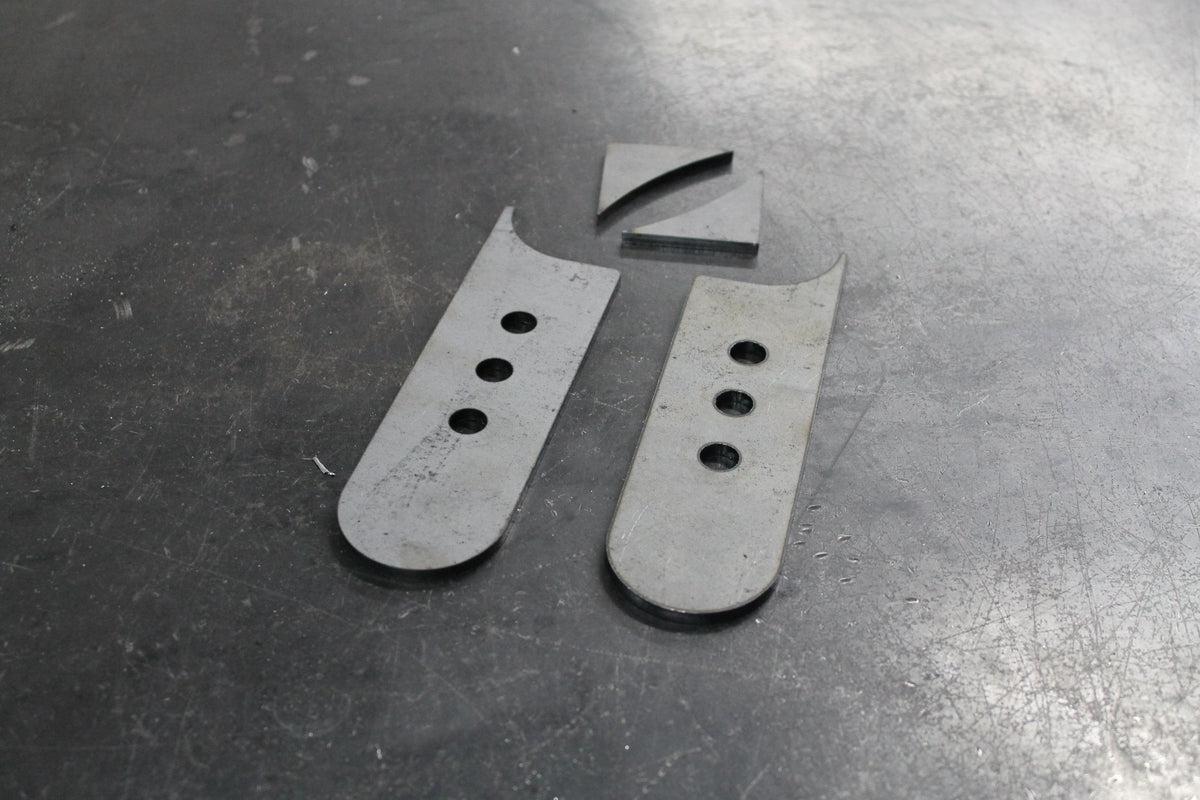

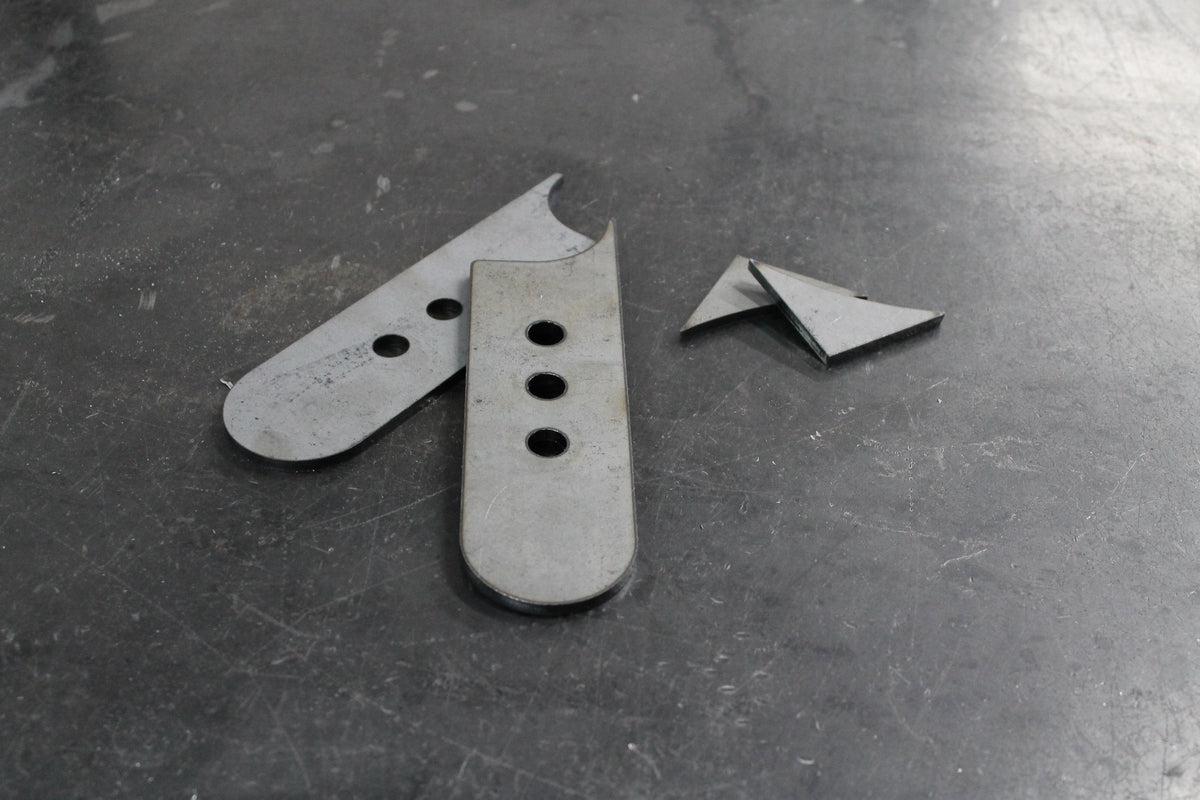

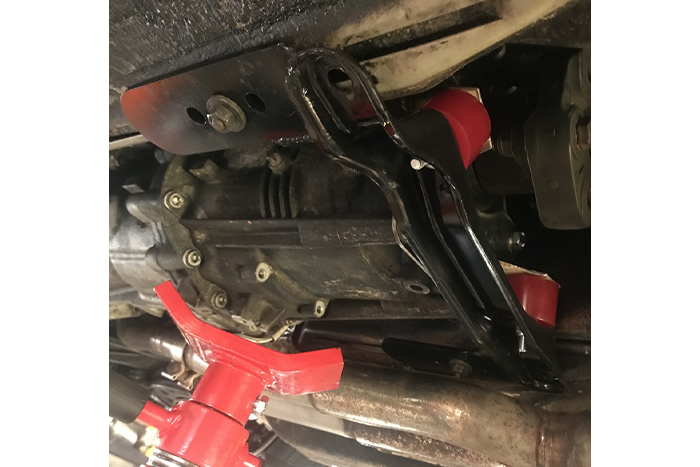

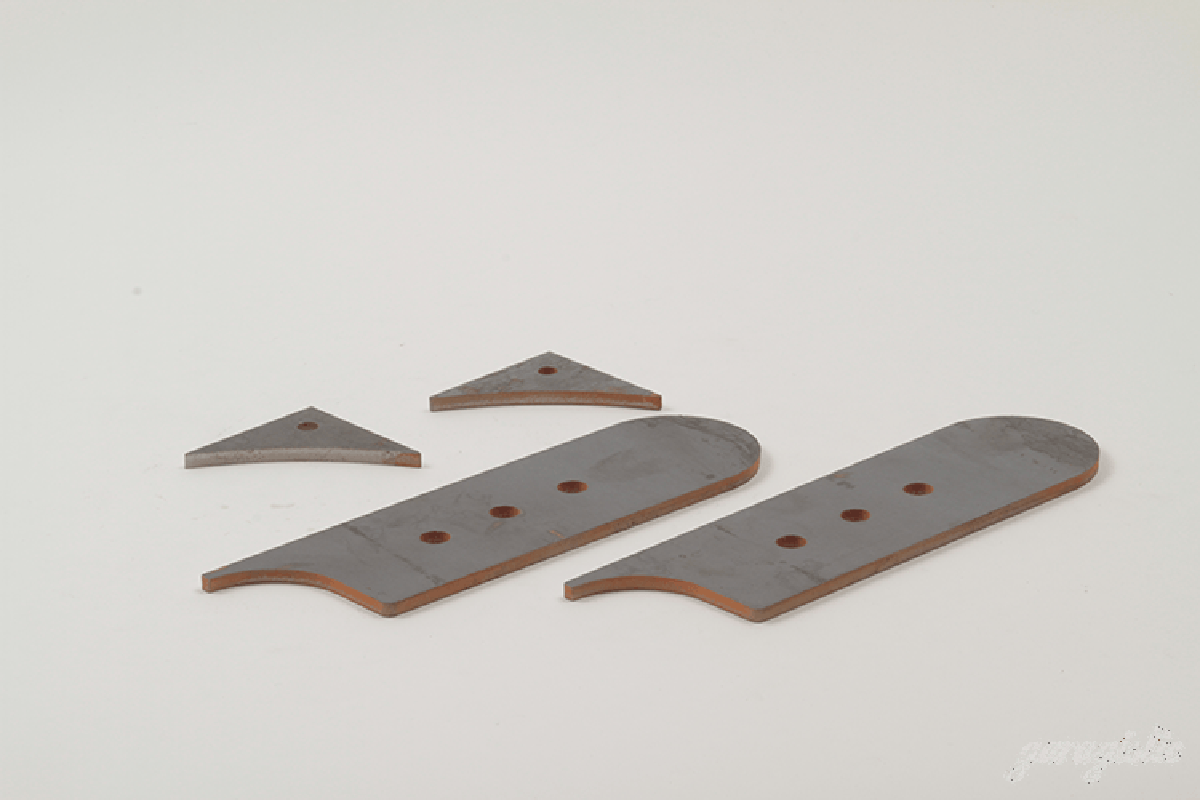

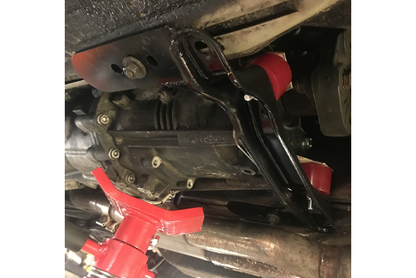

When swapping in an M6x and you want to use a BMW 6-speed transmission, the additional length of the transmission means you cannot use your factory E30 transmission brace. You will need to "extend it". To do this, you need these pre-cut trans bracket extension brackets. Simply weld them onto your factory brace and your 6-speed is mounted! Please note that this extension is not required when doing the 5-speed behind an M6x.

This bracket will ALSO WORK for E30s who want to do a 6-speed conversion using the Getrag E36 M euro 6-speed, ZF 6-speed, or E46 M 6-speed gearbox. So you can now have a 6th gear in your E30 with your M60, M62, M42, M47, M20, M50, M52, S52, M54, S54 engine combo! These adapters allow the use of your OEM E30 transmission brace. When swapping in a BMW 6-speed transmission, the additional length of the transmission means you cannot use your factory transmission brace; you will need to "extend it". To do this, you need these pre-cut trans bracket extension brackets. Simply weld them onto your factory brace and your 6-speed is mounted! With this kit, it's pretty much a 100% OEM look and fit to the transmission.

FITMENT

• Designed to be welded directly to the factory E30 G260 manual transmission brace.

What engines could use these 6-speed gearboxes?

• M6X 8 cyl
• M42 4 cyl
• M47 4-cylinder (diesel)
• M20 6 cyl
• M50/M52/S52/M54 6 cyl
• S54 6-cyl
• N54 6-cyl
• N55 6-cyl

Note: The E46 330i ZHP ZF 6-speed gearbox has an updated design of clutch splines as well as a dual-ear shift carrier from the factory!

INCLUDED

Price is for a pair (2 units). Enough to do 1 car.
