Seems Legit Garage - E9X/E9X Toe Stud Kit

SLG Hardened Outer Toe Stud Kit – BMW E8X / E9X

When pushing BMW rear suspension hard on track, we’ve seen a common failure point: the OEM outer toe arm fastener. The factory bolt operates in a single-shear configuration, and after repeated abuse it can loosen, and eventually, fail entirely. Our new stud kit is compatible with our adjustable toe arms for maximum strength to jump all the curb and save all the lap time.

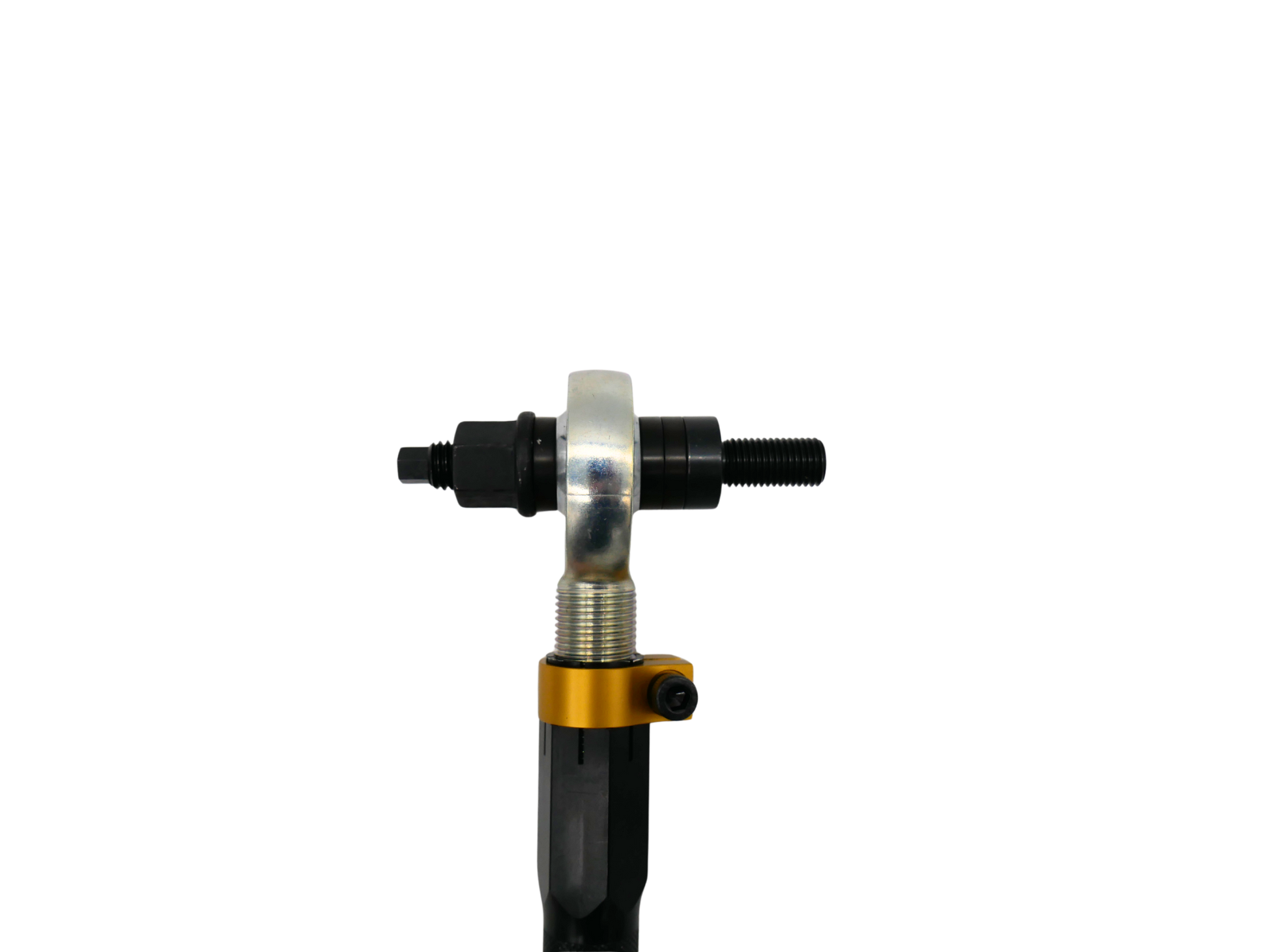

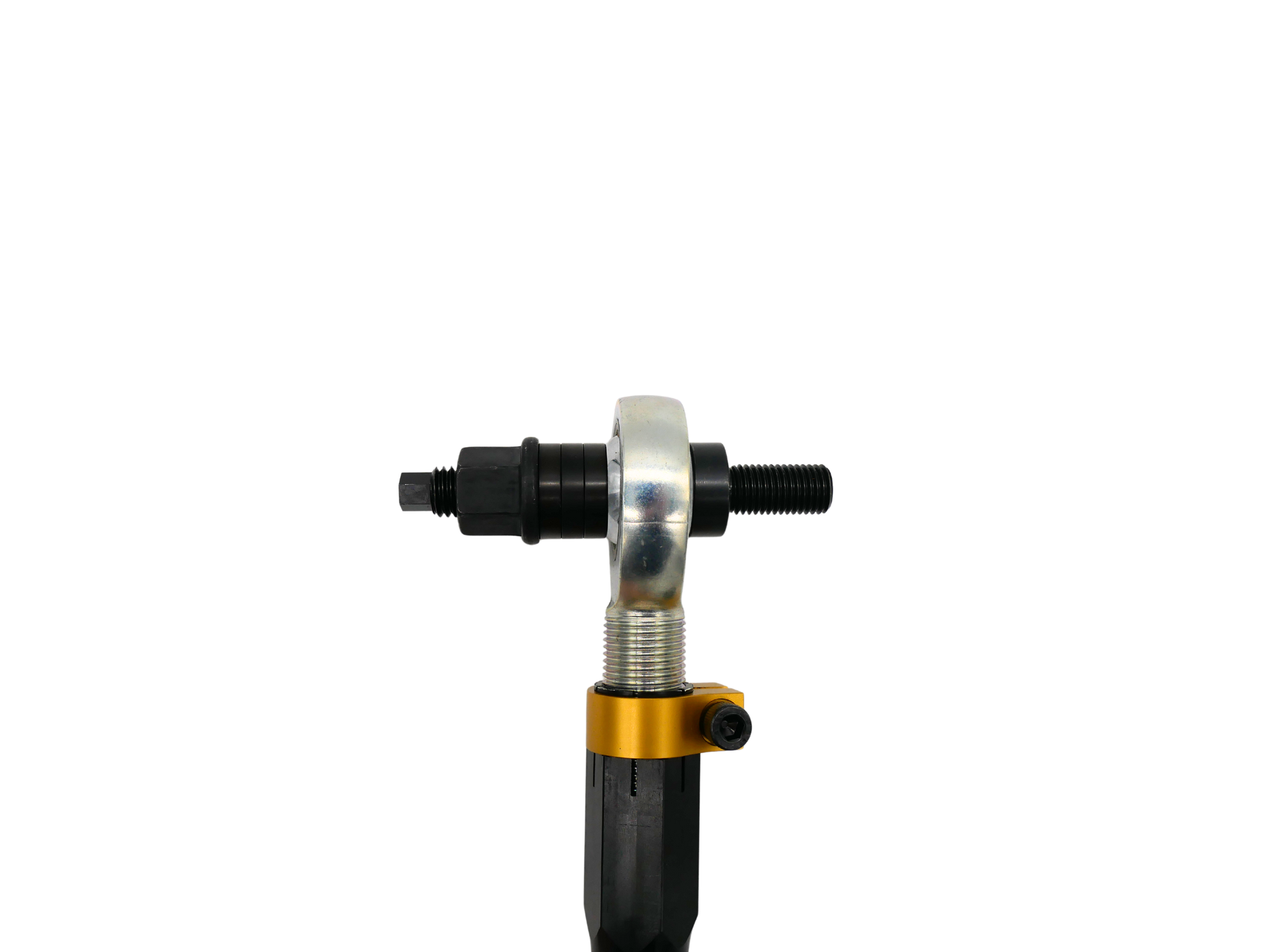

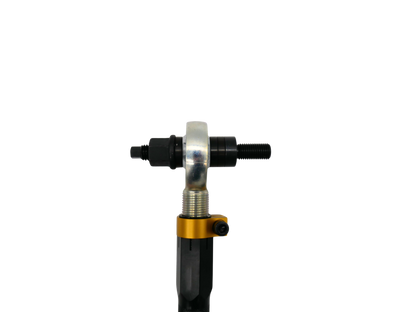

Our Hardened Outer Toe Stud Kit replaces the bolt with an extremely strong hardened steel stud, creating a far more secure mounting point for the rear toe arm or tie rod. The stud stays fixed in the upright while the joint is secured with high-strength hardware, eliminating the tendency of the factory bolt to loosen during hard use.

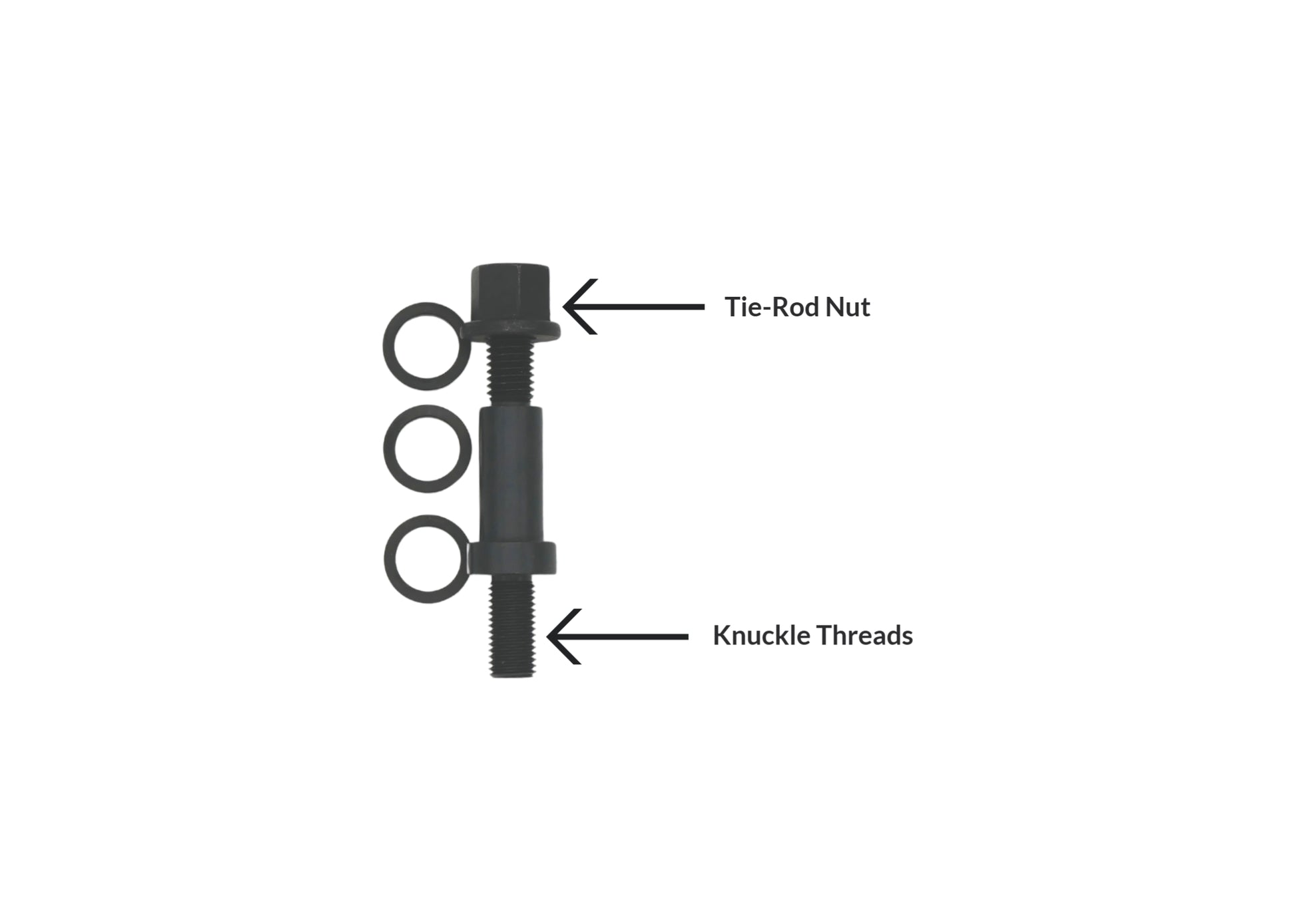

Even better, the stud design allows the use of precision spacers to adjust bump steer, making it easy to dial in suspension geometry for track performance. This system provides both increased reliability and tunability, making it ideal for track cars, Time Attack builds, and aggressive street setups.

Kit includes 2x Stud Kits (One for each rear knuckle)

See our instruction manual [HERE]

Features

• Replaces the weak OEM outer toe bolt used in single-shear

• Hardened steel stud design for maximum strength and reliability

• Prevents fastener loosening common with factory hardware

• Allows bump-steer adjustment using spacers

• Ideal for track and race vehicles

• Developed and tested on SLG race cars
