Edelbrock Timing Chain And Gear Set GM V-6 Odd

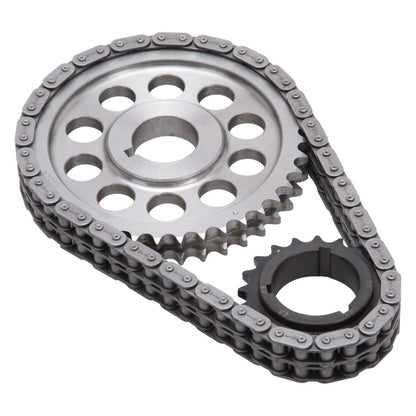

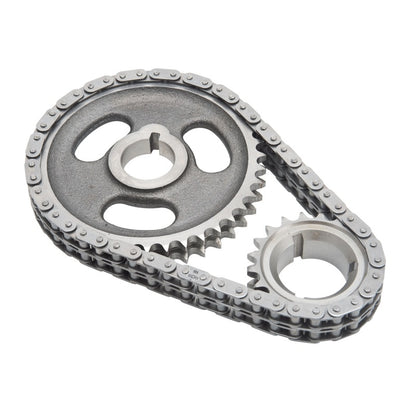

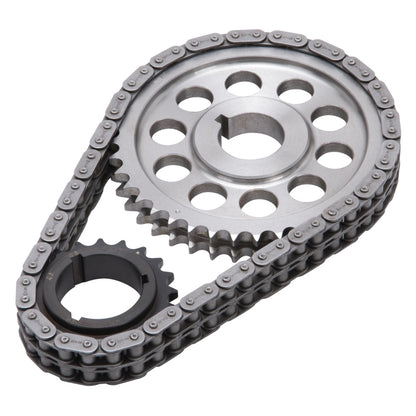

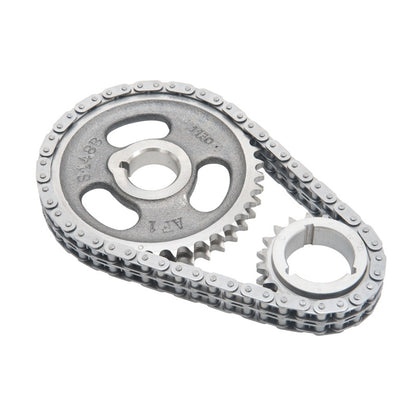

Edelbrock part #7828 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break

This Part Fits:

Year	Make	Model	Submodel
1975-1977	Buick	Century	Base
1975-1977	Buick	Century	Custom
1975-1977	Buick	Century	Special
1976-1977	Buick	LeSabre	Base
1977	Buick	LeSabre	Custom
1975-1977	Buick	Regal	Base
1976-1977	Buick	Regal	SR
1975-1977	Buick	Skyhawk	Base
1975-1977	Buick	Skyhawk	S
1961-1967,1975-1977	Buick	Skylark	Base
1976-1977	Buick	Skylark	S
1975-1977	Buick	Skylark	SR
1961-1967	Buick	Special	Base
1961-1967	Buick	Special	Deluxe
1964	Buick	Sportwagon	Base
1962-1963	Oldsmobile	Cutlass	Base
1977	Oldsmobile	Cutlass	Colonnade
1977	Oldsmobile	Cutlass	Colonnade S
1977	Oldsmobile	Cutlass	S
1977	Oldsmobile	Cutlass Supreme	Base
1977	Oldsmobile	Cutlass Supreme	Brougham
1977	Oldsmobile	Cutlass Supreme	Colonnade
1977	Oldsmobile	Delta 88	Base
1977	Oldsmobile	Delta 88	Royale
1961-1963	Oldsmobile	F85	Base
1962-1963	Oldsmobile	F85	Deluxe
1962-1963	Oldsmobile	Jetfire	Base
1977	Oldsmobile	Omega	Base
1977	Oldsmobile	Omega	Brougham
1977	Oldsmobile	Omega	Deluxe
1977	Oldsmobile	Omega	F85
1977	Oldsmobile	Omega	SX
1975-1977	Oldsmobile	Starfire	Base
1977	Oldsmobile	Starfire	Firenza
1976-1977	Oldsmobile	Starfire	GT
1975	Oldsmobile	Starfire	S
1976-1977	Oldsmobile	Starfire	SX
1977	Pontiac	Catalina	Base
1977	Pontiac	Firebird	Base
1977	Pontiac	Firebird	Esprit
1977	Pontiac	Grand LeMans	Base
1977	Pontiac	LeMans	Base
1977	Pontiac	LeMans	Sport
1977	Pontiac	Phoenix	Base
1976-1977	Pontiac	Sunbird	Base
1976	Pontiac	Sunbird	SJ
1977	Pontiac	Ventura	Base
1977	Pontiac	Ventura	SJ
