BMW DIFFERENTIAL STUD KIT - E30, Z3, E28

OVERVIEW

Introducing our EXTENDED diff stud kit conversion with spacers. This is for people running raised subframe bushings with a centered diff bushing on their E30, Z3, or 318ti.

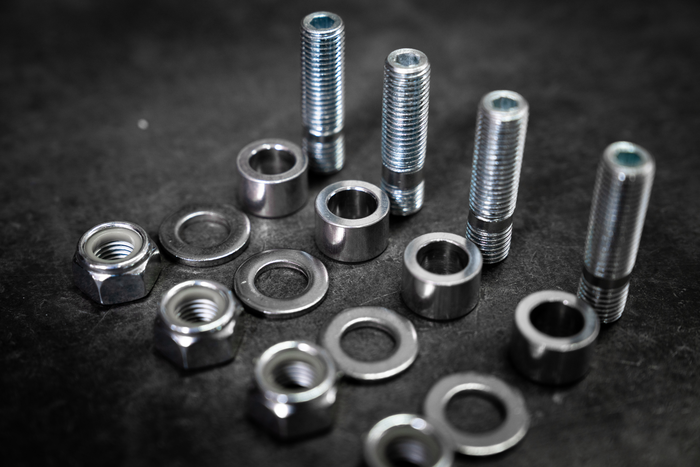

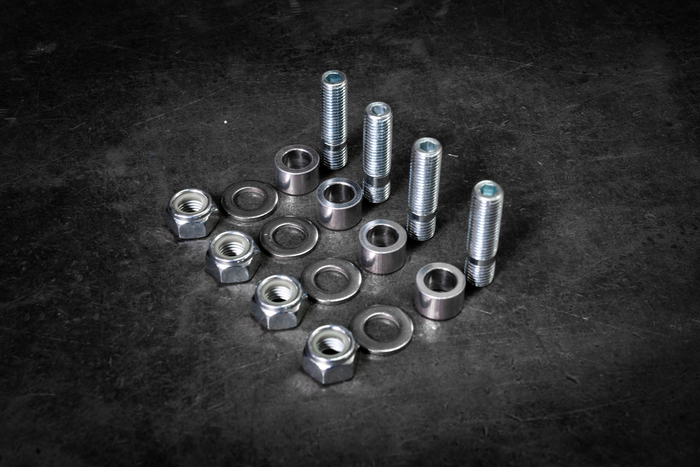

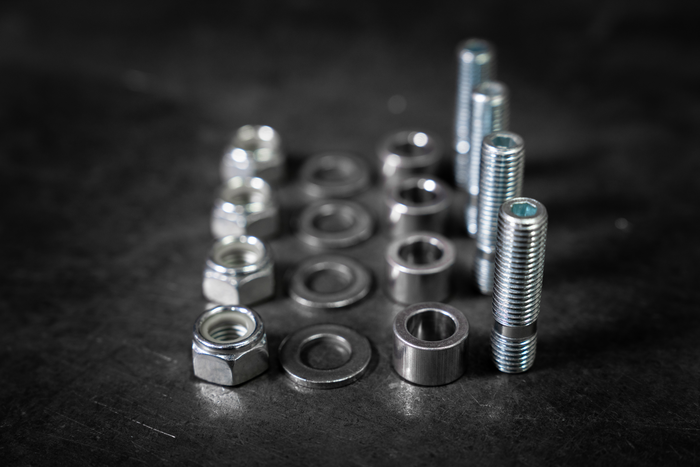

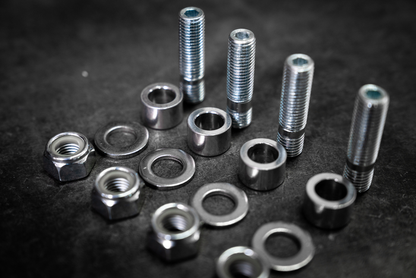

This is one of those mods that you will be glad you did, the next time you need to service your differential. This makes taking the differential in and out of your E30, E28, or Z3 a lot easier. This now becomes a one-person job (and safer). It can be a little difficult to balance the differential and line up the bolt holes during re-installation. They never seem to line up perfectly you need to make sure that the bolts thread by hand first. It can be time-consuming. Our diff studs are designed to make everything line up and lift right into the holes every time. Installation is easy. Simply apply Loctite on the studs and thread them into the existing provisions on your differential for the OEM bolts. That's it! Each set includes everything needed for installation including nylon locking nuts and washers.

FITMENT

WHAT BMWS CARS WILL THIS DIFF STUD KIT WORK ON?

• E30 Models
• E36/5: 318ti
• E36/7/8: Z3 Models


INSTALLATION TIPS

• Recommended: Blue Loctite
• Stud Torque Spec: 25 ft/lbs
• Nut Torque Spec: 45 ft/lbs

USEFUL LINKS

• Extended Studs/Spacers VS Offset Differential Bushing

IF YOU ARE RUNNING RAISED SUBFRAME BUSHINGS AND A CENTERED DIFFERENTIAL BUSHING THIS IS THE CORRECT KIT FOR YOU!
