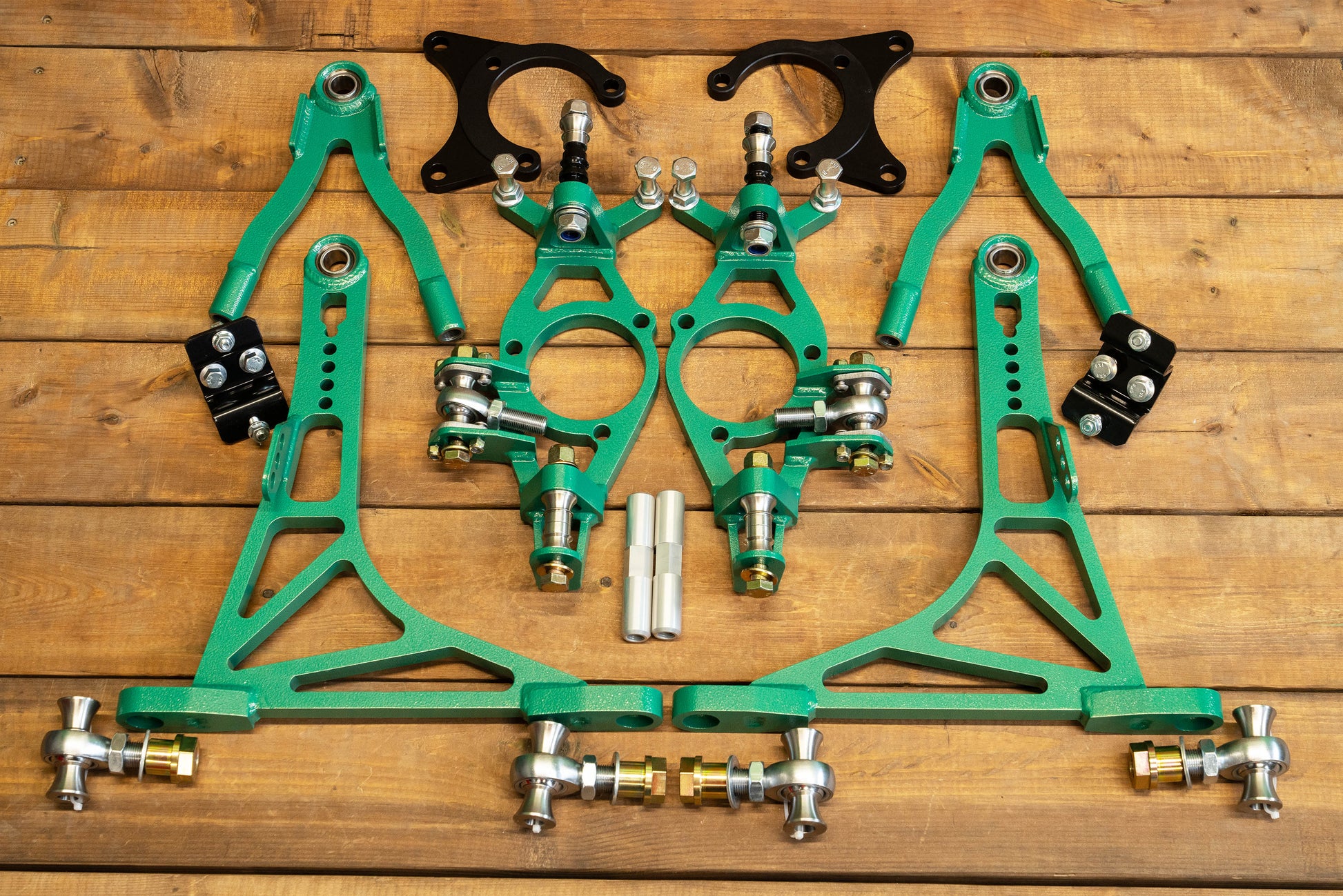

FDF Raceshop - Corvette C5/C6 Mega Mantis Angle Kit

Built for serious angle and serious strength, this Mega Mantis kit is the go-to setup for C5 and C6 Corvette drift builds.

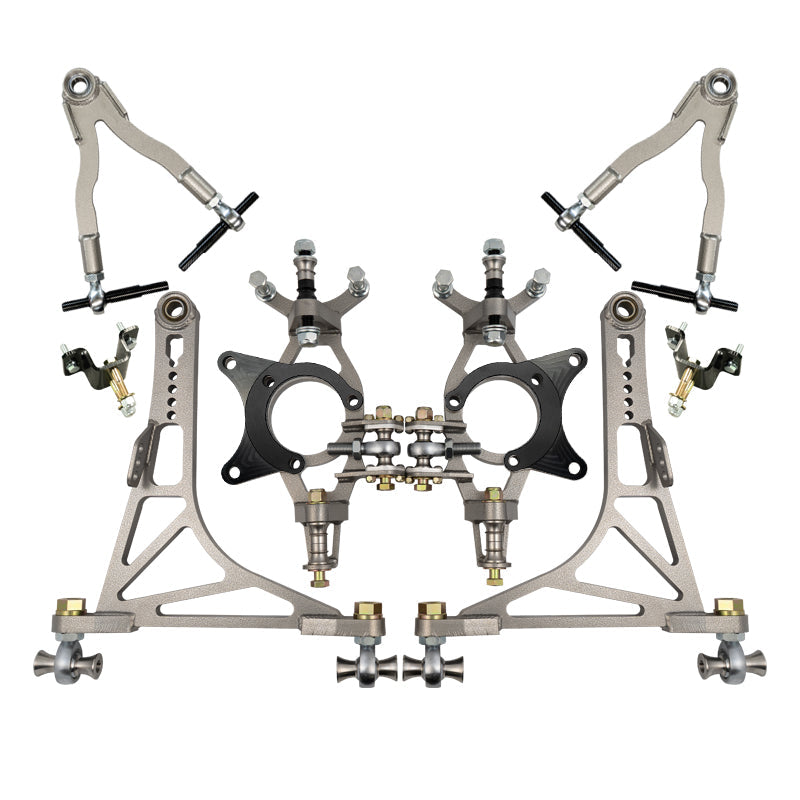

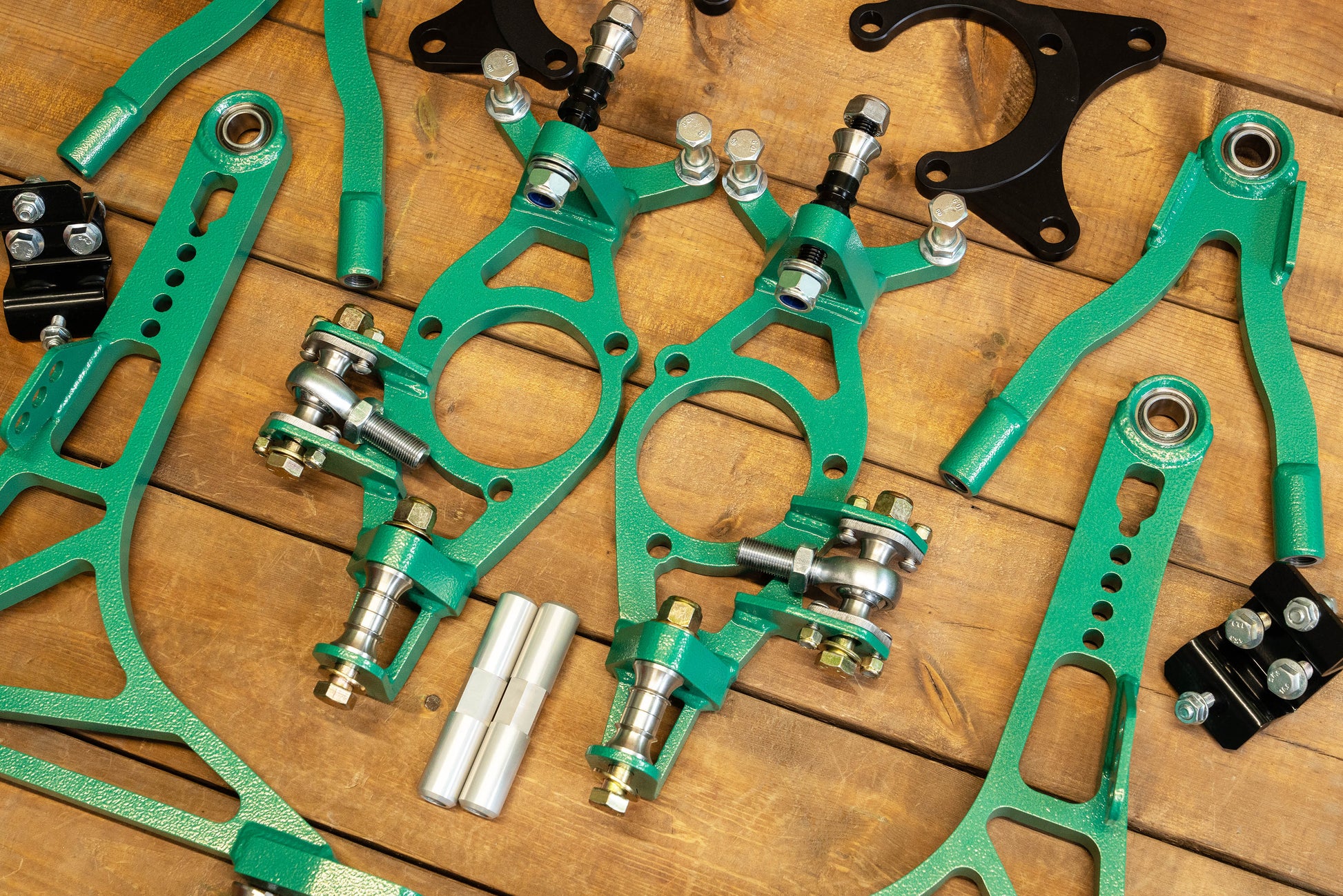

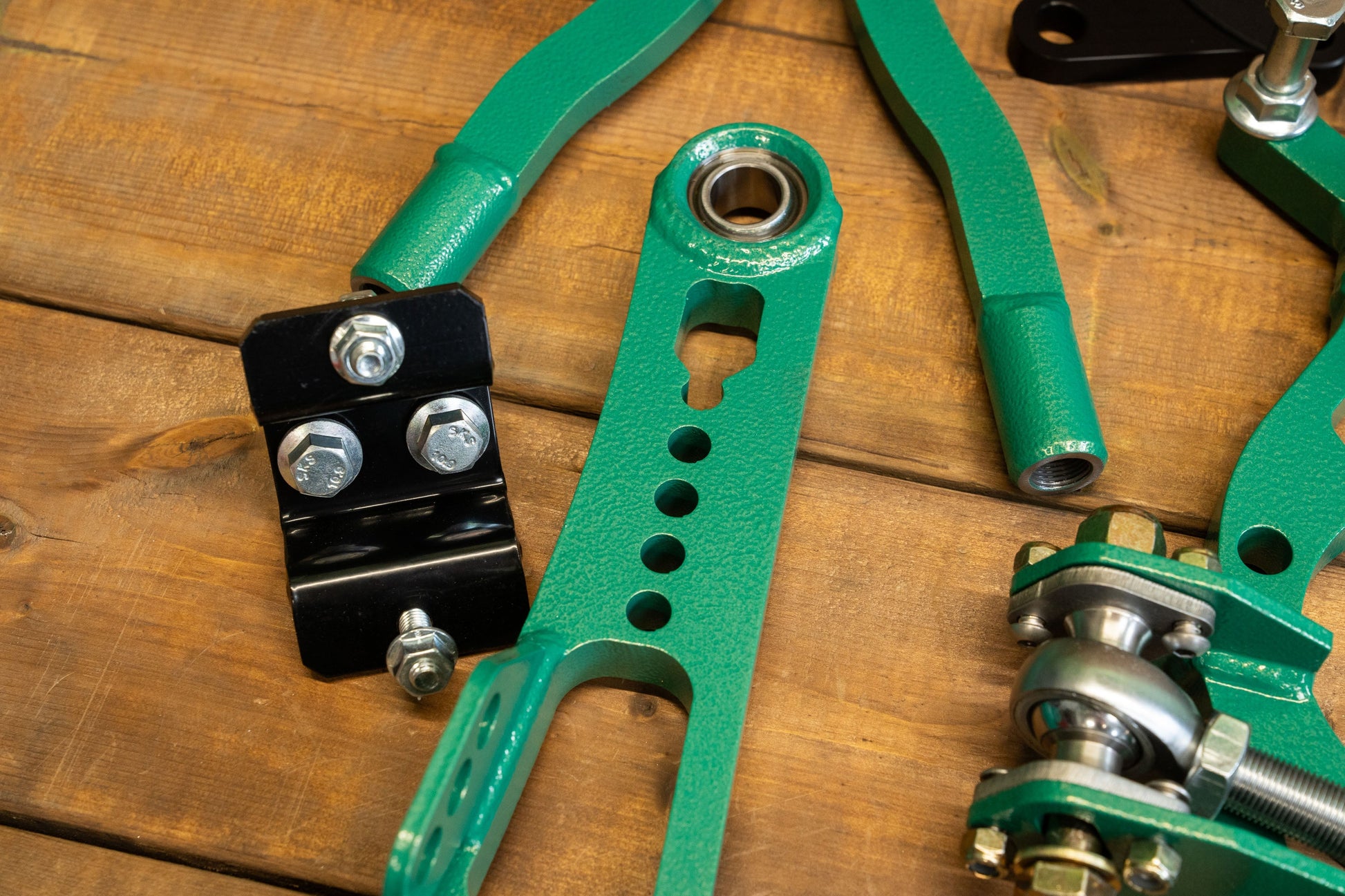

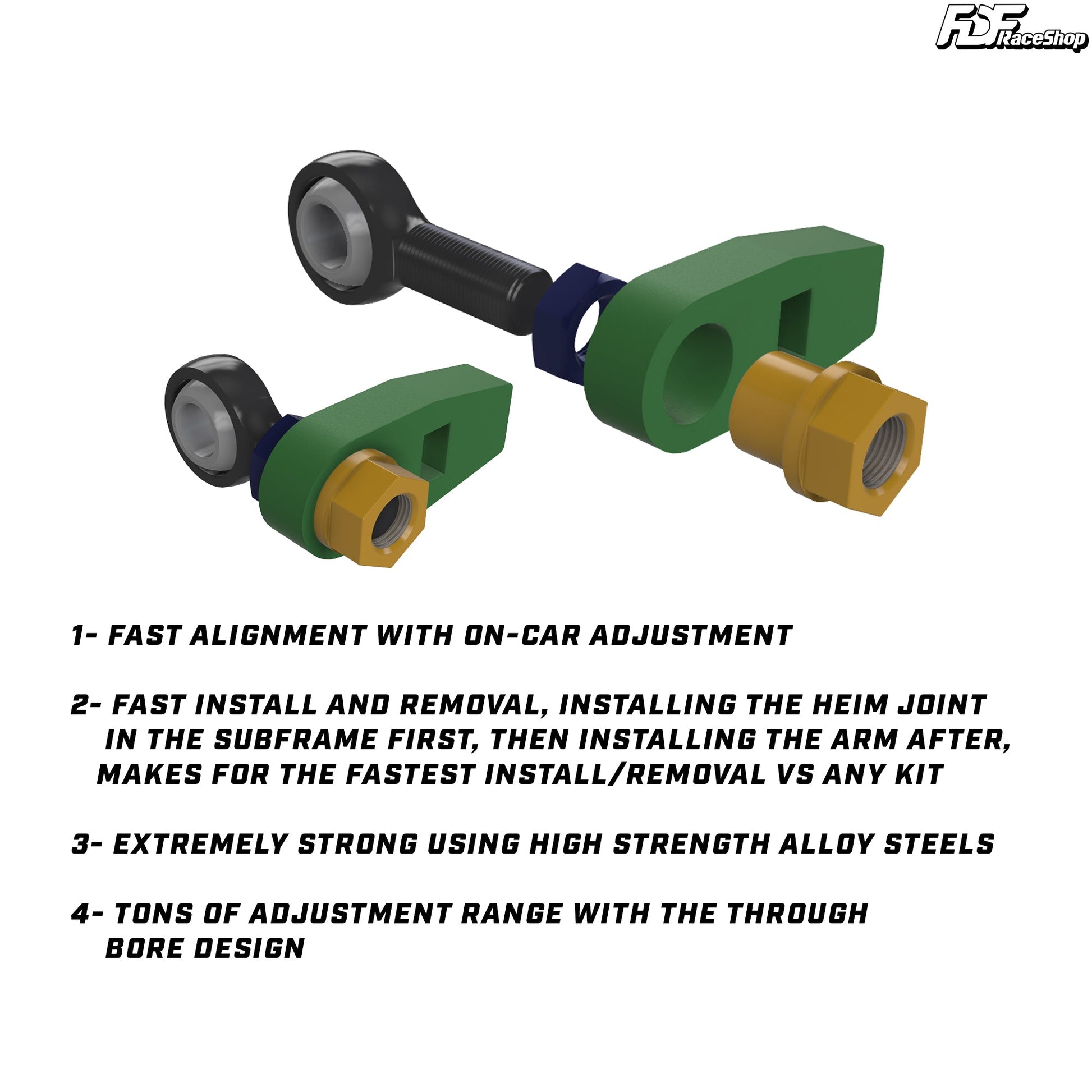

It’s a full knuckle design with proper pickup points for the lower arm, tie rod, and upper control arm—all laid out for max performance and easy setup. The lower arms use our uniball at the knuckle side with smooth adjusters on both feet, so you can fine-tune everything right on the car.

Up top, the control arms also run uniballs for tons of articulation and solid movement throughout the suspension travel. They bolt into the top of the knuckle using our Corvette-specific stud for a clean, secure fit.

If you're building a Vette for angle and control, this is the kit you want.

Key Features:

• Angle: 70 degrees depending on your wheel setup and length of control arms.

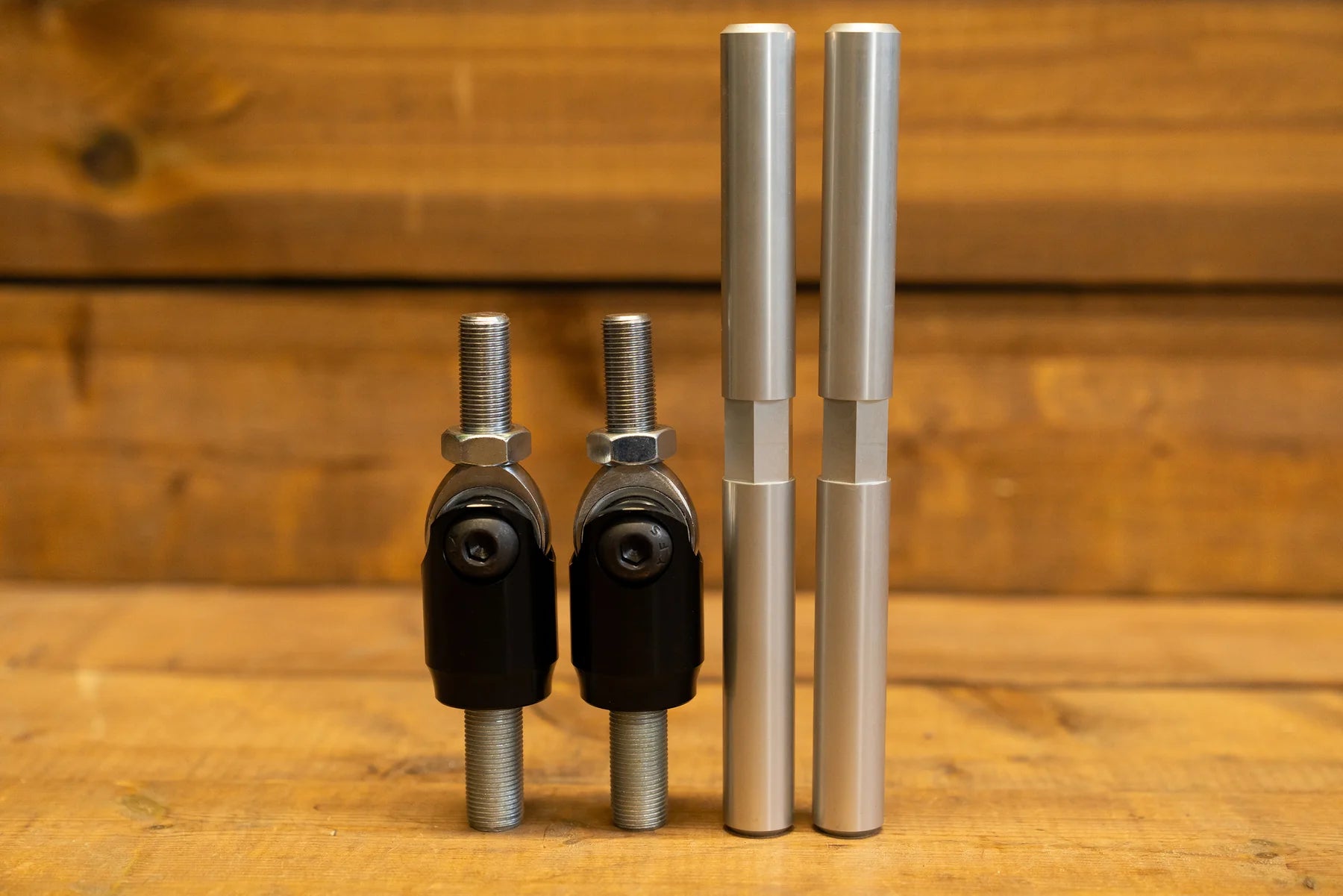

• Tie-rods: Outer tie-rods included, these fasten to the stock inner tie-rods.
• Ackermann: Adjustable Ackermann options from Positive - zero - negative
• Roll Center: Optimized handling by adding 25mm of roll center correction.
• Bump steer: Perfected bump steer for drifting.
• Caster: Modifications made to the displaced caster amount giving a good self-steer feel for the driver and maximizing the performance for drifting.
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 25-75mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race; easily replaceable.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

Note: Wheel Bearing not included.

Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.
