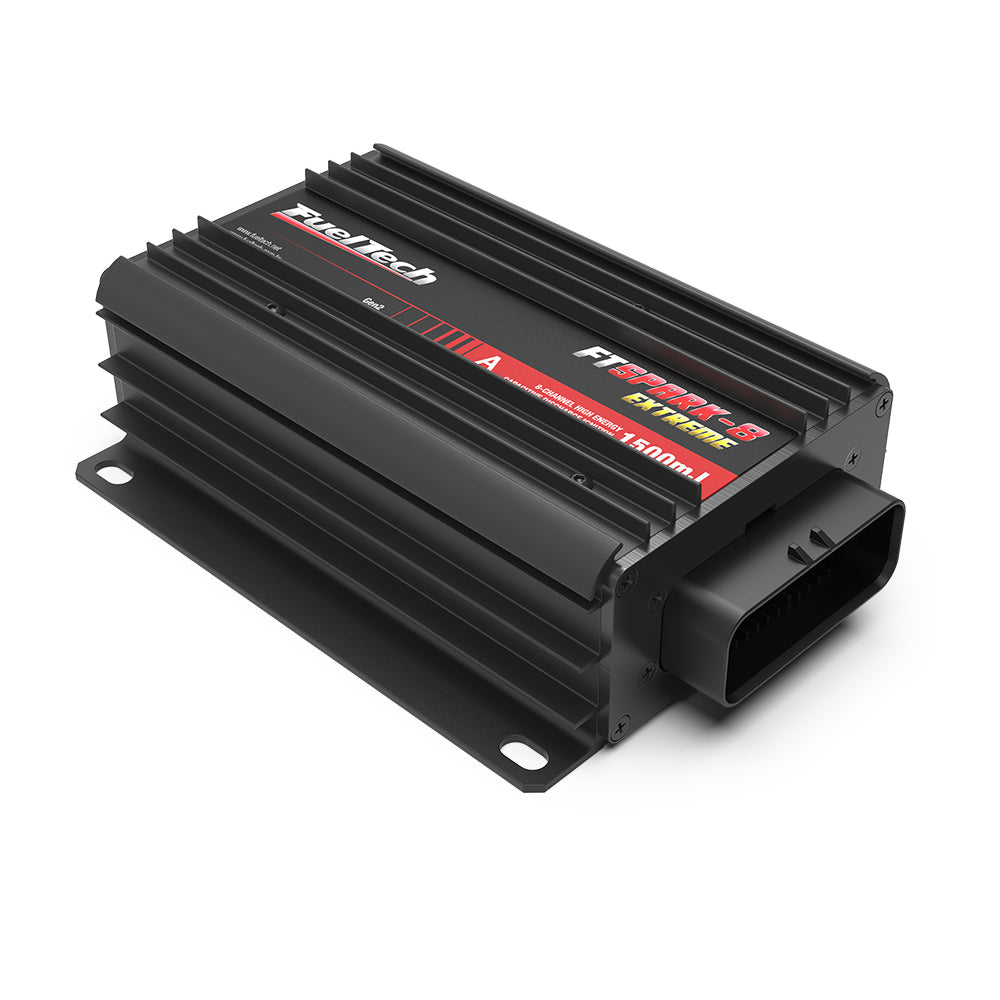

FuelTech USA - FTSPARK EXTREME - 1500mJ

FuelTech's FTSPARK Ignition Module is an exceptionally high-energy Capacitive Discharge Ignition (CDI) system engineered to meet the most demanding spark requirements for racing applications. Designed and tested on 5,000+ horsepower engines, this system is ideal for high-performance builds that demand extreme power. The FTSPARK Ignition generates up to 1700mJ of spark energy and delivers up to 175 Amps of current through the primary coil, using FuelTech's Racing CDI Ignition Coil.

This high-performance ignition system is fully compatible with any ECU on the market, offering seamless integration for various setups.

Single Module Supports 1-4 Cylinders - Dual Modules to Support 5-8 Cylinders

For rotary engines, we recommend using the FTSPARK-4 Ignition Module.

DOWNLOAD MANUAL

Key Features:

• Generates up to 1700mJ of spark energy, delivering intense power for high-horsepower racing engines.
• Fires up to 175 Amps of current through the primary coil with FuelTech's CDI Racing Ignition Coil.
• Compatible with all ECUs, allowing flexibility across different platforms.
• Includes CAN communication with FuelTech PowerFT and VisionFT ECUs for diagnostics and datalogging.
• Equipped with an automotive connector with gold-plated terminals for superior conductivity and durability.

Technical Specifications:

• Programmable energy via CAN or digital input to adjust spark energy levels.
• Operates with 475V in the primary coil to reduce interference.
• Features a serial bus for single ECU output triggering across all ignition outputs (PowerFT and VisionFT only).
• Durable anodized aluminum and plastic case for maximum protection.
• Maximum working temperature: 212°F.
• Power requirements: 14-26V for full power; minimum starting voltage of 8V.
• Compatible with other ECUs on the market; contact FuelTech for compatibility support.

Product Dimensions:

• FTSPARK module: 4.92" x 6.02" x 1.97"
• Packaging: 8.78" x 6.38" x 2.36"
• Weight: FTSPARK Extreme module – 65.60 oz; Packaging – 93.48 oz; Wiring harness – 74.08 oz. (available separately)

What’s Included:

• 1 FTSPARK EXTREME module
• 1 installation and operation manual
• 1 mounting hardware kit (4 rubber mounts, 8 washers, 8 nuts)

Warranty:

• 1-year worldwide warranty.

FTSPARK Ignition Manual
