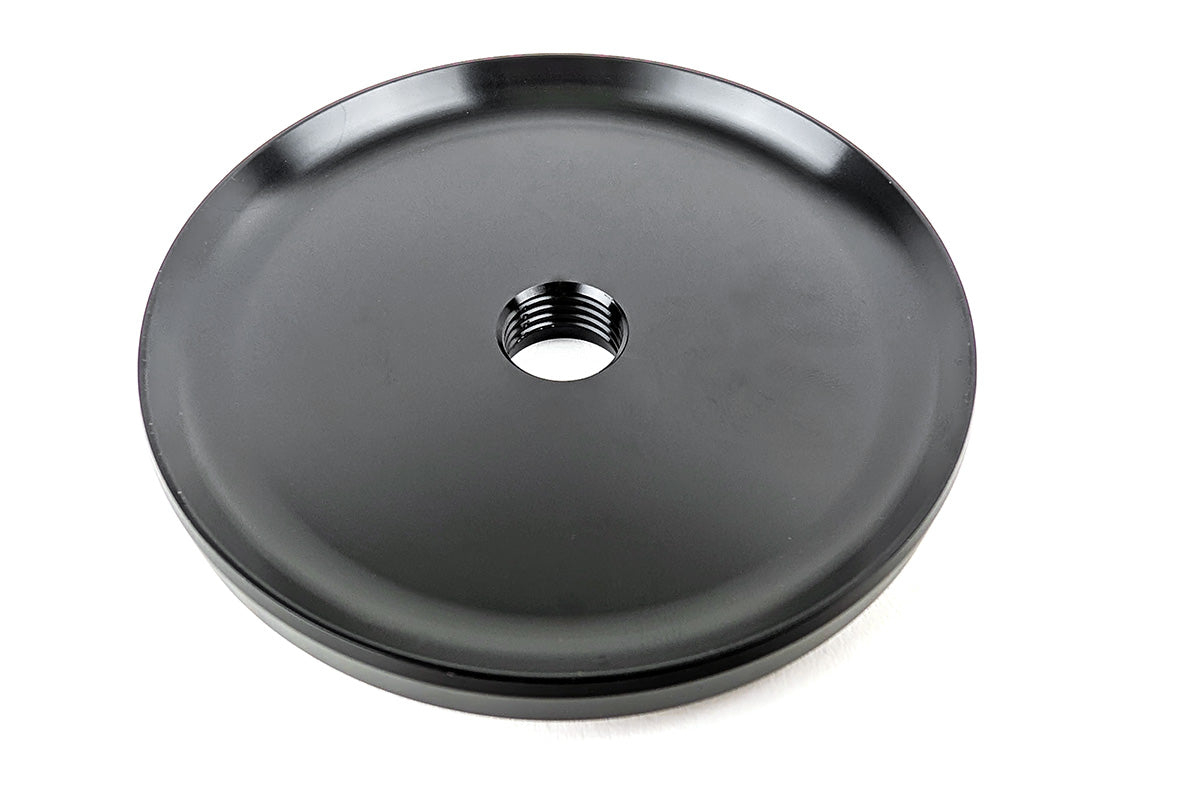

Improved Racing - CCR oil catch can bottom cap with -6 ORB drain port

Add a drain port to your CCR oil catch can by replacing the bottom cap with this drain cap.

This kit includes a bottom cap with a -6 female O-ring boss port and a replacement O-ring.

Replacing the cap is easy:

1. Pry up the retaining ring on the bottom of the can with a plastic prying tool and remove.
2. Push the bottom cap out from the inside of the can.
3. Replace the O-ring seal if necessary.
4. Lubricate the O-ring seal with engine oil.
5. Install the new cap by pressing down on the center the cap. Ensure the O-ring seal does not get pinched.
6. Reinstall the retaining ring by walking it into the ring gland.

Parts Included

• 1 x CCR oil catch can bottom cap with -6 ORB drain port.
• 1 x FKM replacement O-ring seal.

Applications

• All CCR series oil catch cans.
