Improved Racing - Oil pump pickup tube brace / clamp for GM LS engines. Ensures proper O-ring seal

Improve the reliability and performance of your LS oiling system with this simple brace!

The factory LS engine oil pickup tube is only secured by a single screw, which can result in a poor O-ring seal and lead to oil pressure drops and oil starvation. Improved Racing's billet aluminum brace improves the pickup tube O-ring seal by ensuring equal clamping force is exerted to both sides of the oil pickup tube flange.

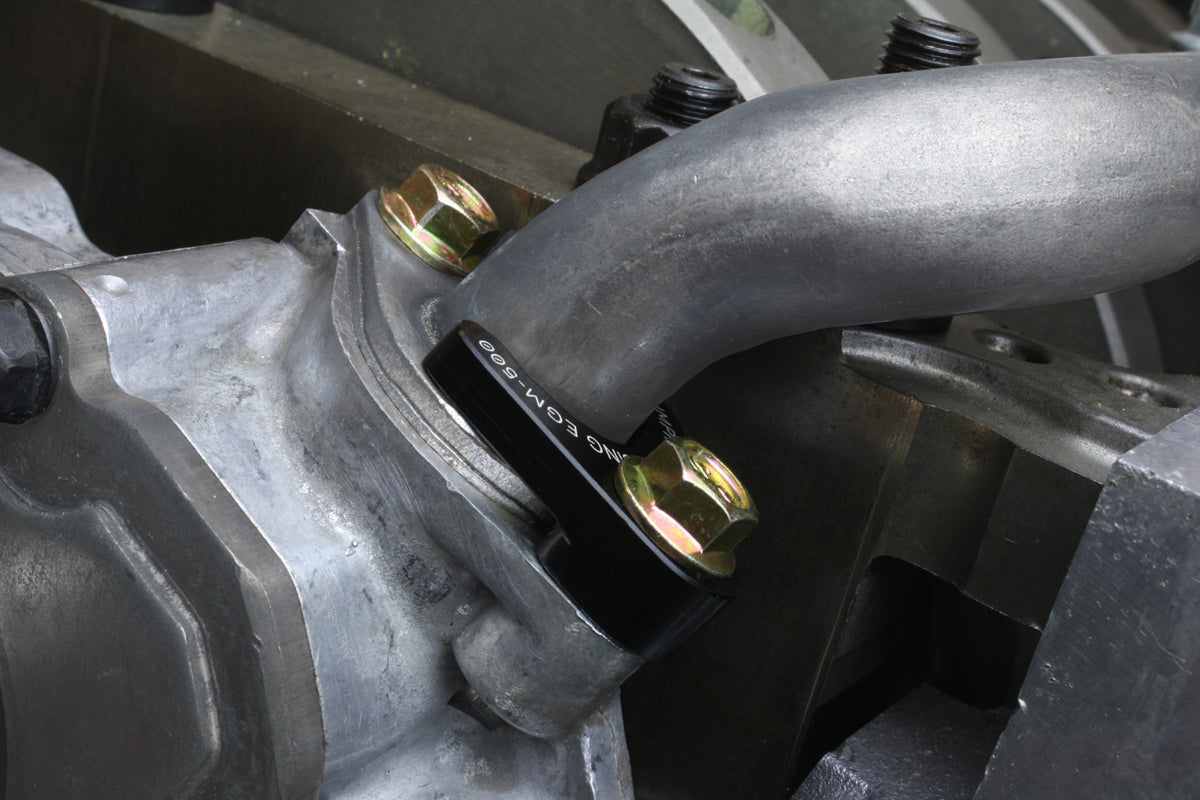

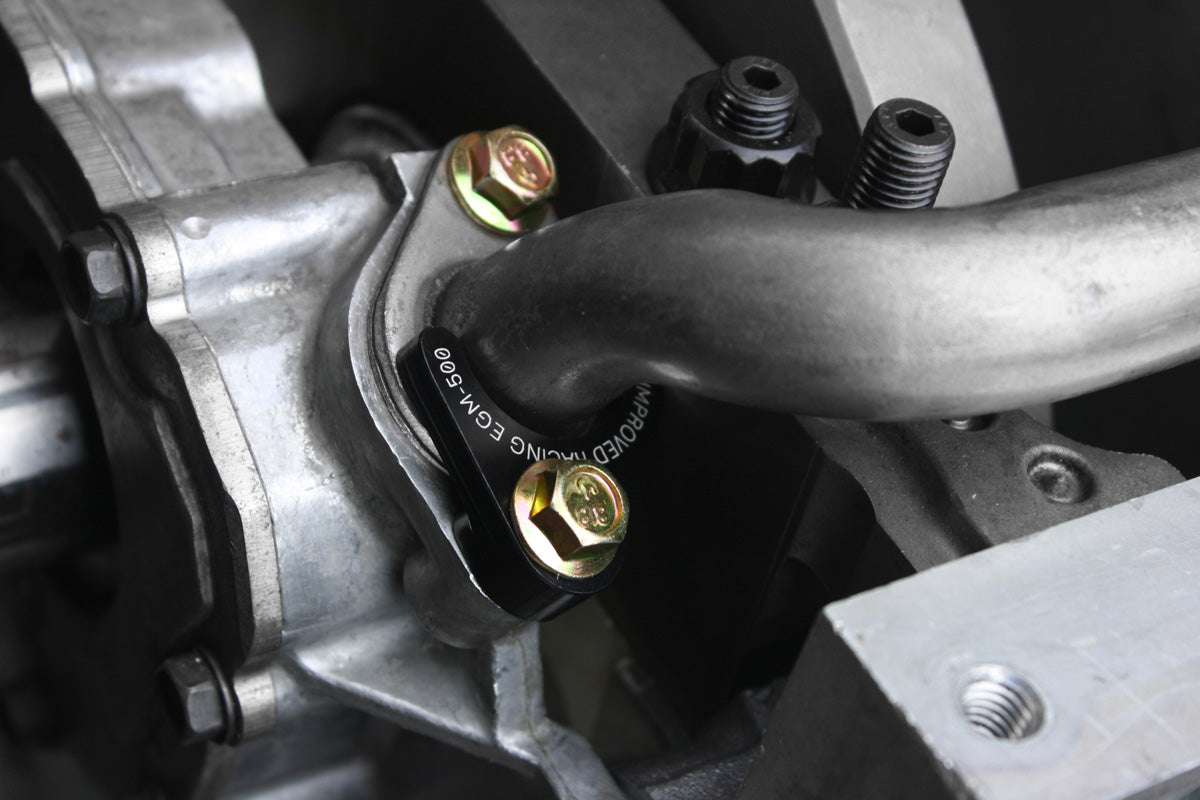

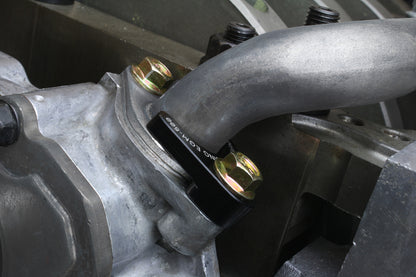

This brace uses the unused extra screw hole in the oil pump and is 100% bolt-on. Coupled with high-strength steel flange screws, it will keep your pickup tube in place and leak-free lap after lap.

Features & Benefits

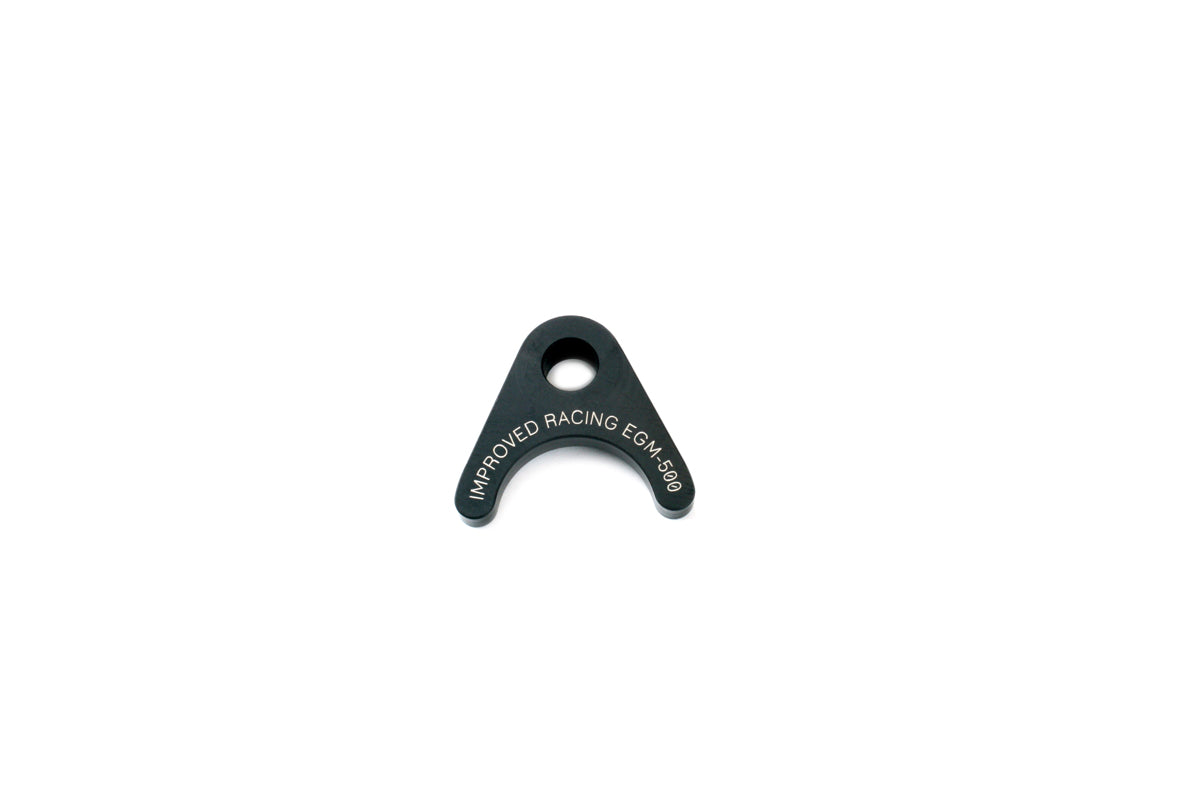

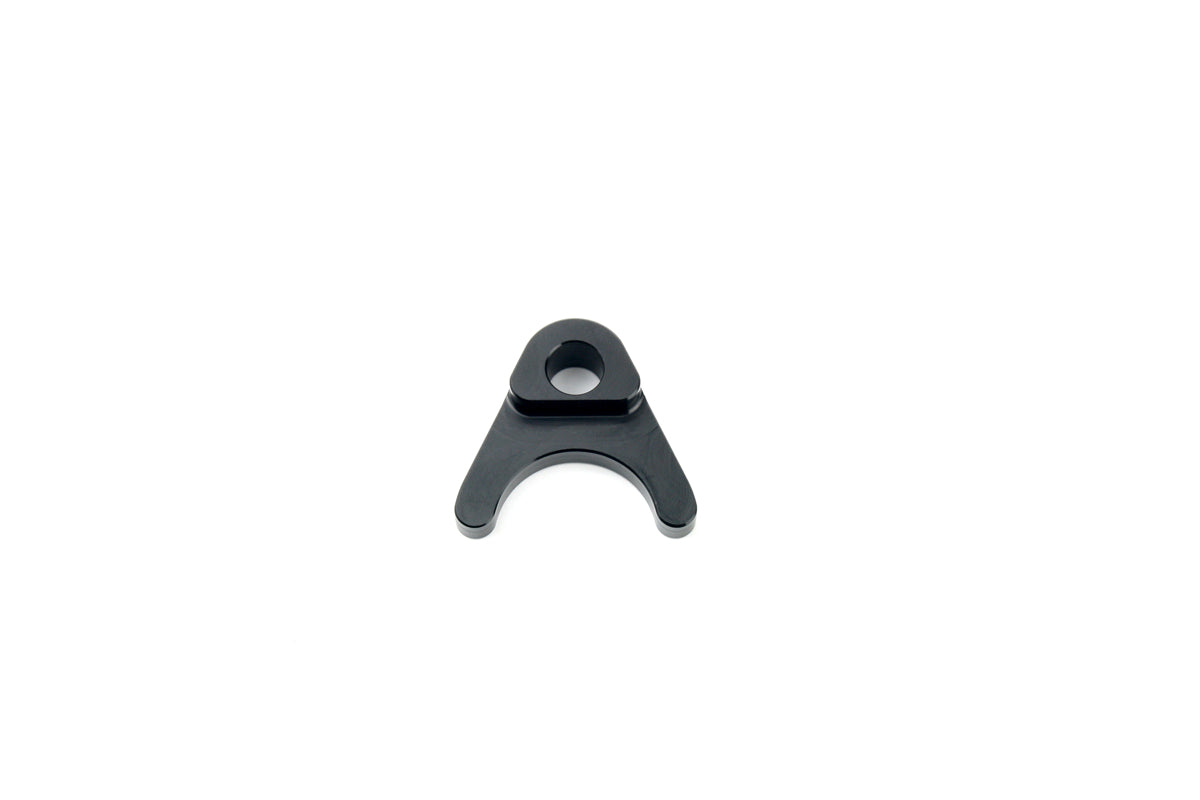

• Machined from lightweight 6061-T6 aluminum, black anodized and laser-marked
• Distributes even clamping force around pickup tube flange by acting as an extension of the flange
• High-strength Class 10.9 M6 flange screws, zinc plated
• Lifetime Warranty
• Made in the USA

Includes

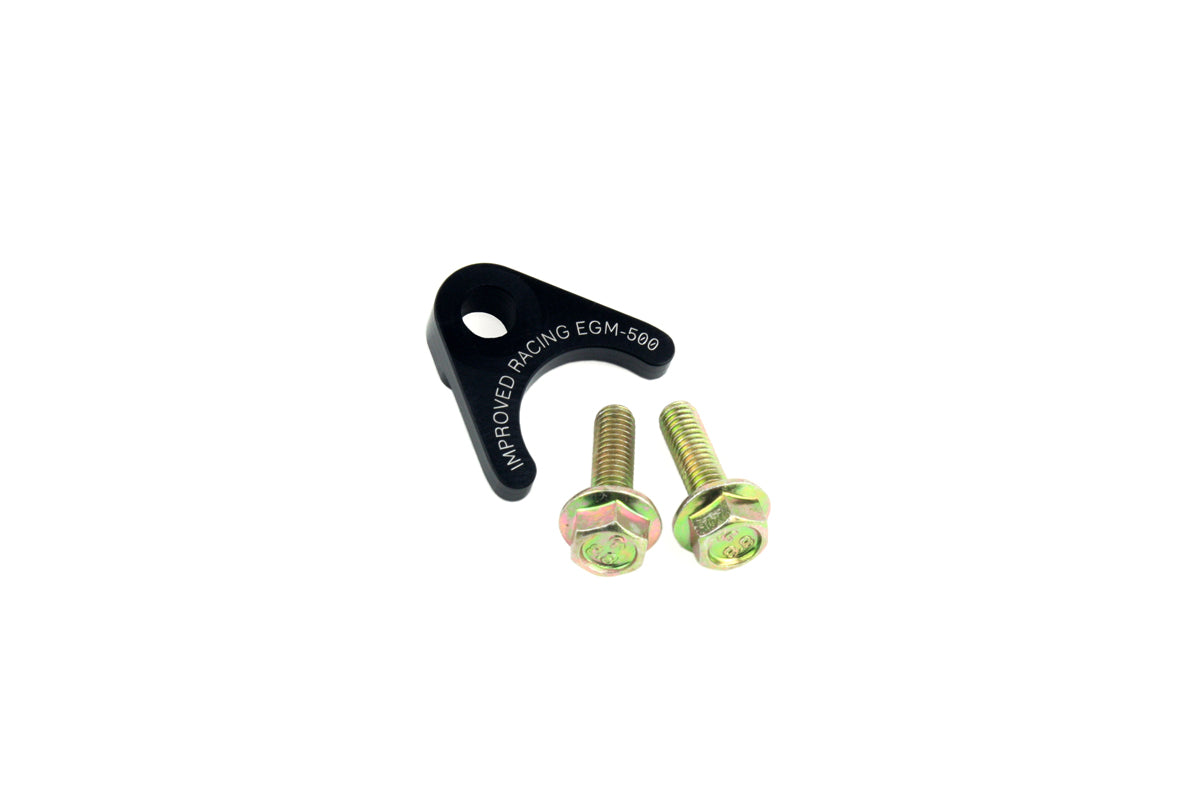

• Improved Racing EGM-500 - LS engine oil pump pickup tube brace / clamp & hardware

Applications

• GM Gen III & IV LS family engines, wet-sump only
• DOES NOT fit any LS oil pickup tube with welded flanges (GM # 12608593 (2008-2010 Hummer H3/H3T Alpha, 2009-2012 GMC Canyon SLE/SLT, 2009-2012 Chevrolet Colorado LT), Holley 302-1 and similar tubes). DOES NOT fit pickup tubes with two screw holes on their flange (Holley 302-2 tube and similar tubes).
