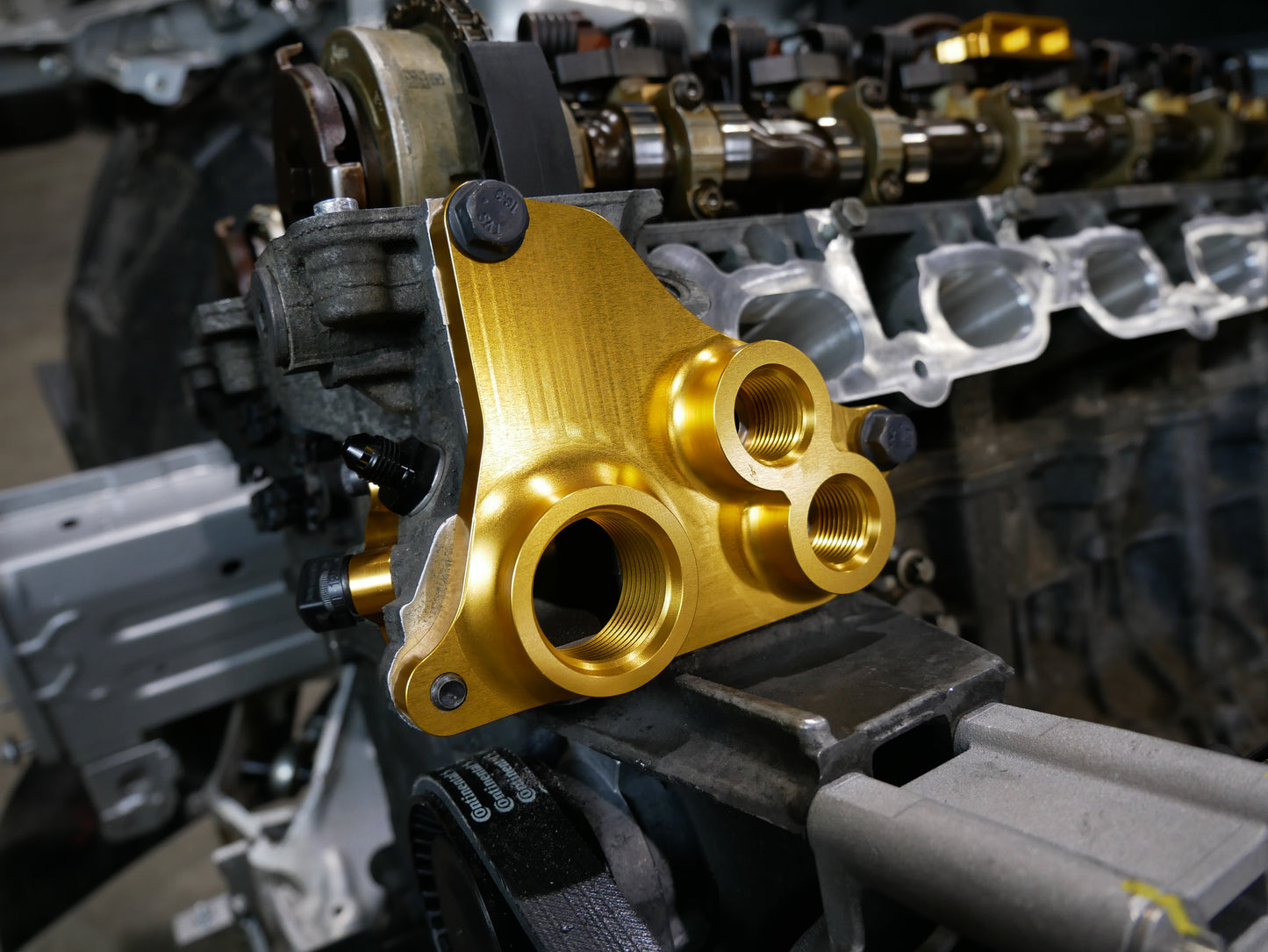

Seems Legit Garage - N5X/S5X Oil Filter Housing Relocation

BMW N5X Oil Filter Relocation & Cooling Simplification Kit

For N51 / N52 / N53 / N54 / N55 / S55

Have a race car or custom build, and want to relocate the oil filter housing — and simplify the cooling system at the same time?

This kit is for you.

Developed on our own N52-powered race car and inspired by factory E90 race programs of the past, this setup eliminates unnecessary complexity and gives you full control over oil and coolant flow.

By installing this plate:

• You achieve 100% oil flow directly to the filter and cooler

• You delete the factory water bypass that routes back to the OEM thermostat

• You simplify the cooling strategy by controlling temperature via water pump speed, not bypass routing

Less plumbing. Less confusion. More control. Cooling System Simplified — The Right Way

This kit includes our redesigned “Mickey Mouse” fitting — but not the typical one.

Ours is:

• A coolant block-off

• Threaded for the coolant temperature sensor

• Designed to convert the original cylinder head temp sensor port (the highest point on the head) into a bleed feed

• Run that line to a remote expansion tank

• Reduce trapped air and hot spots at the back of the head

Pair this with our Head Vent Kit for the ultimate solution in hot spot prevention on hard-driven N5X engines. Avaialble [HERE]

All aluminum components are precision machined from billet 6061 aluminum.

Included:

• Billet relocation plate

• Vibrant -10AN fittings

• -16AN adapter to universal 1.5” hose adapter fitting

• Vibrant -4AN head vent fittings

• Hardware

• Gasket

• Sensor-ready "Mickey Mouse" block-off fitting

Port Specs:

• Oil Ports: -10AN ORB

• Coolant Port: -16AN ORB

Built for real plumbing flexibility on custom race builds. Race Car Parts. Not Street Parts. We are racers trying to finish the race first. We simplify — and then simplify some more.

These parts are intended for:

• Track cars

• Swapped chassis

• Dedicated race builds

Fitment

Works on many BMW engines including:

• N51

• N52

• N53

• N54

• N55

• S55

• And additional variants depending on configuration

If you’re unsure about your specific setup, reach out before ordering.
