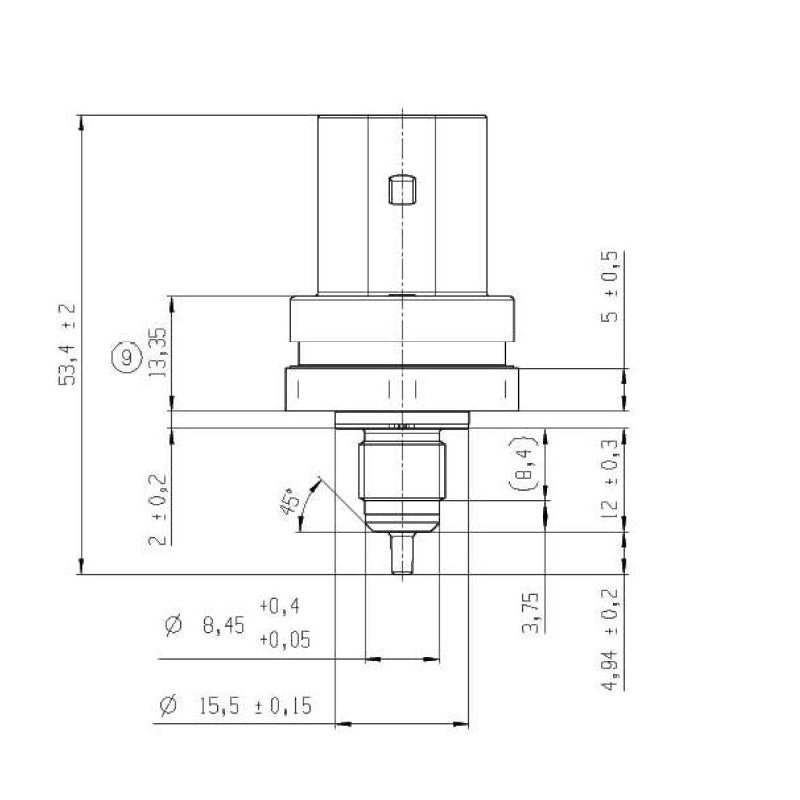

Nuke Performance - 10 BAR (150 PSI) Bosch fuel/oil pressure/temperature sensor, M10x1

A high-quality pressure and temperature sensor from Bosch, with an M10x1 male thread. 0 261 230 340
A well-known and popular fuel and oil temperature and pressure sensor from Bosch. To mount this sensor to the Nuke Performance FPR100 series, you need an ORB to M10x1 Female adapter (available here).

Data of temperature sensor
Specified temperature range: -40 to +140°C
Operating voltage: Operation with a 3.16 k series resistor at 5 V in the control unit
Nominal resistance at 20 °C: 2.482 k 4.7 % (new part)
Temperature response time 63 in oil bath : 9 s

• Sensor Characteristics (.pdf)

Pin out
Pin 2 Sig
Pin 3 Us
Pin 4 GND
Pin 5 NTC / Temp

This sensor can be connected directly to most control units. For temperature measurement, please use a pull-up resistor with an optimal value of 4.6 kOhm.

Disclaimer: This is not a Nuke Performance official product; this is only available as an accessory to our product range. To be able to mount it to fuel pressure regulators, fuel rails, surge tank and other Nuke Performance products, use one of the available ORB to M10x1 adapters (available here).

Quantity: 1pc
