PMC Motorsport - Adapter Kit Toyota UZ - Mazda RX-8 - 240mm / 9.45" (A-UZ-RX8-240)
PMC Motorsport - Adapter Kit Toyota UZ - Mazda RX-8 - 240mm / 9.45" (A-UZ-RX8-240)
SKU: PMC - A-UZ-RX8-240 ⓘ
Get the best deal with our price match guarantee.
Contact us today!
(239) 270-5116
sales@drifthq.com
Precio habitual
$871.80 USD
Precio habitual
$871.80 USD
Precio de oferta
$871.80 USD
Precio unitario
por
No se pudo cargar la disponibilidad de retiro

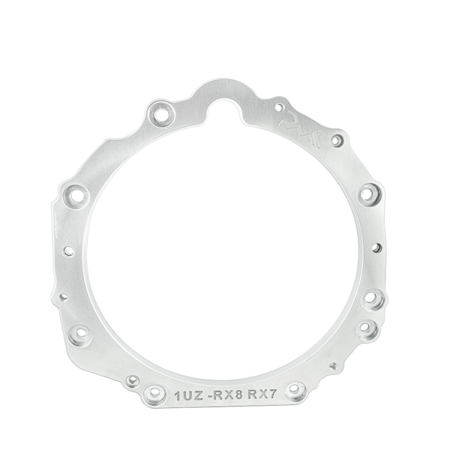

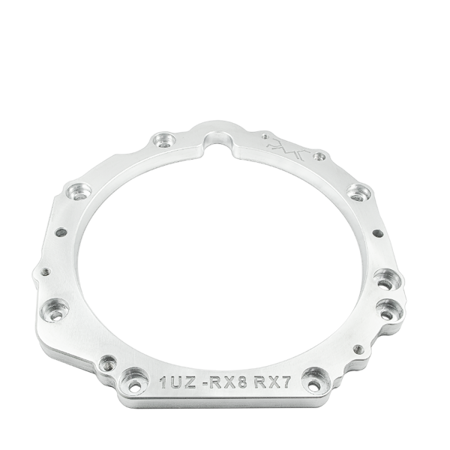

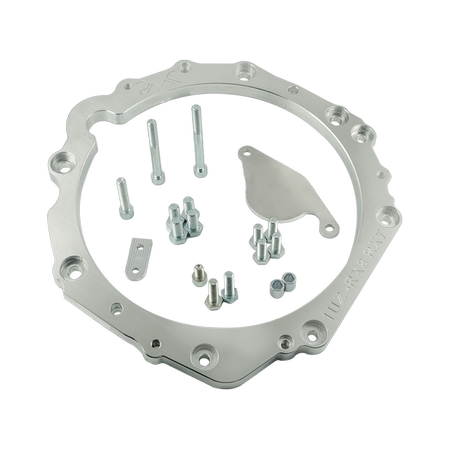

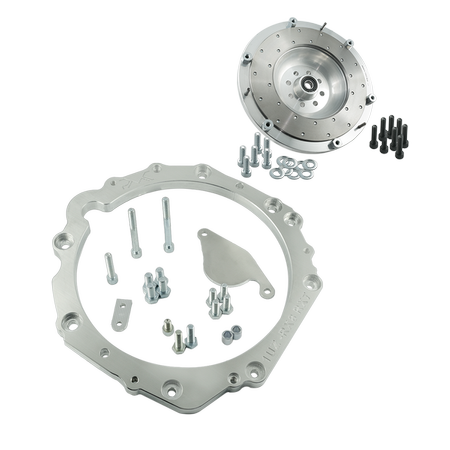

PMC Motorsport adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Toyota Lexus V8 UZ 1UZ 3UZ - Mazda RX-8 - 240mm / 9.45"
The adapter kit enables users connection of Toyota Lexus V8 UZ 1UZ 3UZ engine series with a Mazda RX-8 manual gearbox.
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface

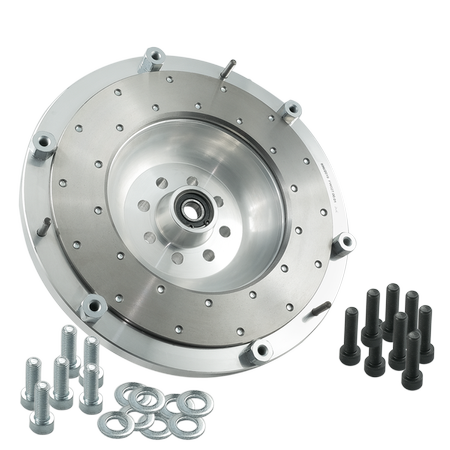

- The flywheel is balanced prior to shipment
Engine list: |
|
Gearbox list: |
|

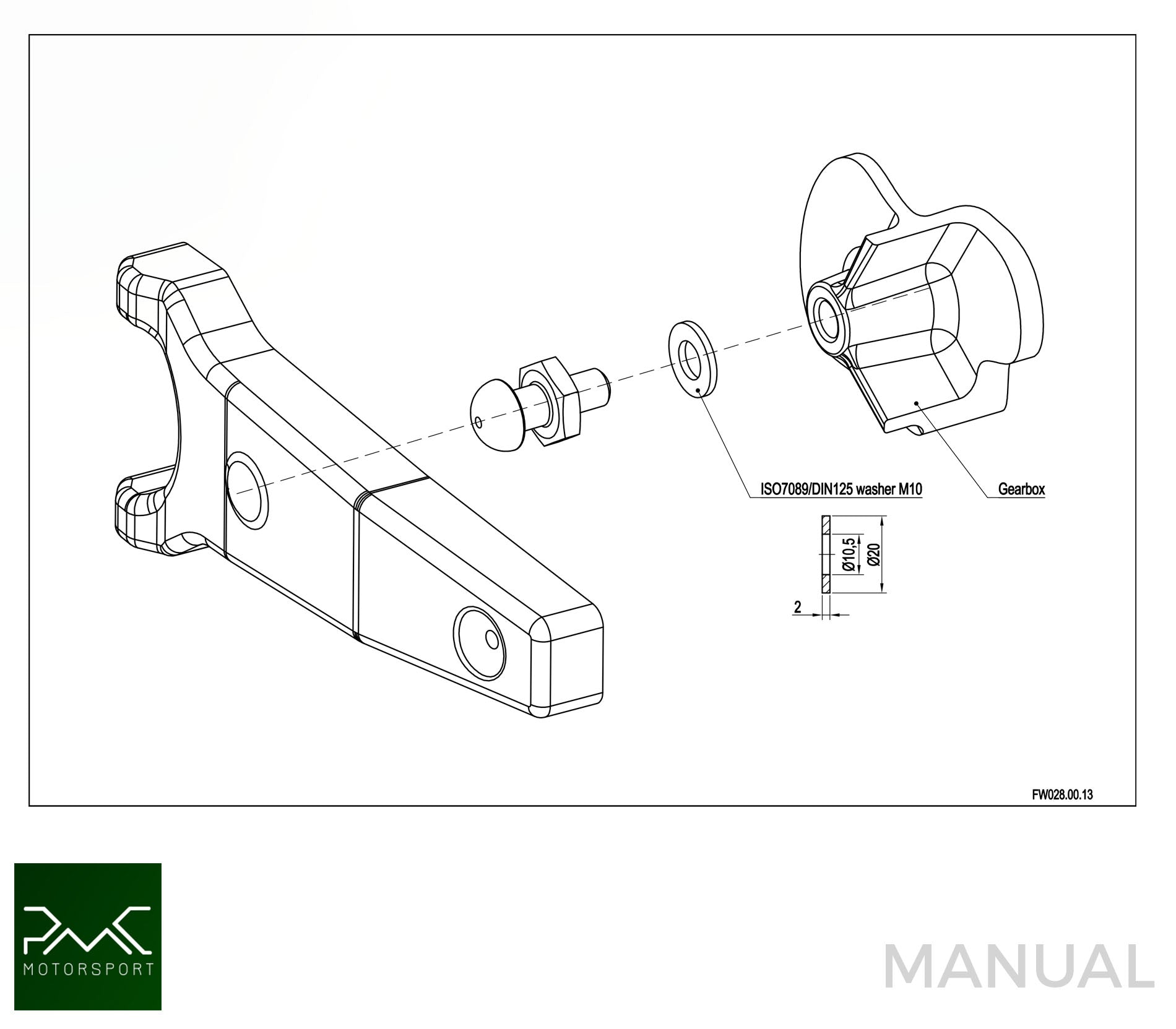

Manual
- Use the flywheel / ring gear from the automatic version and one spacer (OE 4.5mm) between the engine block and the flexplate
- Tighten the flywheel to the same torque as OE.
| Engine: |
Toyota / Lexus V8 UZ 1UZ 3UZ
|
| Gearbox: |
|
|
CLUTCH SET
|
|
| Set with Clutch: |
No
|
| Flywheel Type: |
Single Disc
|
| Recommended clutch pressure plate: |
|
| Clutch disc required: |
Dedicated to your gearbox - 240mm / 9.45"
|
| Release bearing required: |
Dedicated to your gearbox
|
| Starter required: |
Toyota UZ (OE) Brak w zestawie
|
| Flexplate / ring gear required: |
Toyota Lexus OE 32101-50010 + one spacer OE 32116-50010 4.5mm between the engine block and the flexplate
|
|
ADDITIONAL INFORMATION
|
|
| Adapter Kit Type: |
|
| Gearbox adapter thickness: |
20mm / 0.78"
|
| Replaceable friction surface: |
Yes
|
| Set includes: |
|
| Product sales codes included: |
|
| Max torque: |
Adapter Kit ONLY 240mm (single disc)
|
-
