Toyota Power Steering Lines

Our high pressure power steering lines are -6 Teflon core and stainless steel braided outer along and low profile crimped ends. The solid Teflon core will handle any power steering fluid you want to put through them and not have a problem with higher oil temperatures of high RPM pumping.

These lines are assembled in our shop with domestic Parker hose and fittings using approved Parker assembly machines and specs. These are not lines sourced from an unknown manufacturer with unknown components!

These lines have an operating pressure of 2500 PSI with max burst of 3X.

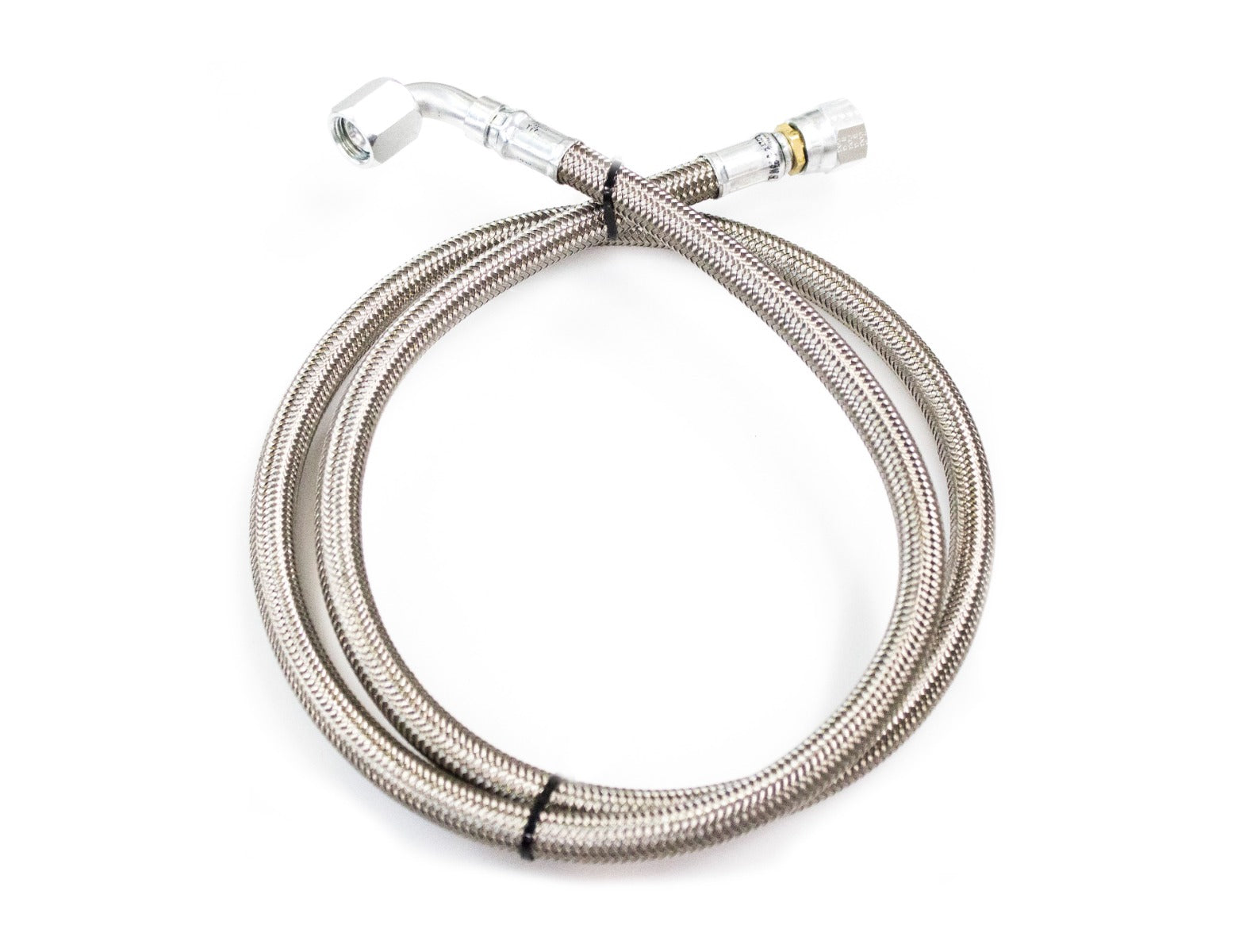

The pictures show the typical fittings used, line lengths and configurations will vary depending on application.

Line Lengths and configurations

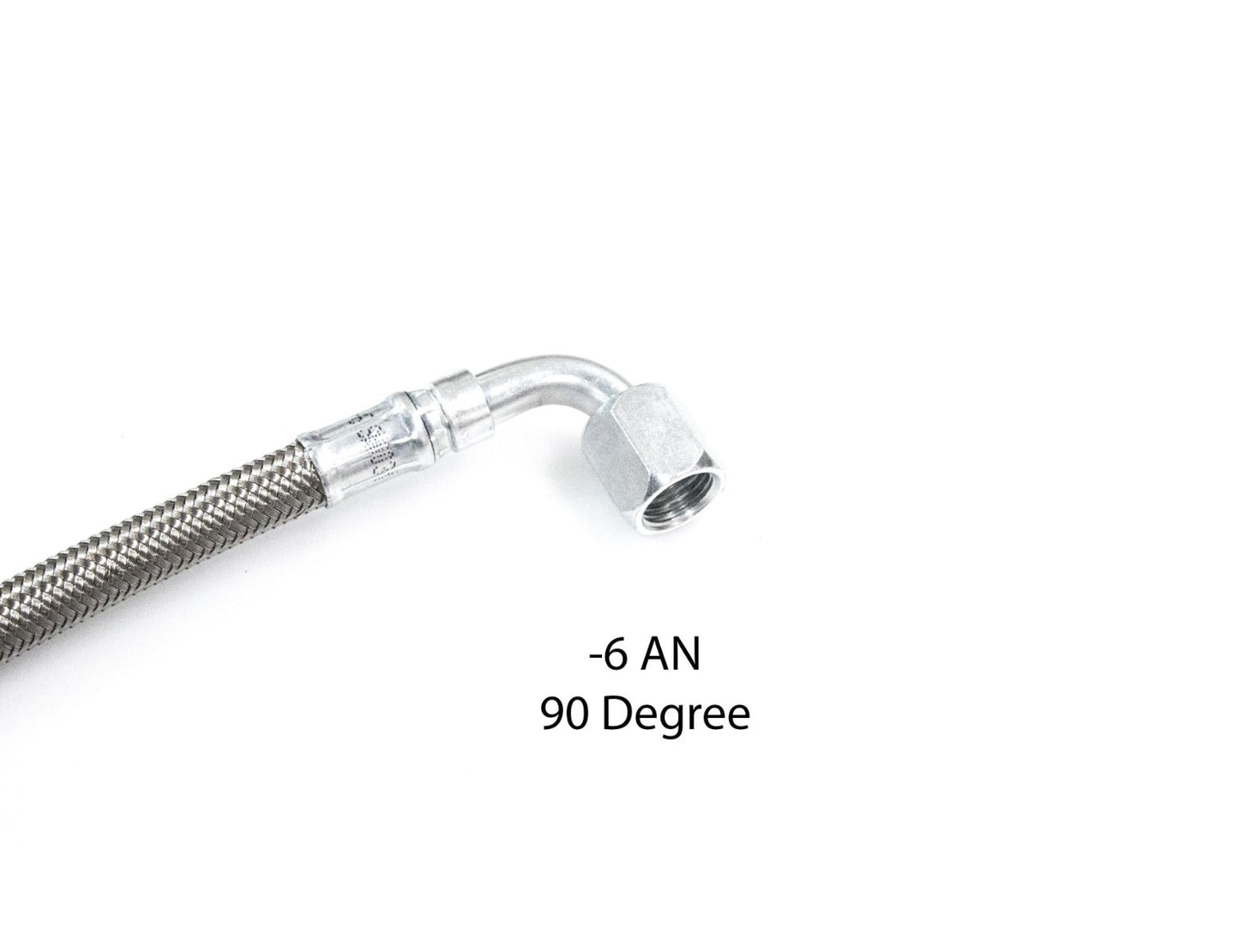

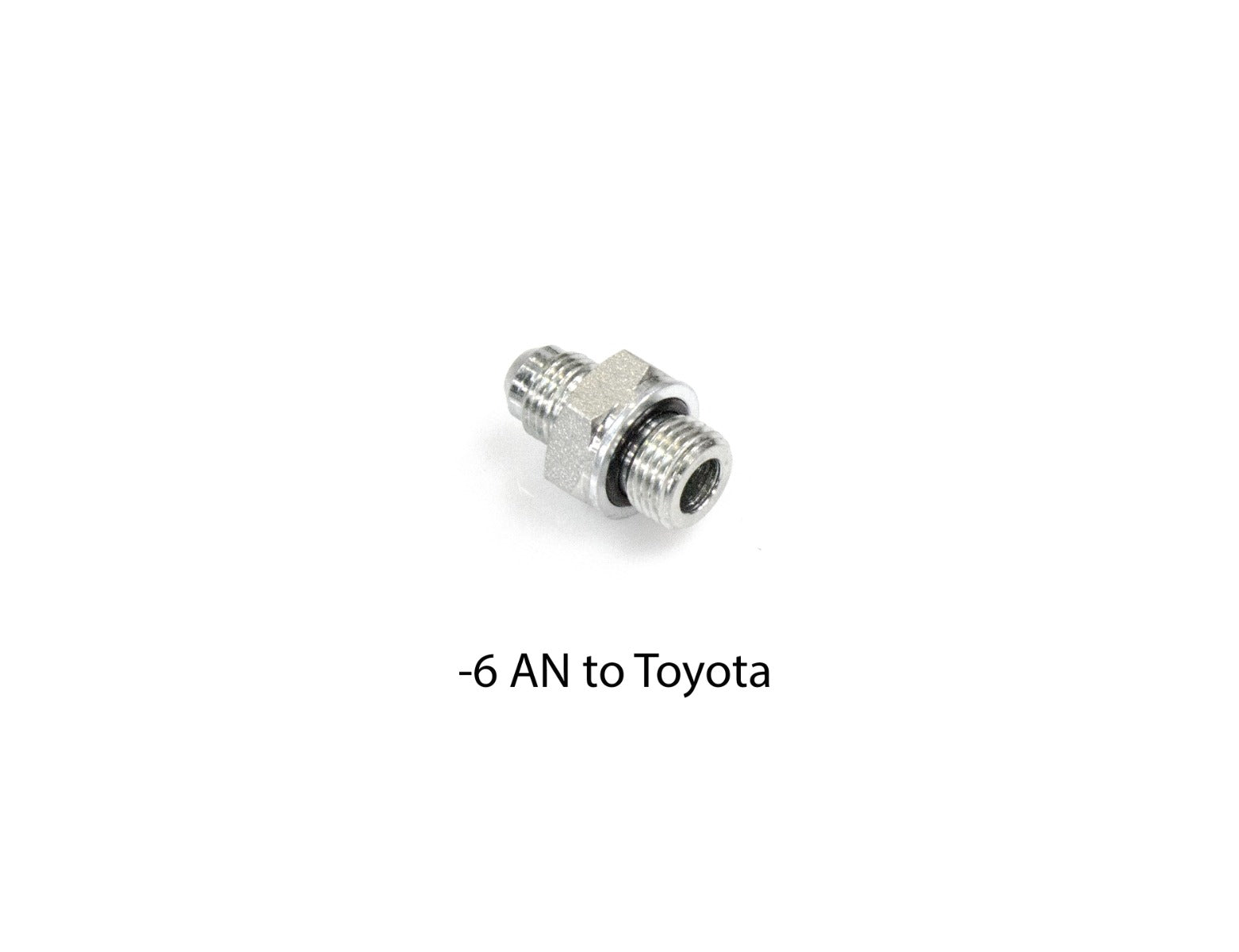

JZ-LHD = 25" line with two 90* crimped ends (aligned), two -6 to Toyota straight fittings.

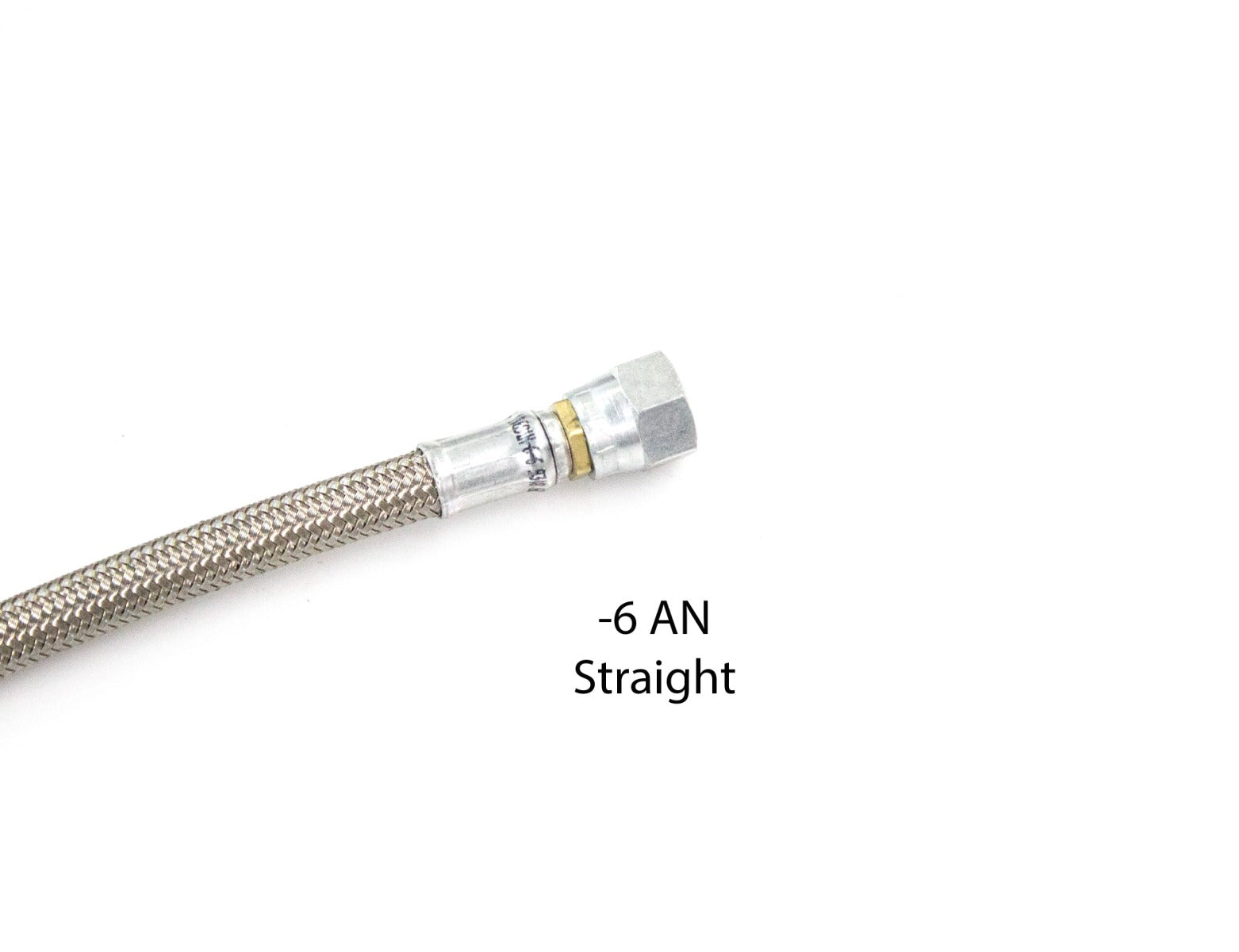

1UZ-LHD = 45" line with one 90* and one straight crimped end, one -6 to Toyota straight and one -6 to Toyota 90* fitting.

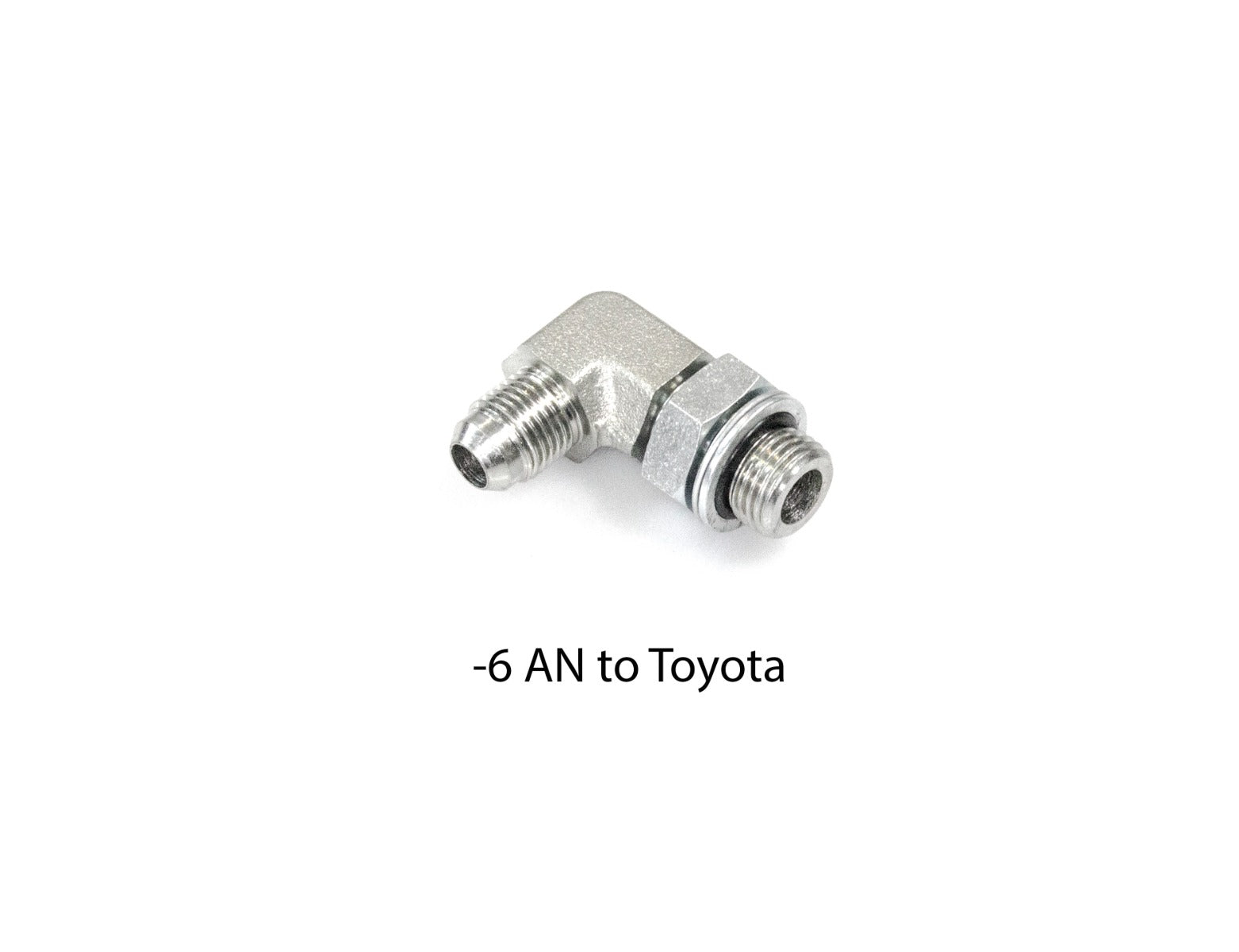

BEAMS-LHD = 22" line with one 90* and one straight crimped end, one -6 to Toyota 90* and one -6 to Toyota straight fitting.

JZ-RHD = 61" line with one 90* and one -6 straight crimped end, one -6 to Toyota straight and one -6 to Toyota straight fitting.

1UZ-RHD = 25" line with two 90* crimped ends (aligned), two -6 to Toyota straight fittings.
