Chase Bays - Brake Line Relocation for 94-01 Integra | 92-00 Civic with Single Piston Brake Booster Delete (CB-H-9201BBE)

Chase Bays - Brake Line Relocation for 94-01 Integra | 92-00 Civic with Single Piston Brake Booster Delete (CB-H-9201BBE)


This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116

This purchase would enter you into the 1999 S15 giveaway with 70 entries. Learn more
Regular price $349.99 USD
Regular price Sale price $349.99 USD
Sale Sold out

The Chase Bays Brake Line Relocation for Chase Bays SINGLE PISTON Brake Booster Delete is designed for enthusiasts who want to adapt their Single Piston Brake Booster Delete to their chassis, eliminate engine bay clutter with improved line routing, delete ABS (if applicable), and improve braking performance.

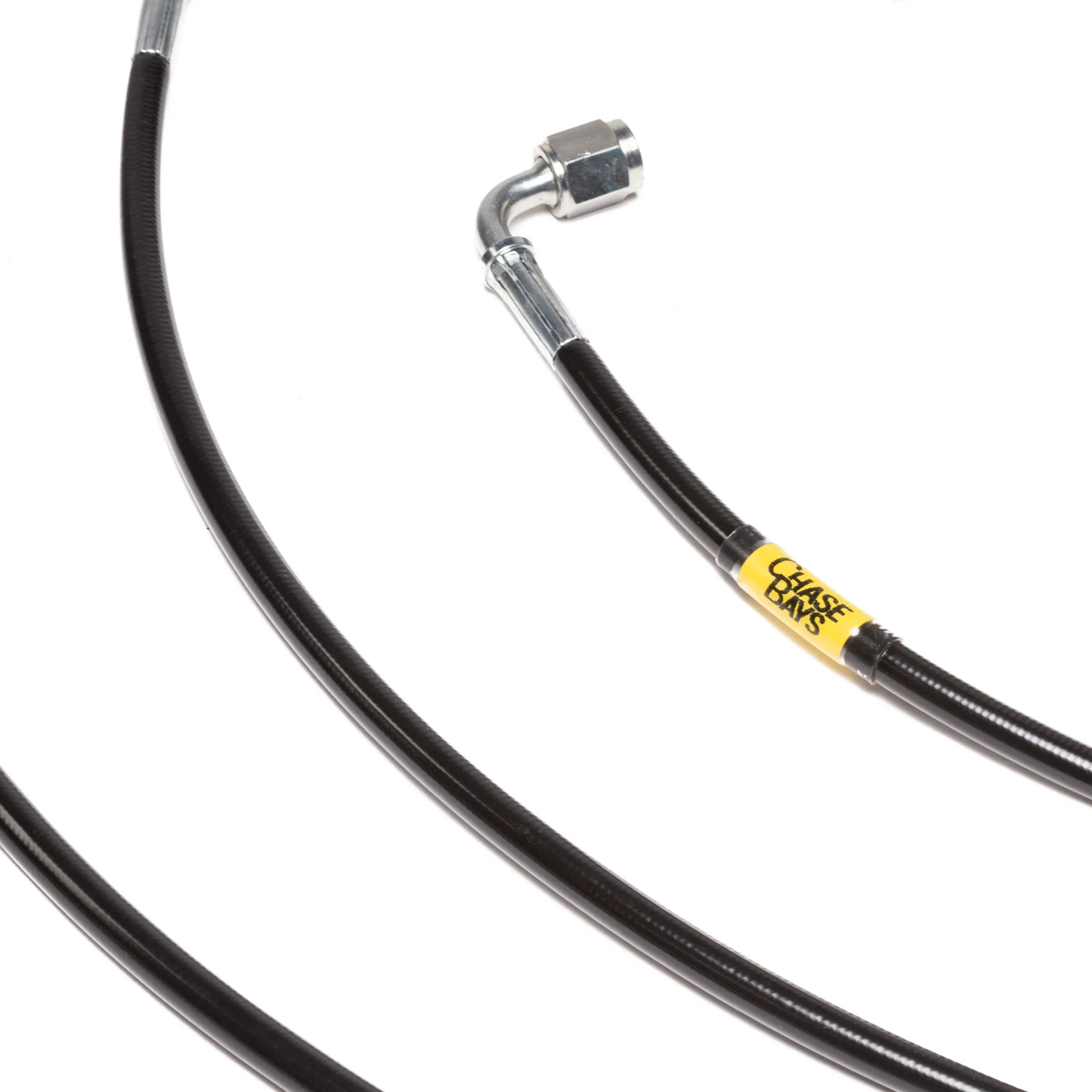

The OEM brake hard lines are relocated and replaced and with -3AN stainless steel braided, Teflon PTFE lined, black PVC coated lines. We have designed the lines to route in the best path possible. Low on the firewall, behind steering column, under frame rail…however we find is the best look while remaining easy to install. Plus, of course, a safe distance from high heat and/or moving objects. We include Chase Bays Firesleeve on the lines that are near those places of heat for a motorsport ready installation. But ALWAYS install and secure lines to keep them 4” or more inches away from manifolds and downpipes.

Chase Bays uses only the best components. ALL Hose and Hose Ends are BMRS aka Brown and Miller Racing. This is the best Hose/Hose Ends in the world, the same components seen on NASCAR and Indy Car. All the Fitting Adapters are designed and manufactured by Chase Bays to be chassis specific for perfect leak free installs. We pressure test every line we assemble and guarantee a leak free installation if this product is installed correctly.

The Brake Line Relocation replaces all of the engine bay hard lines up to the lines in the wheel well that connect to caliper and to the OEM rear hard line(s). It does not include the caliper lines.

The front to rear line is adapted in a unique but necessary way. There are 2 hard lines that run to the rear of the chassis. To adapt the rear lines to AN, we supply "tube nut" and "tube sleeve" adapters. The factory hard lines are cut low on the firewall, reamed, and the supplied tube nut and tube sleeve are slid onto the hard lines. The hard lines are then flared to 37º degrees using a PROPER 37º FLARE TOOL (link below). Then our clever supplied "F Fitting" will thread into the 2 tube nut and sleeve adapters to make 2 lines into 1, which will then run to the Bias Valve OUT section.


OEMC - Original Equipment (or Stock) Master Cylinder
BBE - Brake Booster Eliminator
PTFE - Polyetratluoroethylene aka Teflon
Proportioning Valve & Bias Valve - The component that alters the difference in front and rear pressure. In most cases, the front needs more. Almost all of our Brake Line Relocations include an Adjustable Bias Valve.
ABS - Anti-Lock Brake System. Sometimes needed, sometimes not. How you determine this is up to you but if you have any questions we can provide insight.
