PMC Motorsport - RACE STAGE Toyota JZ - BMW N54 - 240mm / 9.45" (RS-JZ-N54-SP)

PMC Motorsport - RACE STAGE Toyota JZ - BMW N54 - 240mm / 9.45" (RS-JZ-N54-SP)

SKU: PMC - RS-JZ-N54-SP ⓘ

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

This purchase would enter you into the RTR Mustang Spec 5 with 428 entries. Learn more
$2,135.54 USD
$2,135.54 USD $2,135.54 USD
Sale Sold out

PMC Motorsport RACE STAGE adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)

Toyota JZ 1JZ 2JZ - BMW N54 GS6-53BZ 335i 135i 535i- 240mm / 9.45 - 2x sintered disc + Sachs Performance 883082.001243

The adapter kit enables users connection of Toyota JZ 1JZ 2JZ engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

Easy Engage System - proprietary PMC Motorsport solution. The "floating friction disc" used in the flywheel allows it to move smoothly and makes parking easier with a car with very high torque.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment
Engine List

  • Toyota 1JZ / 1JZ-FSE / 1JZ-GE / 1JZ-GTE (non VVT-i / VVT-i version)
  • Toyota 2JZ / 2JZ-FSE / 2JZ-GE / 2JZ-GTE (non VVT-i / VVT-i version)



Gearbox List


  • BMW N54 23.00 7565215 GS6-53BZ HGX (THGX) 1067 010 016 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 571 423 / 23 00 7 567 242 BMW E60 535i E90 335i N54

  • BMW N54 23.00 7581859 GS6-53BZ JGK (TJGK) 1067 010 019 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 581 860 BMW E82 135i N54 E88 135i N54



Manual

  • Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
  • Tighten the flywheel to the same torque as OE.

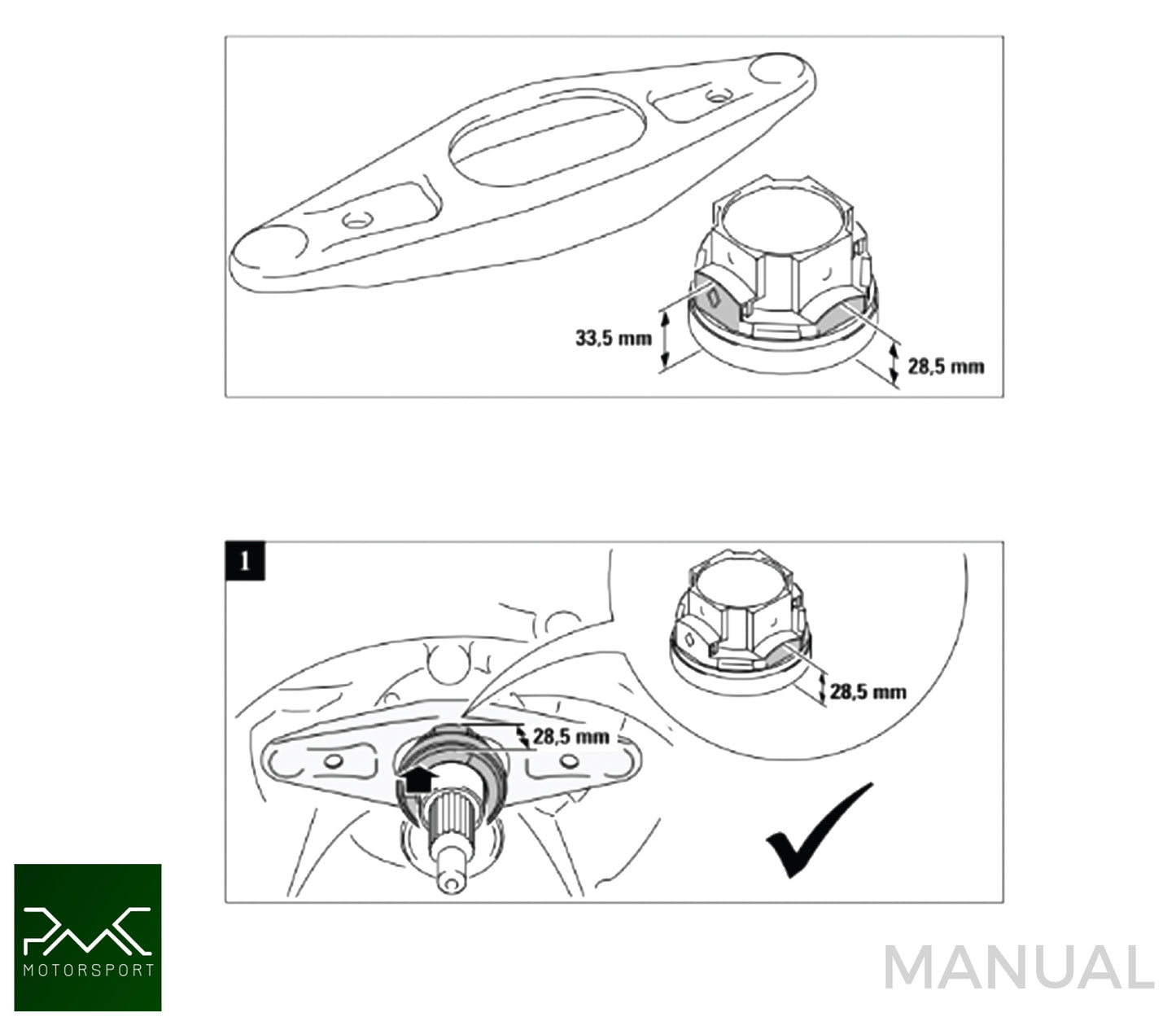

  • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
  • Clutch pedal pump replacement required (recommended Wilwood 0.750)



Engine:
Toyota JZ 1JZ 2JZ
Gearbox:
BMW N54 ZF GS6-53BZ 335i 135i 535i 6-speed (PETROL)
CLUTCH SET
Set with Clutch:
Yes
Flywheel Type:

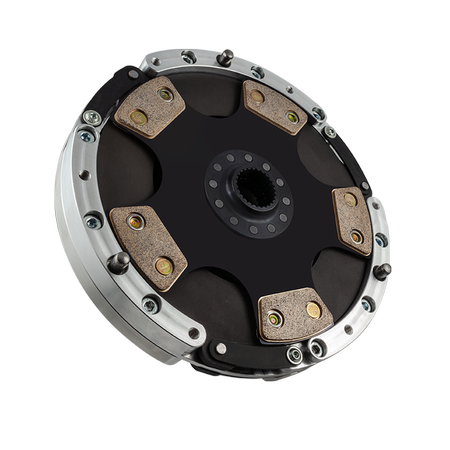

Twin disc
Clutch Set:

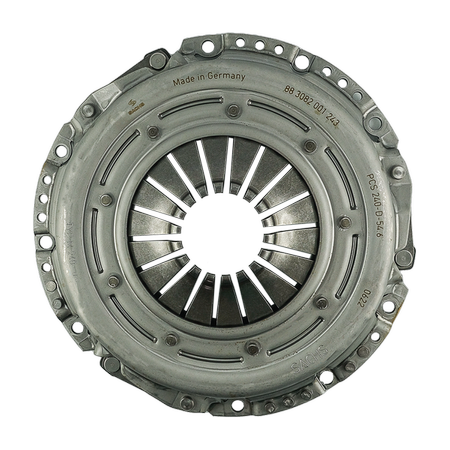

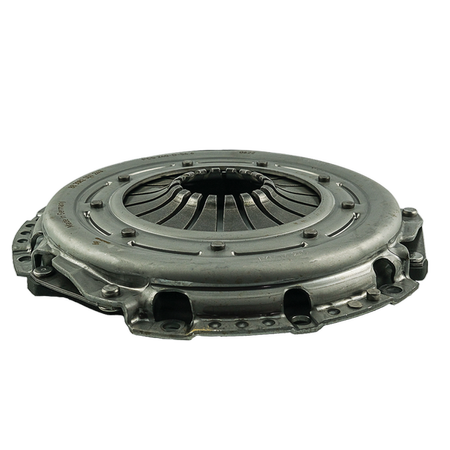

Sachs Performance 88 308 200 1243 / 883082.001243
Clutch disc required:
Included
Release bearing required:
Dedicated to your gearbox
Clutch fork required:
dedicated to your gearbox
Starter required:
Toyota JZ (OE) Brak w zestawie
Flexplate / ring gear required:
Toyota OEM 32101-30090 | 32101-22050
ADDITIONAL INFORMATION
Adapter Kit Type:
Motorsport
Gearbox adapter thickness:
20mm / 0.78"
Replaceable friction surface:
Yes

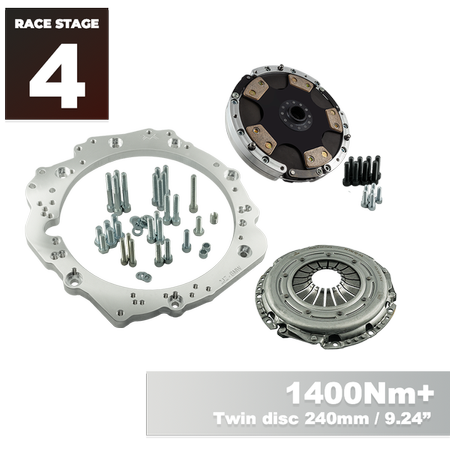

Set includes:

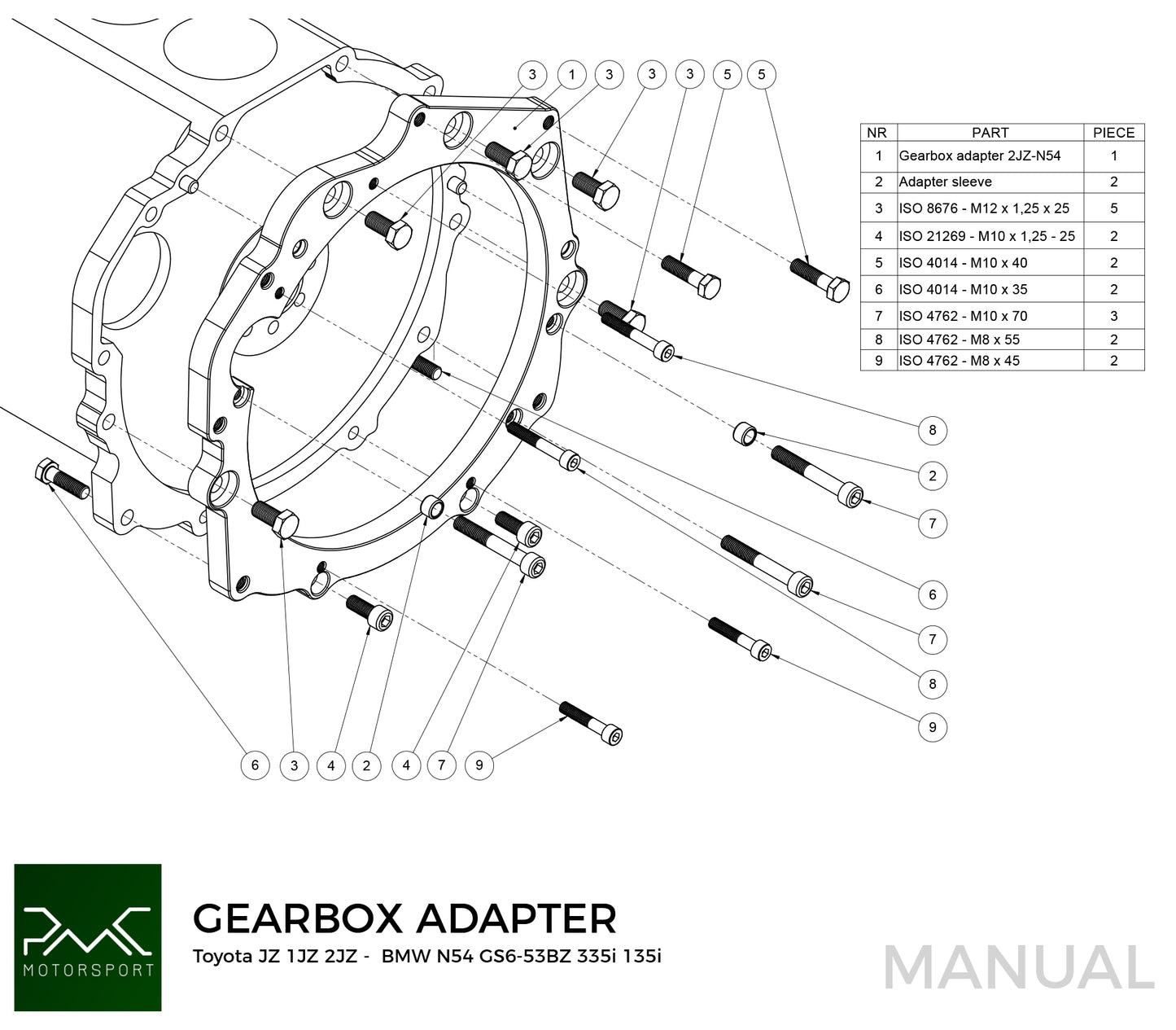

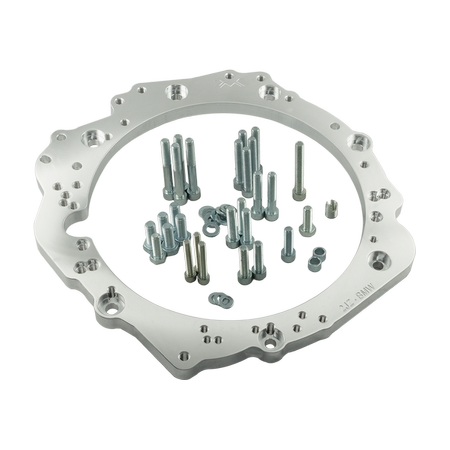

Aluminium gearbox adapter
,
Gearbox adapter bolts
,

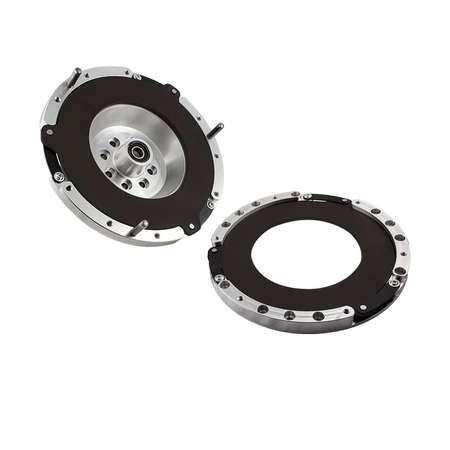

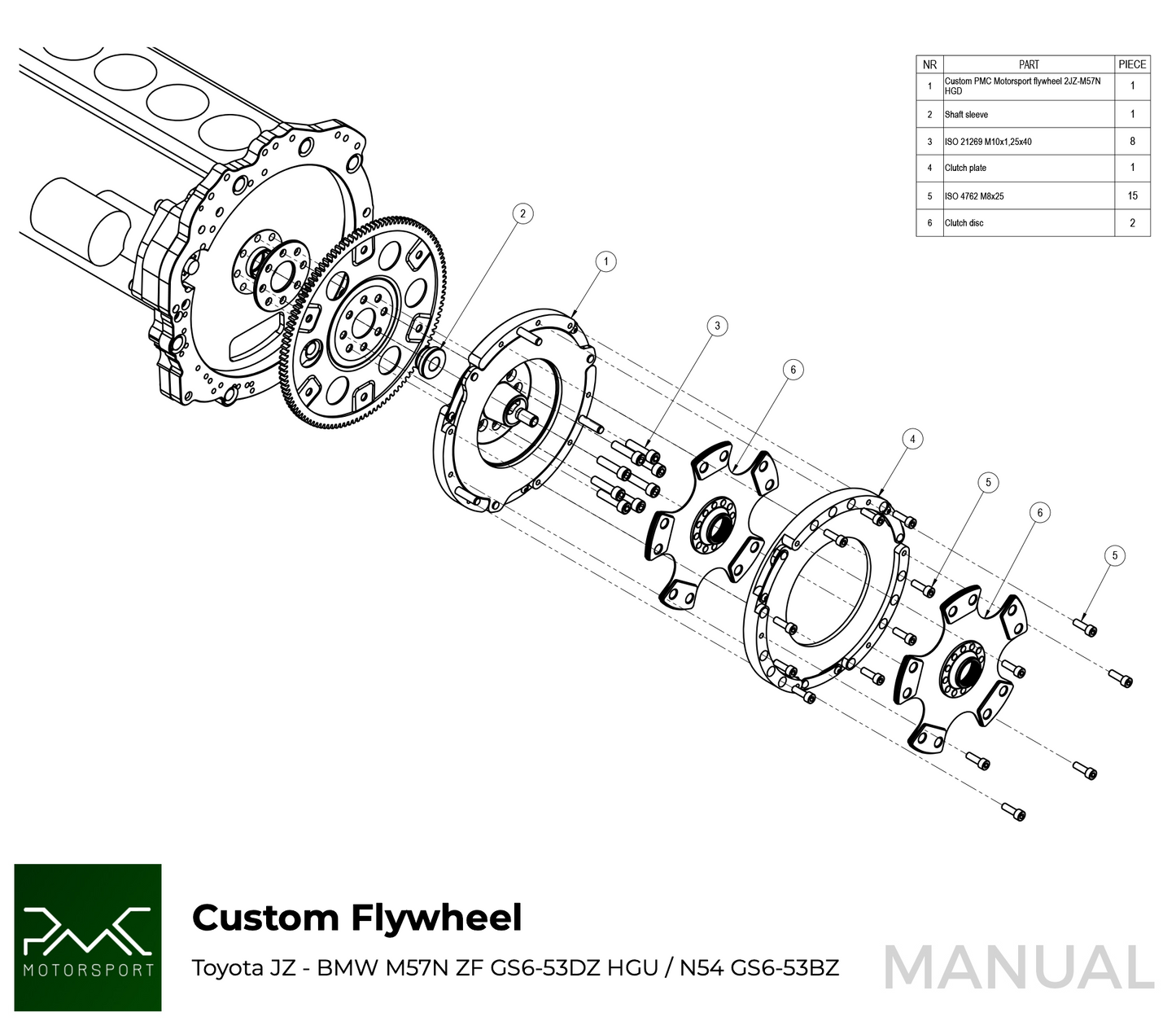

Custom Flywheel
,
Crankshaft bolts kit
,
Clutch cover - pressure plate bolts kit
,
Sachs Performance 88 308 200 1243 / 883082.001243
,

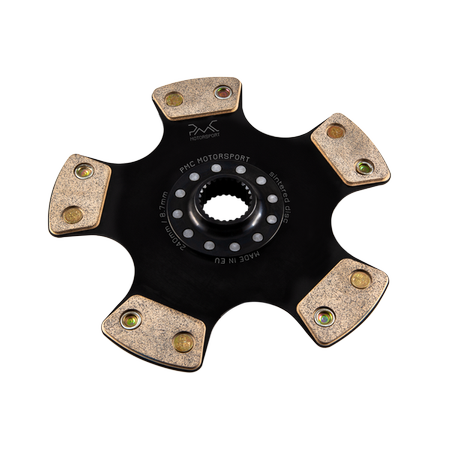

2 Tarcze spiekowe
Product sales codes included:
F0N54-JZ (3018)
,
K0HGU-MJ-JZ (3609)
,
SACHS 243 (1694)
