AE86 Clutch Pedal Mount - LHD

 If you're doing a 5 speed swap on your AE863 chassis, you're going to need one of these. This is a readily available clutch pedal that's a direct bolt in for the AE86 chassis requiring no modifications to the sheet metal on the car to mount it up, only some trimming on the sound deadening under the dash may be required.

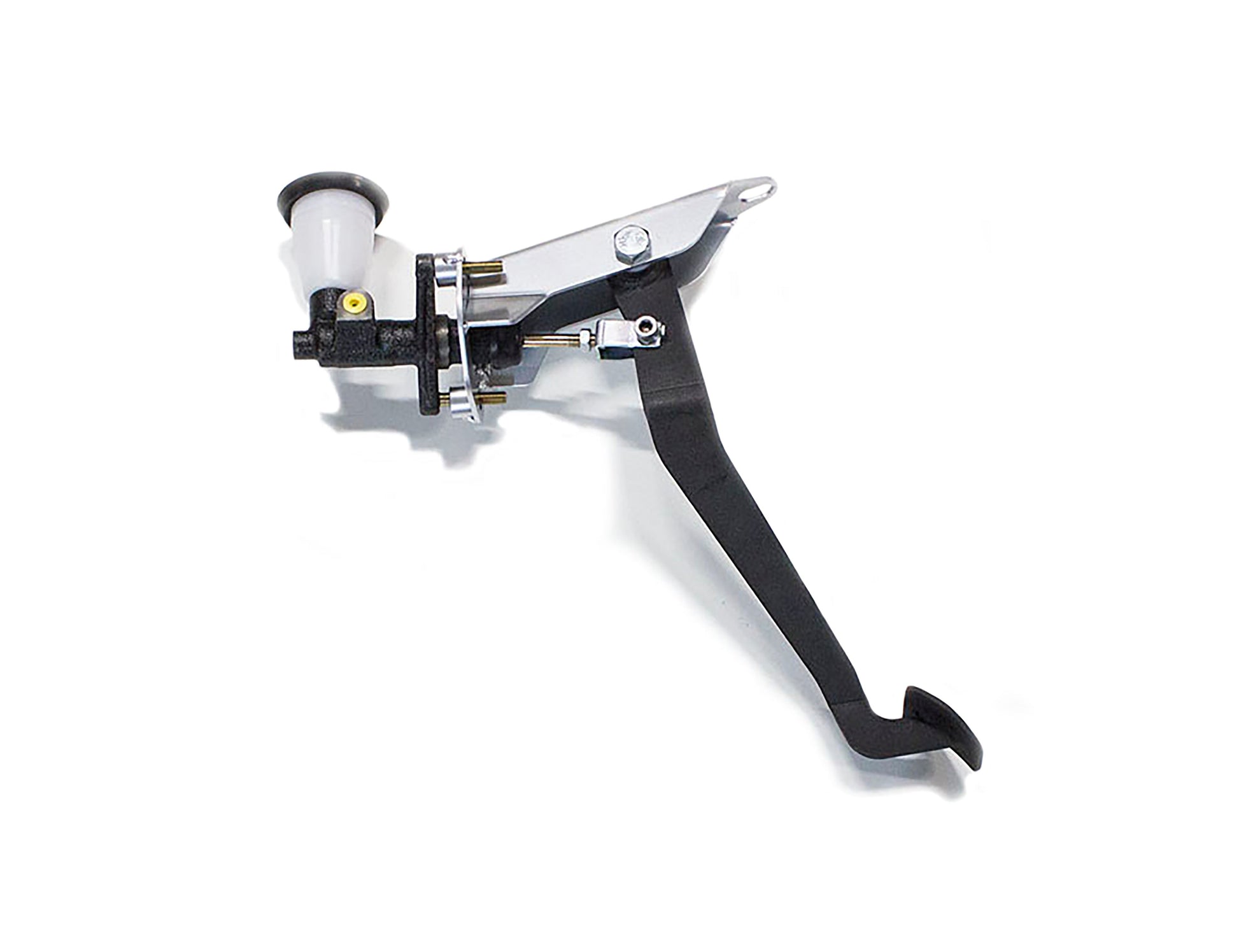

The AE86 has factory mounting points that we've utilized for a direct bolt in fitment that puts the master in stock location in the engine bay and sits the pedal nicely in the cab.

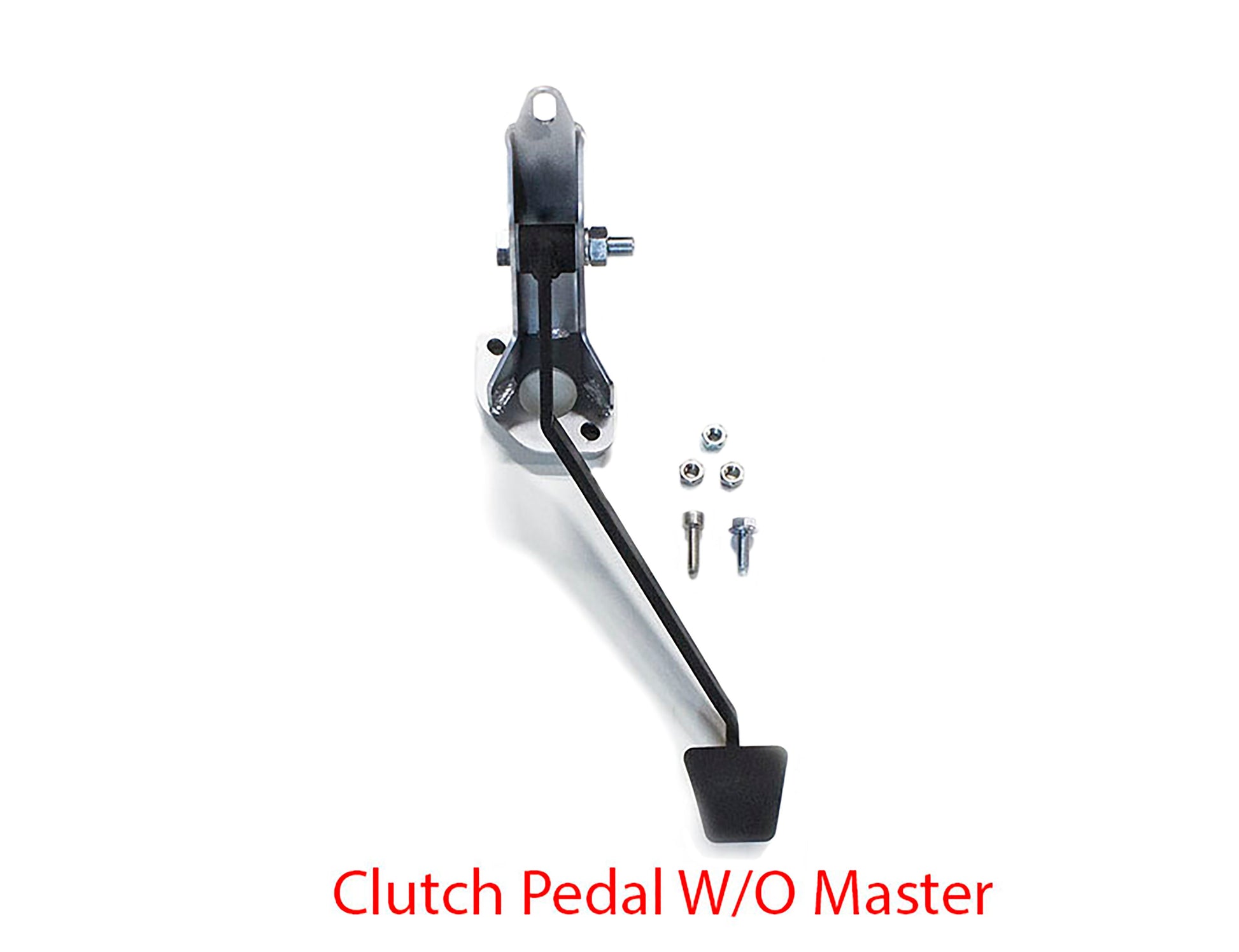

The main bracket is formed 1/8" steel while the hanging pedal arm is 1/4" steel on a 12mm pivot with a curved pad.

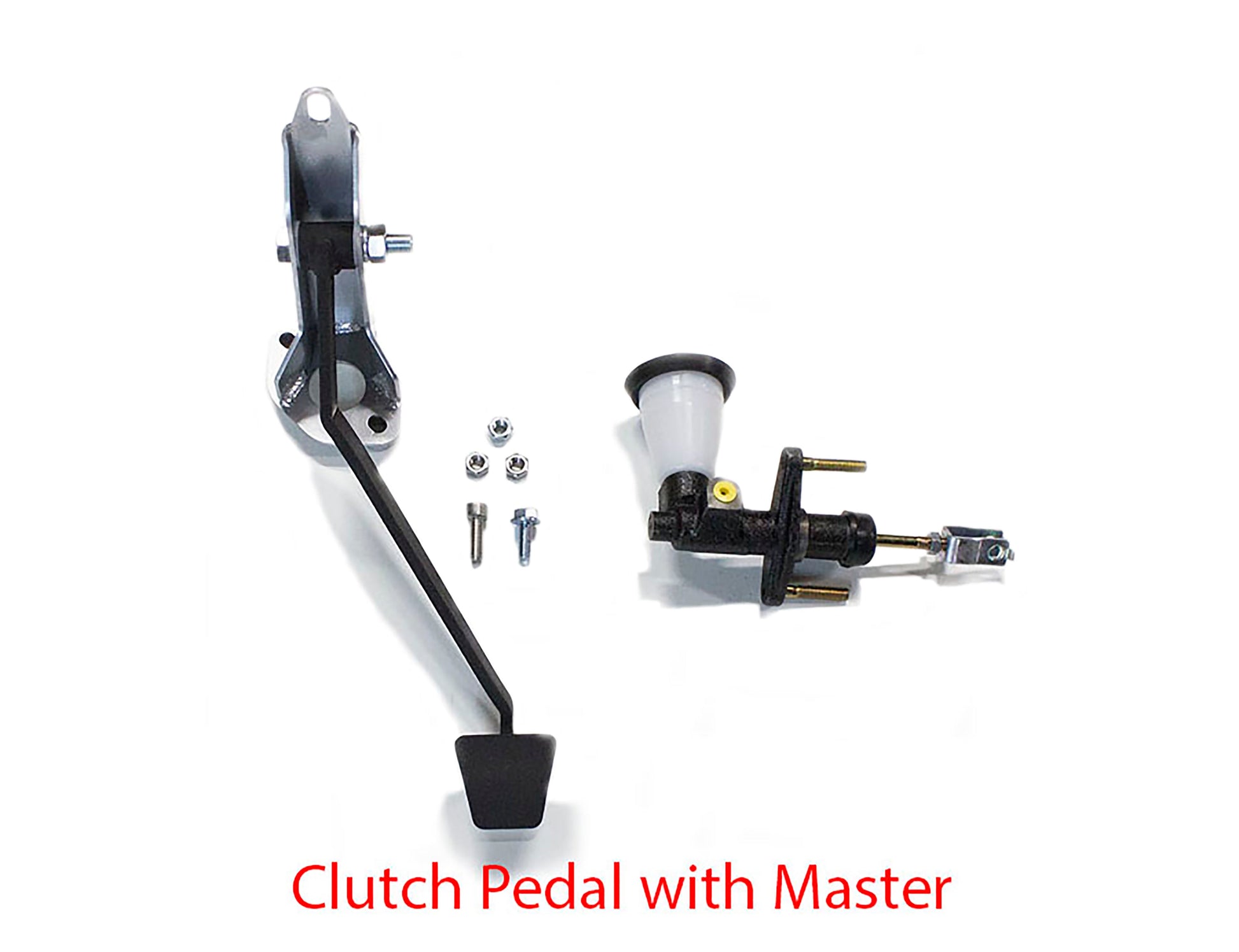

We've also provided all the bolting hardware for the clutch mount and the master cylinder hook ups.

Please note this pedal is made for LHD USDM cars.
