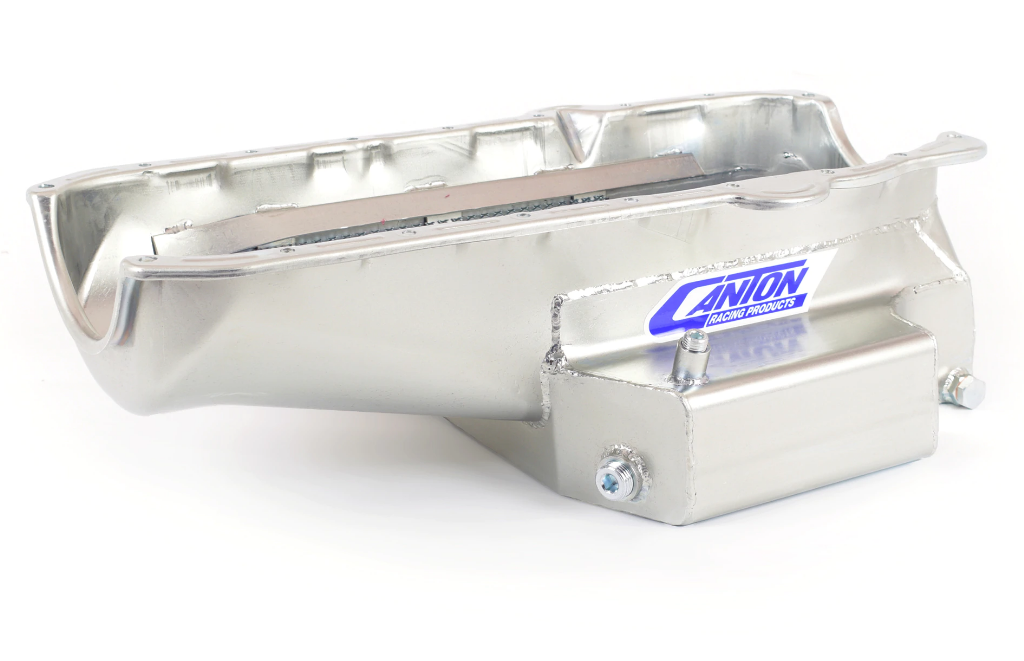

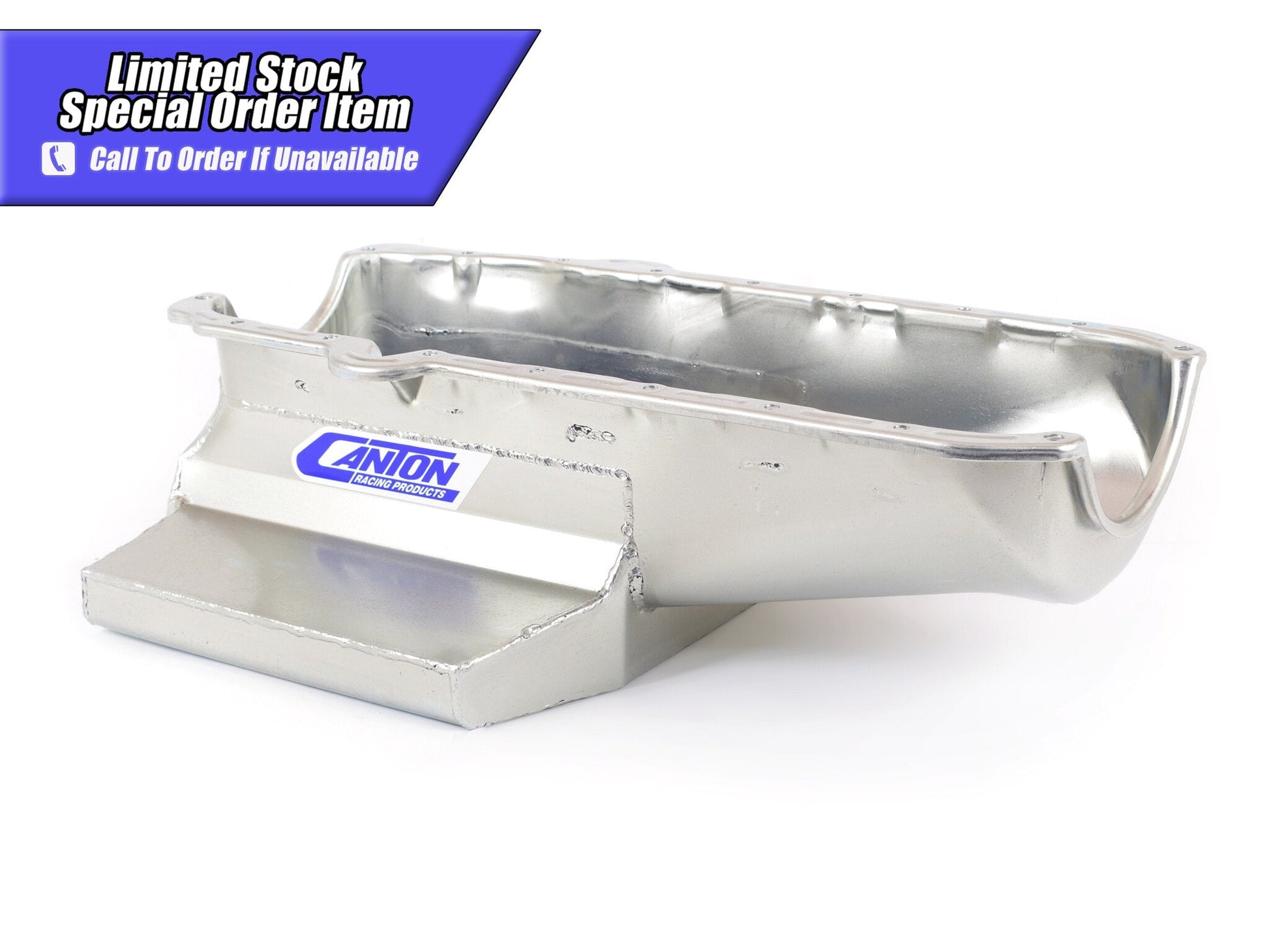

Canton - Small Block Chevy Shallow Circle Track 12" Long Sump

This Competition wet sump is for '86 and newer Small Block Chevys with one piece seal. It is designed for applications where the engine is set extra low in the chassis. Fits front steer chassis with both aftermarket and Camaro front ends. The pan has a 6-1/2" deep, 15" wide, 12" long sump, and a 7 quart system capacity. Requires one of our pickups.

Oil Pan Features
* 7 qt System Capacity
* 3.75" Stroke Clearance
* Six Trap Door Baffles & Three Runners
* Crank Scraper
* Bolt in Slosh Baffle
* Built in Windage Tray
* 1/2" NPT Temperature Bung
* Provison for our Pan Mounted Dipstick
* Magnetic Drain Plug

Recommended Accessories
20-030 - Pickup for Small Block Standard Volume Pumps M55 & M55A
20-031 - Pickup for Small Block High Volume Pumps M55HV
20-032 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
22-300 - Stud Kit For Oil Pan Mounting Small Block Chevy/Oldsmobile/AMC
88-100T - SBC '86+ Oil Pan Gasket

Product Tech
Best Results Installing an Oil Pan (PDF)
