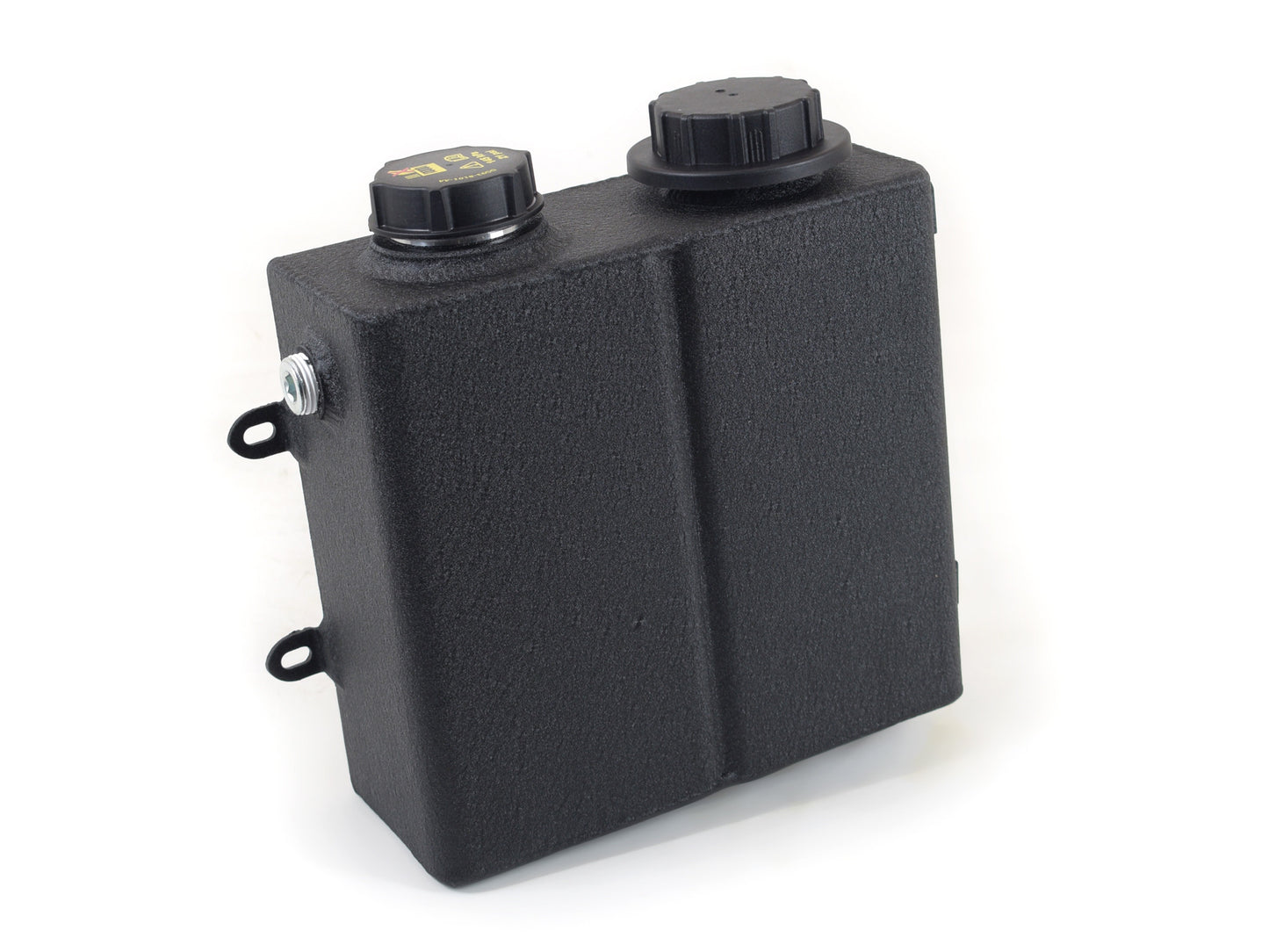

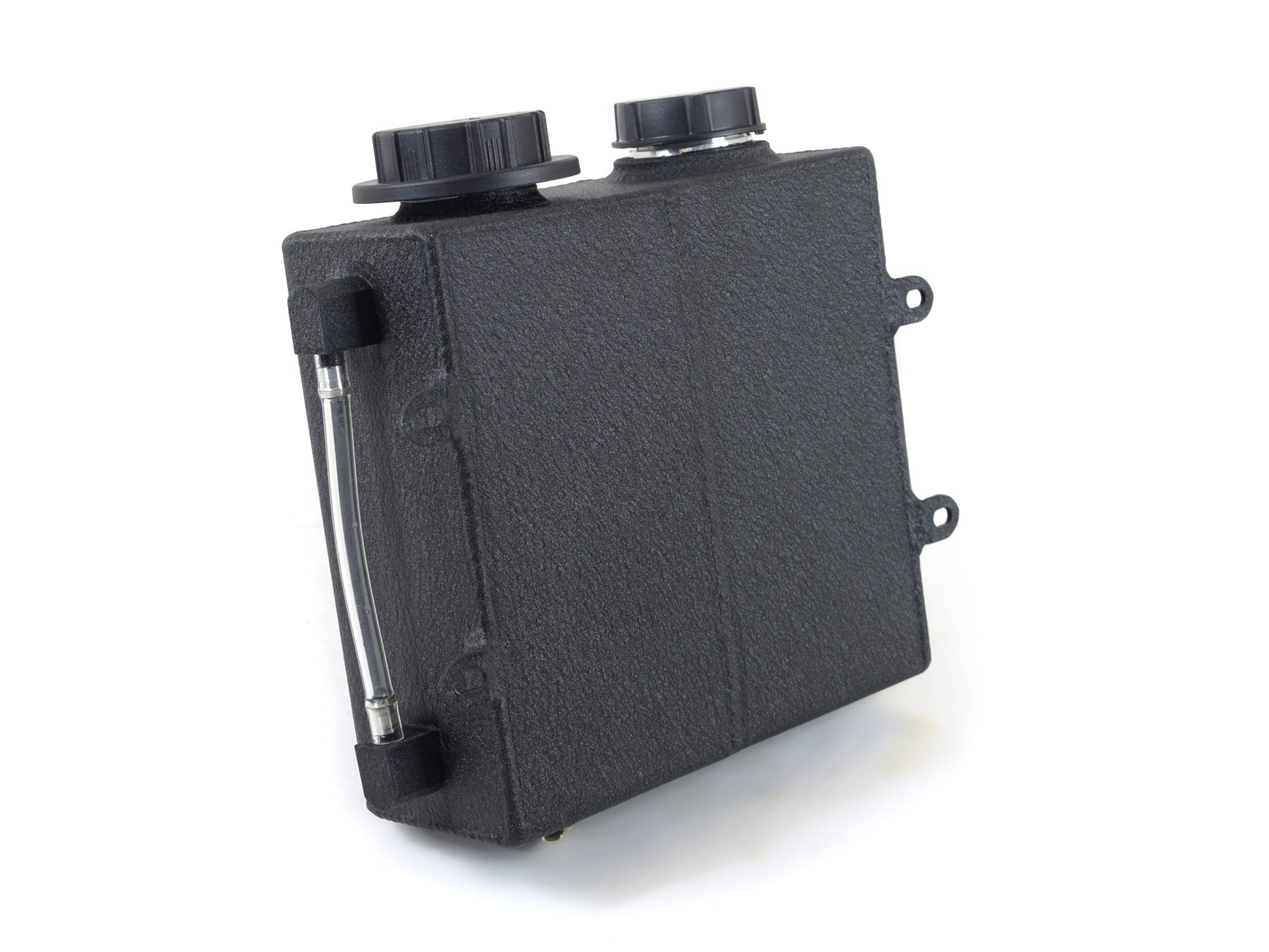

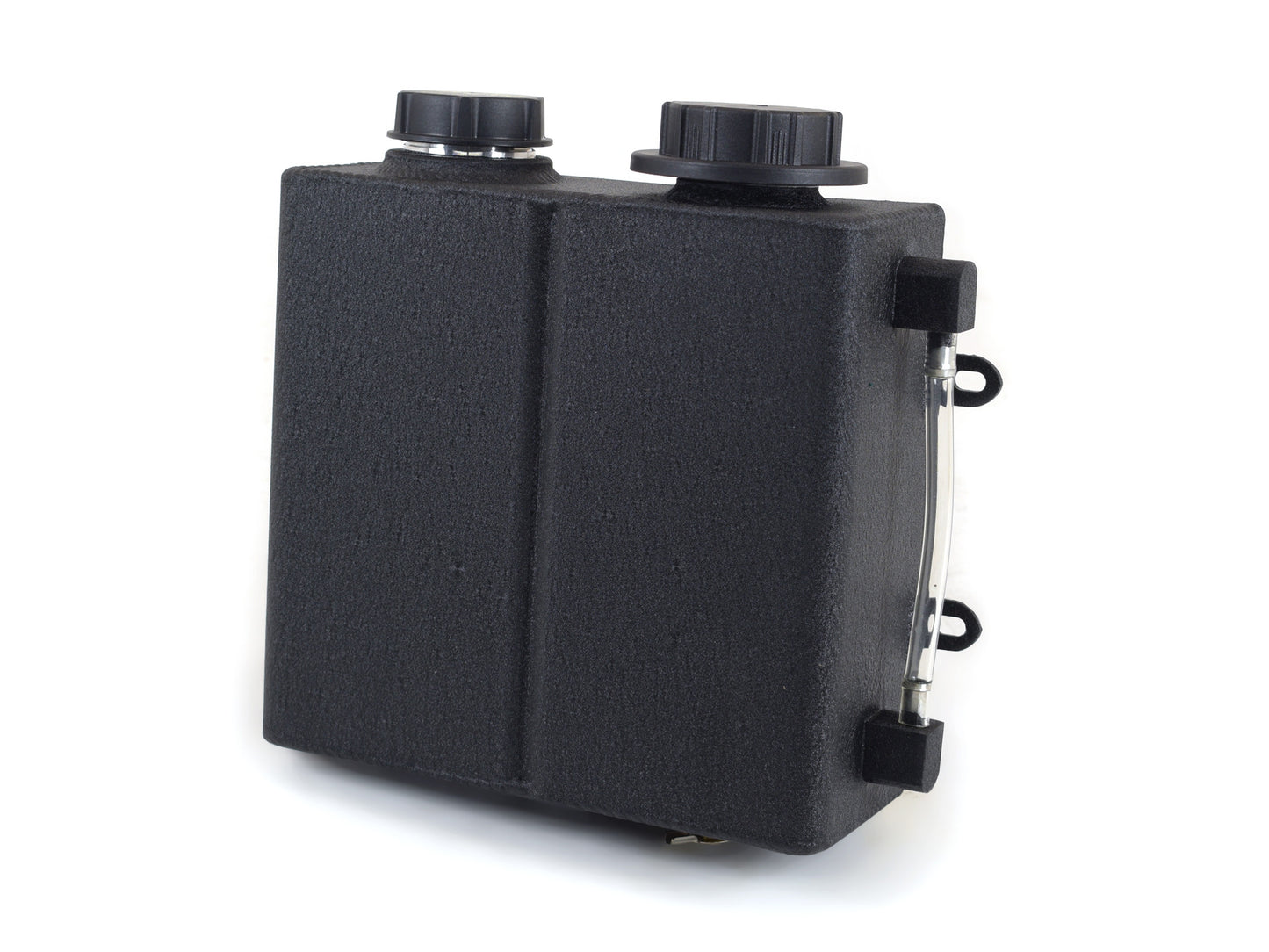

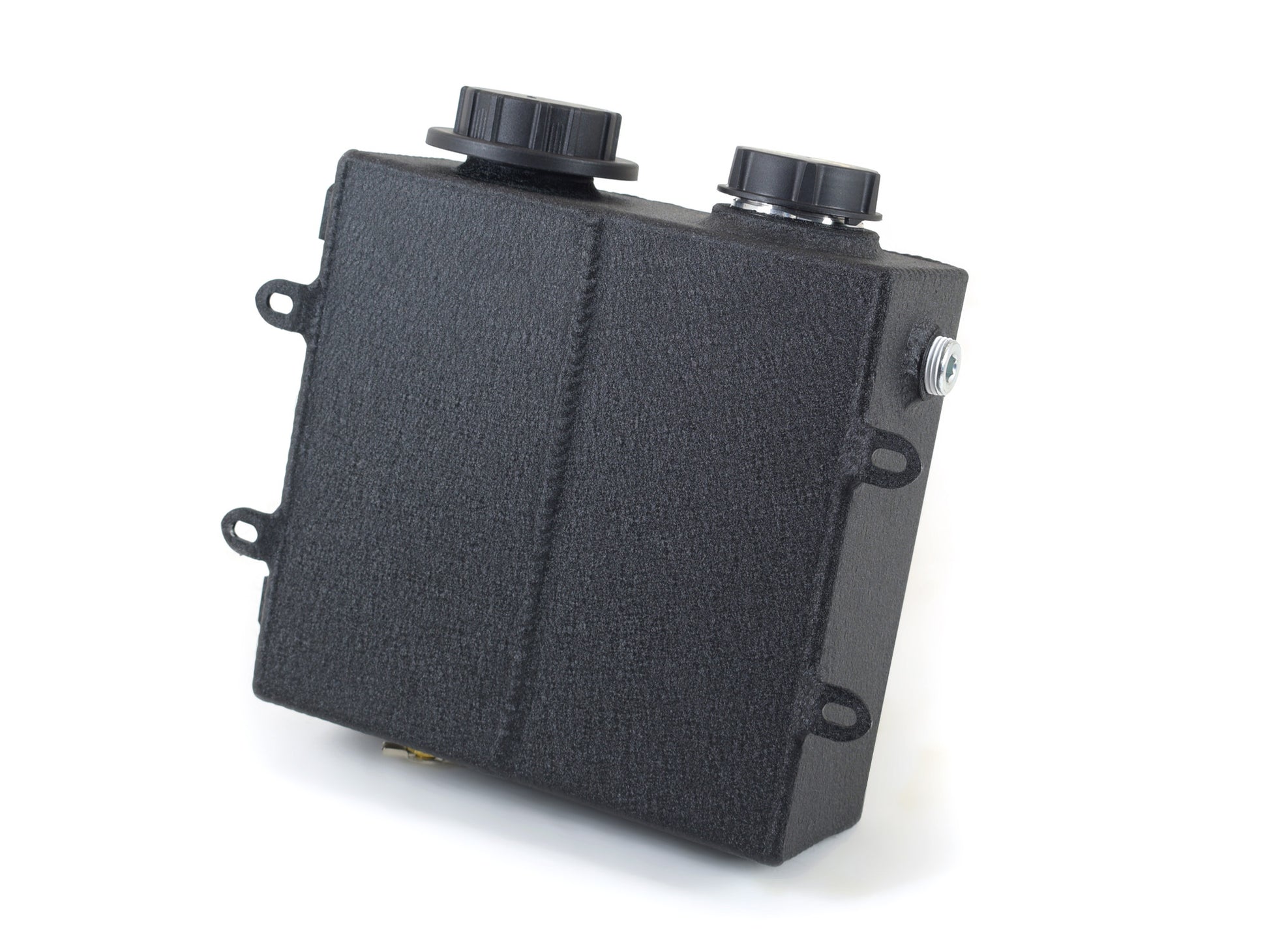

Canton - EXPANSION TANK WITH INTEGRATED RECOVERY TANK 2 QT & 2 QT

This product is a 2 qt expansion tank with integrated 2 qt recovery tank. It is internally vented from the expansion side to the recovery side. This tank allows for a simplified way to plumb an expansion and recovery tank on the same vehicle. The integrated recovery means you no longer need to run separate lines to an extra tank to catch overflow coolant. .100 Aluminum TIG welded. Includes plastic caps for each side.

*Stand not included

Features:
*.100 in. Aluminum
*2qt Expansion
*2qt Recovery
*Internally vented to recovery

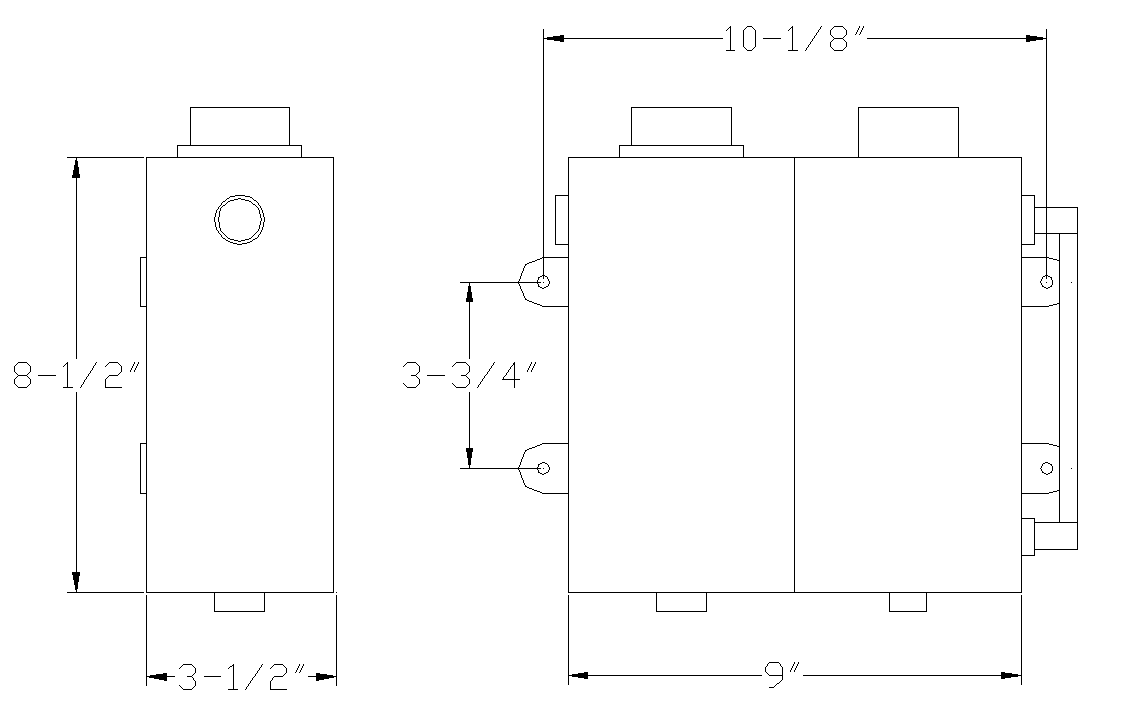

*9" Wide, 8.5" Tall, 3.5" Deep
*Built in mounting bracket
*Plastic caps included
*Billet caps available separately (81-203BV, 81-247)
*Black Powdercoat

Recommended Accessories
*81-247 Billet Aluminum Cap and 81-203BV Billet Aluminum Vented Cap
*23-244A Adapter Fitting 1/2 Inch NPT To -8 AN Aluminum
*23-245A Adapter Fitting 1/2 Inch NPT To -10 AN Aluminum
*23-345A Adapter Fitting 1/2 Inch NPT To -10 AN 90 Degree Aluminum

Product Tech
80-203 Expansion & Integrated Recovery Tank Plumbing
80-203 Expansion & Integrated Recovery Tank Plumbing Pg 2
