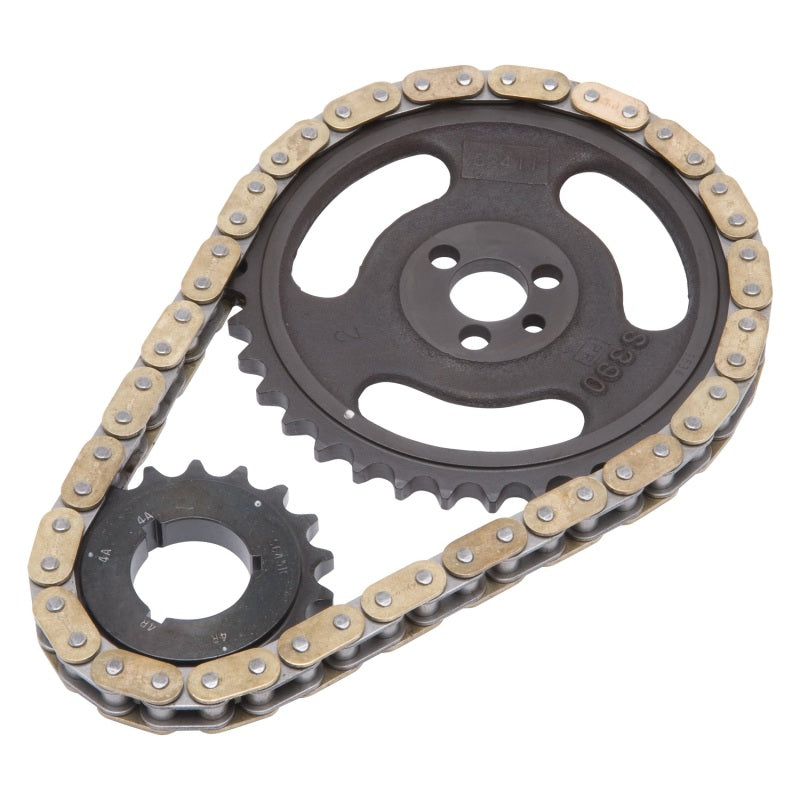

Edelbrock Timing Chain Performer-Link Chevy 1958-1965 V8 348/409 Inwin Series

Edelbrock part #7807 Performer-Link timing chain is for use with Edelbrock or stock cams. They have a solid-bushing chain for a true bearing surface that rolls with the sprockets, eliminating chain stretch. Cam sprockets are made from 35,000 psi tensile strength cast iron. Crank sprockets are made from billet SAE-1144 steel and induction heat treated. Four Performer-Link sets are stock replacement parts and 50-state legal (see listings in bold type). All other sets have three keyway setting points to ensure accurate timing selection for early or late-model vehicles. Performer-Link timing sets are not for use above 6500 rpm- ? Performer roller chain sets are engineered to operate up to 6500 rpm.- ? Never hammer directly on chain or sprockets. You can crack the hardened links and pins and cause early failures. - ? Use a sleeve for installations that require hammering, a brass drift punch may be used if you carefully alternate blows on either side of the sprocket to avoid cocking. - ? Never stretch the chain with a screwdriver. - ? Check for clearance between the timing chain and block and between the chain and front cover before reassembly. - ? Be sure that both cam and crank sprockets are exactly in line with each other. Misalignment can cause chain to break

This Part Fits:

Year	Make	Model	Submodel
1958-1965	Chevrolet	Bel Air	Base
1958-1965	Chevrolet	Biscayne	Base
1960	Chevrolet	Biscayne	Fleetmaster
1958-1961	Chevrolet	Brookwood	Base
1960-1961	Chevrolet	C10 Pickup	Base
1960-1961	Chevrolet	C20 Pickup	Base
1960-1961	Chevrolet	C30 Pickup	Base
1958	Chevrolet	Del Ray	Base
1959-1960	Chevrolet	El Camino	Base
1958-1965	Chevrolet	Impala	Base
1964-1965	Chevrolet	Impala	SS
1960-1961	Chevrolet	K10 Pickup	Base
1960-1961	Chevrolet	K20 Pickup	Base
1959-1961	Chevrolet	Kingswood	Base
1958-1961	Chevrolet	Nomad	Base
1960-1961	Chevrolet	P20 Series	Base
1960-1965	Chevrolet	P30 Series	Base
1959-1961	Chevrolet	Parkwood	Base
1958	Chevrolet	Sedan Delivery	Base
1960-1961	Chevrolet	Suburban	Base
1958,1960	Chevrolet	Truck	Base
1958	Chevrolet	Yeoman	Base
