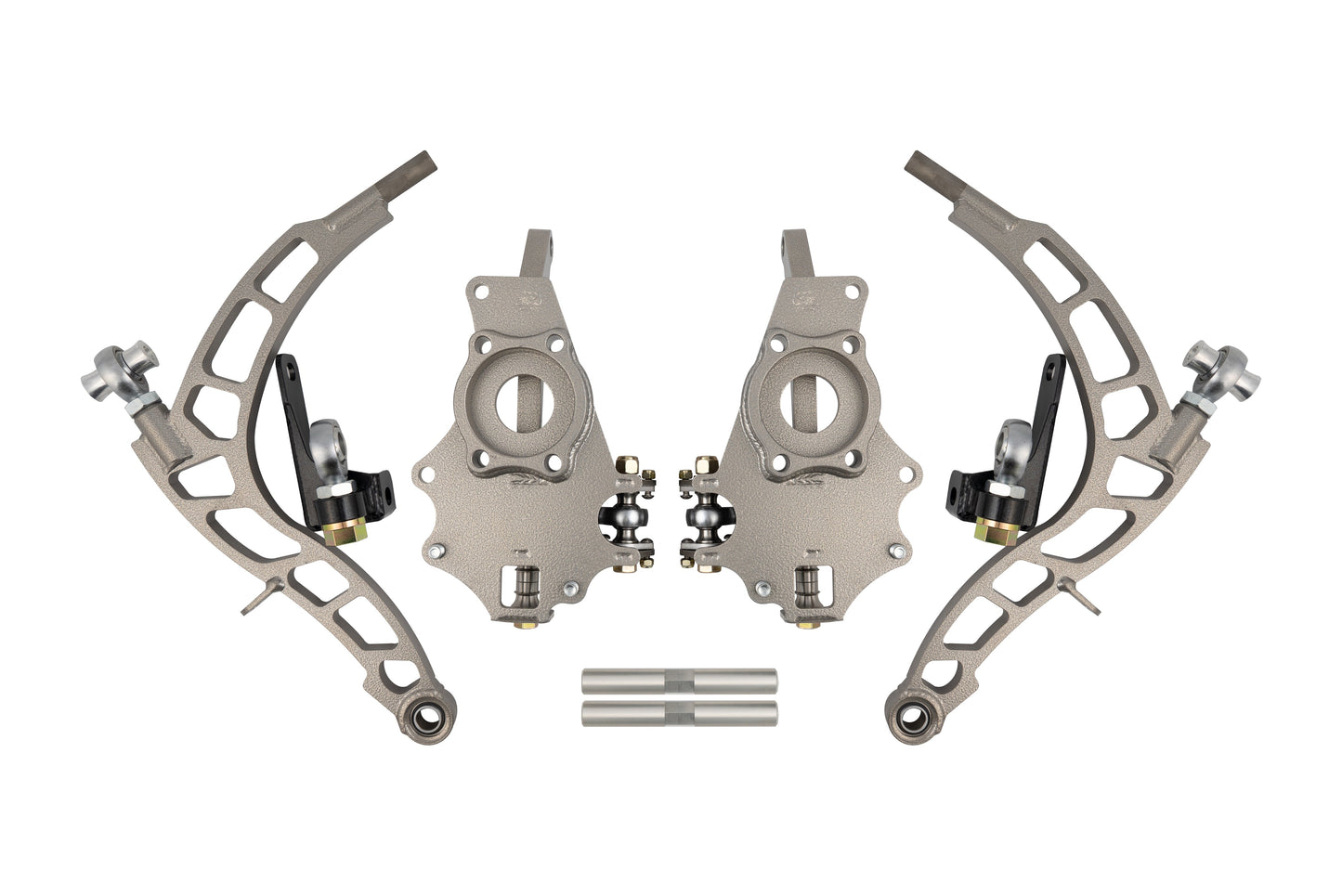

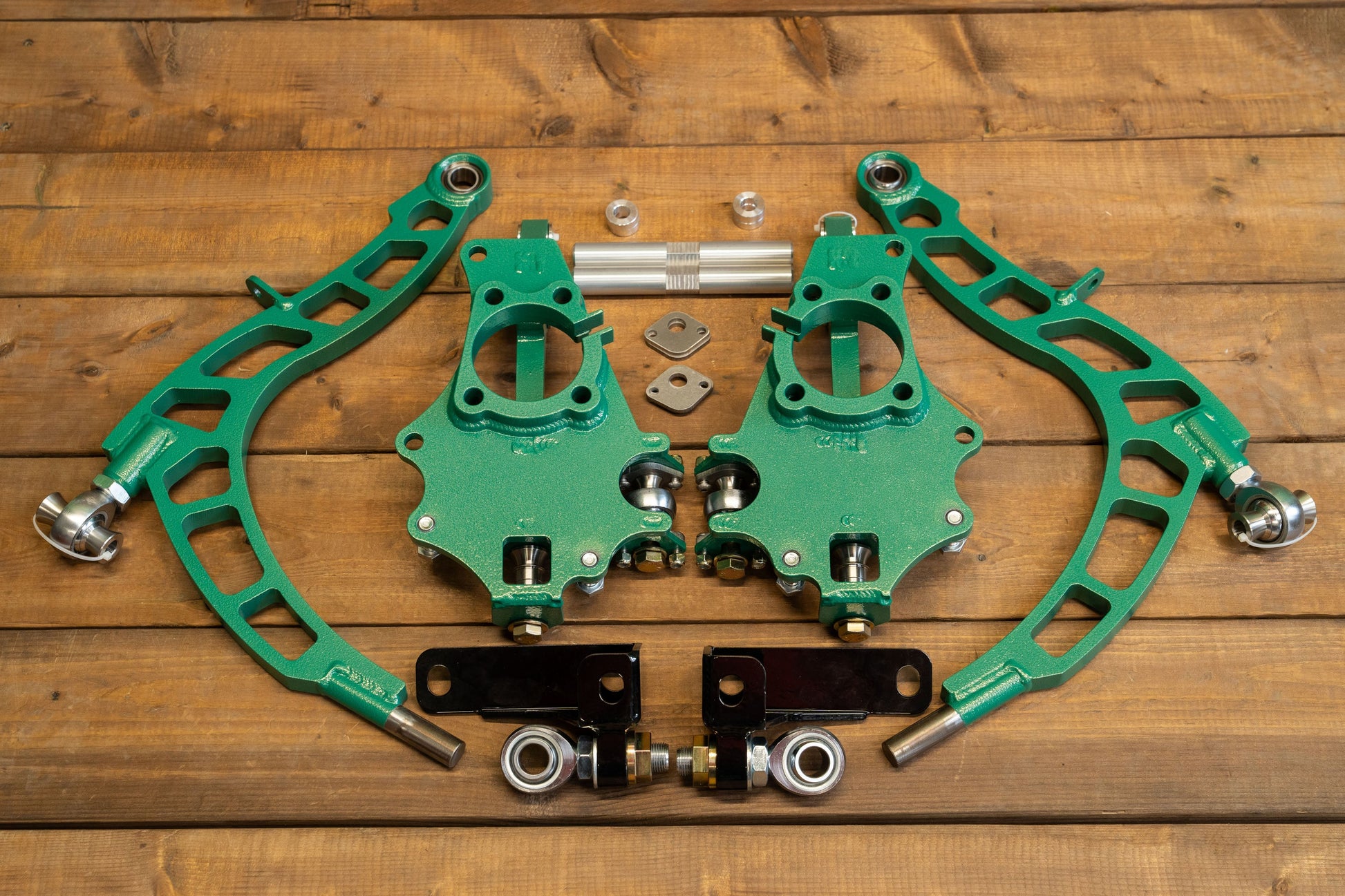

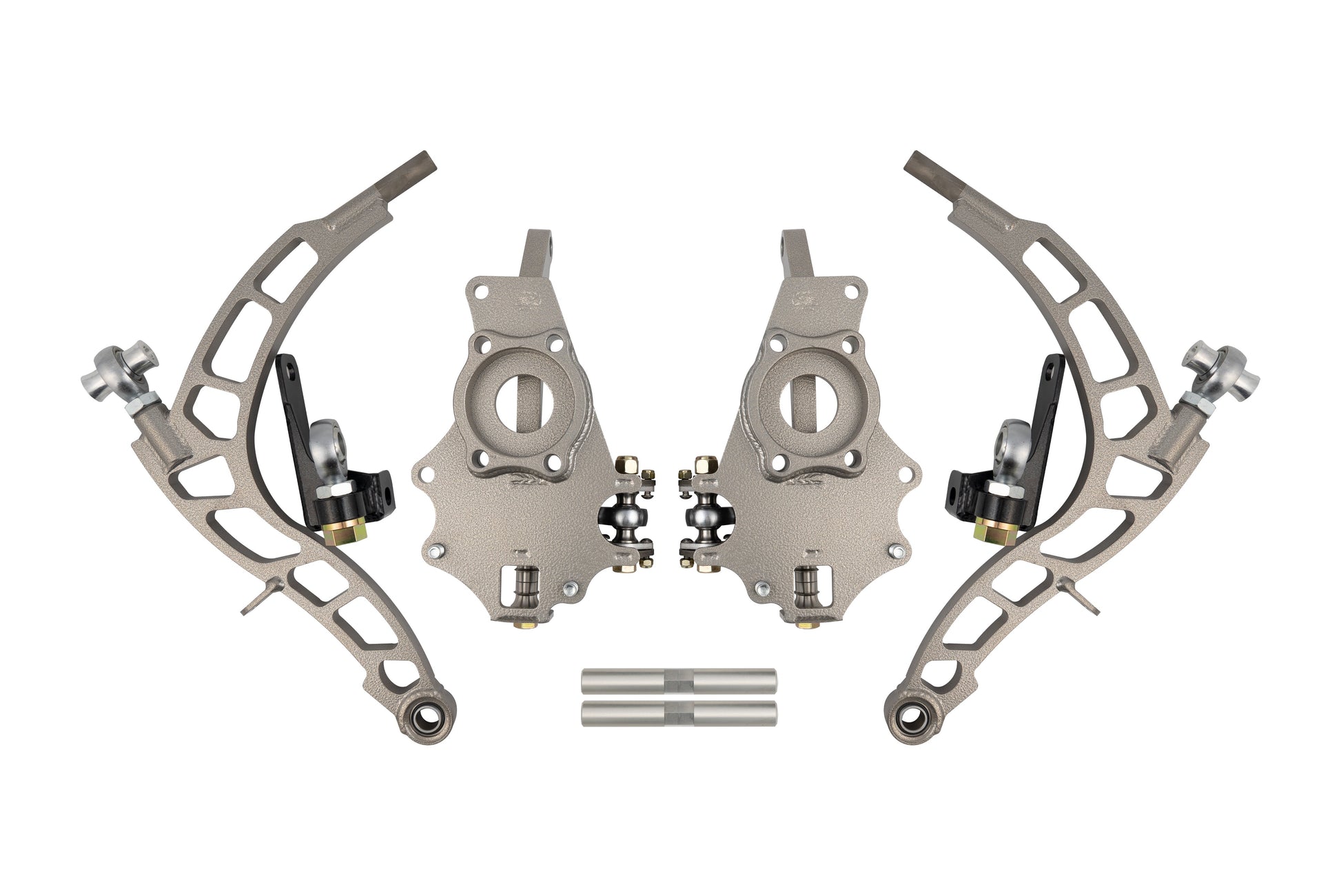

FDF Raceshop - Subaru Impreza 2002-2007 Mantis Angle Kit

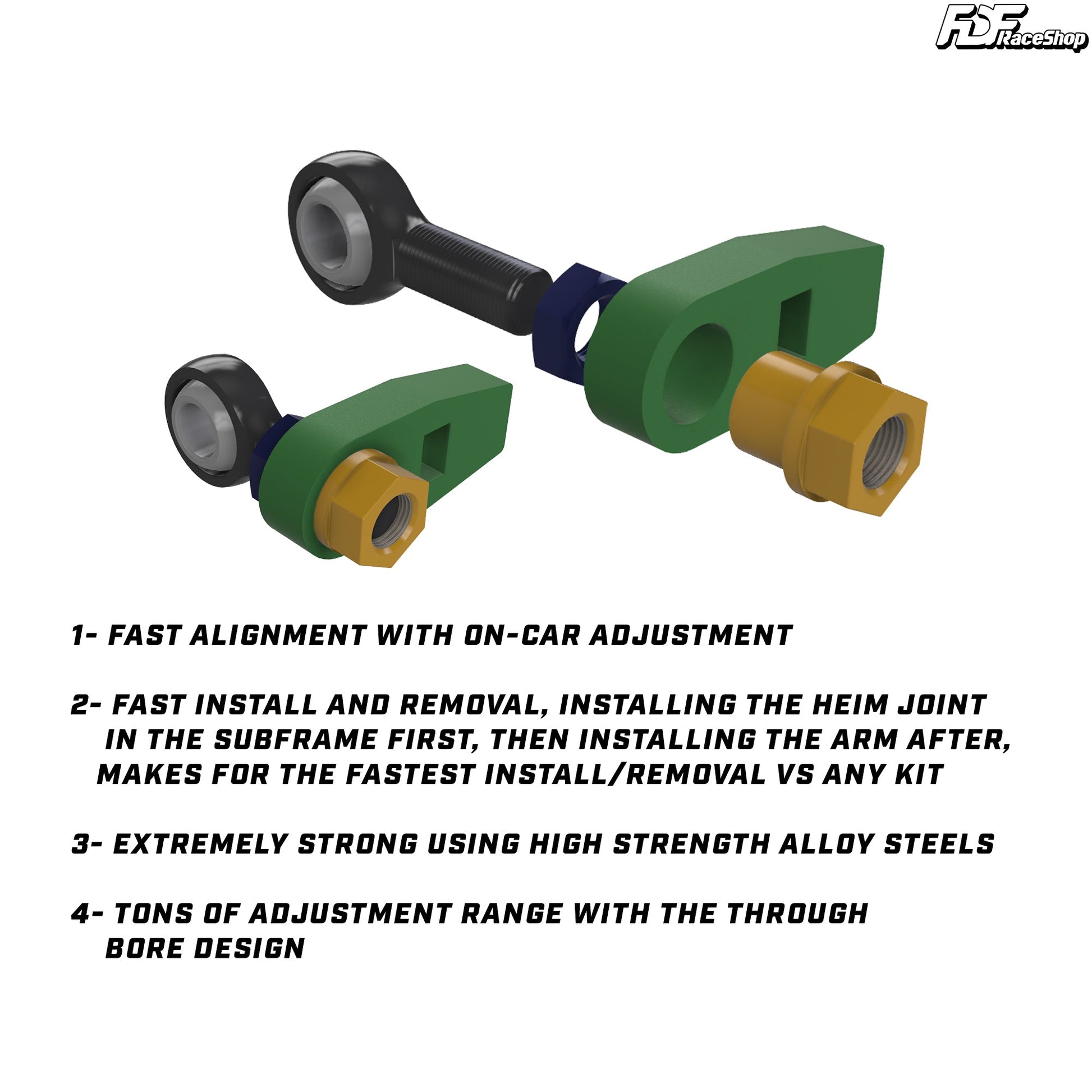

The Subaru Impreza 2002-2007 Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

• Angle: 65+ degrees depending on your wheel setup and length of control arms
• Tie-rods, Outer tie-rods included, these fasten to the stock inner tie-rods
• Ackermann: Adjustable Ackermann options from Positive - zero - negative
• Roll Center: Optimized handling by adding 50mm of roll center correction.
• Bump steer: Perfected bump steer for drifting.
• Caster: Modifications made to the displaced caster amount giving a good self-steer feel for the driver and maximizing the performance for drifting.
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 50-75mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to full lock at any point throughout  suspension travel for increased grip.
• Joints: Chromoly heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Weight Reduction: Made from High strength alloy steel and Aluminum.

Wheel Bearing:

• 5x100: You can use the OEM bearing or an FRS/BRZ wheel bearing. If you use the OEM wheel bearing then you must also run a cut axle spline in the bearing.
• "350z" 5x114: This uses a 350z wheel bearing. you must also run this setup with a 350z rotor and the STI caliper.

Note: Wheel Bearing not included.

For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.
