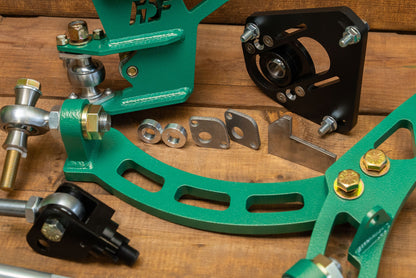

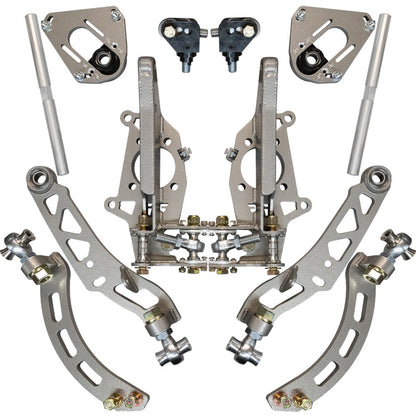

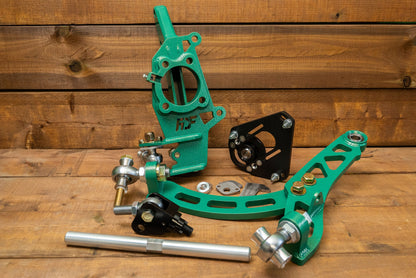

FDF Raceshop - Toyota GT86/Scion FRS/Subaru BRZ Mega Mantis Angle Kit

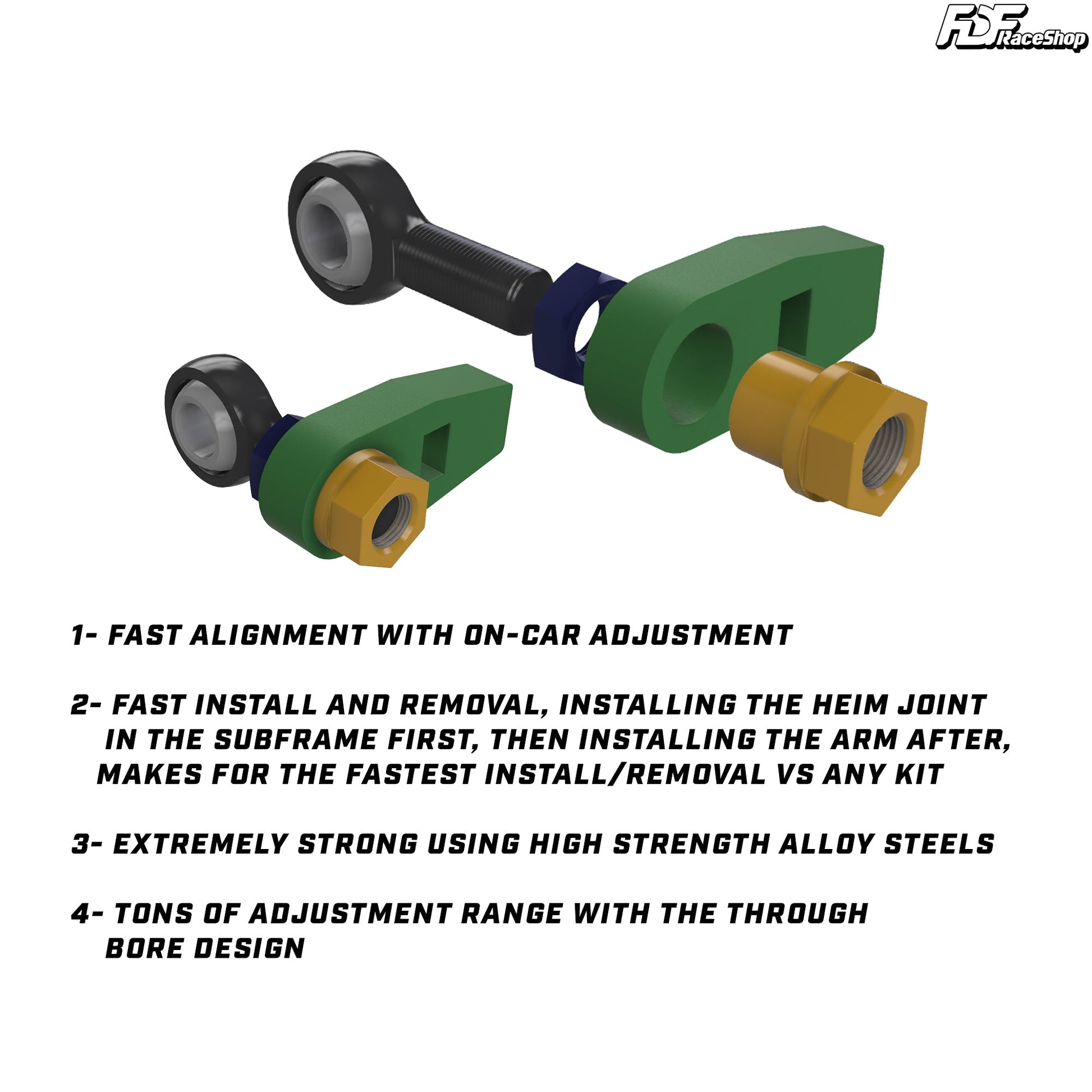

The Toyota GT86/Scion FRS/Subaru BRZ Mega Mantis Angle Kit is engineered for optimal handling performance while drifting. It features fully fabricated knuckles and arms constructed from high-strength alloy using a tab-and-slot design, ensuring robust welds and connections among all components. Additionally, the kit is designed to be on-car adjustable, allowing all adjustments for caster, camber, and toe to be made without removing any parts.

Key Features:

• Angle: Up to 65 degrees depending on your steering rack type, location, and wheel size.
• Tie-rods: The kit includes adjustable offset rack spacers, with inner and outer Heim joints.
• Ackermann: Adjustable Ackermann.
• Roll Center: 50mm of roll center correction.
• Bump Steer: Minimal bump steer in drift by perfecting tie-rod pitch angle.
• Caster: Reduced caster.
• Camber: Customizable camber ranging from -3 to -6.
• Track Width: 50-75mm wider per side.
• Suspension Travel: Full lock-to-lock at any point throughout the suspension travel for increased grip.
• Joints: Chromoly heim joints and spherical bearings.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum

Customizable Options:

• Opt for with or without caster plate options for further camber, caster, and track width adjustments.
• Upgrade to the inner tie rod/offset rack spacer for superior geometry and angle potential.

Note: If opting for the inner tie rod upgrade, some subframe modifications involving minor cutting and welding are necessary to ensure proper clearance.

Note: Wheel Bearing not included

Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.

Installation Manual
