[GARAGE SALE] - Leo Grande Racing - E28/E34 DUAL CALIPER BRACKETS

******THIS IS NOT A NEW CONDITION PRODUCT - NO ACCEPTABLE REFUNDS - READ BELOW******

BRAND NEW IN BOX - INVENTORY LIQUIDATION

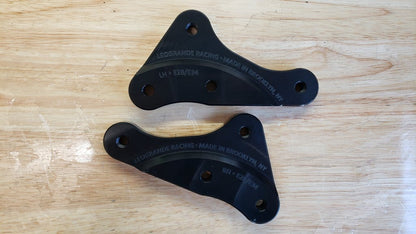

Finally, a bolt on solution for your E28/E34!

These are for E28/E34 cars with non vented rear rotors (will not fit M or 540 cars)

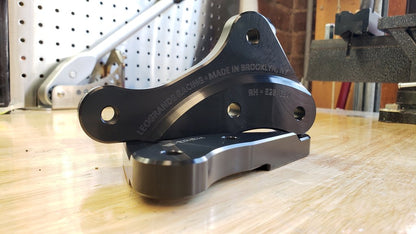

These are made from 6061-T6 aluminum, and are compatible with Wilwood calipers. They bolt on with no hub removal. E brake removal is necessary but you can easily add an inline manual valve to use the secondary calipers as your e brake if needed (see installation video for info).

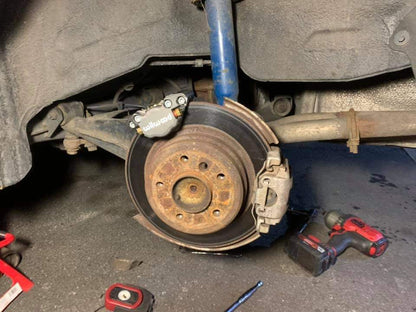

The only modification required is some backing plate trimming, or removal completely. You can reference our e30 install video as it will be similar (link at bottom)

Comes with all necessary 12.9 grade hardware.

For use with either 120-9689 or 120-9690 Wilwood dynapro calipers. Also recommend Polymatrix A compound pads, but pad compound choice might vary based on driving style.

Available in Black

Torque all hardware to 45 ft/lbs and use supplied thread locker

It is very important that the mounting face is clean, as well as the area above the bracket (where the wheel bearing is pressed in) there is only a few mil of room between the bracket and the hub, excess rust, or thick powder coating will cause the bracket not to sit correctly, this will be evident if the bolts are difficult to thread in due to misalignment.

Standard BP20 - (150-20-6812K)

Aggressive+ BP-40 - (150-12242K)
