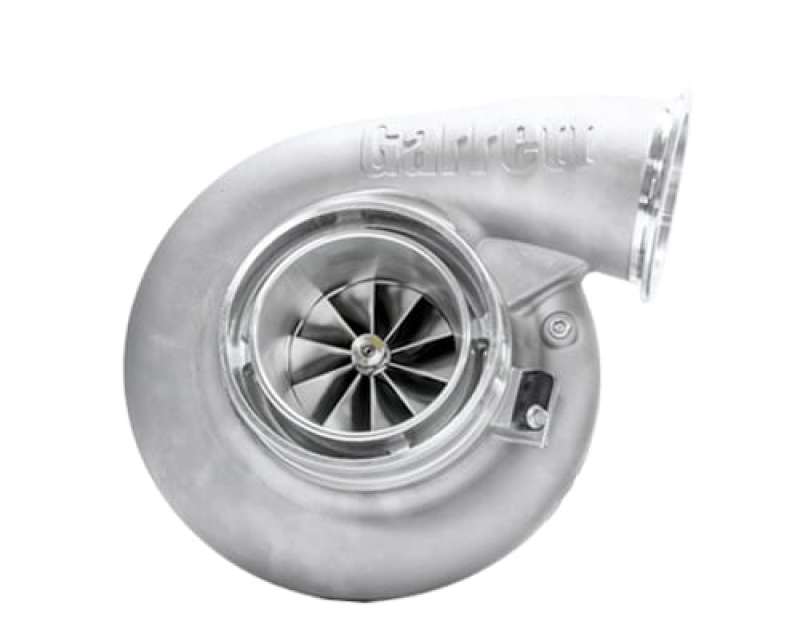

Garrett - G-Series G42-1450 Supercore Standard Rotation 79MM Comp Ind

Garrett - G-Series G42-1450 Supercore Standard Rotation 79MM Comp Ind

GRT860778-5006S

$3,983.19 USD
$3,983.19 USD $3,983.19 USD
Promoção Esgotado
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
Ver informações completas

OVERVIEW

Features

  • GARRETT G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HORSEPOWER
  • 79mm COMPRESSOR INDUCER | 98MM COMPRESSOR EXDUCER
  • 82MM TURBINE INDUCER | 75MM TURBINE EXDUCER
  • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
  • NEW TURBINE WHEEL AERO FOR INCREASED EFFICIENCY AND FLOW
  • STAINLESS STEEL TURBINE HOUSINGS
  • WATER FITTINGS INCLUDED
  • G42-1450 SUPERCORE PN: 860778-5006S

WARNING: Maximum allowable turbocharger speed is 114krpm. The use of this product above max turbocharger speed is at the owner’s risk, and can result in damage and premature failure. To protect the turbocharger from overspeed when operating, a speed sensor can be installed into the compressor housing to monitor shaft speed. Sensors sold separately.

Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. The horsepower numbers represented above are calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel horsepower.



G42-1450 Supercore Reference Data

Supercore PN: 860778-5006S 		Compressor Turbine
Inducer Exducer Trim A/R Inducer Exducer Trim
79mm 98mm 65 0.85 82mm 75mm 84
G42-1450 Turbine Housing Kits Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Free float / non-wastegated turbine housing kits are sold

independently of the supercore		 757707-0011 1.01 V-Band V-Band Free Float N
757707-0012 1.15 V-Band V-band Free Float N
757707-0013 1.28 V-Band V-band Free Float N
757707-0014 1.01 T4 V-band Free Float Y
757707-0015 1.15 T4 V-band Free Float Y
757707-0016 1.28 T4 V-band Free Float Y
