GKTECH - Toyota JZX90 & JZX100 Subframe Weld In Reinforcement Plates
GKTECH - Toyota JZX90 & JZX100 Subframe Weld In Reinforcement Plates
SKU:GKTECH-JZXX-SUBF
Não foi possível carregar a disponibilidade de retirada.
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
OVERVIEW

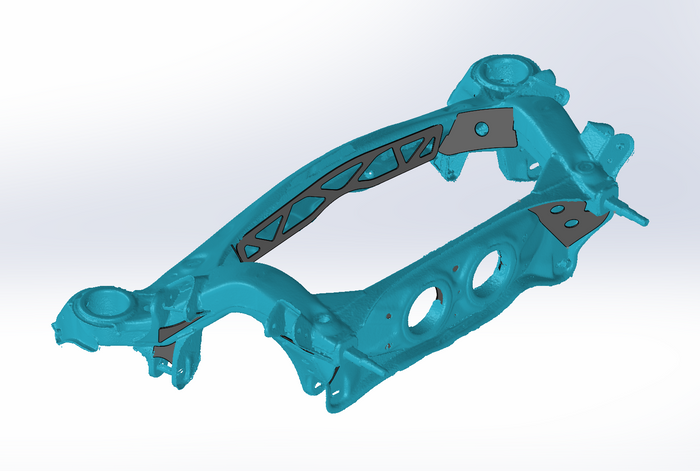

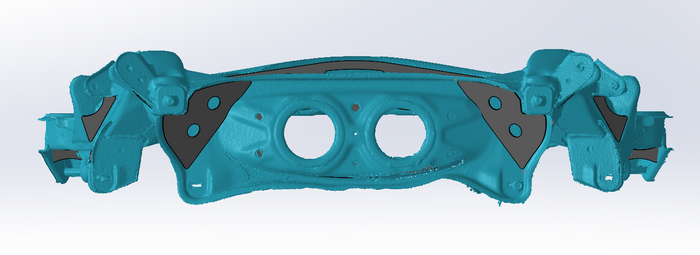

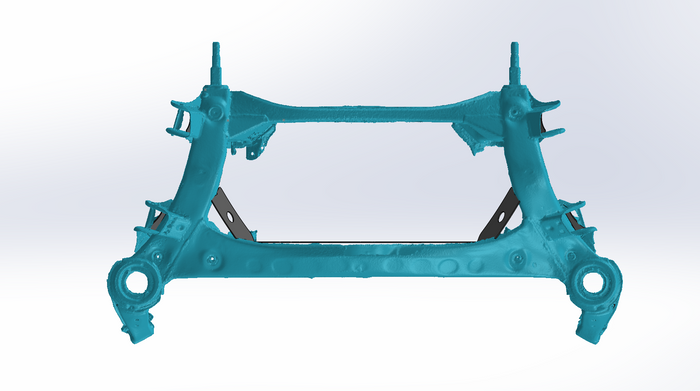

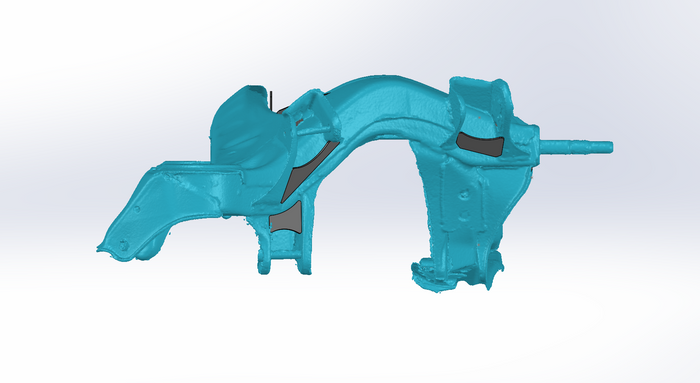

The GKTECH Toyota JZX90 & JZX100 Subframe Weld In Reinforcement Plates have been designed from a 3D scan with the addition of CMM data to help to reinforce your subframe where it needs it most.

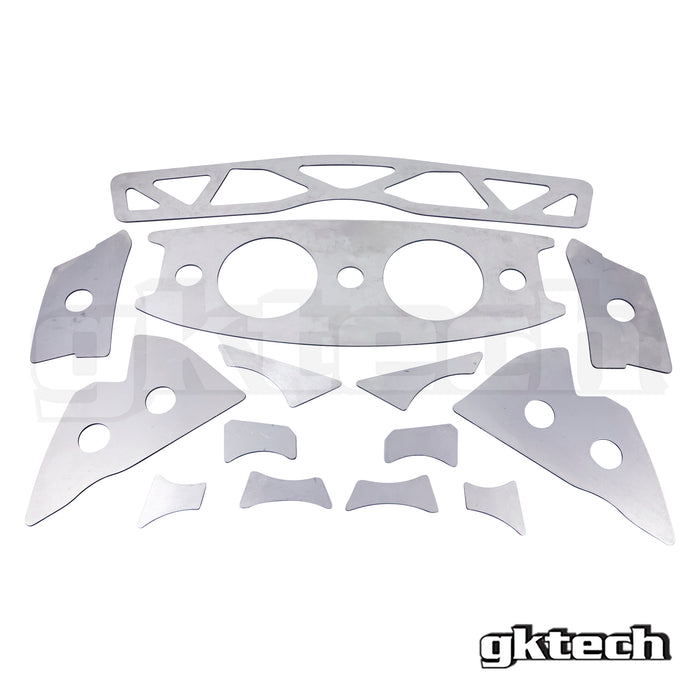

This comprehensive 14 piece laser cut AISI1030 steel kit make reinforcement of the rear subframe a heap easier than attempting to do it yourself.

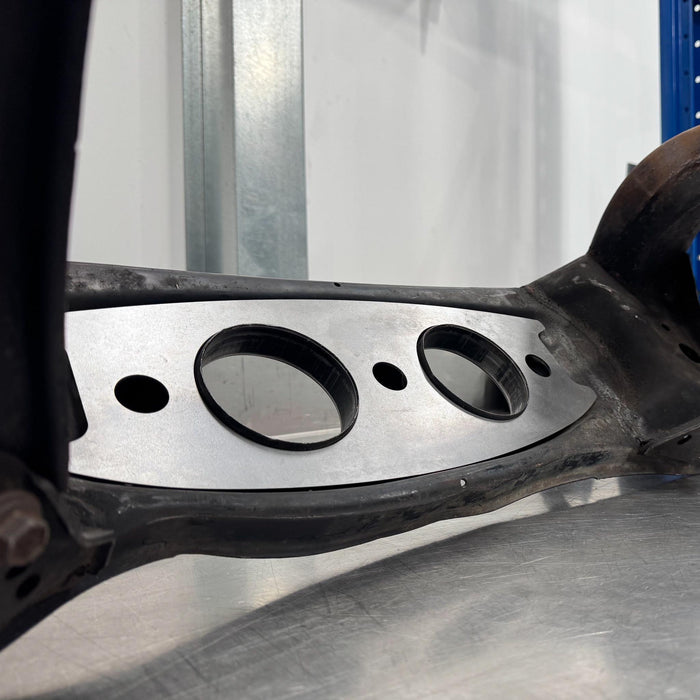

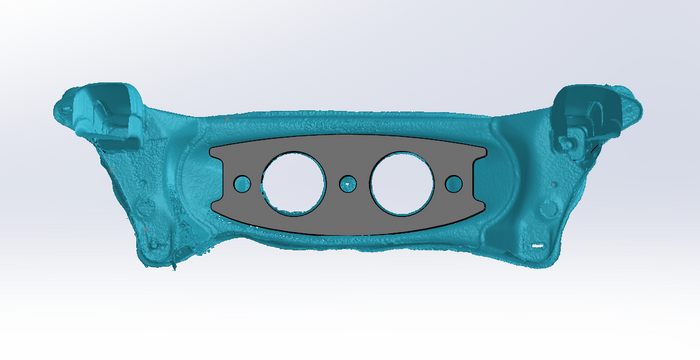

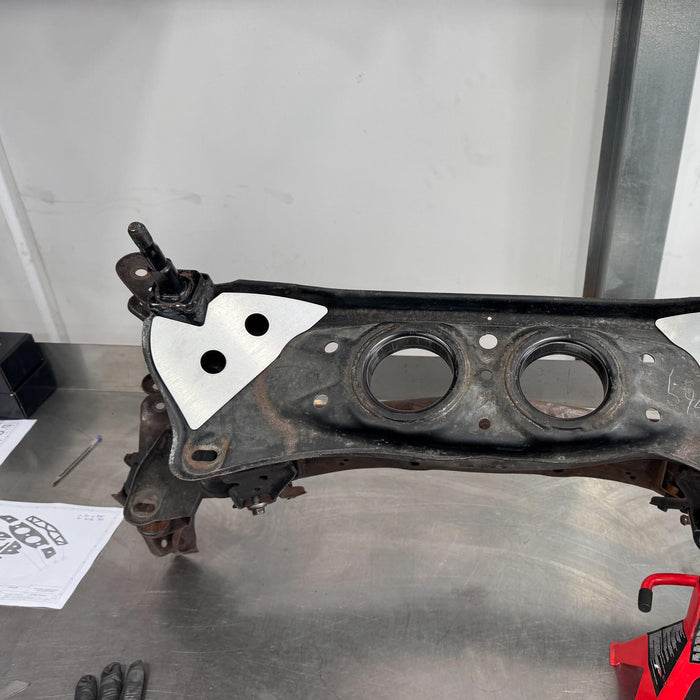

This kit also specifically provides support to areas of the subframe where cracks are known to commonly propagate being the front diff mount and the rear stud, as well as reinforces the suspension arm pickups.
FAQs
Will this fit my car?We can only confirm fitment for the vehicles listed above under "vehicle compatibility". If your car is not listed there, then we don't know if it will fit.
Do you make these to suit other cars?
We only sell the parts listed on our website. If it's not listed on our website, then we don't sell it. Sorry.
What's the advantage of using the GKTech weld in subframe kit?
Broken subframes are pretty common, especially in drift/motorsport applications. Just as people seam weld their cars, the subframe should not be forgotten. Remembering that it takes a heap of the stress under load. It's also a simple and effective mod while the subframe is out.
What modifications are required, is this hard to fit?
No modifications are required, simply just remove the subframe and weld the plates in.
Is there anything else needed for installation?
You will need a welder. In terms of the kit it will arrive as shown in the product photo.
Can I install this myself? If so how long will installation take?
Yes, provided you have welding experience. Welding in of the kit should take around 30 minutes assuming you have the subframe out of your car already.
VEHICLE COMPATIBILITY
Toyota
JZX100JZX90
USER GUIDE(S)
Assembly Guides
Download JZXX-SUBF - Customer ASM - 11.02.2026Recently Viewed
