PHR - PHR Dual Brushless SPAL Fan Kit for S14

Why

Powerhouse Racing introduces you with the PINNACLE of cooling efficiency with the Dual Brushless SPAL Fan Kit. This is THE BEST fan kit on the market for the S14. Utilizing the latest Pulse-Width-Modulation Controlled BRUSHLESS fans from SPAL. At full kill, these bad boys pump almost 4500cfm.

What Is Included

The PHR Dual Brushless SPAL Fan Kit Includes:
  1. Powerhouse Racing Fan Shroud
  2. Dual PWM Brushless 12" SPAL Fans

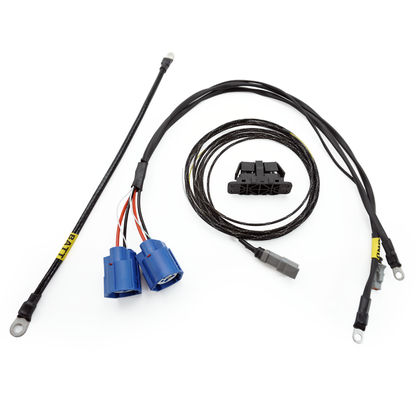

  3. Powerhouse Racing Wiring Harness with Power, Feed, and PWM Control.
  4. All necessary hardware

Features

Built-in PWM control means full speed control with your aftermarket ECU. Turn them on at desired temperature and increase the speed as need, and vice a versa. The combination of this and brushless motor means this has super lower amperage pull at about 25 each amps at full load. This also mean as you gradually turn the fans on the initial shock on your charging system is much less severe as a standard on/off relay setup.

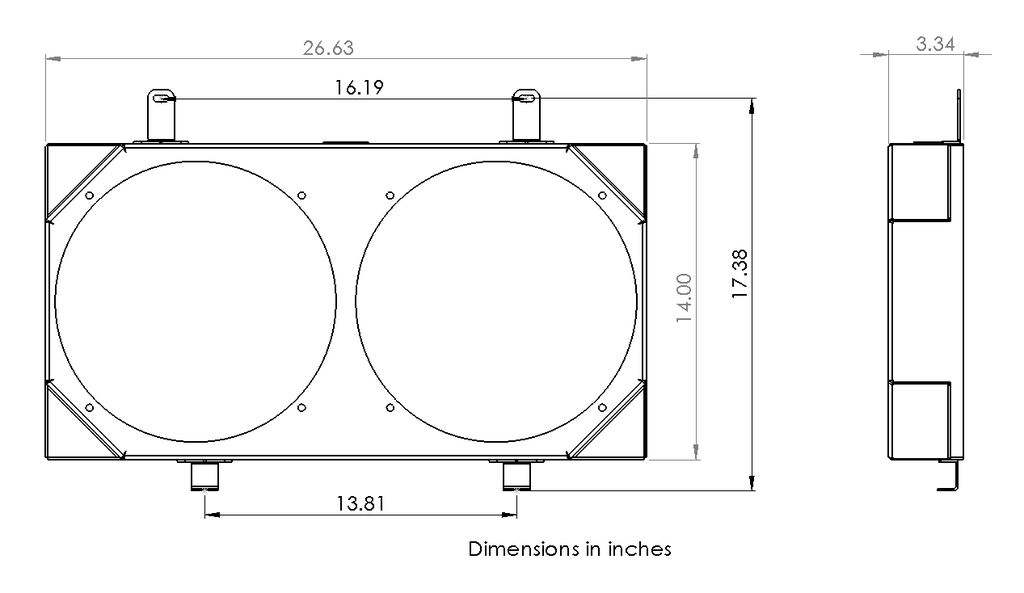

Dimensions

We built this kit based off the footprint of a Koyo Radiator for the S14 (HH020369N)

- The main shroud body is 26.63" x 14" x 3.34"

- Upper tab holes on center are 16.19" inches apart

- Lower tab holes on center are 13.81" inches apart

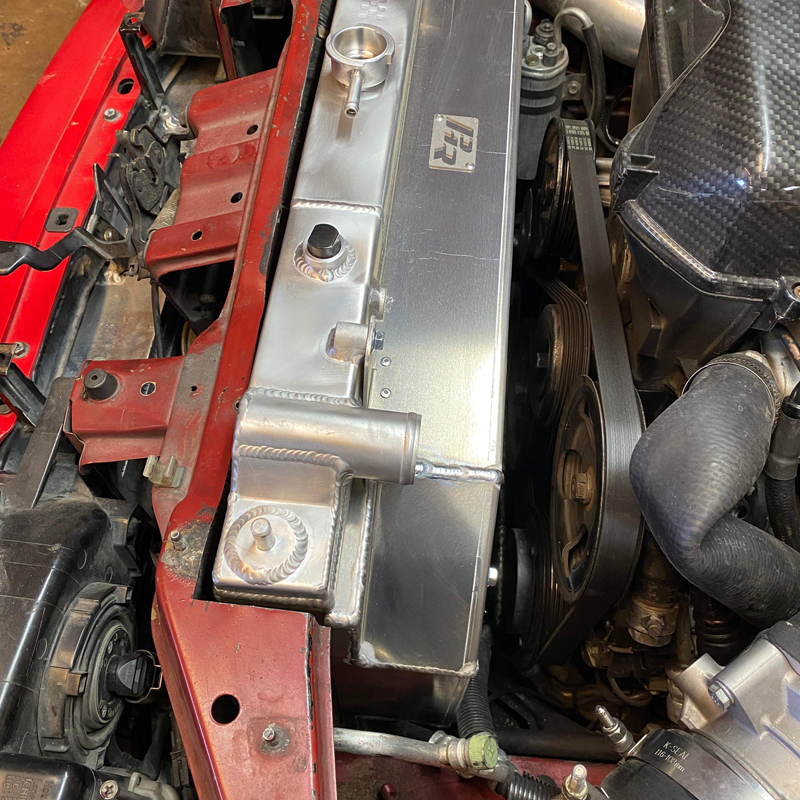

Installation

The fan kit will require modification to the chassis if you have swapped a Inline 6 into your S14/Silvia.
