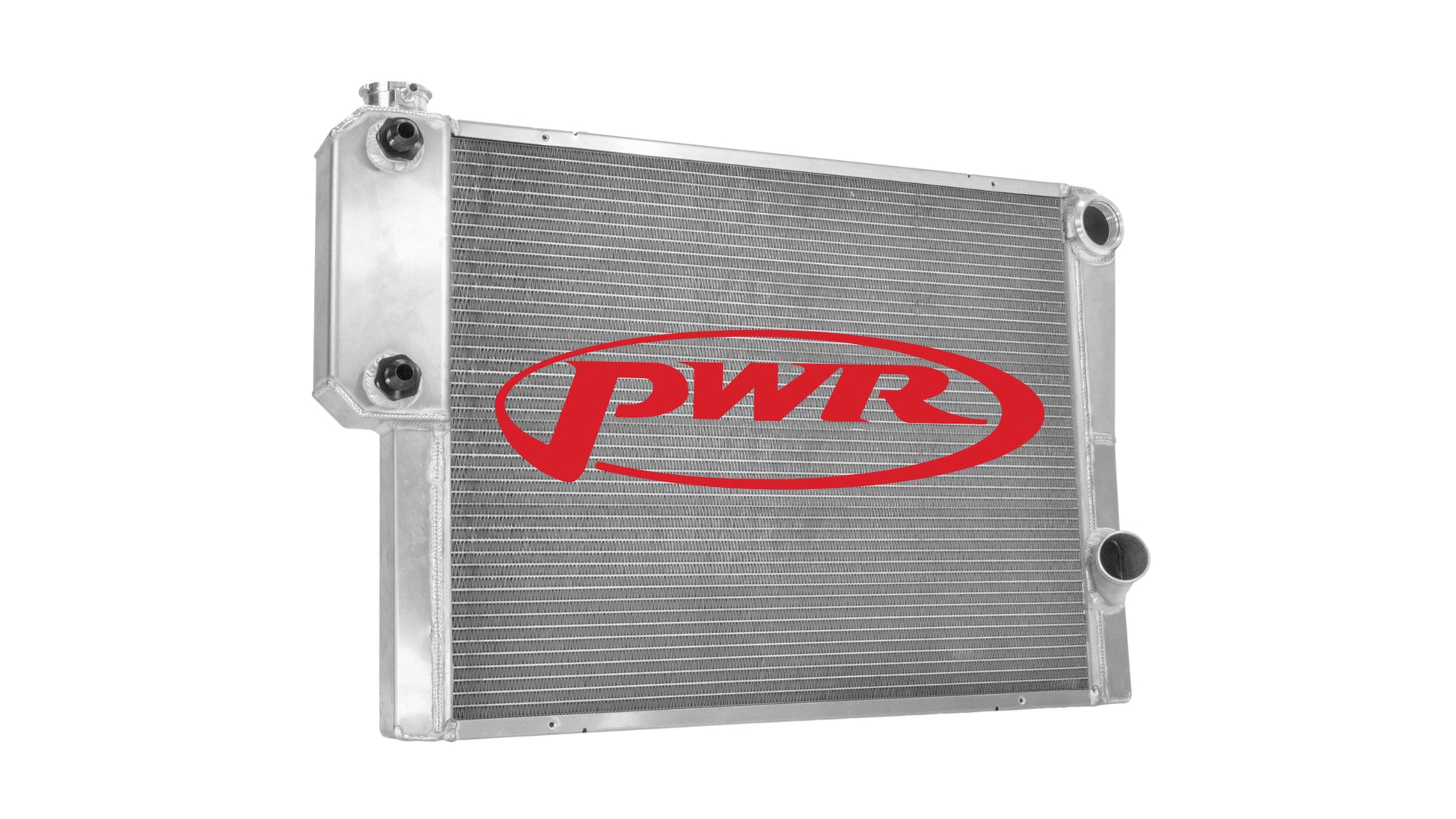

42mm Universal Performance Radiator (PWR Open 28” x 19” W/ Heat Exchanger) -20 AN Port Inlet, 1-3/4″ High Outlet

PWR universal radiators with internal heat exchangers are excellent, general-purpose radiators capable of cooling many applications depending on the vehicle and use. They utilize an in-tank aluminum 7-plate heat exchanger/oil cooler with -12 AN Male Fittings. Our universal radiators come standard with a 42mm thick core utilizing rolled dimpled tubes with our engineered V-shape fin. These radiators are available in either a single or double pass configuration as well as being an open or closed system. The inlet comes with our -20AN universal port bung so you can select the inlet size of your choice while the outlet comes standard with a 1-3/4″ hose barb fitting available in a high or low mounting position. Mounting provisions for SPAL fans and aluminum shrouds are included onto the radiators. Upper Fittings and Radiator Cap Sold Separately.

When measuring a Heat Exchanger Style Radiator this radiator is going to be 26″ wide below the Internal Heat Exchanger “Kickout” and 38″ at the top.
