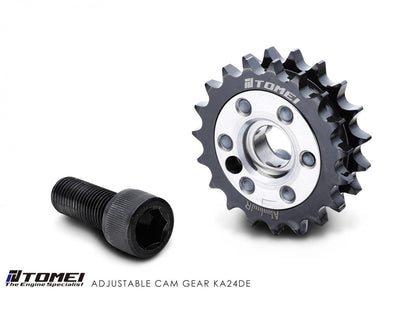

Tomei - KA24DE Adjustable Camshaft Gear (TA302A-NS16A)

New for December 2019!

Tomei has successfully developed the hard to produce slide type adjustable cam gear for the KA24DE engine. Because of the dual timing chain and small diameter of the cam gear, this piece is very difficult to produce. Now with the help of Tomei's adjustable cam gear, you can easily make fine adjustments to valve timing based on user need.

Each scale mark on the Tomei Cam Gear represents 2 degrees (4 degrees crank), valve timing is easily adjusted by loosening the 6 bolts on the rear of the gear and sliding the gear in the direction you wish to change timing. The Tomei Cam Gear is made from highly durable SCM415 (Outer Gear) and SCM435 (Inner Disc) treated with lubrite to reduce wear and tear.

Benefits of Adjusting Valve Timing

Adjusting valve timing is require to get the absolute best performance out of your engine. For example, most OEM camshafts have minimal intake and exhaust valve overlap to retain a stable idle. On the other hand, tuning camshafts have widened the intake and exhaust overlap therefore allowing the engine to create more low and mid-end power.

• PN: 2x TA302A-NS16A

This is a Pair, fits both intake and exhaust camshafts.

Fits:

• Nissan 240SX (S13) KA24DE
• Nissan 240SX (S14) KA24DE
