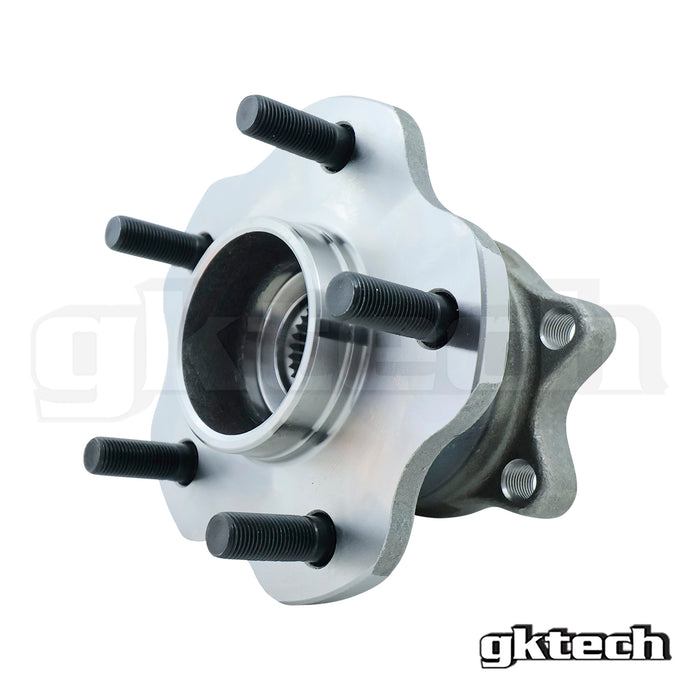

GKTech - 240SX/Skyline 5 Lug Rear Hub

GKTech - 240SX/Skyline 5 Lug Rear Hub

REAR-HUBX

$190.00 USD
$190.00 USD $190.00 USD
Promoção Esgotado
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
Ver informações completas

OVERVIEW

Now available! The GKTECH S14 240SX / S15 Silvia Complete Rear Hub Assembly, these are an OEM replacement part for the OEM part numbers: 43202-85F00 & 43210-AA100

We made sure these were ready for motorsport and daily driving needs, with testing including:
- Cyclical loading through a range of real world load cases including extreme high loads to simulate impacts
- Up to 800kg of load (equivalent to a total car weight of 3200kg)
- Over 900hrs of total loaded running time, 70+ days @ 12hrs a day whilst monitored for temperature and vibration throughout the testing and more!

Features:
- Heat treated structural steel body and flange
- Grade 10.9 studs pre installed using OEM ID of 14.3mm
- OEM PCD of 5x114.3
- OE Quality bearings, seals and quality SHELL grease pre installed
- Fully serviceable with hubs and bearings available separately

Note: SOLD INDIVIDUALLY
Note 2: Will work with 5 stud converted S13 240SX OEM rear knuckle
Note 3: Individual Rear Hub: https://us.gktech.com/products/s14-240sx-s15-silvia-rear-hubs-only
Note 4: Individual Rear Wheel Bearing: https://us.gktech.com/products/s14-s15-silvia-rear-wheel-bearing-only
Note 5: For replacement front hubs: https://us.gktech.com/products/s14-silvia-s15-200sx-5-stud-hubs-front-and-rear

FAQs

Will this fit my car?
We can only confirm fitment for the vehicles listed under the vehicle compatibility. If your car is not listed there, then we don't know if it will fit.

What is the hub bore size?
The hubs have the OEM hub size of 66.1mm

My wheel bore size is different, will these still work?
We have hub centric spacers available to suit these hubs here - (link)

I want to convert my S13 240SX to 5 stud, what else do I need?
You will need front hubs, front calipers and 5 stud front/rear rotors
The S13 240SX front conversion hubs can be seen here - (link)

I have an S13 240SX with 5 stud conversion, can I use these hubs?
Yes, these hubs are compatiable with S13 240SX rear knuckles

Can I install this myself? If so how long will installation take?
Yes, provided you have general mechanical knowledge as they are relitively straightforward. Installation time should be around 30 minutes per hub.

Please check your chassis OEM bearing part number for the following chassis
- Nissan C34 Stagea (RS-Four M/T & 260RS may use a different assembly)
- Nissan R34 Skyline GT (Does NOT suit Hicas model)
- Nissan Z32 300ZX (Suits non Turbo ONLY)

VEHICLE COMPATIBILITY

Nissan

C33 LAUREL
C34 LAUREL
C35 LAUREL
CEFIRO A31
R32 SKYLINE GTS-T
R33 SKYLINE GTS
R33 SKYLINE GTS-T
R34 SKYLINE GT
S13 KA24 240SX
S13 KA24 HATCH
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA
S14 240SX/SILVIA
S15 SILVIA
