Holley

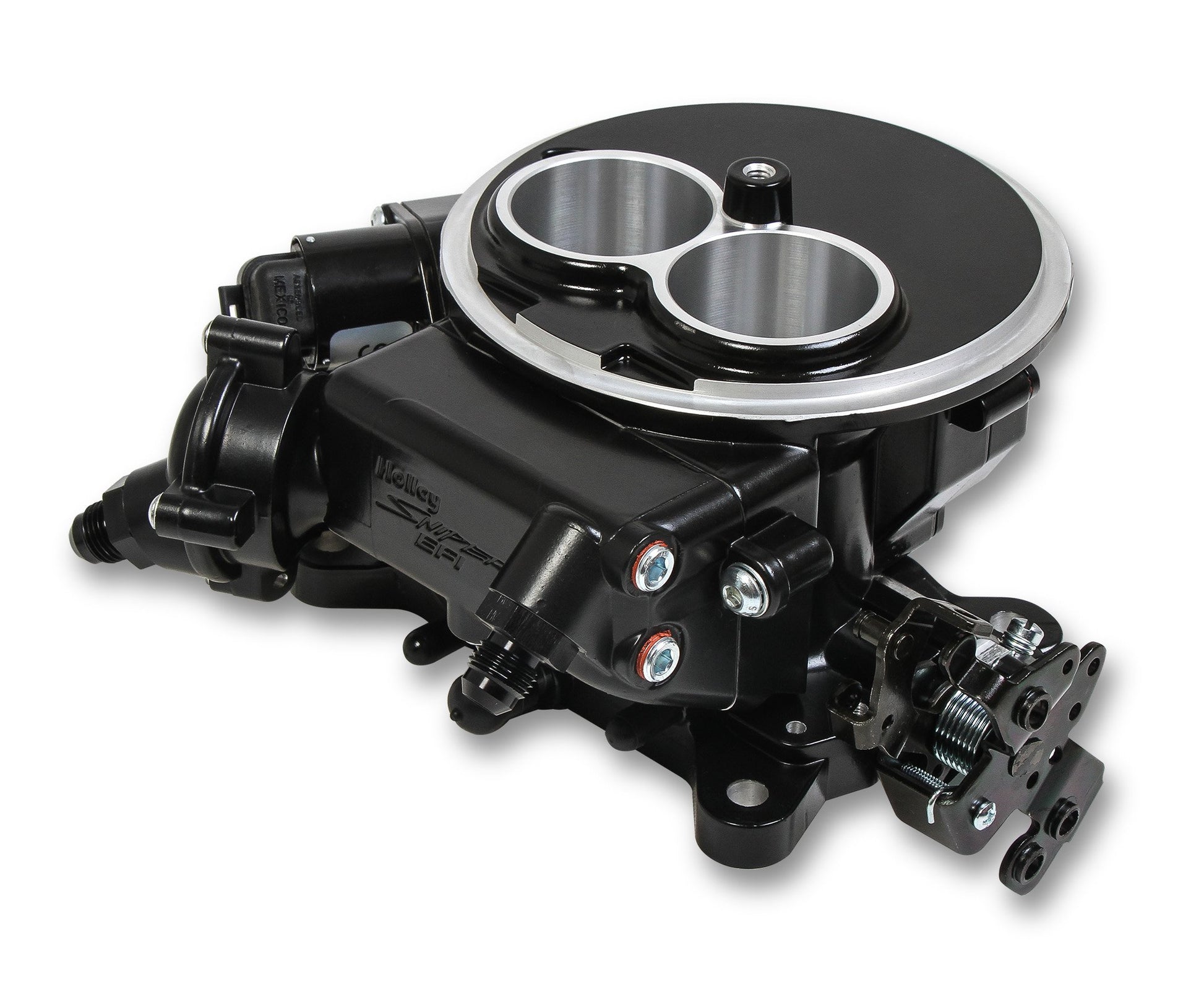

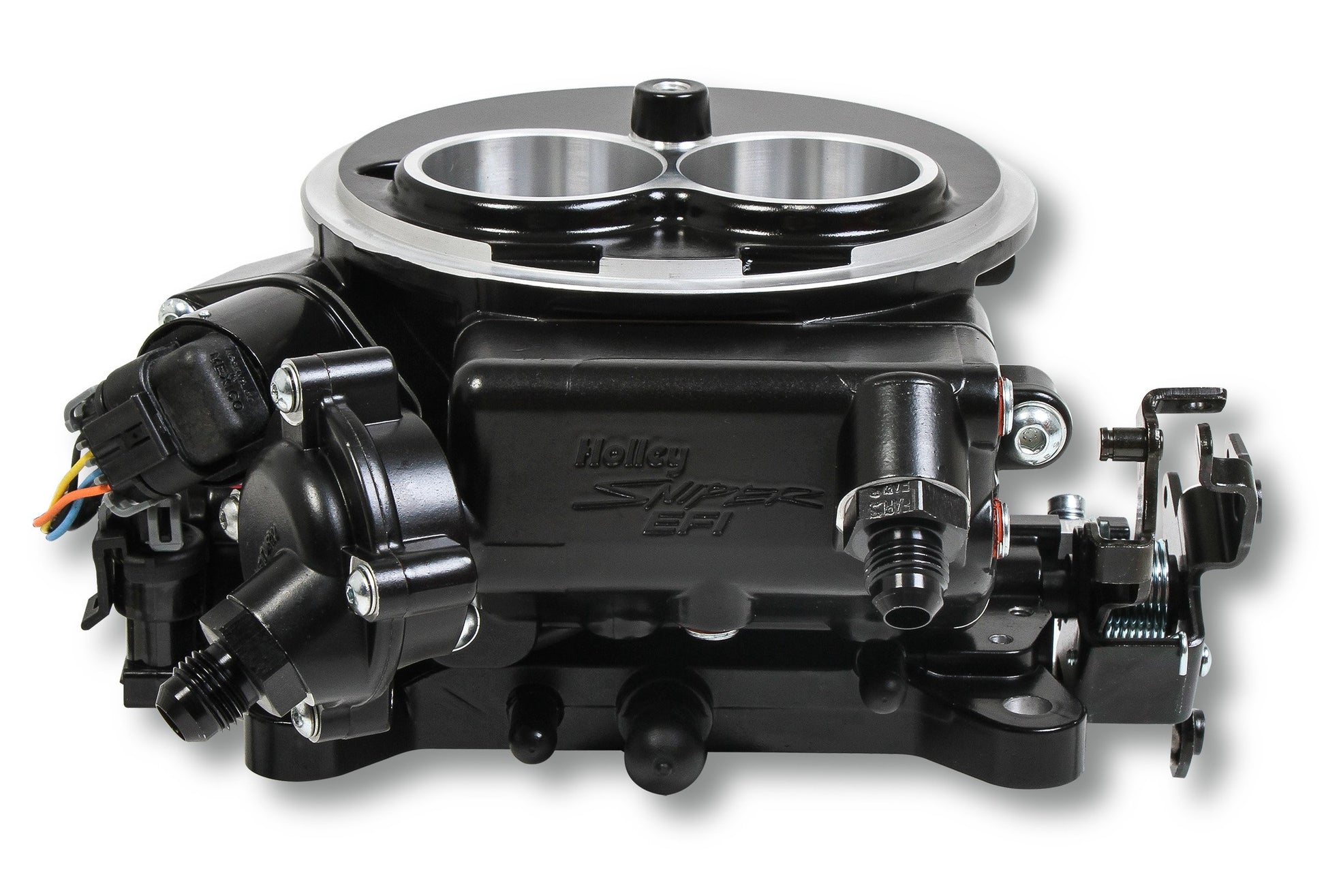

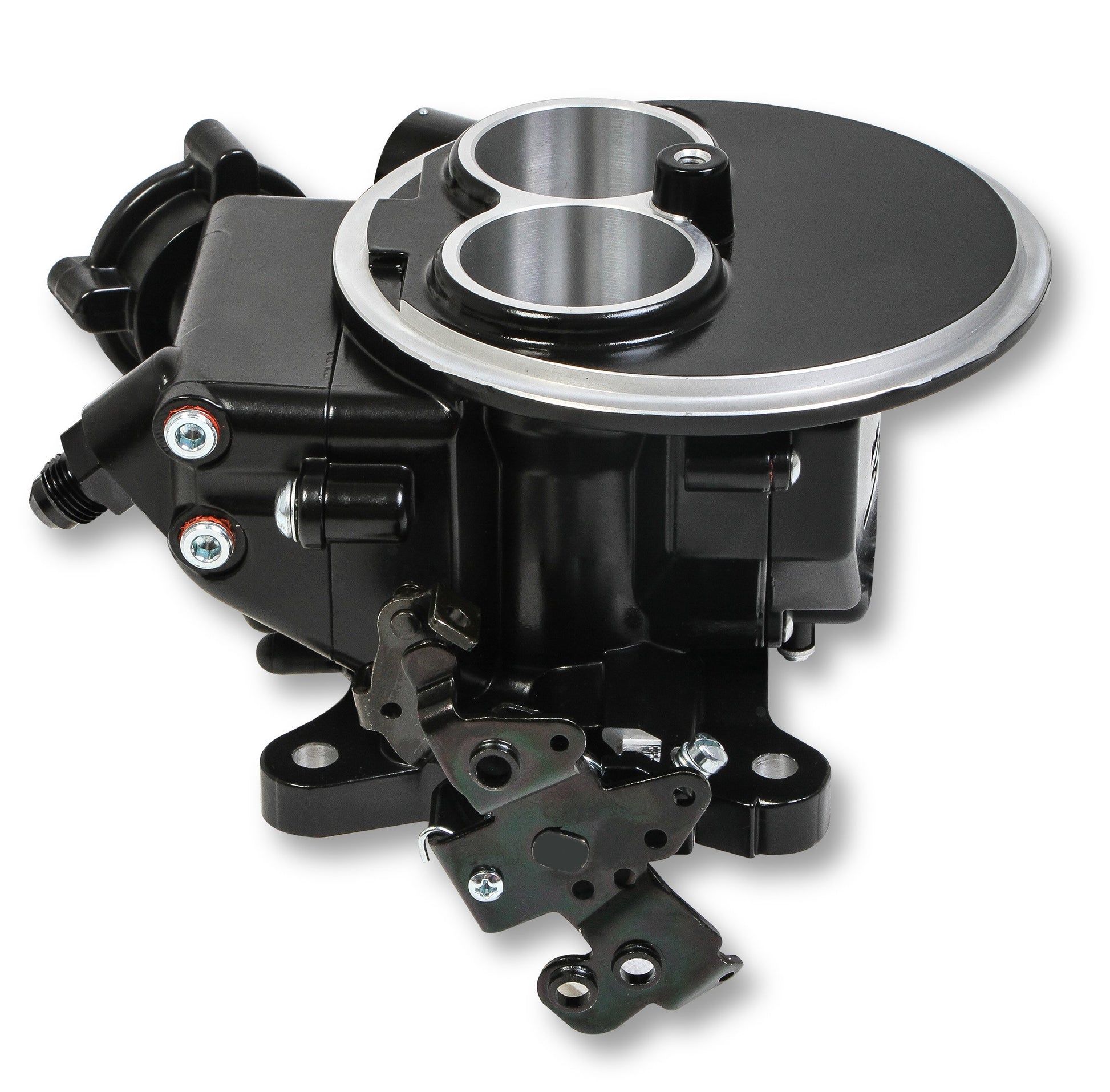

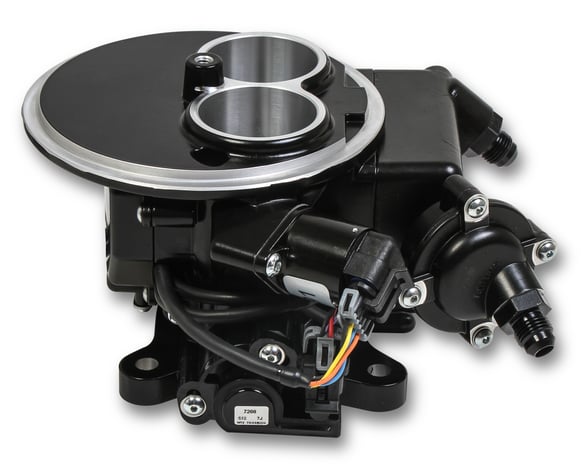

Holley - HOLLEY SNIPER EFI 2300 MASTER KIT - BLACK

Holley - HOLLEY SNIPER EFI 2300 MASTER KIT - BLACK

Holley-550-850K

$1,599.95 USD
$1,599.95 USD $1,599.95 USD
Promoção Esgotado
Need help finding the right part? Call us at (239) 270-5116 — Monday–Friday, 9am–5pm EST.
Ver informações completas

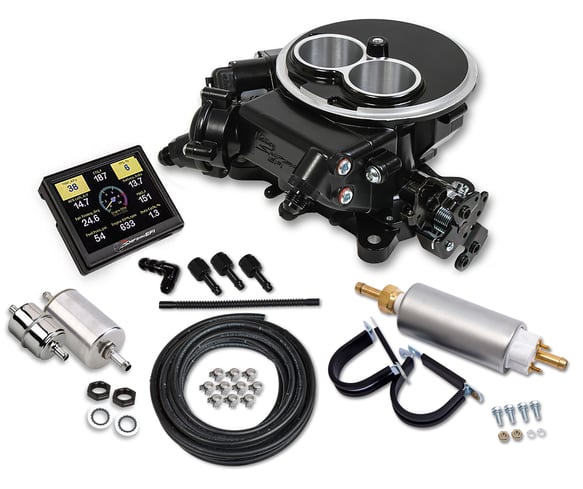

With the Sniper 2300, you can put an end to cold start issues, hesitations, vapor lock, and engine flooding on many vehicle applications. Our kit is the easiest way to upgrade to EFI in a cost-efficient package with just four connections to get started. This kit is capable of supporting up to 350 HP naturally aspirated or 285 HP forced induction with (2) 100 lb./hr. fuel injectors. Sniper 2300 was designed to be installed at home in your garage with minimal tools and the support of Holley's comprehensive installation manuals and online videos. The high resolution 3.5” LCD touchscreen user-friendly setup wizard has you answer a few simple questions about your engine and the system will begin self-tuning with no laptop or tuning experience required. This kit also includes 20 ft. of 3/8" Earl's Vapor Guard fuel hoses, fuel pump, fuel filters, and all necessary hardware for installation to return fuel into your fuel tank. For a more comprehensive installation and maximizing performance, check out our HyperSpark Ignition, air cleaners, and digital dashes.

Features:

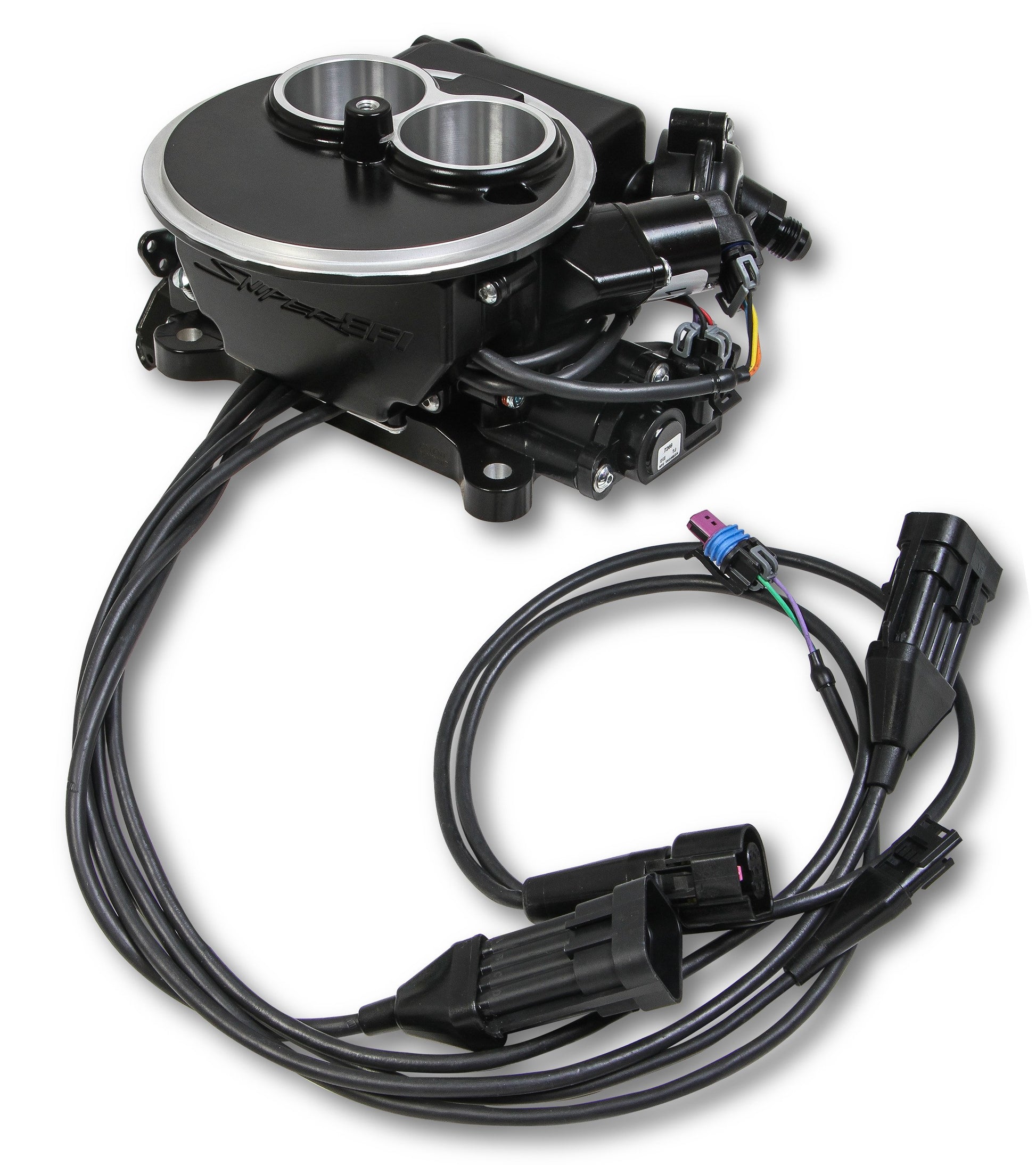

  • (4) wiring connections required for throttle body installation (battery+, battery-, switched ignition, and RPM)
  • (2) 100 lb./hr. fuel injectors with complete fuel system consisting of 20 ft. of 3/8" Earl's Vapor Guard fuel hoses, fuel pump, fuel filters, and all necessary hardware
  • Supports up to 350 HP naturally aspirated or 285 HP forced induction

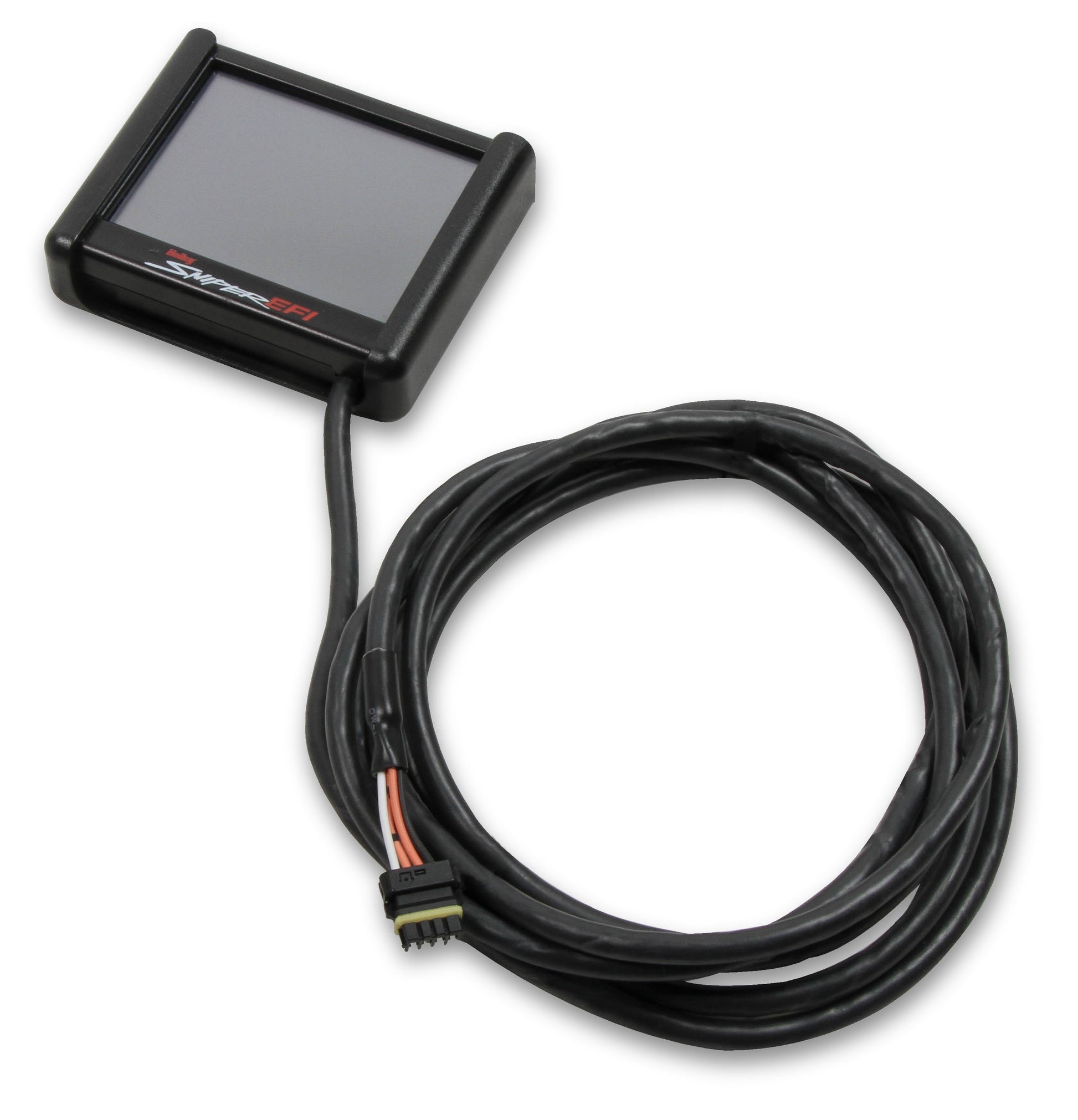

  • 3.5” LCD touchscreen handheld for real time data logging, initial setup, tuning, and gauge displays to view and monitor parameters with SD card to save key information

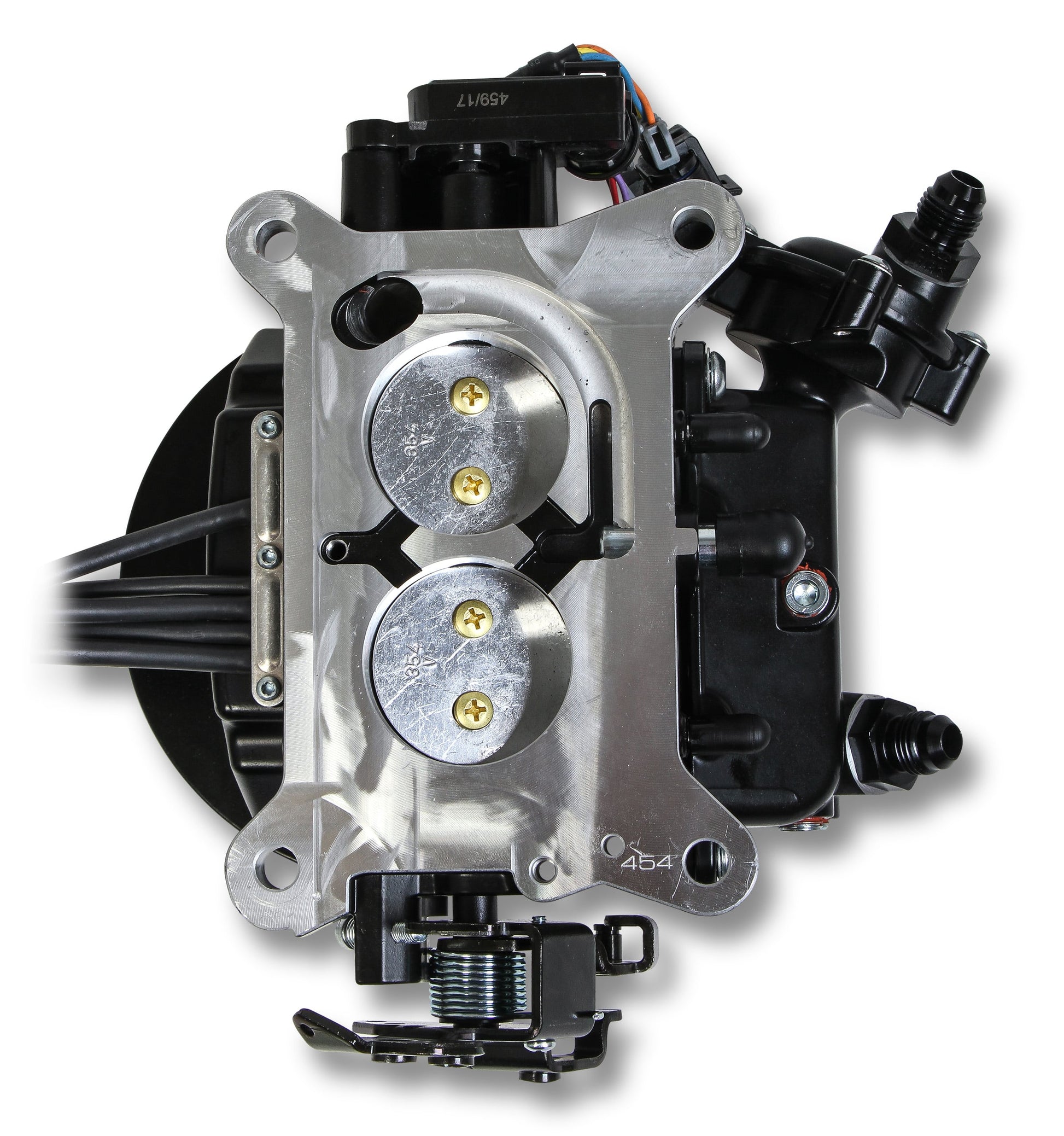

  • Bolt on 2300 Flange Carburetor Replacement
  • Self-tuning ECU with intuitive setup calibration wizard creating a base tune
  • ECU mounted to throttle body removing extra mounting and reducing RF noise
  • Internal fuel pressure regulator eliminates the hassle of plumbing an external fuel pressure regulator (Preset to 58.5 PSI)
  • Equipped with C4 / C6 Ford transmission kickdown lever along with TH350, TH400, and 700R4 provisions
  • Bosch LSU 4.9 Wideband O2 Sensor provides real time fuel map learning, with a no welding stainless steel O2 flange and T-bolt clamps
  • Accepts many common 5 1/8" OEM or aftermarket air cleaner assemblies

SPECS:

Accelerometer Support No
Boost Control No
Brand Holley Sniper EFI
CAN-BUS Support No
Category Air and Fuel Delivery
CFM 580
Coil Per Cylinder Ignition Support No
Datalogging Support Yes
Distributor Included No
Dry Nitrous Control Yes
e85 Support No
EGT Support No
Emission Code 3
Finish Black
Flange Size 2300
Flange Style 2300
Forced Induction Support Yes
Fuel Filter Included Yes
Fuel Hose Included Yes
Fuel Injectors Included Yes
Fuel Pressure 58.5 PSI
Fuel Pressure Regulator Included Yes
Fuel Pump Flow Rating 240 LPH
Fuel Pump Included Yes
Fuel Pump Type Inline
Fuel System Master Kit
Grade Type Performance
Height 3.28"
Ignition Timing Control Yes
Individual Cylinder Fuel Corrections No
Injector Size 2x 100 lb/hr @ 58.5 PSI
Inlet / Outlet Size 9/16-18 Female O-Ring (AN 6)
Intake Manifold Included No
Knock Retard Support No
MAP Sensor 2 Bar
Max Horsepower Rating 350 Naturally Aspirated
Multi-Stage Nitrous Control Yes
Part Type Fuel Injection Conversion Kit
Product Type Sniper EFI 2300
Progressive Nitrous Control Yes
Self-Tuning Yes
Sub Category Service Kits
Throttle Position Sensor Included Yes
Traction Control Support No
Transmission 700R4/200R4, Ford C4/C6, TH350
User-Tuneable Yes
Wet Nitrous Control Yes
UPC 090127021293
Part Number 550-850K
