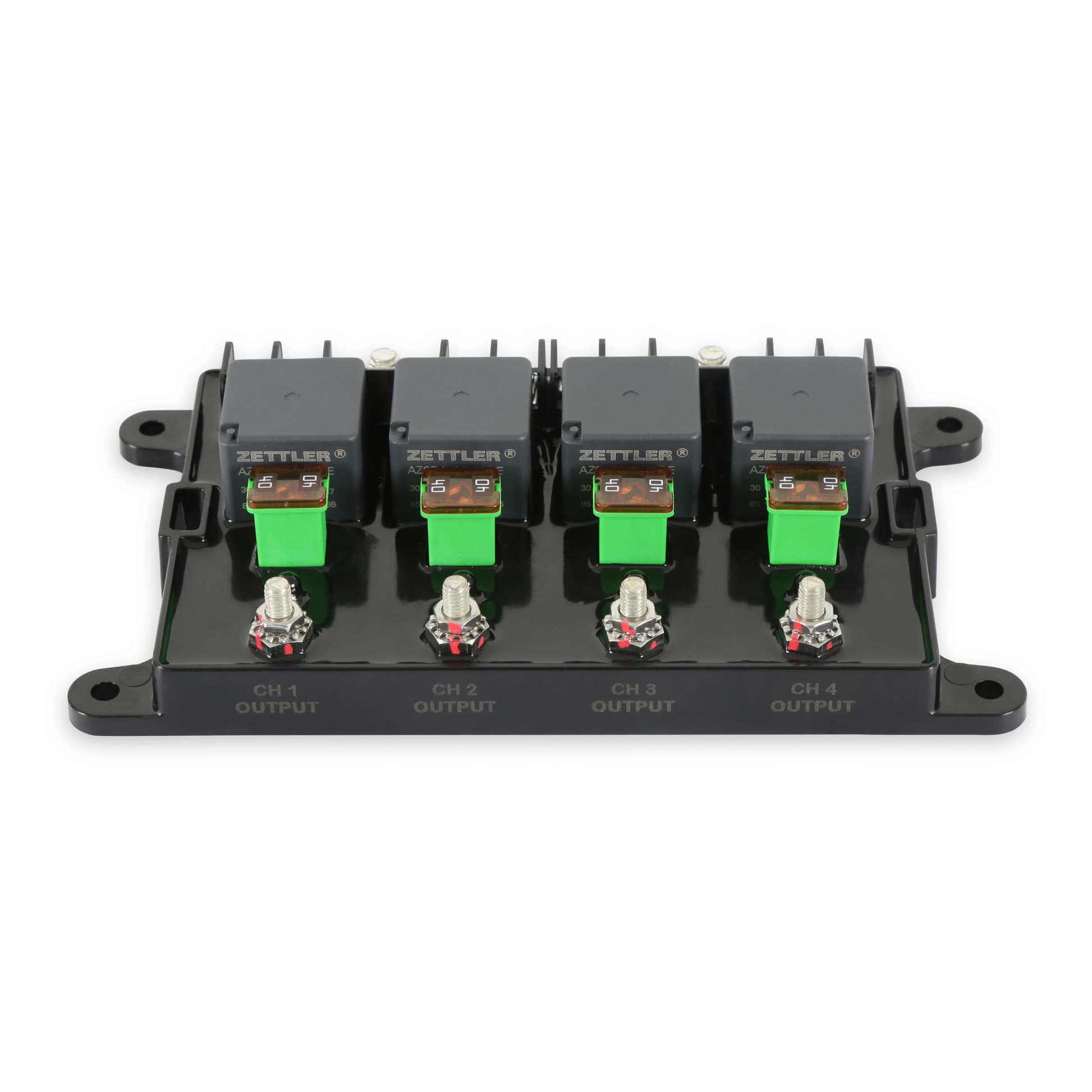

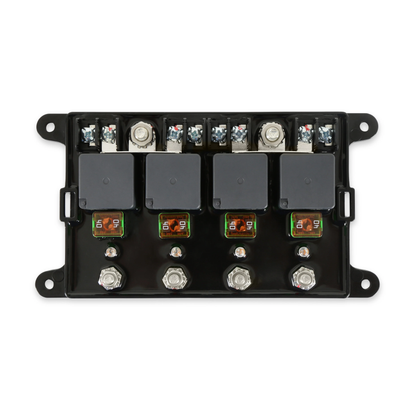

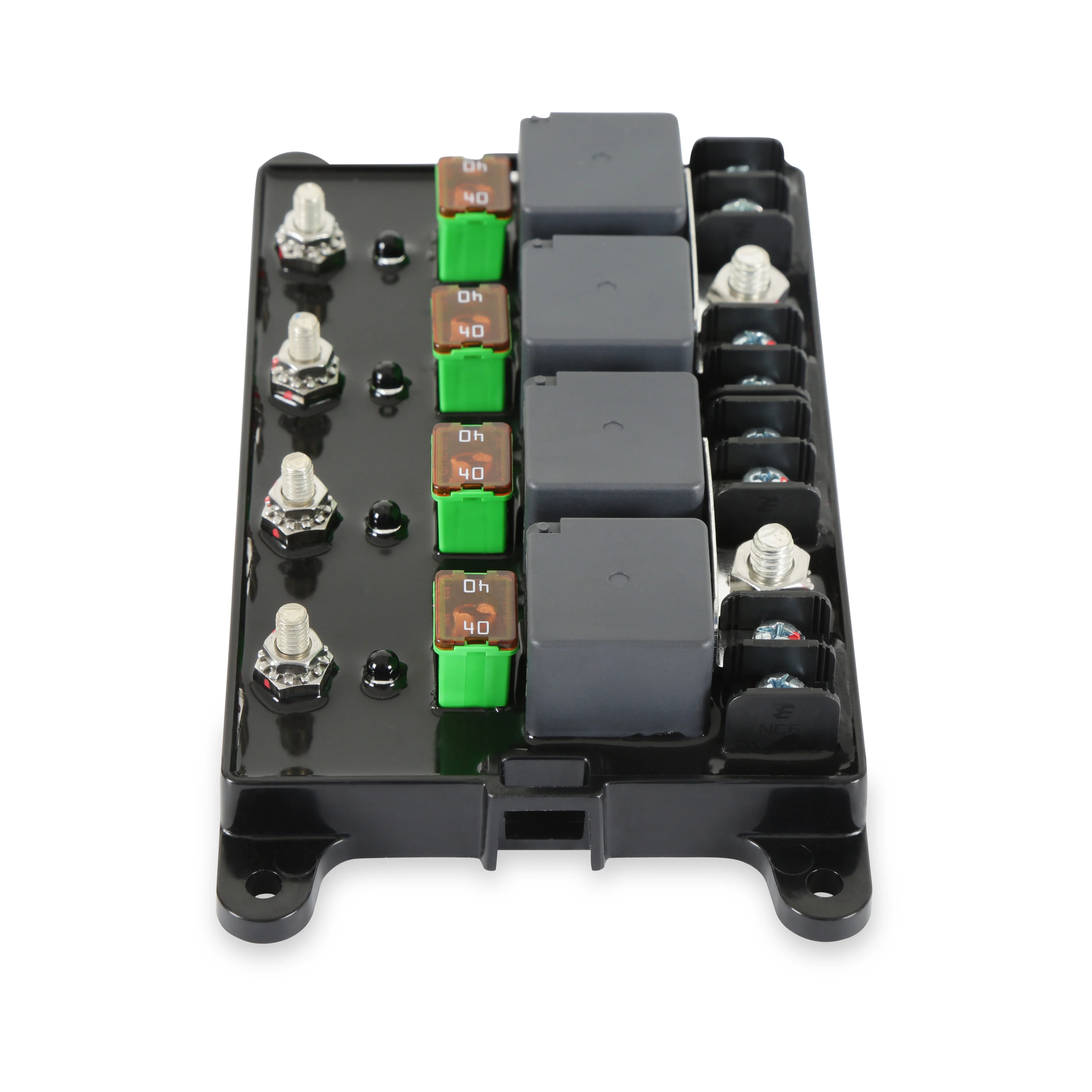

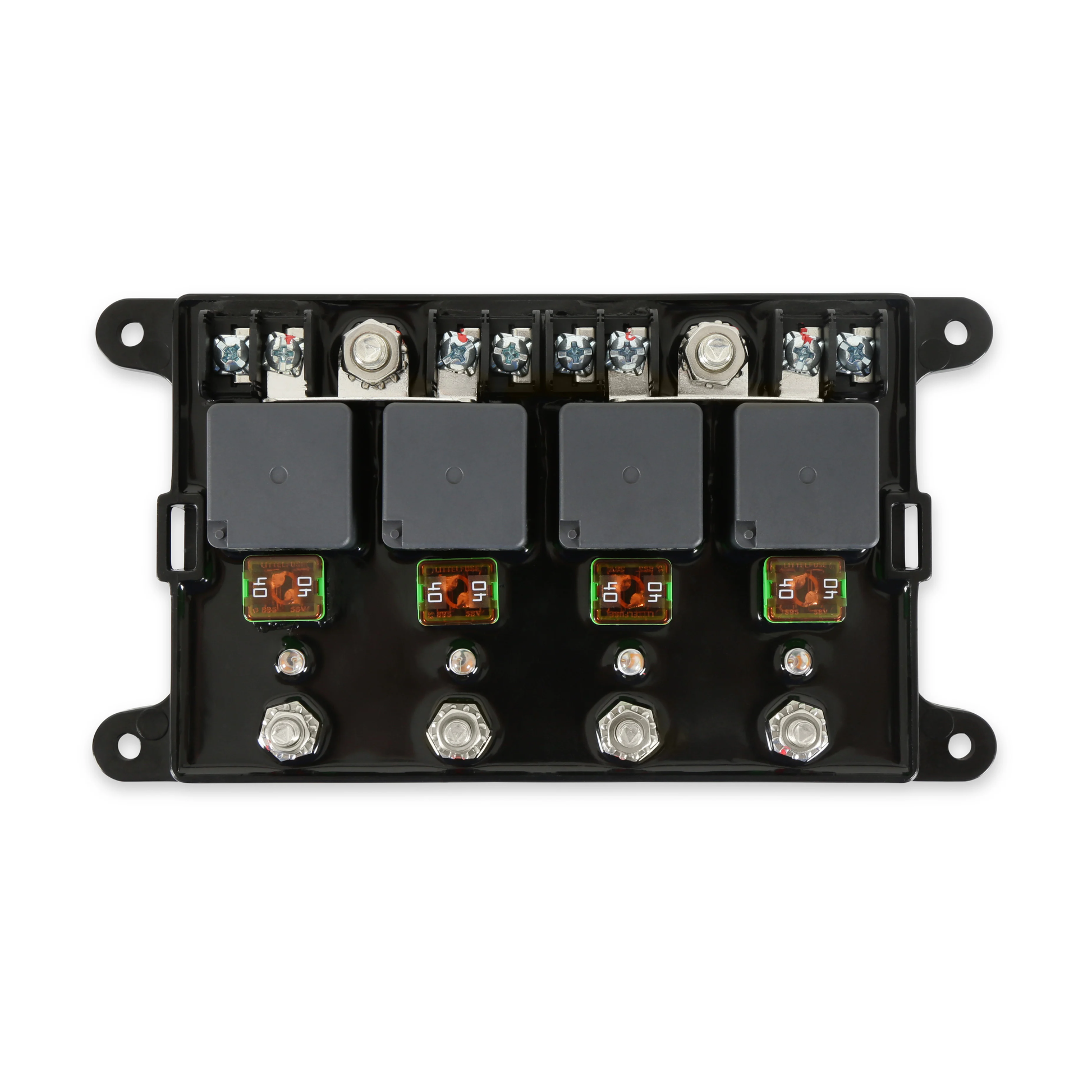

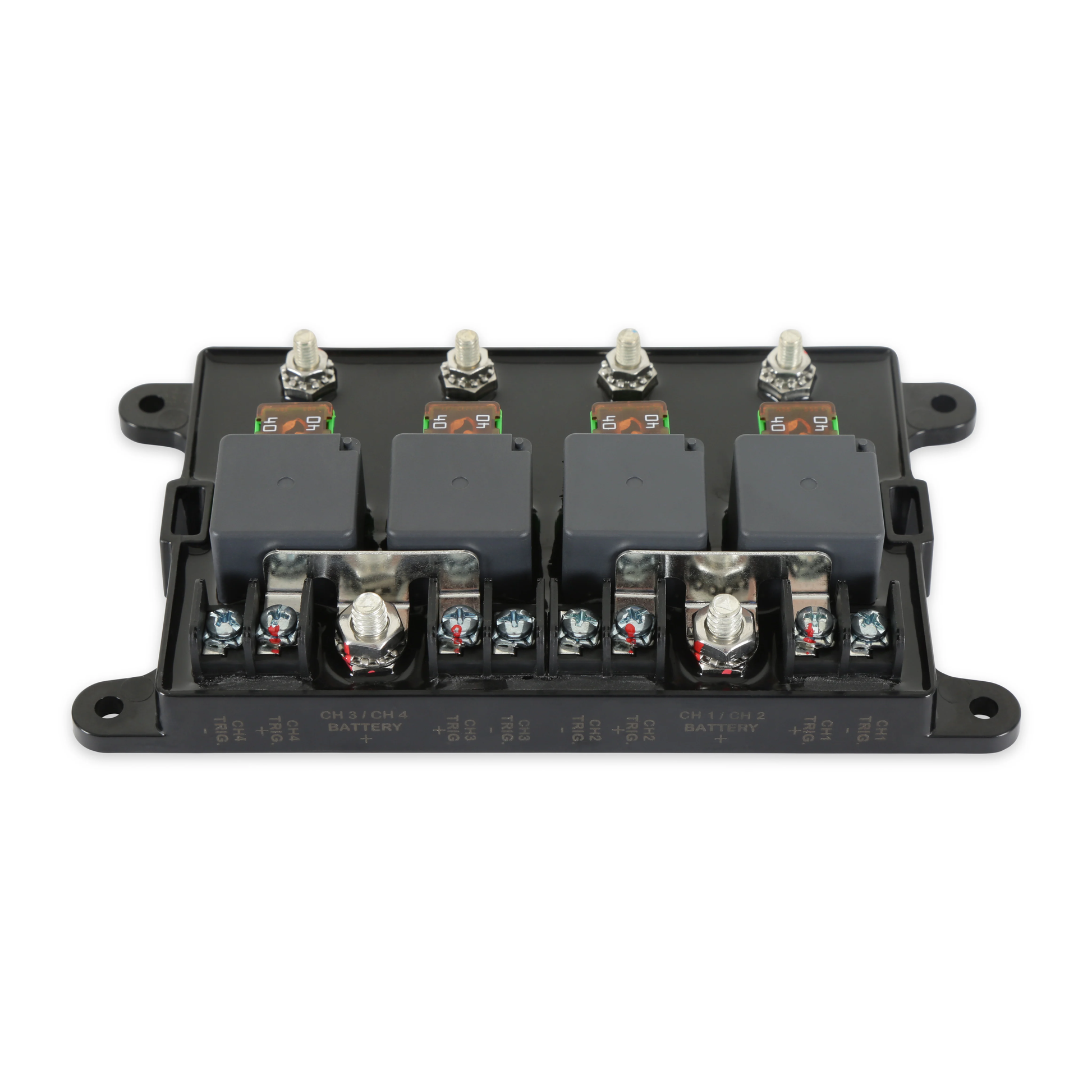

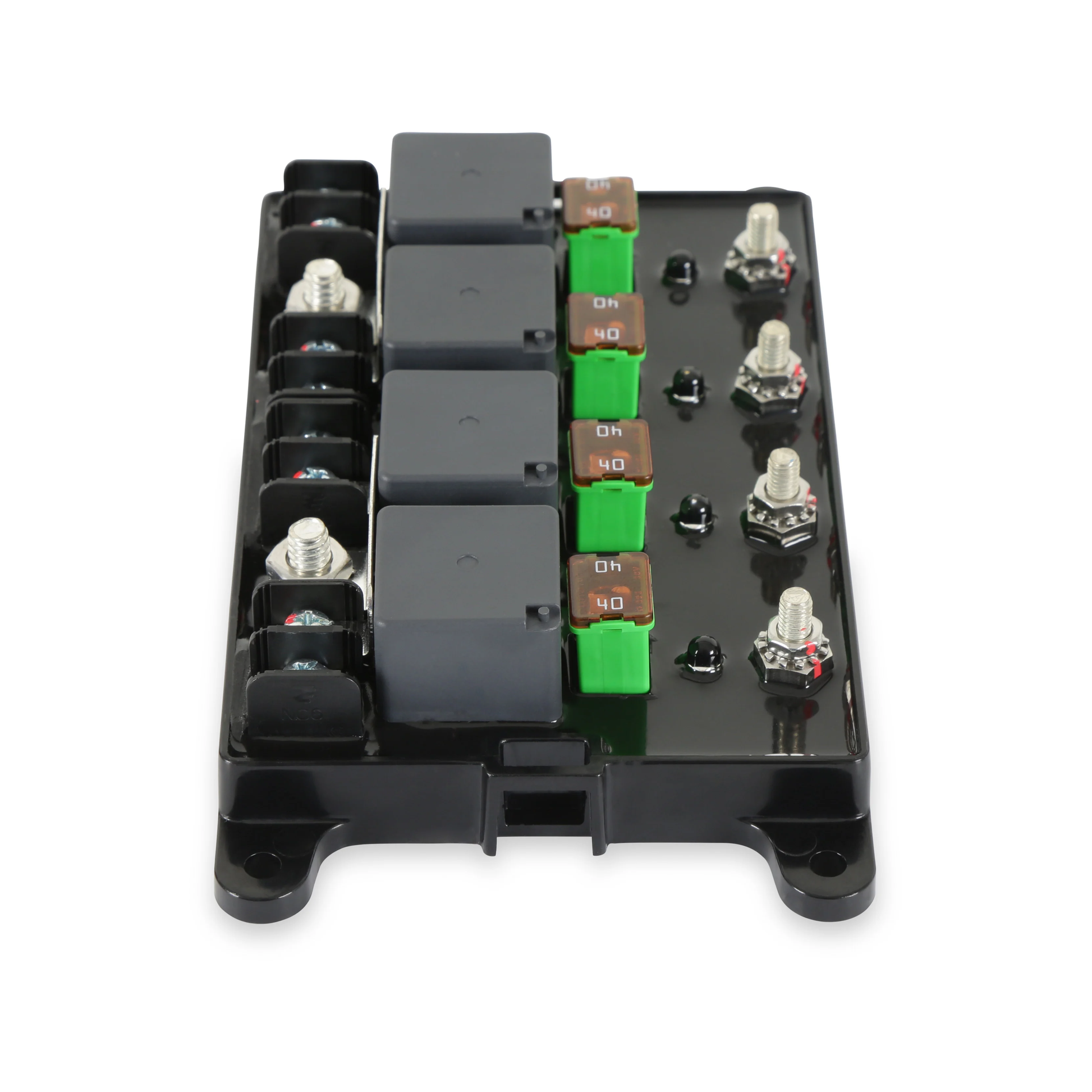

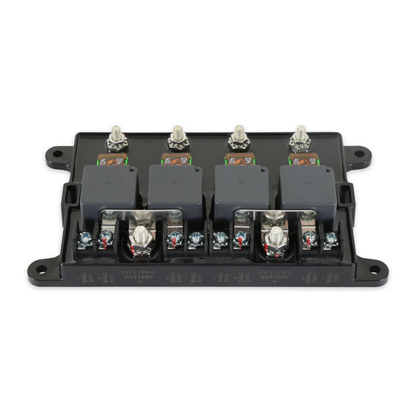

MSD - MSD 4 CHANNEL RELAY MODULE
MSD - MSD 4 CHANNEL RELAY MODULE
SKU:MSD-7566-4
Preço normal
$168.95 USD
Preço normal
Preço promocional
$168.95 USD
Quantidade
Não foi possível carregar a disponibilidade de retirada.
Need help finding the right part?
Call us at
(239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
Ver informações completas
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
OVERVIEW
MSD relay modules are designed to be easily installed in most automotive electrical systems where a high amperage relay is needed. These relay modules are perfect use with high amperage electric fuel pumps and high CFM electric cooling fans. Each relay comes with a 40amp fuse, however lower amp fuses can be installed if required. The relay housing comes with a labeled lid that snaps into place providing a clean installation, and protecting the main power stud and triggers from contamination or accidental contact.
Features:
- LED status indicators, show you which channel is triggered at a glance
- 7V to 20V supply to fit a wide variety of applications
- Configurable single-wire activation with Ground (-) input or 12V (+) input, with removal of the Tie-Bar

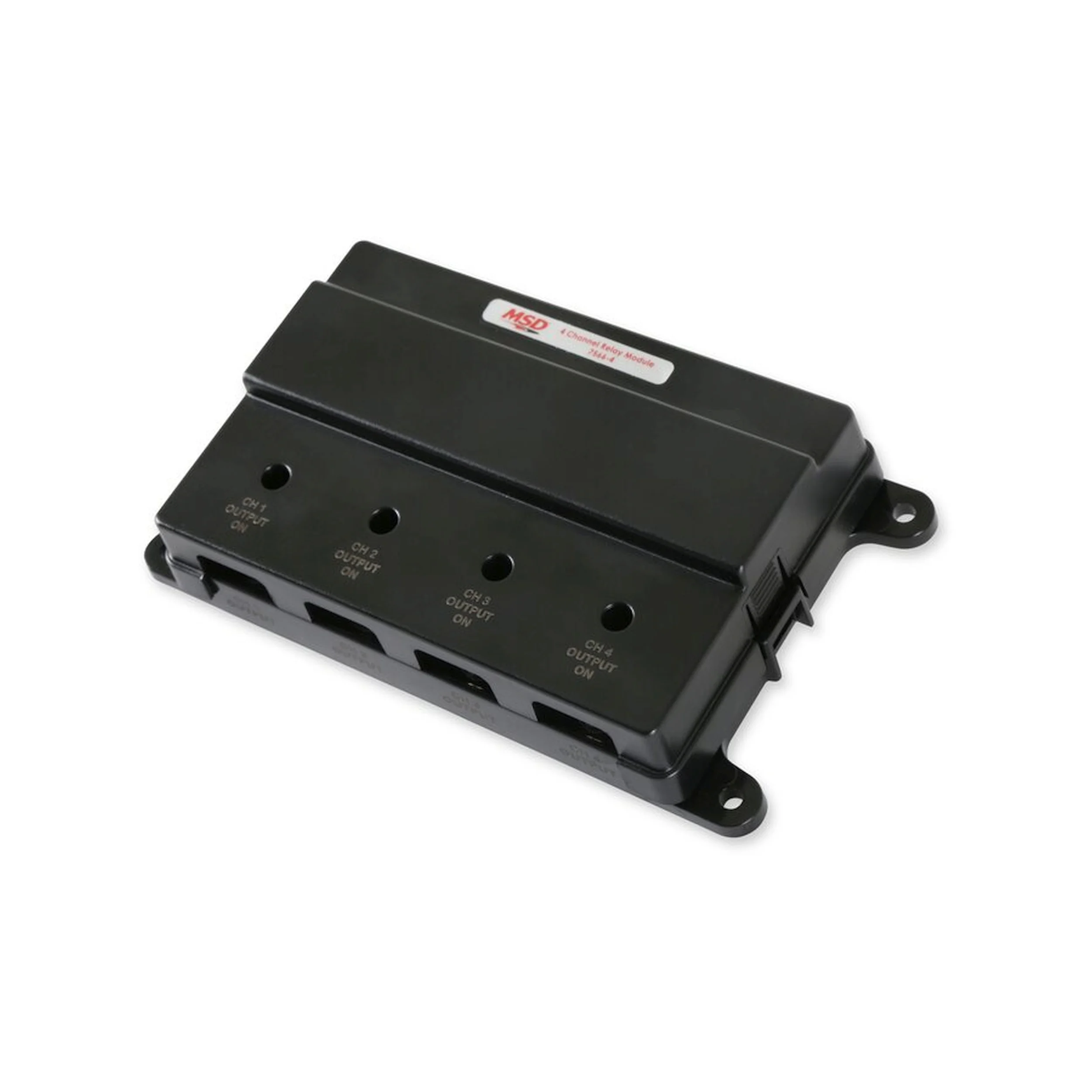

- Removable cover for easy accessibility
- Low profile JCASE fuses provide ample protection in case of a short
- Independent 40A outputs, to supply power to most aftermarket fuel pumps and electric fans
| Brand | MSD |
|---|---|
| Category | Electrical, Lighting and Body |
| Emission Code | 5 |
| Part Type | Relay Control Module |
| Product Type | Relays |
| Sub Category | Control Modules |
| Terminal Type | Screw |
| Warranty | Manufacturer's Limited 1 Year Warranty |
| UPC | 090127297049 |
| Part Number | 7566-4 |
