Platinum Racing Products - KS4-P -3 TO 25 KHZ KNOCK SENSOR KIT TO SUIT NISSAN CA18

CA18 SPECIFIC KNOCK SENSOR CONVERSION KIT

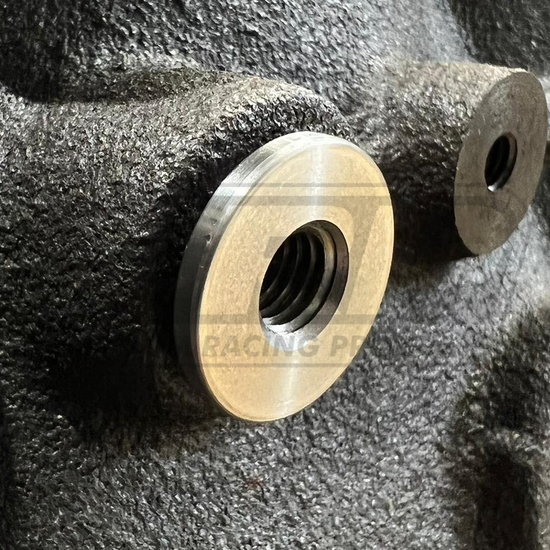

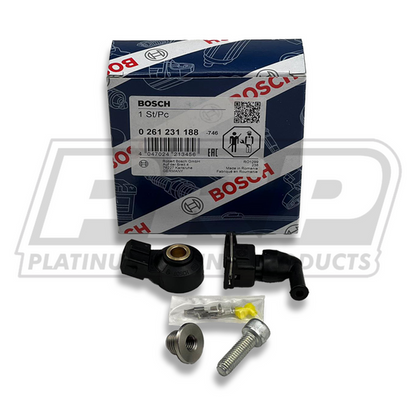

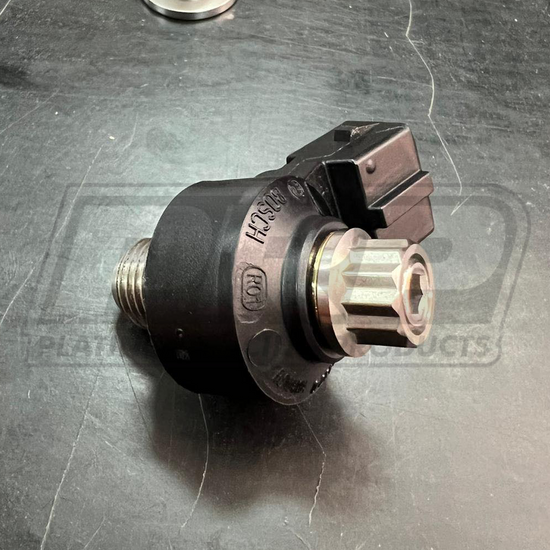

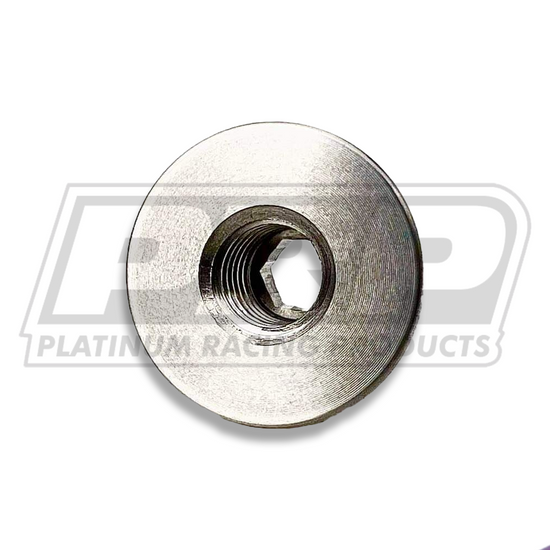

For the CA18 blocks that do not have the correct landing pad for the conventional (RB26 Style) Bosch knock sensor. We've developed a stainless fitting that converts the block to take it properly, this small well designed fitting has the required tapered thread that's easily installed with an allen key as a set and forget conversion for your conventional knock sensor to bolt up to. We have an optional extra with a stainless stud and titanium nut available. Along with the new features it still includes everything you're used to such as a high quality connector kit including a high temperature rated 90 degree silicone boot.

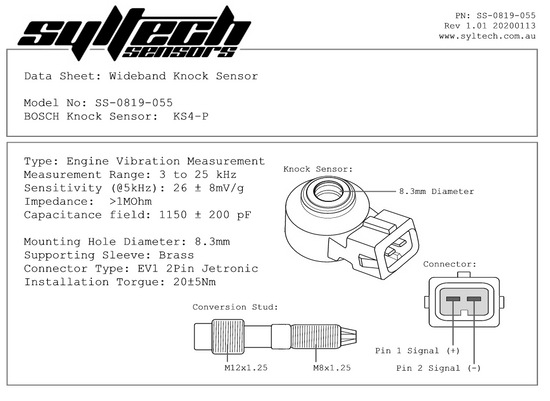

Type: Engine Vibration Measurement
Measurement Range: 3 to 25 kHz
Sensitivity (@5kHz): 26 ± 8mV/g
Impedance: >1MOhm
Capacitance field: 1150 ± 200 pF

Mounting Hole Diameter: 8.3mm
Supporting Sleeve: Brass
Connector Type: EV1 2Pin Jetronic
Installation Torque: 20±5Nm

Installation instructions are HERE (similar to RB)

NOTE: For vehicles running on Ethanol

Please talk to your tuner about setting up your ECU to see the specific frequencies for detonation when using Ethanol fuel and also compatibility with your ECU
